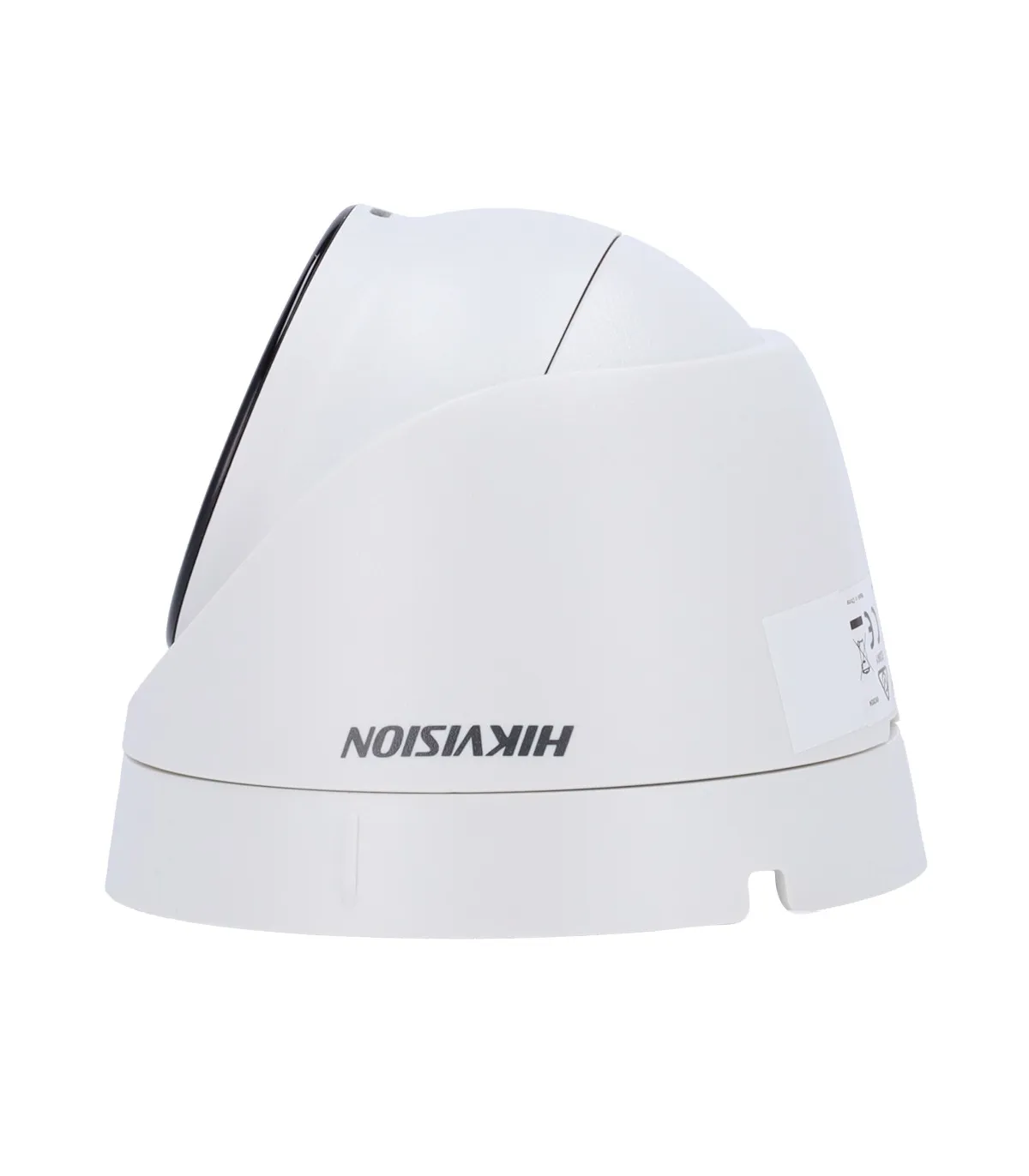

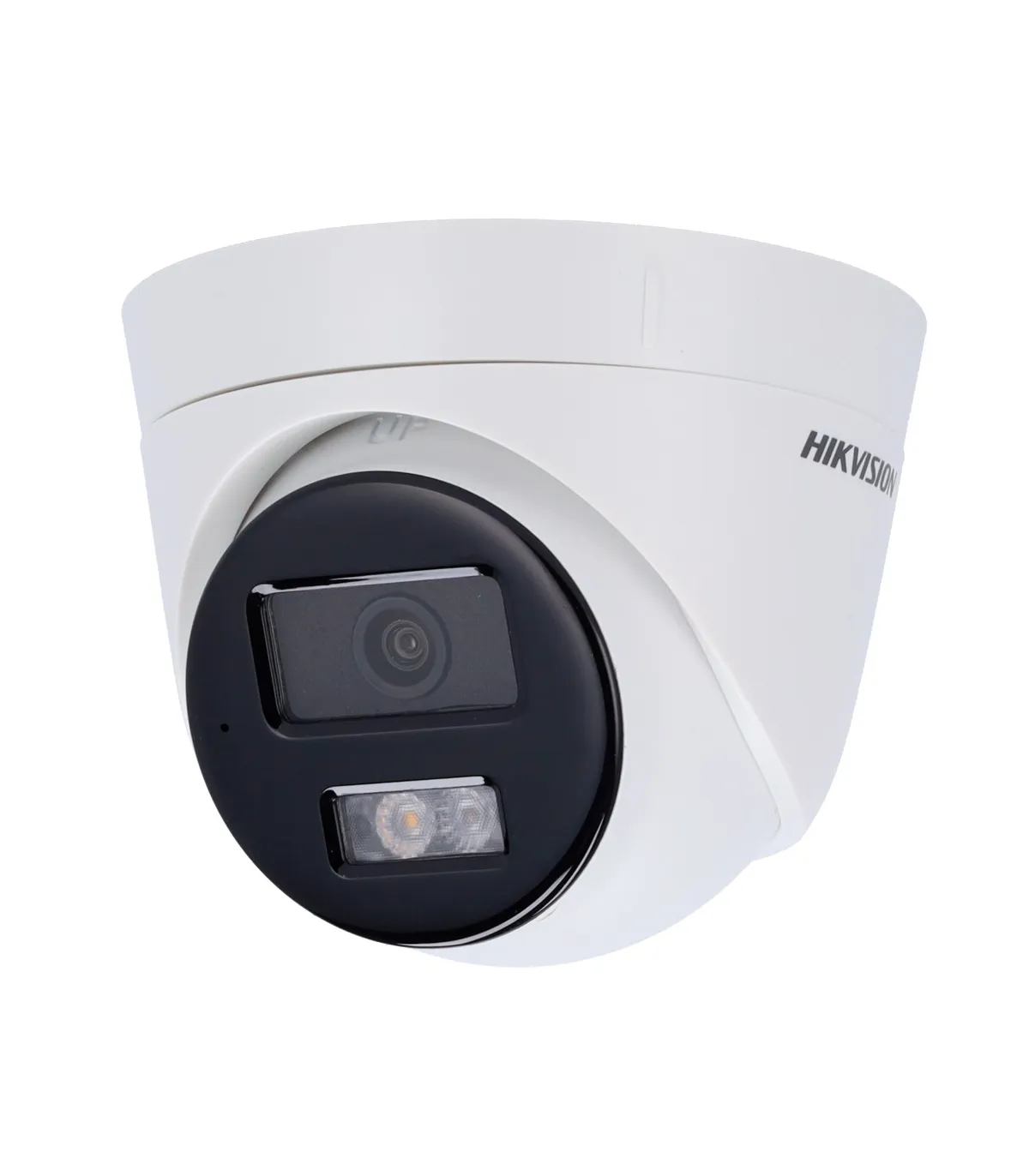

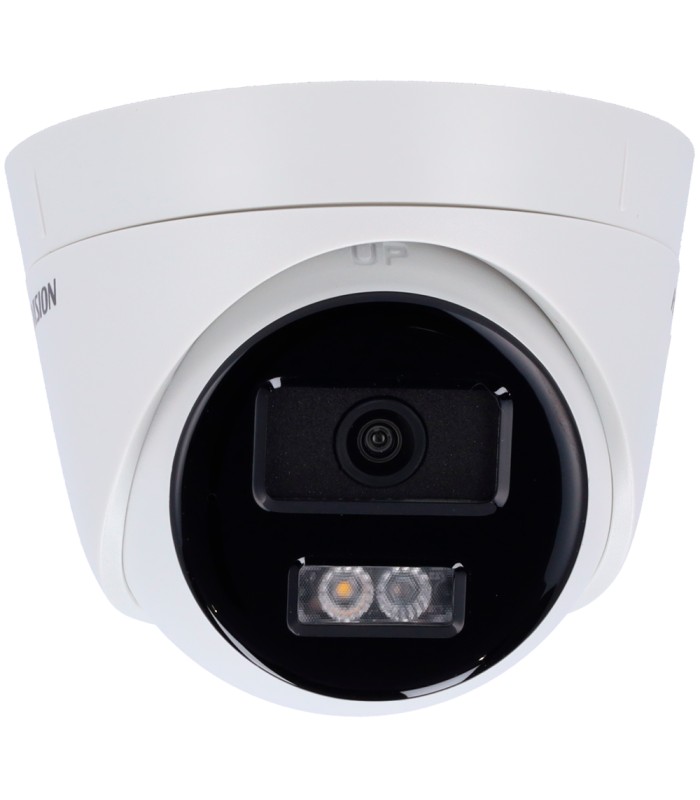

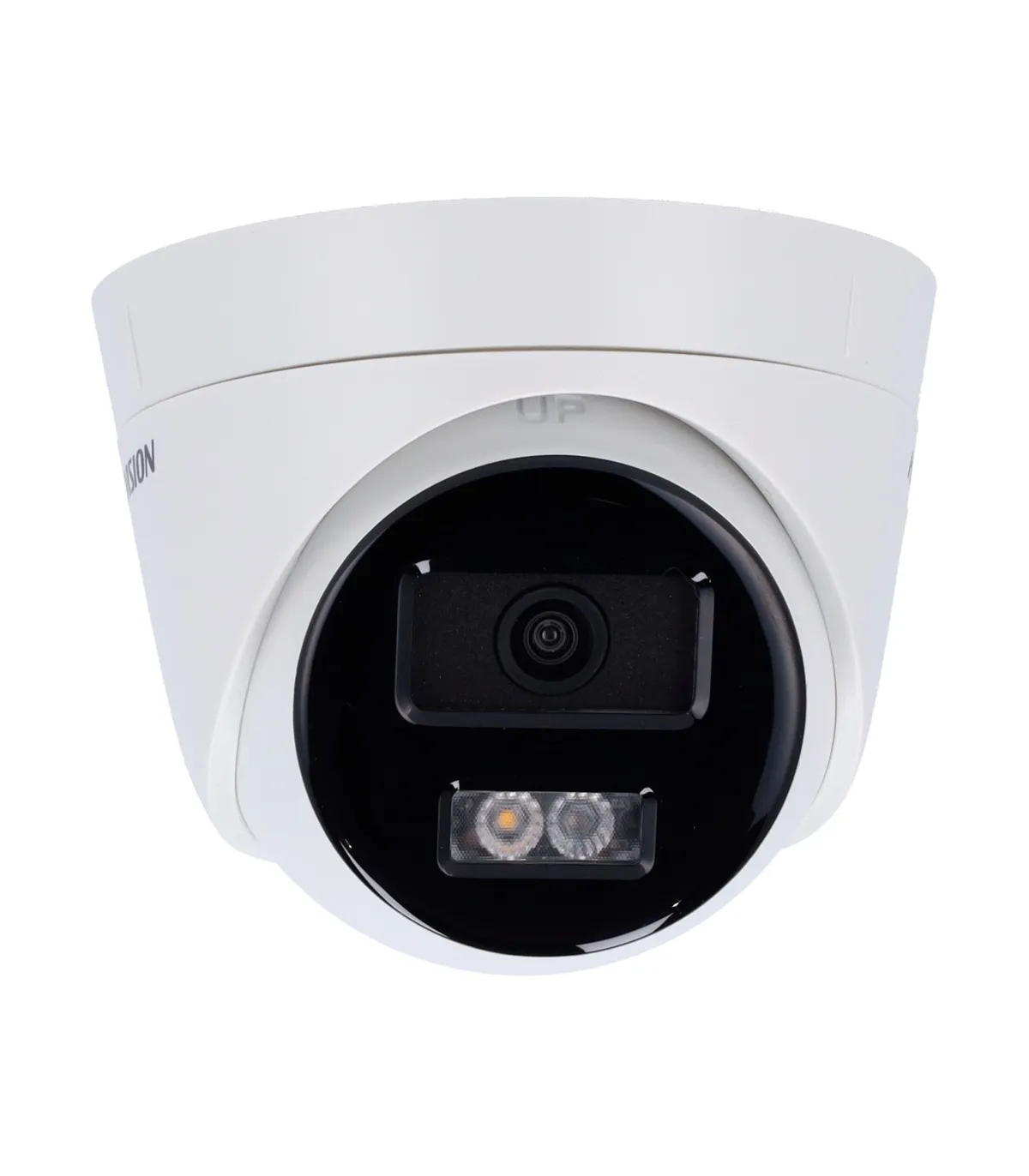

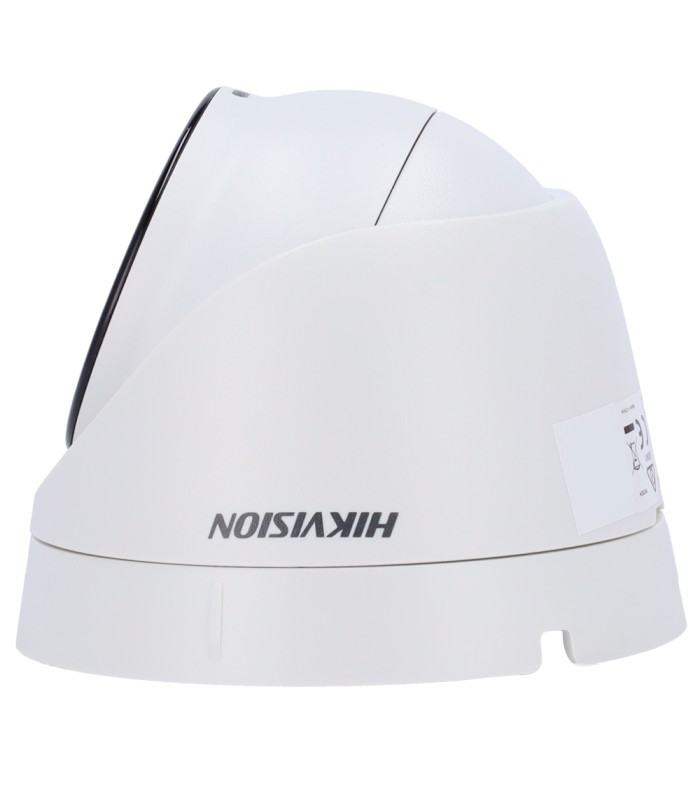

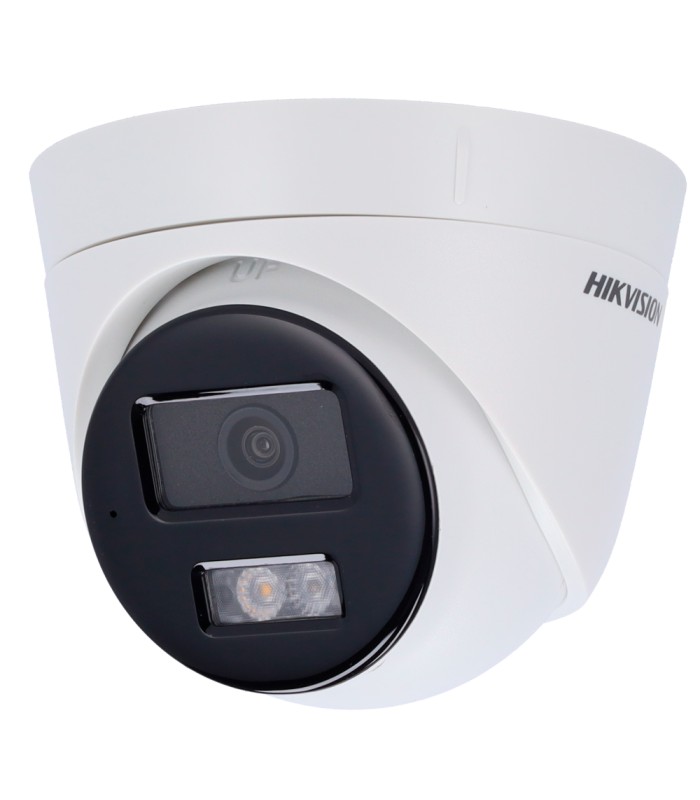

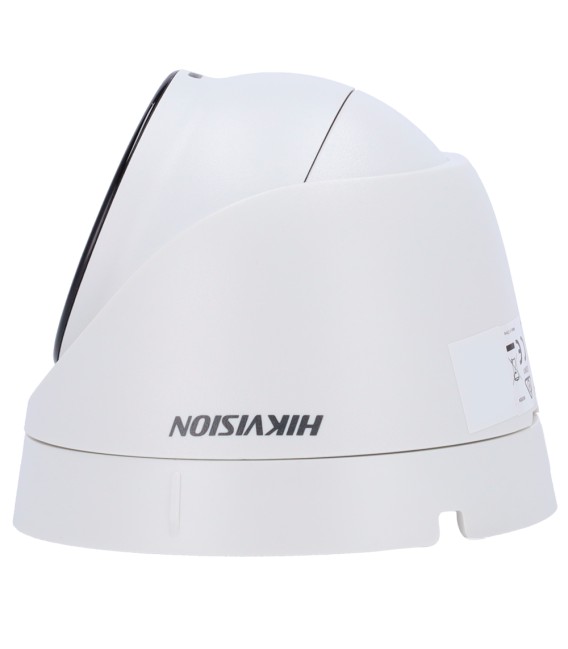

Hikvision DS-2CD1343G2-LIU IP Turret Camera (2.8mm)
Brand: HIKVISION VALUE
- IP Turret Camera Hikvision
- Value Range
- 4 MP | Lens 2.8 mm | Built-in microphone
- IR 30 m | WDR 120 dB | White light 30 m
- PoE | H.265+ | IP67 | Motion detection 2.0
- WEB, CMS Software, Smartphone, and NVR
Hikvision DS-2CD1343G2-LIU(2.8mm) IP Turret Camera
- Hikvision
- Value Range
- IP Turret Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- Lens 2.8 mm
- 0 Lux
- EXIR IR range 30 m
- White light 30 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion detection 2.0
- WDR (120 dB)
- 3D DNR
- Microphone integrated
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- Waterproof IP67
Technical specifications
| Brand | HIKVISION |
| Range | Value |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Angle of view (FOV) | H: 99°, V: 55°, D: 116° |
| DORI | 59 m (D), 23 m (W), 11 m (R), 5 m (L) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum illumination | Color: 0.005 Lux @(F2.0, AGC ON) 0 Lux with EXIR IR range 30 m White light 30 m |
| Day/night | Removable ICR mechanical filter |
| Image enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Function mirror, Privacy masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Microphone integrated |
| Audio type | Mono |
| Audio compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio bit rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |

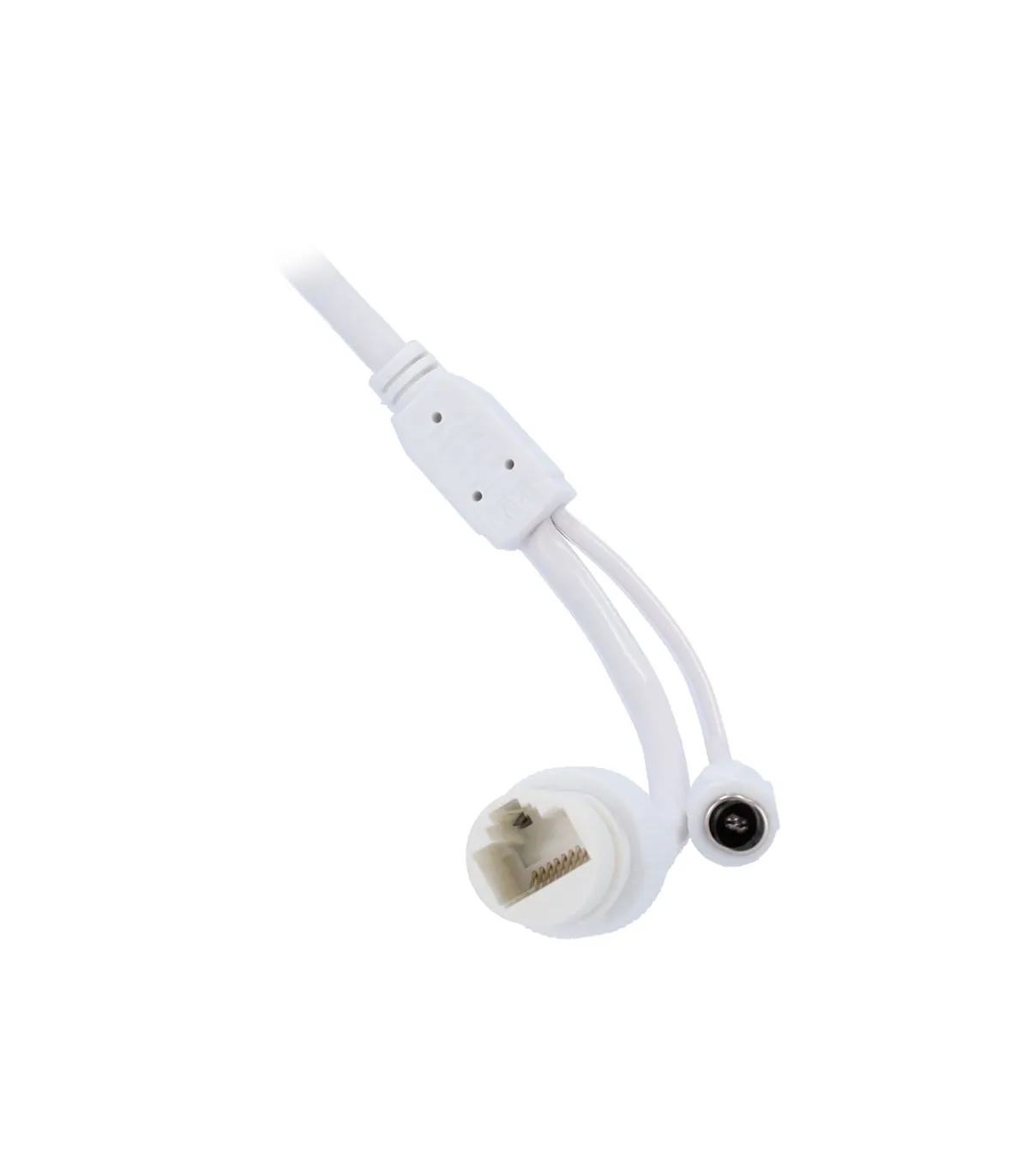

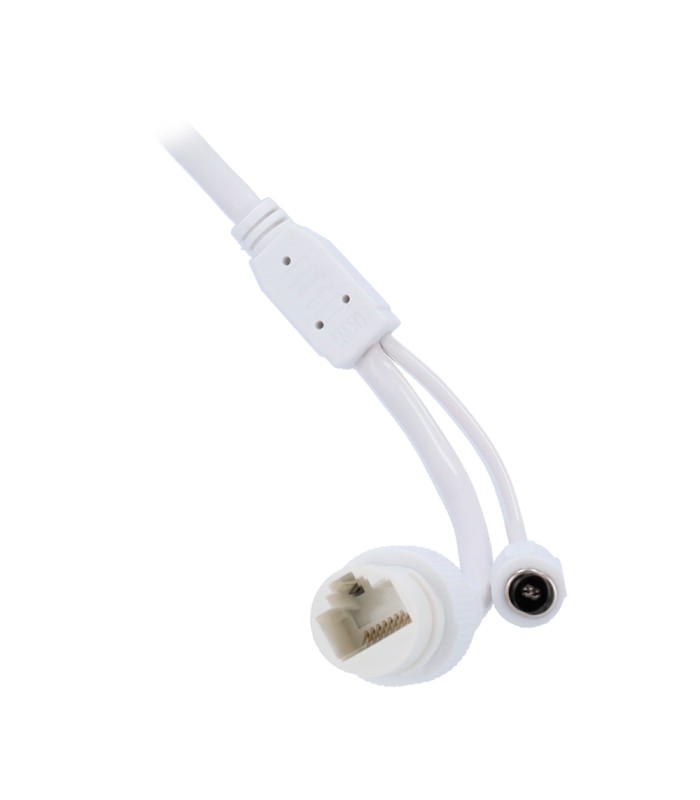

| Network interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central |
| Interoperability | ONVIF, ISAPI |

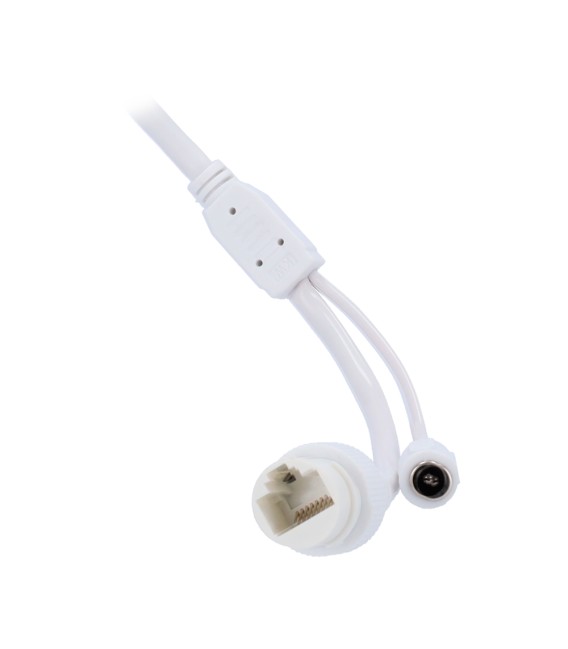

| Power | DC 12 V / 400 mA / 5 W max. PoE IEEE802.3af, Class 3, 6.5 W max. |
| Protection grade | Waterproof IP67 |
| Material | Metal and plastic |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | Ø 110 x 89.2 mm (H) |

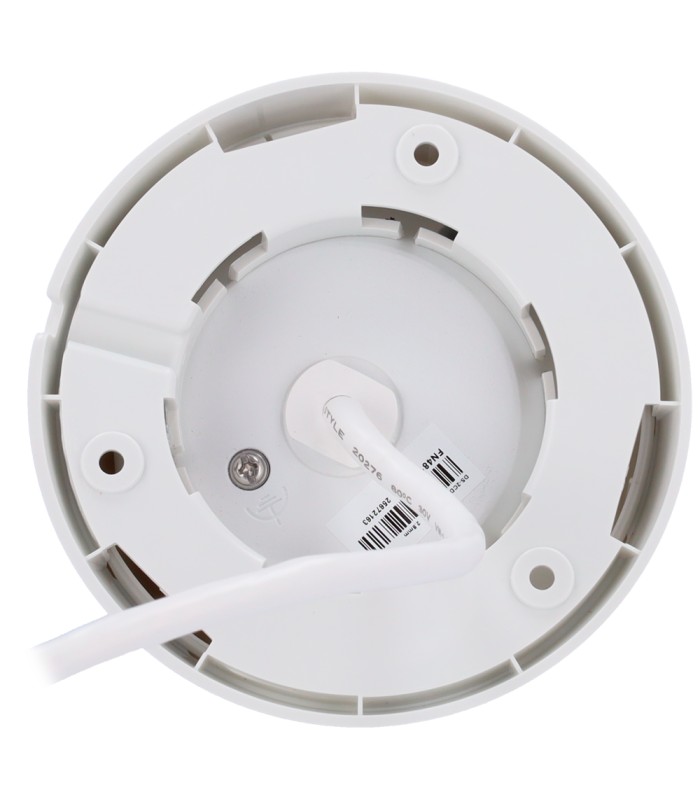

| Dimensions of the base | Ø base 110 mm / Ø between screws 85 mm / 3 screws |
| Weight | 340 g |
Contents
- Hikvision IP Turret Camera Value
- Installation material
- Use instructions
| Brand | Hikvision |
| Type of camera | Turret |
| Max. Resolution | 4 Megapixel |
| Technology | IP |
| PoE powered | PoE |
