- Hikvision
- PRO Series IP Dome Camera
- 4 MP Resolution | PoE | Alarms | ColorVu
- 2.8 mm | Integrated Microphone | Audio
- Hybrid Light 30 m | Motion Detection 2.0
- AcuSense | Facial Recognition | IP67 | IK10

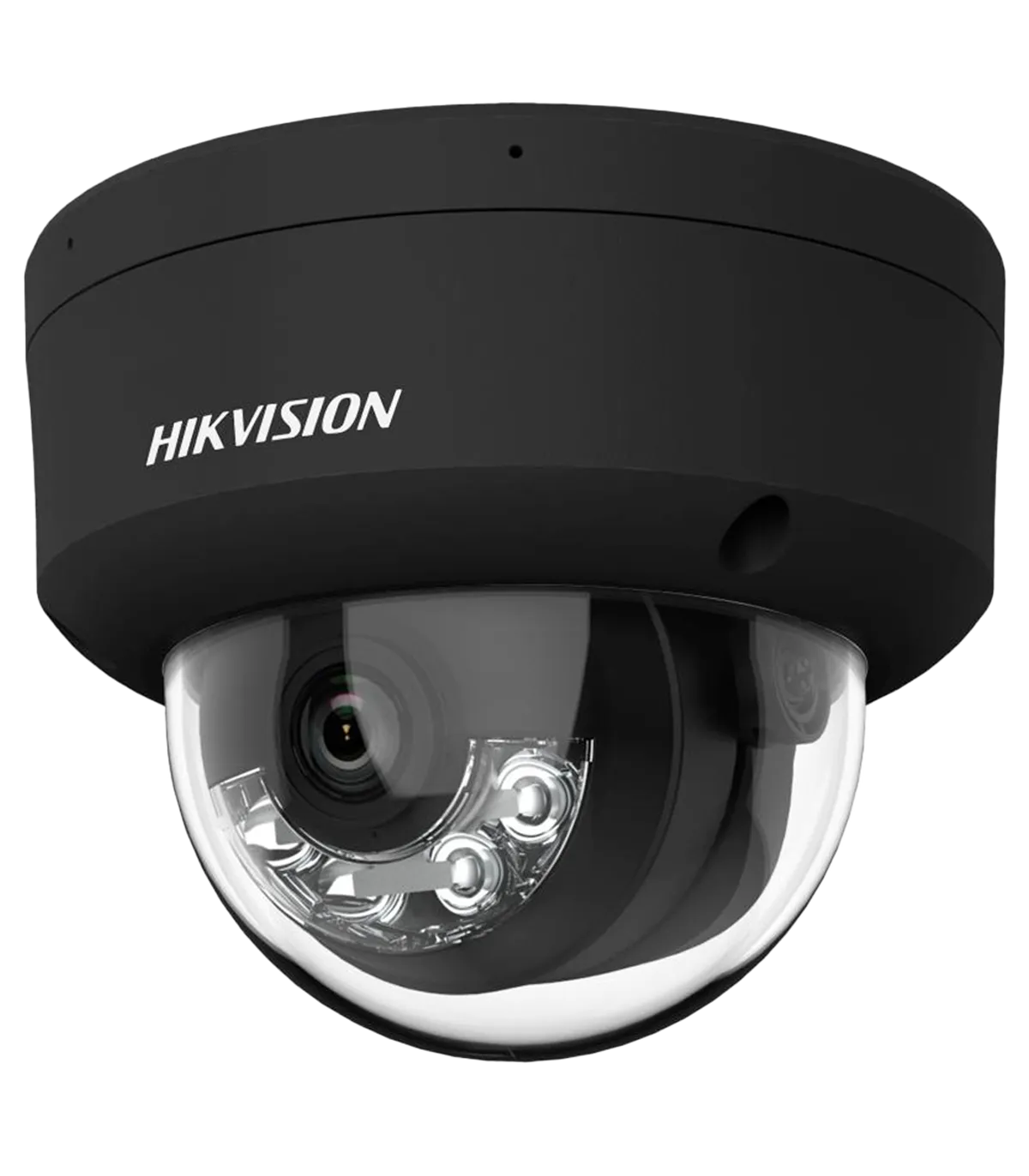

Description & Key Features: DS-2CD2147G2H-LISU(2.8mm)/eF//BLACK
The DS-2CD2147G2H-LISU(2.8mm)/eF//BLACK is a high-performance IP dome camera designed for advanced surveillance applications. Ideal for both indoor and outdoor environments, this camera features a 4 Megapixel resolution, ensuring clear and detailed images. With its ColorVu technology, it provides color images 24 hours a day, making it suitable for areas requiring constant monitoring. The device is equipped with hybrid lighting capabilities, including IR and white light, with a range of up to 30 meters, enhancing visibility in low-light conditions.
- Hikvision
- PRO Series
- IP Dome Camera
- 1/1.8" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- 2.8 mm Lens
- 0 Lux
- Hybrid Light: IR and white light range 30 m
- ColorVu: color image 24 hours
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (Line Crossing, Area Intrusion, Entry Region, Exit Region)
- Face Capture
- WDR (130 dB)
- 3D DNR
- Integrated Microphone
- Alarms
- Audio
- MicroSD card slot up to 512 GB
- RJ-45 10/100M BaseT
- PoE IEEE802.3af
- WEB interface, CMS, Smartphone, and NVR
- ONVIF compatible
- IP67 Waterproof
- IK10 Vandal Resistant
- Eco-Friendly Packaging
- Black Color
Specifications: DS-2CD2147G2H-LISU(2.8mm)/eF//BLACK
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640×480, 640x360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 104°, V: 54.4°, D: 126.7° |
| DORI | 61 m (D), 24 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.0005 Lux @(F1.0, AGC ON) 0 Lux with white light range 30 m |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | ColorVu: Color image 24 hours |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated microphone |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Smart Features | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 600 mA / 7.2 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof, IK10 Vandal Resistant |
| Material | Base: Aluminum Alloy Cover: Aluminum Alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |
| Base Dimensions | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 525 g |
| Color | Black |
Package Contents
- Hikvision IP Dome Camera
- Installation Materials
- User Instructions
Use Case
The DS-2CD2147G2H-LISU(2.8mm)/eF//BLACK is perfect for a variety of surveillance scenarios, including retail stores, parking lots, and residential areas. For instance, in a retail environment, the camera can be strategically placed at entrances and checkout areas to provide comprehensive coverage. With its motion detection capabilities and AcuSense technology, it can effectively reduce false alarms caused by non-human movements, ensuring that security personnel are alerted only to genuine threats. Additionally, the remote monitoring feature allows users to access live feeds via a smartphone app, enhancing security management. The camera's IP67 waterproof rating ensures durability in outdoor settings, while its integrated microphone provides audio surveillance capabilities. Overall, this camera is an excellent choice for those seeking reliable and advanced surveillance solutions.
Data sheet
- Brand
- HIKVISION
- Resolution
- 4 Mpx
- Technology
- IP
- WDR
- WDR (130 dB)
- IR Distance
- 30 m
- Audio
- 1 Entrada / 1 Salida / Micrófono
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK10
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-DM46,DS-1280ZJ-DM46,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-SUS,DS-1272ZJ-120B,DS-1272ZJ-120B,DS-1272ZJ-120,DS-1272ZJ-120,DS-1271ZJ-120,DS-1271ZJ-120
Specific References
- EAN13
- 6942160440040
