- Hikvision
- PRO Series IP Dome Camera
- 2 Megapixel Resolution (1920x1080)
- 2.8 mm Lens | Dual Array Microphone
- Hybrid Light Range 30 m | PoE | MicroSD | IP67
- AcuSense | MD2.0 | Audio | Alarms | IP67 | IK10
Description & Key Features: DS-2CD2123G2-LIS2U(2.8mm)
The DS-2CD2123G2-LIS2U(2.8mm) is a high-performance IP dome camera designed for effective surveillance in various environments. Ideal for both indoor and outdoor applications, this camera offers exceptional image quality with its 2 Megapixel resolution and advanced features such as motion detection and dual audio capabilities. Its robust design ensures durability, making it suitable for critical security installations.
- Hikvision
- PRO Series
- IP Dome Camera
- 1/2.7" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- 2.8 mm Lens
- 0 Lux
- Hybrid Light: IR and White Light
- Hybrid Light Range 30 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (line crossing and area intrusion)
- WDR (120 dB)
- 3D-DNR
- Integrated dual array microphone
- Alarms
- Audio
- MicroSD card slot up to 512 GB
- WEB interface, CMS, Smartphone, and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- IP67 waterproof
- IK10 vandal-proof
Specifications: DS-2CD2123G2-LIS2U(2.8mm)
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 112°, V: 61°, D: 132° |
| DORI | 42 m (D), 16 m (O), 8 m (R), 4 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with white light |
| Supplementary Illumination | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S and G), ISAPI, SDK |
| Power Supply | DC 12 V / 600 mA / 7.2 W max. PoE IEEE802.3af |
| Protection Grade | IP67 waterproof IK10 vandal-proof |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |

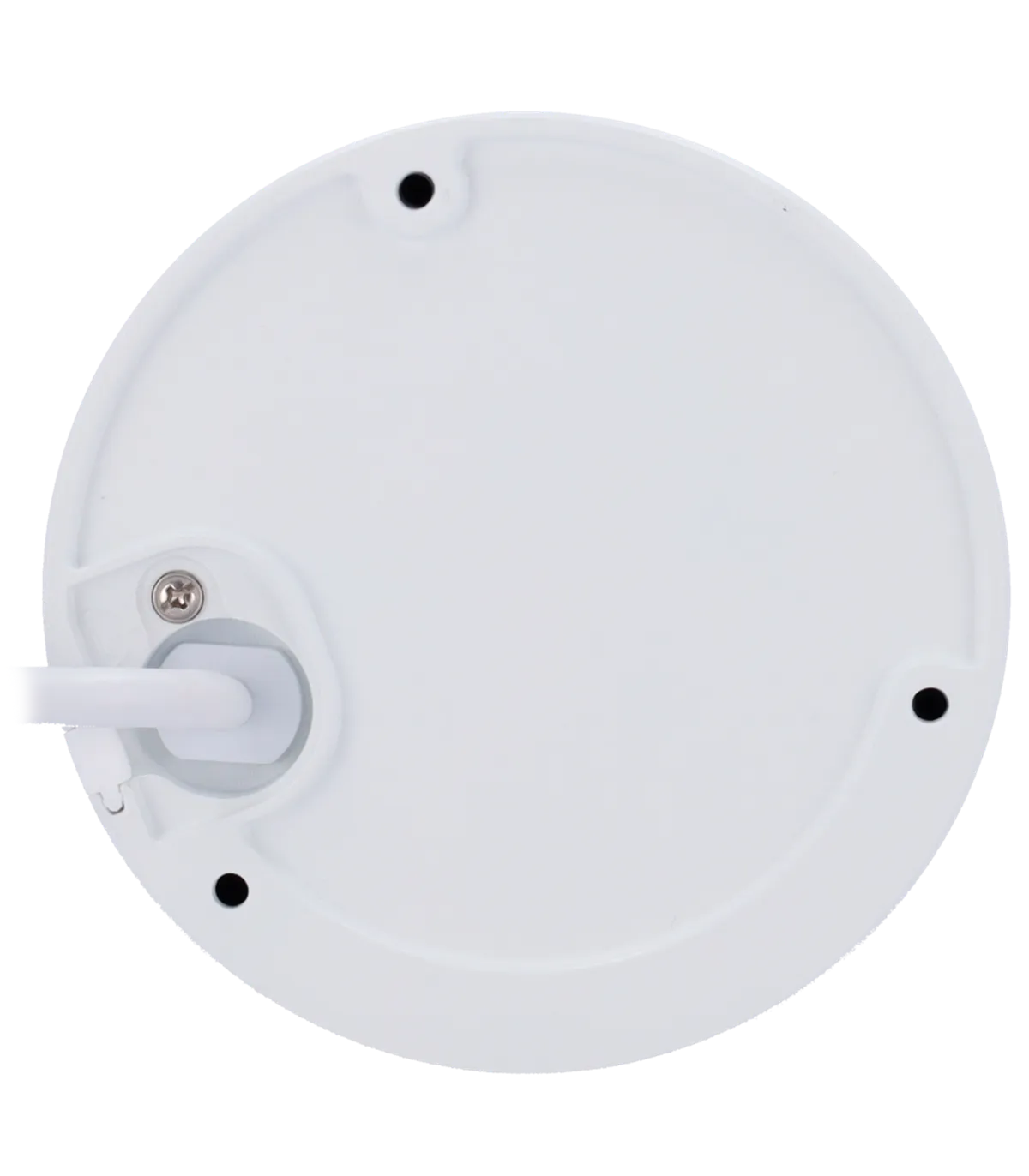

| Base Dimensions | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 600 g |
Package Contents
- Hikvision IP Dome Camera
- Installation materials
- User manual
Use Case
The DS-2CD2123G2-LIS2U(2.8mm) is ideally suited for deployment in retail environments, where security is paramount. Installers can leverage its high-resolution imaging and advanced motion detection capabilities to monitor customer activity and deter theft effectively. The camera's IP67 waterproof rating ensures reliable performance in various weather conditions, making it perfect for outdoor installations. Additionally, the dual audio feature allows for real-time communication, enhancing security measures. With its remote monitoring capabilities via the Hik-Connect app, users can access live feeds and recorded footage from anywhere, ensuring peace of mind. The integration of AcuSense technology further reduces false alarms, allowing security personnel to focus on genuine threats, thus optimizing operational efficiency.
Data sheet
- Brand
- HIKVISION
- Resolution
- 2 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 30 m
- Audio
- 1 Entrada / 1 Salida / Micrófono en array
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK10
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-DM46,DS-1280ZJ-DM46,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-SUS,DS-1272ZJ-120B,DS-1272ZJ-120B,DS-1272ZJ-120,DS-1272ZJ-120,DS-1271ZJ-120,DS-1271ZJ-120
Specific References
- EAN13
- 6942160462691
