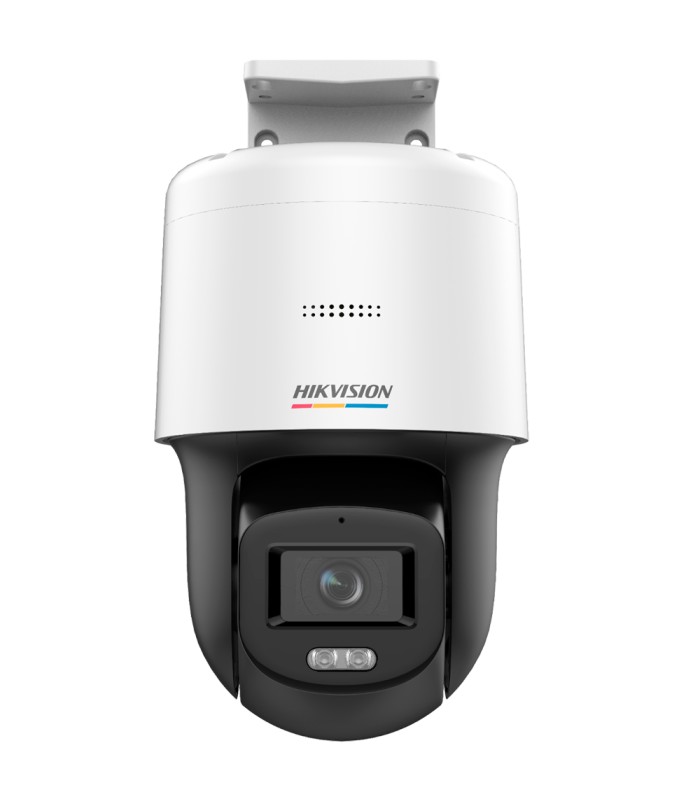

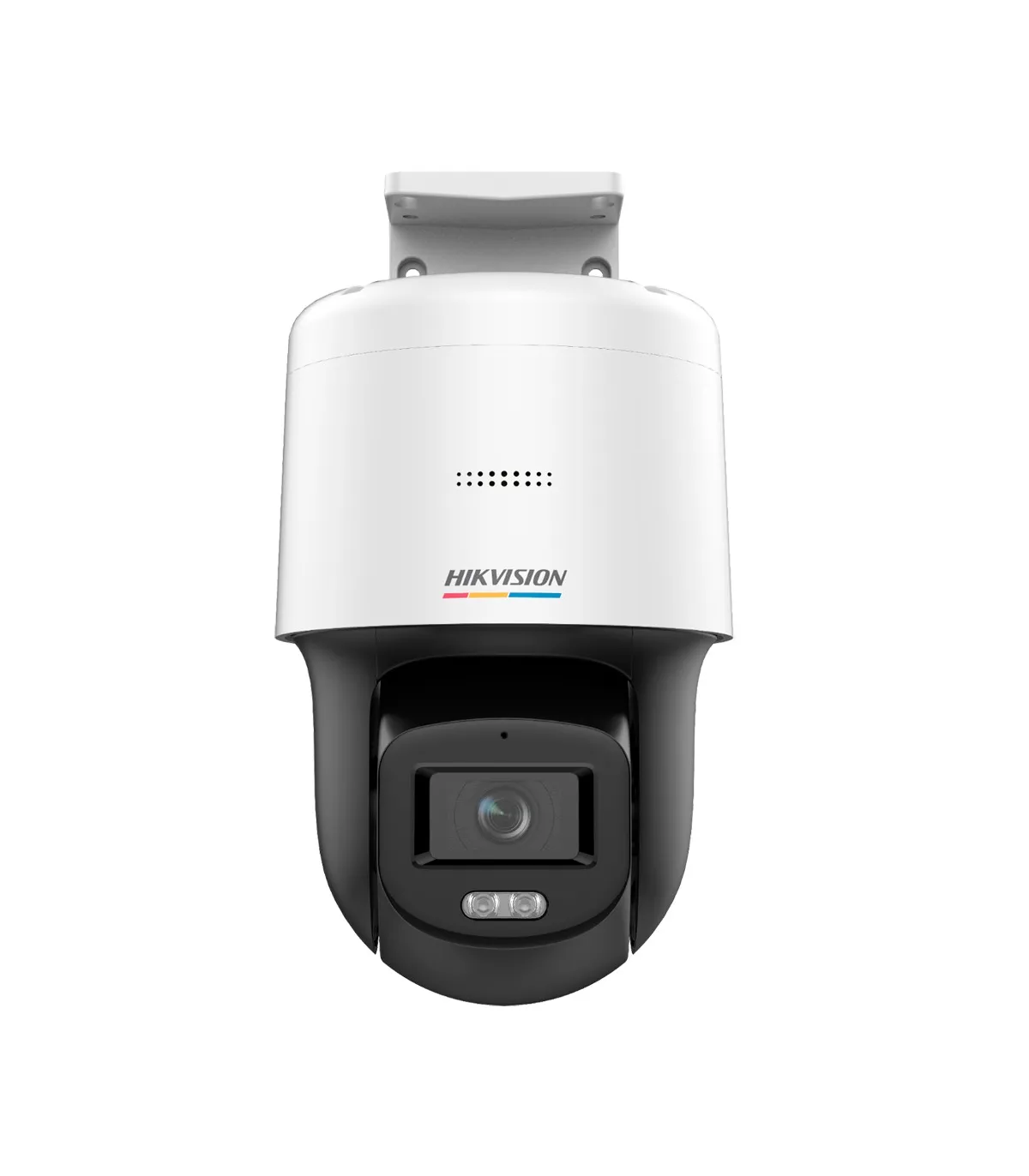

| Brand | HIKVISION |
| Range | VALUE |
| Image Sensor | 1/1.8“ Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2560x1440) |
| Main stream rate | 25 fps (2560x1440, 1920x1080, 1280x720) |
| Extra stream rate | 25 fps (1280x720, 640x480, 640x360) |
| Minimum illumination | Color: 0.001 Lux @ (F1.0, AGC ON) 0 lux with white light |
| Illumination | ColorVu: 24 color image hours White light, range 30 m |
| Compression | H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Fixed lens 2.8 mm |
| Angle of view (FOV) | 105.7º (H), 57.3º (V), 124.9º (D) |
| Image enhancements | DWDR, BLC, HLC, 3D-DNR. Mirror |
| ANR | No |
| Motion Detection | Yes |
| Pan/Tilt Range | Horizontal: 0~340°, Vertical: -5°~105° |
| Hand Speed | Horizontal: 4~21 °/s, Vertical: 4~19 °/s |
| Internal storage | MicroSD card slot up to 256 GB |
| Audio | Built-in microphone and speaker |
| Alarms | Not available |
| PTZ control | Through network access |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 750 mA / 9 W max. / PoE IEEE802.3af |
| Temp. operation | -30º C ~ +40º C with white light on -30º C ~ +50º C with white light off |
| Protection degree | IP66 |
| Dimensions (without stand) | 162 (Fo) mm x 120 mm (W) x 234.2 mm (H) |
| Weight (without stand) | 780 g |
