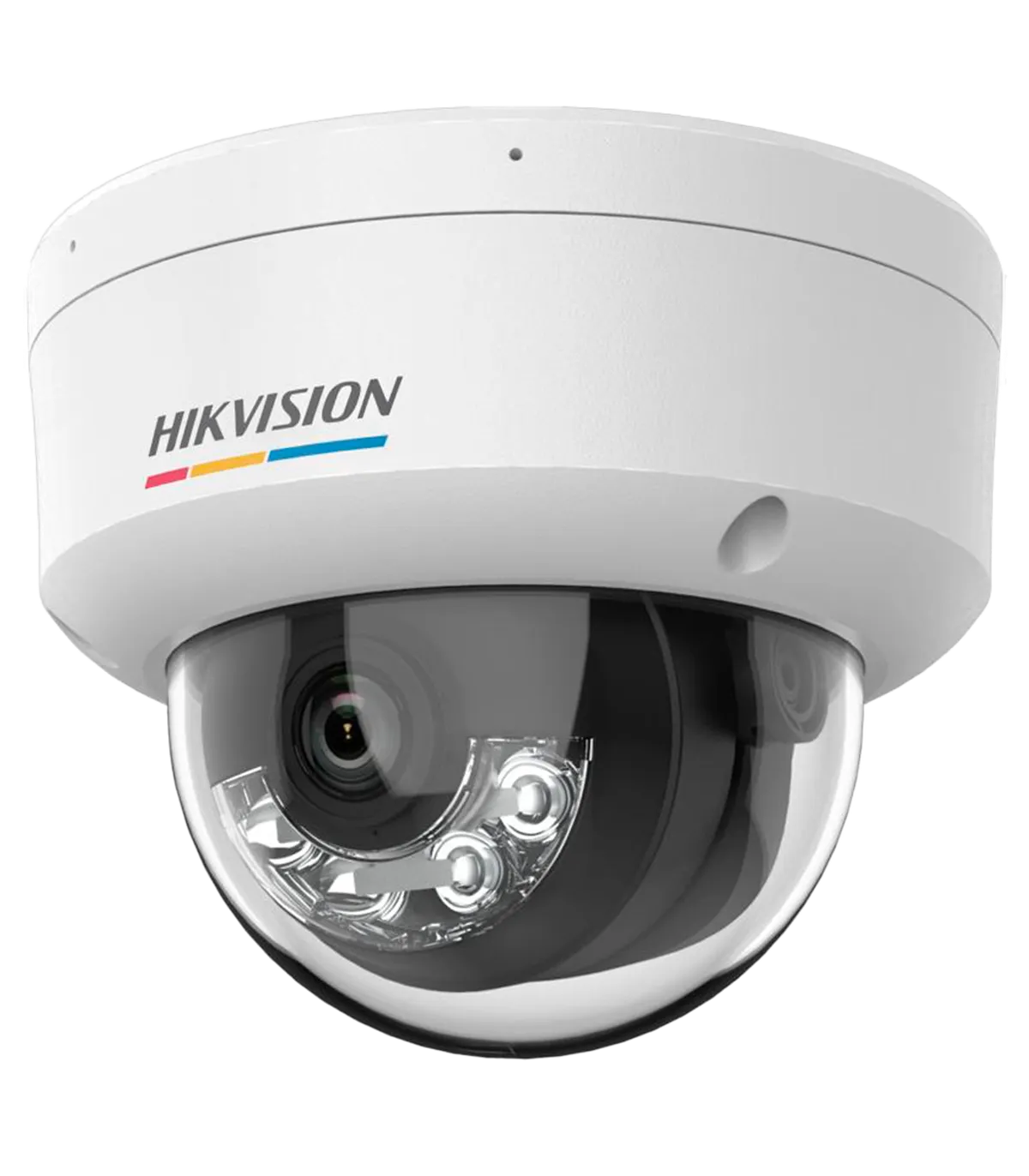

The Hikvision Value Series with ColorVu 3.0 redefines video surveillance by providing full-color images even in low-light environments. This device is ideal for various applications, including residential and commercial security, where high-quality visuals are essential. With advanced sensor technology and a super aperture lens, it captures more light, ensuring greater clarity and detail without the need for additional lighting. The integration of HikAI-ISP enhances visual quality by reducing noise and improving sharpness in challenging conditions.
The Value Series features Motion Detection 3.0, an enhanced version with a more accurate algorithm that includes human and vehicle classification based on artificial intelligence, helping to filter false alarms and highlight significant events in the recording bar.
| Brand | HIKVISION |
| Series | VALUE |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 25 fps (2560x1440, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (768x432, 640x360) |
| Compression | Main stream: H.265+ / H.264+ / H.265 / H.264 Sub stream: H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 104°, V: 54.4°, D: 126.7° |
| DORI | 61 m (D), 24 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.0001 Lux @(F1.0, AGC ON) |
| ColorVu 3.0 | 24/7 color image with HikAI-ISP, F1.0, and 1/1.8" sensor AI noise reduction offers the advantage of higher static brightness Dynamic motion blur reduction, providing sharp image quality even in low light conditions |
| Hybrid Light | IR and White Light up to 30m |
| Day/Night | Auto / Manual / Programmable |
| Audio | Integrated Microphone Noise Reduction Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror, Corridor Mode, Privacy Mask |
| Motion Detection | Motion Detection 3.0 with human and vehicle classification applied in motion detection. |
| AcuSearch | Yes (Requires recorder for searches) |
| Internal Storage | Not available |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, Profile G), ISAPI, SDK |
| Power Supply | DC 12 V / 0.6A / 7.2W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof / IK08 Vandal Resistant |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 97.6 mm (H) x 121.5 mm (Ø) |
| Base Dimensions | Ø base 121.5 mm / Ø 104.7 screws / 3 screws |
| Material | Metal and Plastic |
| Weight | 670 g |
In a typical deployment scenario, the DS-2CD1147G3H-LIU(2.8mm) camera can be installed in retail environments to enhance security and surveillance. With its 24/7 color imaging capabilities, this camera ensures that store owners can monitor their premises effectively, even in low-light conditions. The AI-powered motion detection feature allows for precise identification of human and vehicle movements, significantly reducing false alarms. This is particularly beneficial during peak hours when customer traffic is high. Additionally, the camera's remote access capabilities enable store managers to monitor live feeds from their smartphones or PCs, providing peace of mind while away from the store. The robust IP67 waterproof and IK08 vandal-resistant ratings ensure that the camera remains operational in various environmental conditions, making it a reliable choice for outdoor installations. Overall, the DS-2CD1147G3H-LIU(2.8mm) is an excellent solution for businesses looking to enhance their security infrastructure.
