- Hikvision
- PRO Series IP Dome Camera
- 6 Megapixel Resolution (3200x1800)
- 2.8 mm Lens | Dual Array Microphone
- Hybrid Light Range 30 m | PoE | MicroSD | IP67
- AcuSense | MD2.0 | Audio | Alarms | IP67 | IK10

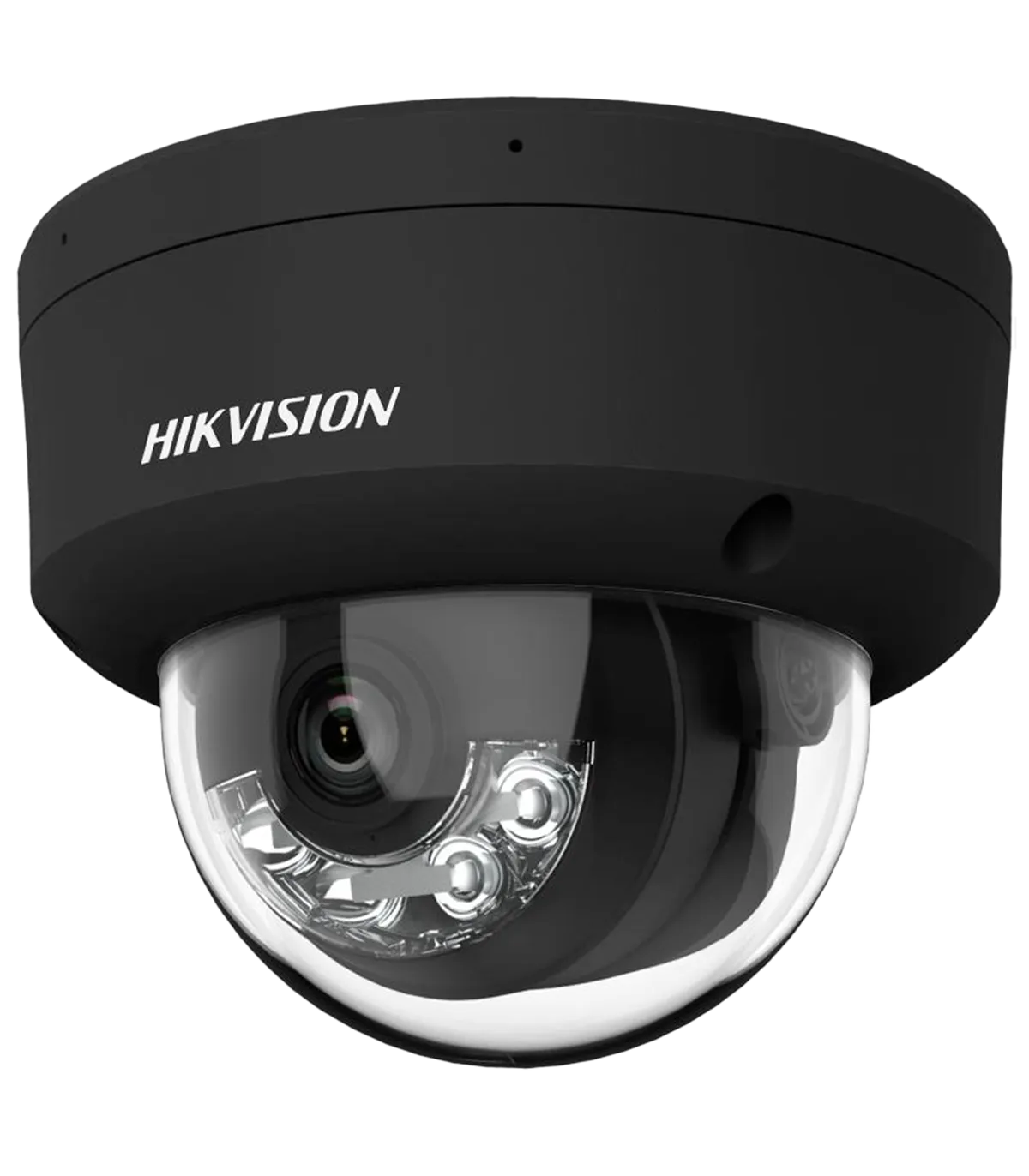

Description & Key Features: DS-2CD2163G2-LIS2U(2.8mm)(BLACK)
The DS-2CD2163G2-LIS2U(2.8mm)(BLACK) is a high-performance IP dome camera designed for advanced surveillance applications. With its 6 Megapixel resolution and 2.8 mm lens, it delivers exceptional image clarity, making it ideal for monitoring large areas in both indoor and outdoor environments. This camera features hybrid lighting capabilities, including IR and white light, ensuring visibility even in complete darkness up to 30 meters. The device is equipped with advanced features such as AcuSense technology, which reduces false alarms by accurately distinguishing between humans and vehicles.
- Hikvision
- PRO Series
- IP Dome Camera
- 1/2.4" Progressive Scan CMOS
- 6 Megapixel (3200x1800)
- 2.8 mm Lens
- 0 Lux
- Hybrid Light: IR and White Light
- Hybrid Light Range 30 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (line crossing and area intrusion)
- WDR (120 dB)
- 3D-DNR
- Integrated dual array microphone
- Alarms
- Audio
- MicroSD card slot up to 512 GB
- WEB interface, CMS, Smartphone, and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- IP67 waterproof
- IK10 vandal-proof
- Black color
Specifications: DS-2CD2163G2-LIS2U(2.8mm)(BLACK)
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 105°, V: 55°, D: 127° |
| DORI | 76 m (D), 30 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S and G), ISAPI |
| Power Supply | DC 12 V / 650 mA / 7.8 W max. PoE IEEE802.3af |
| Protection Rating | IP67 waterproof IK10 vandal-proof |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |
| Base Dimensions | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 600 g |
| Color | Black |
Package Contents
- Hikvision IP Dome Camera
- Installation materials
- User manual
Use Case
The DS-2CD2163G2-LIS2U(2.8mm)(BLACK) is ideally suited for various surveillance scenarios, including retail stores, parking lots, and office buildings. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to monitor customer traffic and deter theft. With its high-resolution imaging and motion detection capabilities, store owners can receive real-time alerts on suspicious activities. The dual array microphone enhances audio surveillance, allowing for comprehensive monitoring of both visual and auditory events. Additionally, the camera's IP67 rating ensures durability against harsh weather conditions, making it perfect for outdoor installations. The remote access feature enables users to view live feeds from their smartphones, providing peace of mind and enhanced security management.
Data sheet
- Brand
- HIKVISION
- Resolution
- 6 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 30 m
- Audio
- 1 Entrada / 1 Salida / Micrófono en array
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK10
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-DM46-BLACK,DS-1280ZJ-DM46-BLACK,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS-BLACK,DS-1275ZJ-SUS-BLACK,DS-1272ZJ-120B,DS-1272ZJ-120B,DS-1272ZJ-120-BLACK,DS-1272ZJ-120-BLACK,DS-1271ZJ-120-BLACK,DS-1271ZJ-120-BLACK
Specific References
- EAN13
- 6942160459165
