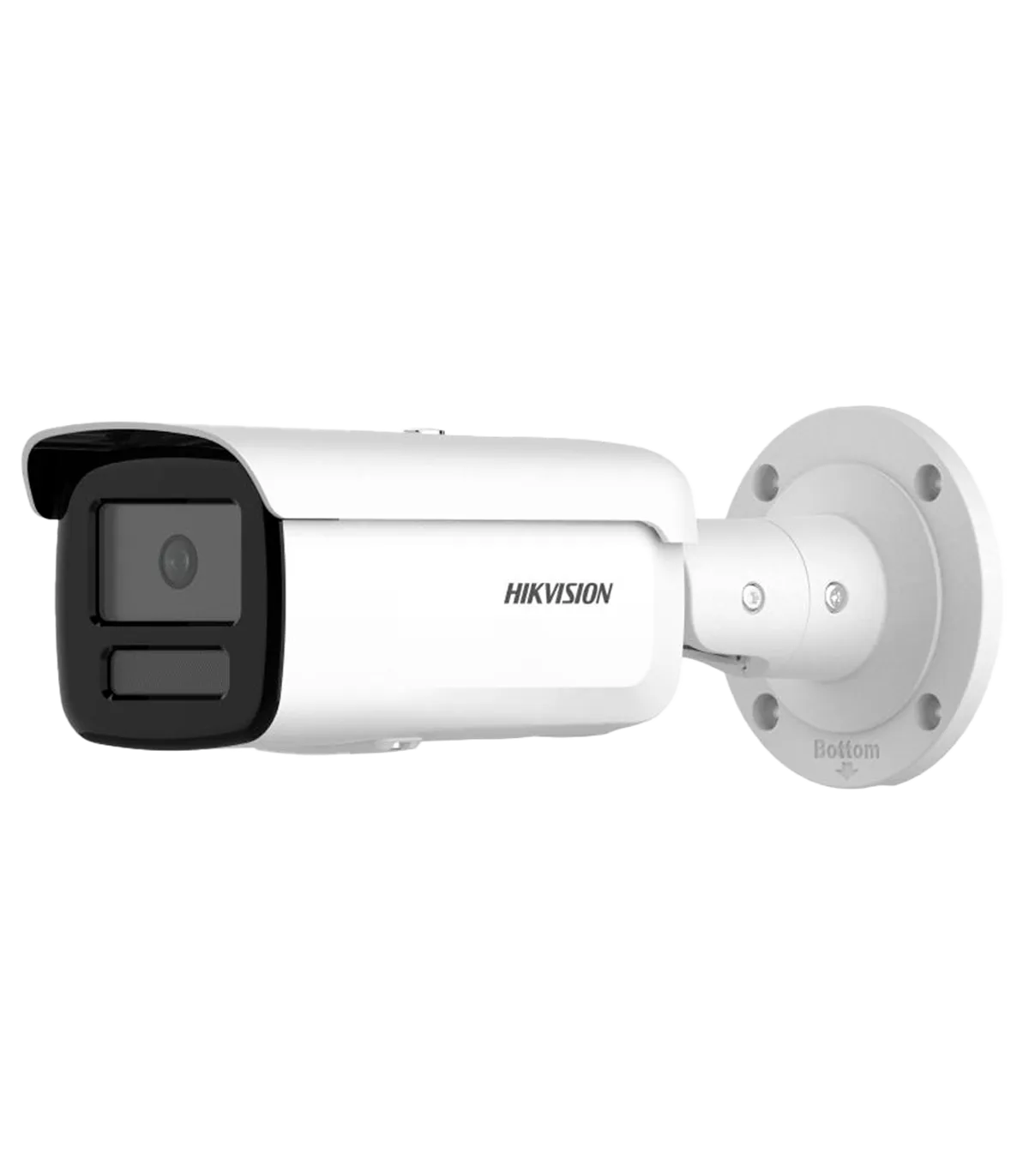

The DS-2CD2T46G2H-4I(2.8mm)(eF) is a high-performance IP Bullet Camera designed for advanced surveillance applications. It is ideal for both indoor and outdoor environments, providing exceptional image quality and reliability. With its 4 Megapixel resolution and 80m IR range, this camera ensures clear visibility even in low-light conditions. The device features smart detection capabilities such as AcuSense technology, which minimizes false alarms by accurately distinguishing between humans and vehicles.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 81.1°, V: 44.7°, D: 94.6° |
| DORI | 78 m (D), 31 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR range 80 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 830 mA / 10 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 93.1 mm (W) x 91.2 mm (H) x 286.7 mm (D) |
| Base Dimensions | Ø base 105 mm / Ø screw spacing 89 mm / 4 screws |
| Weight | 1085 g |
The DS-2CD2T46G2H-4I(2.8mm)(eF) is perfect for a variety of surveillance scenarios, such as monitoring parking lots, retail stores, and residential areas. For instance, an installer can deploy this camera at the entrance of a shopping center to ensure comprehensive coverage. With its 4 Megapixel resolution, the camera captures detailed images, allowing for effective remote monitoring via the Hik-Connect app. The IP67 waterproof rating ensures durability in outdoor settings, while the smart detection features like AcuSense significantly reduce false alarms, enhancing security efficiency. Additionally, the camera's face capture capability allows for identification of individuals, making it an excellent choice for high-security environments. Overall, the DS-2CD2T46G2H-4I(2.8mm)(eF) provides a robust solution for modern surveillance needs.
