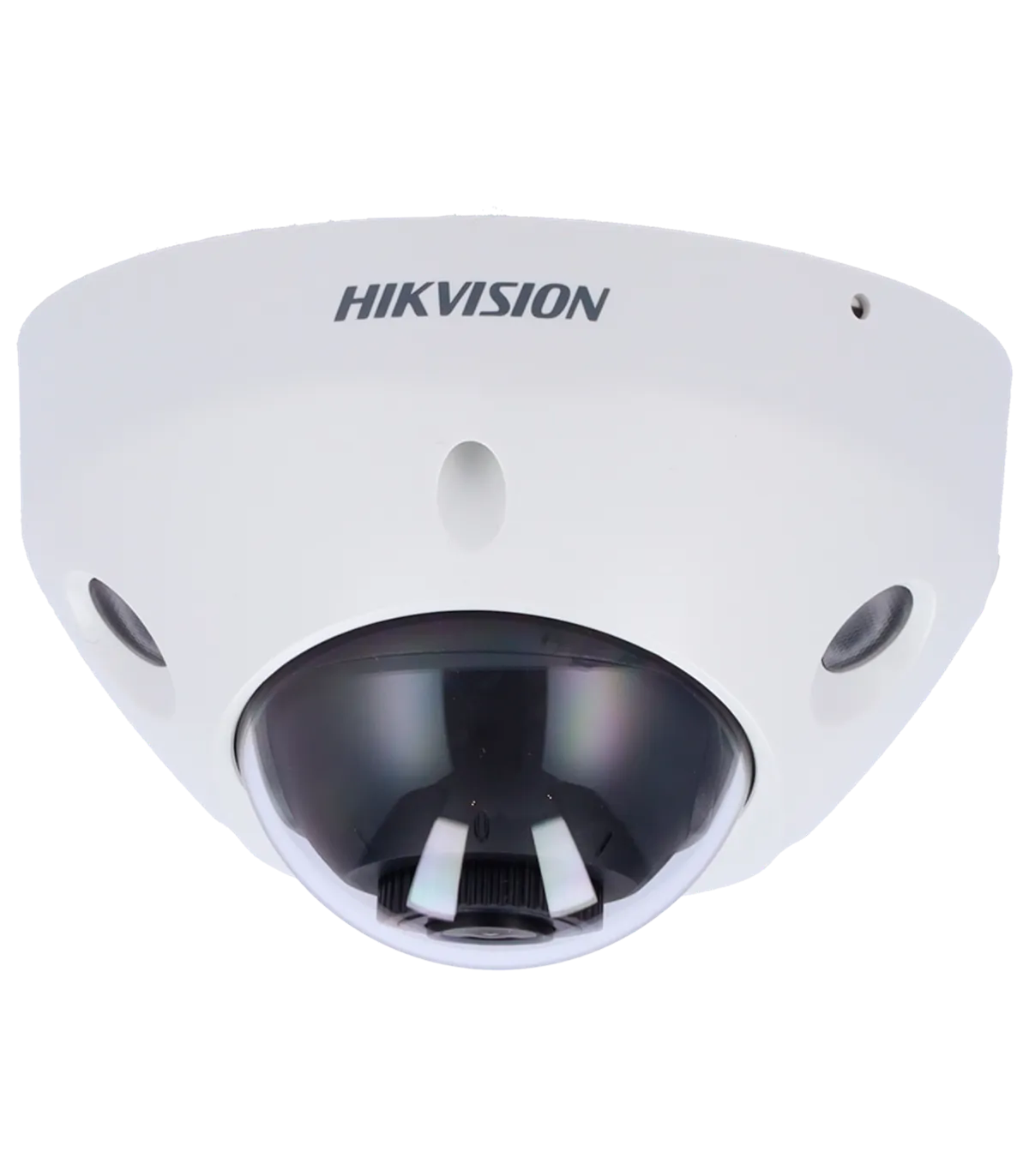

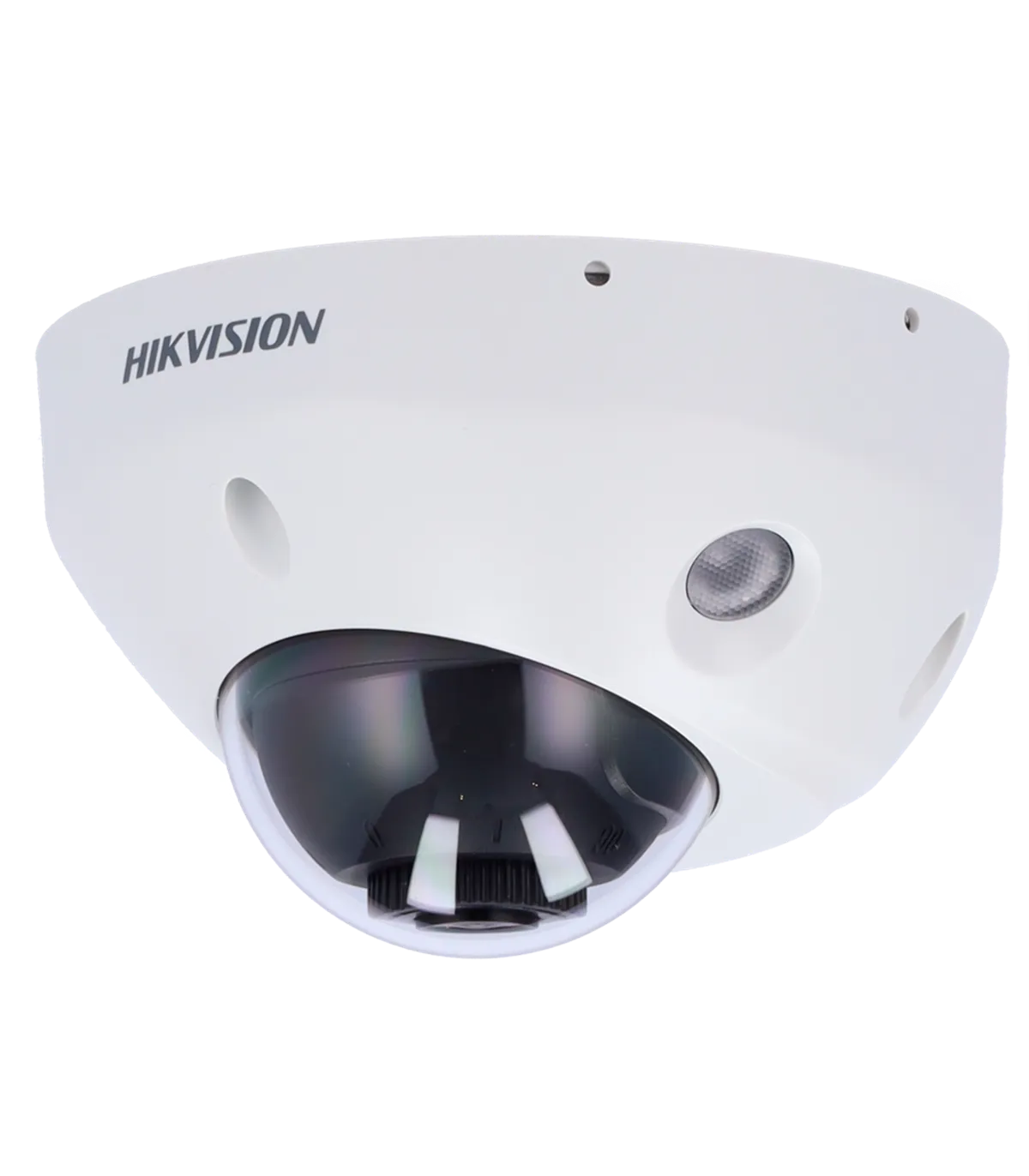

The DS-2CD2586G2-IS(2.8mm)(C) is a high-performance IP dome camera designed for advanced surveillance applications. Ideal for both indoor and outdoor environments, this camera excels in low-light conditions, making it perfect for security monitoring in various settings. With its 8 Megapixel resolution and low light capabilities powered by DarkFighter technology, it ensures clear images even in complete darkness. The device also features intelligent detection capabilities, including motion detection and facial recognition, enhancing security measures.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640×480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 110°, V: 56.7°, D: 134.1° |
| DORI | 89 m (D), 35 m (O), 18 m (R), 9 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light Powered by DarkFighter Color: 0.003 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror Function, Privacy Mask |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated Microphone |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Facial Recognition | Face Capture * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 540 mA / 6.5 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof, IK08 Vandal Resistant |
| Material | Base: Aluminum Cover: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 113.6 mm x 72.6 mm (H) |
| Weight | 400 g |
The DS-2CD2586G2-IS(2.8mm)(C) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and office buildings. In a retail environment, for instance, the camera can be strategically placed to monitor entrances and exits, providing real-time surveillance and enhancing loss prevention efforts. With its 30 m IR range, it ensures visibility even in complete darkness, making it a reliable choice for nighttime security. The integration of AcuSense technology allows for intelligent detection of human and vehicle movements, significantly reducing false alarms. This feature is particularly beneficial in busy areas where traditional motion detection may trigger unnecessary alerts. Additionally, the camera's remote access capabilities enable users to monitor live feeds from their smartphones or PCs, ensuring peace of mind whether at home or away. Overall, the DS-2CD2586G2-IS(2.8mm)(C) provides a comprehensive security solution that meets the demands of modern surveillance needs.
