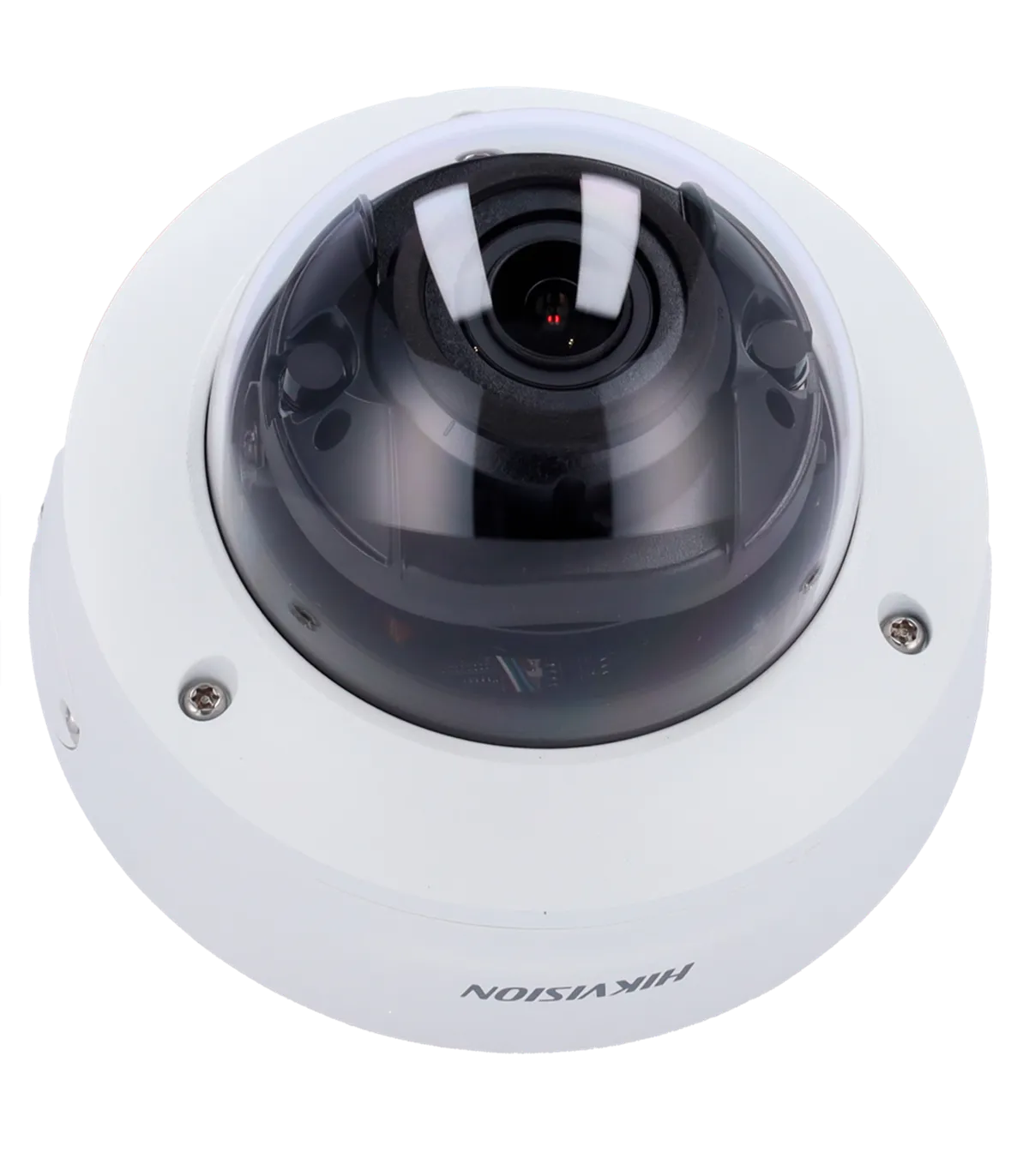

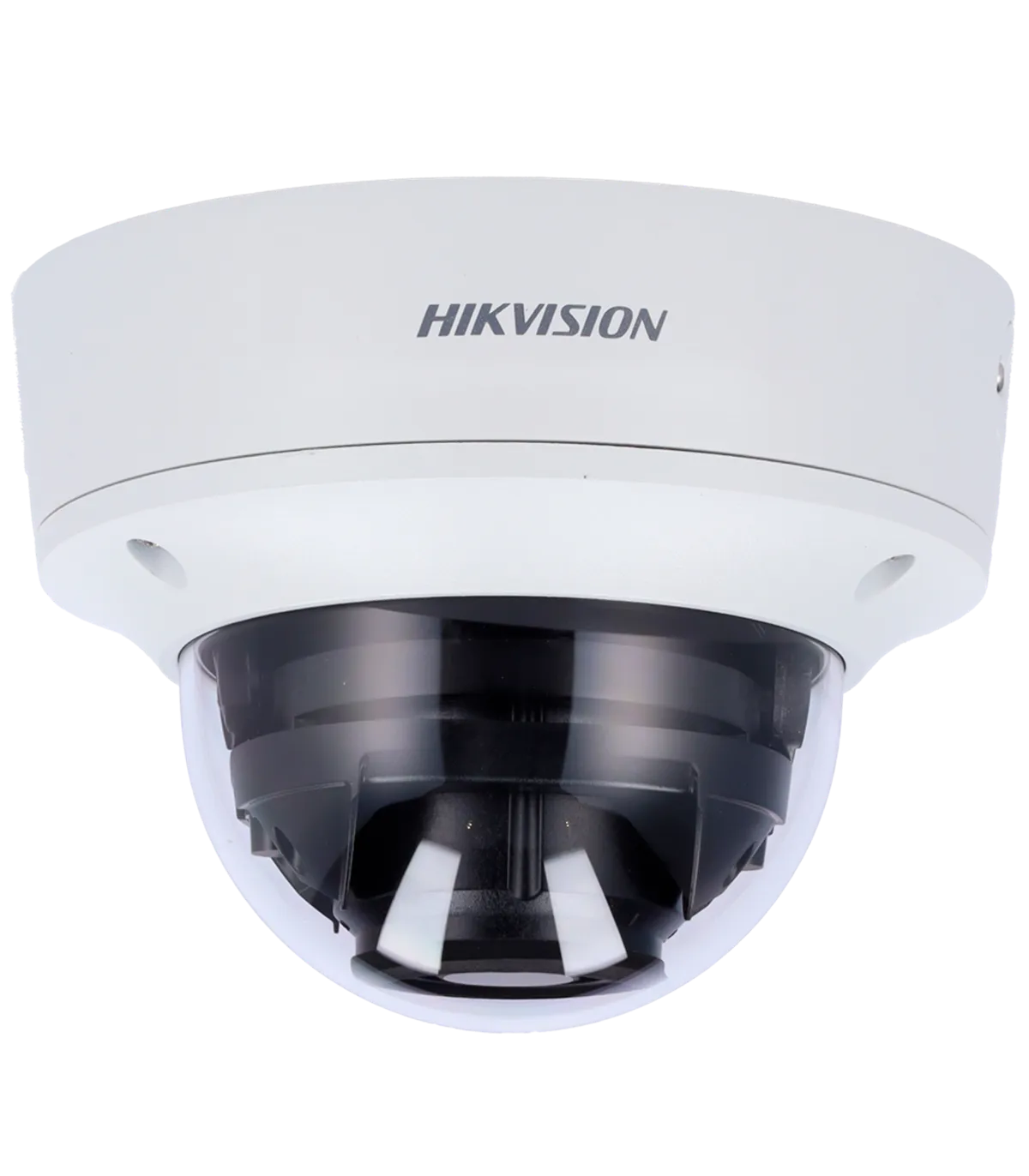

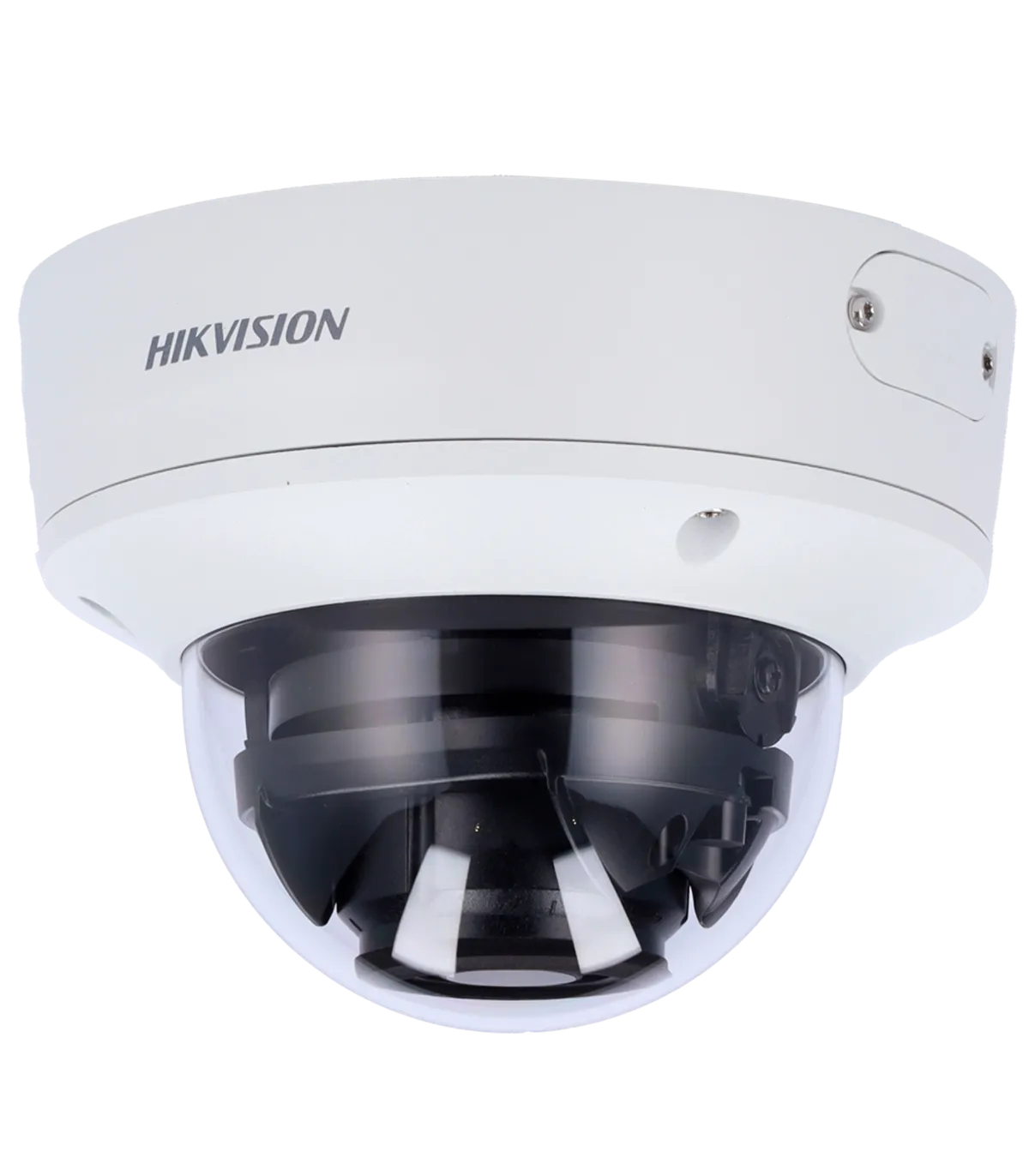

The DS-2CD2763G2-IZS(2.8-12mm) is a high-performance IP dome camera designed for advanced surveillance applications. Ideal for both indoor and outdoor environments, this device offers exceptional image quality and robust features, making it suitable for various security needs. With its 6 Megapixel resolution and varifocal motorized lens, it provides flexibility in monitoring large areas. The camera's IR range of up to 40 meters ensures clear visibility even in complete darkness, making it a reliable choice for 24/7 surveillance.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 106~35°, V: 56~20°, D: 127~41° |
| DORI | 68~200 m (D), 27~79 m (O), 13~40 m (R), 7~20 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Alarms | 1 input / 1 relay |
| Audio | 1 input / 1 output |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 880 mA / 10.5 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 waterproof, IK10 vandal-proof |
| Material | Cover and base: Metal Dome: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 153.3 mm x 111.6 mm (H) |

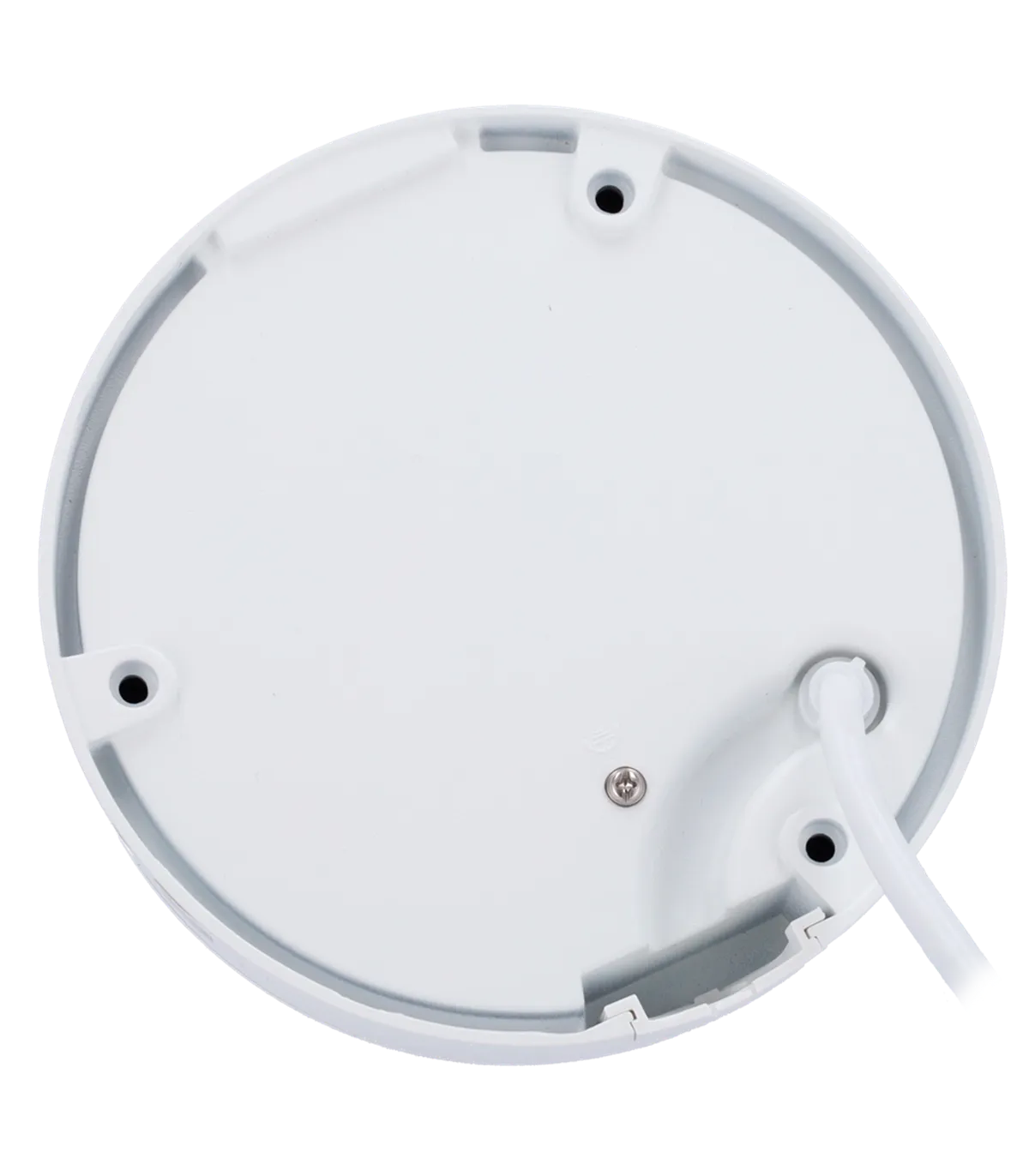

| Base Dimensions | Ø base 153.3 mm / Ø between screws 116 mm / 3 screws |
| Weight | 885 g |
The DS-2CD2763G2-IZS(2.8-12mm) is an excellent choice for a variety of surveillance scenarios, particularly in commercial settings such as retail stores, parking lots, and office buildings. For instance, an installer can deploy this camera at the entrance of a shopping mall, utilizing its high-resolution imaging and IR capabilities to monitor foot traffic and enhance security during nighttime hours. The motion detection feature, combined with AcuSense technology, allows for precise identification of human and vehicle movements, significantly reducing false alarms. Additionally, the camera's remote access capabilities enable security personnel to monitor live feeds from their smartphones or PCs, ensuring a proactive approach to security management. With its robust IP67 rating, the camera is well-suited for outdoor installations, providing reliable performance in various weather conditions. Overall, the DS-2CD2763G2-IZS(2.8-12mm) offers a comprehensive solution for enhancing security and surveillance in diverse environments.
