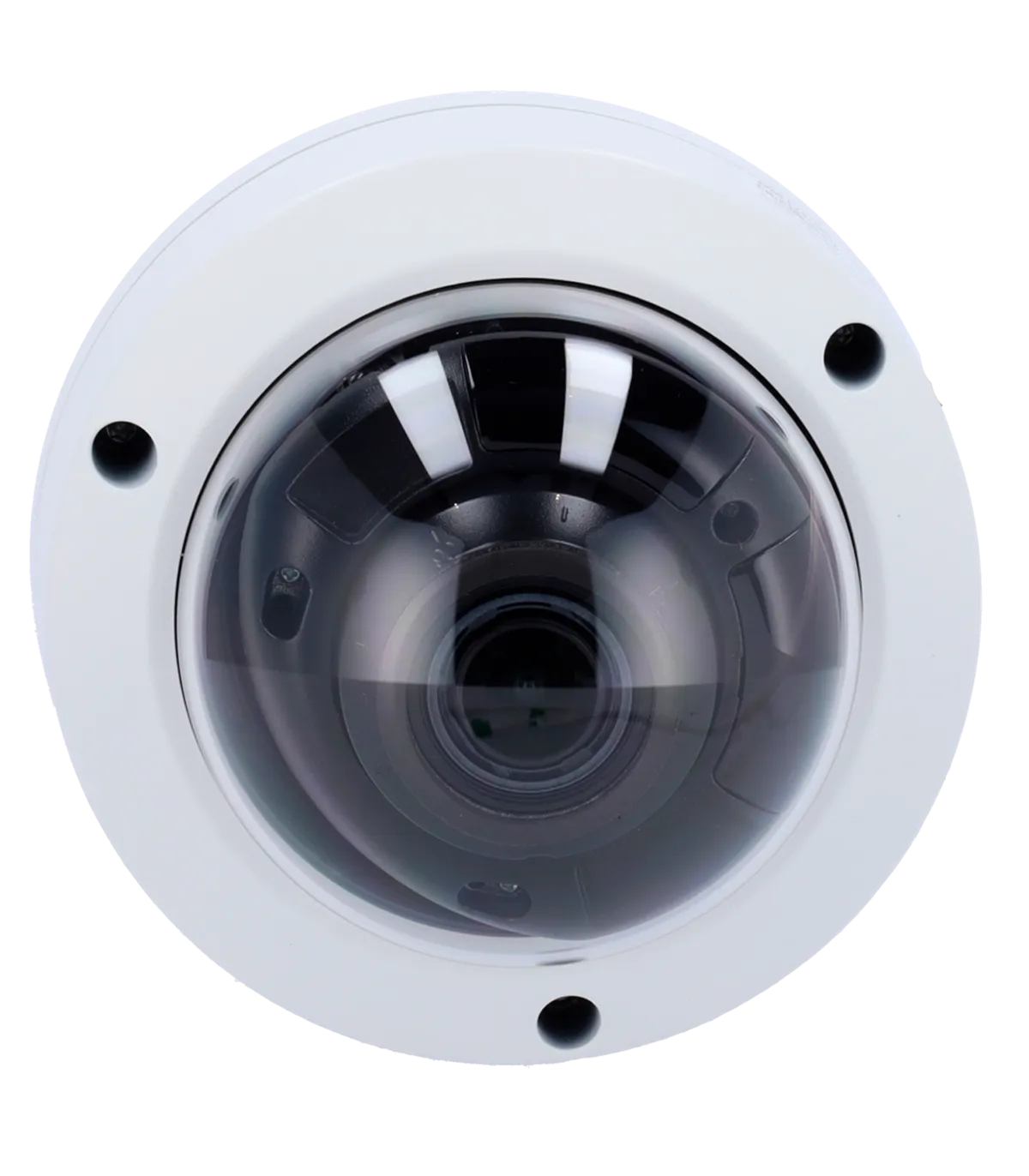

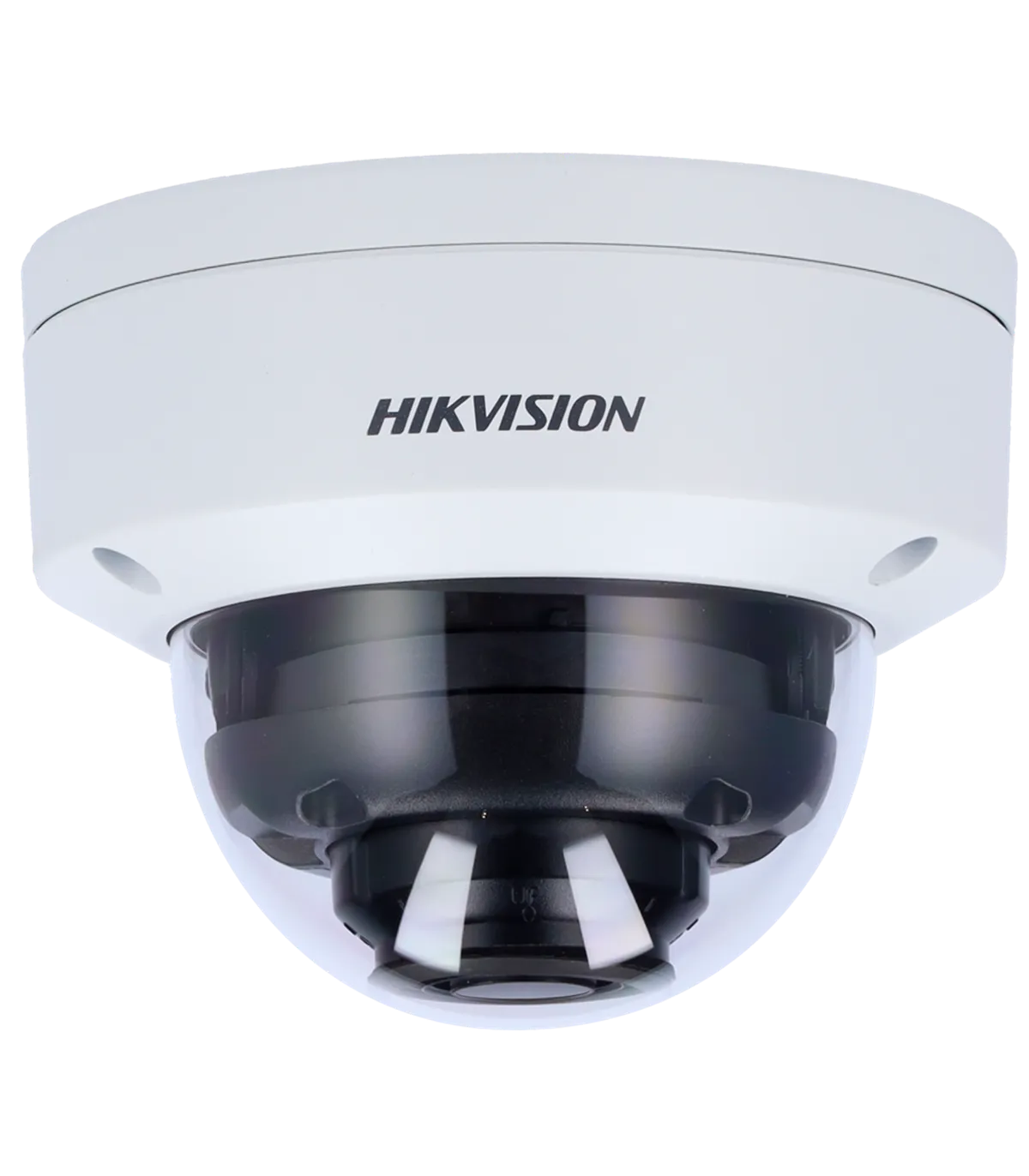

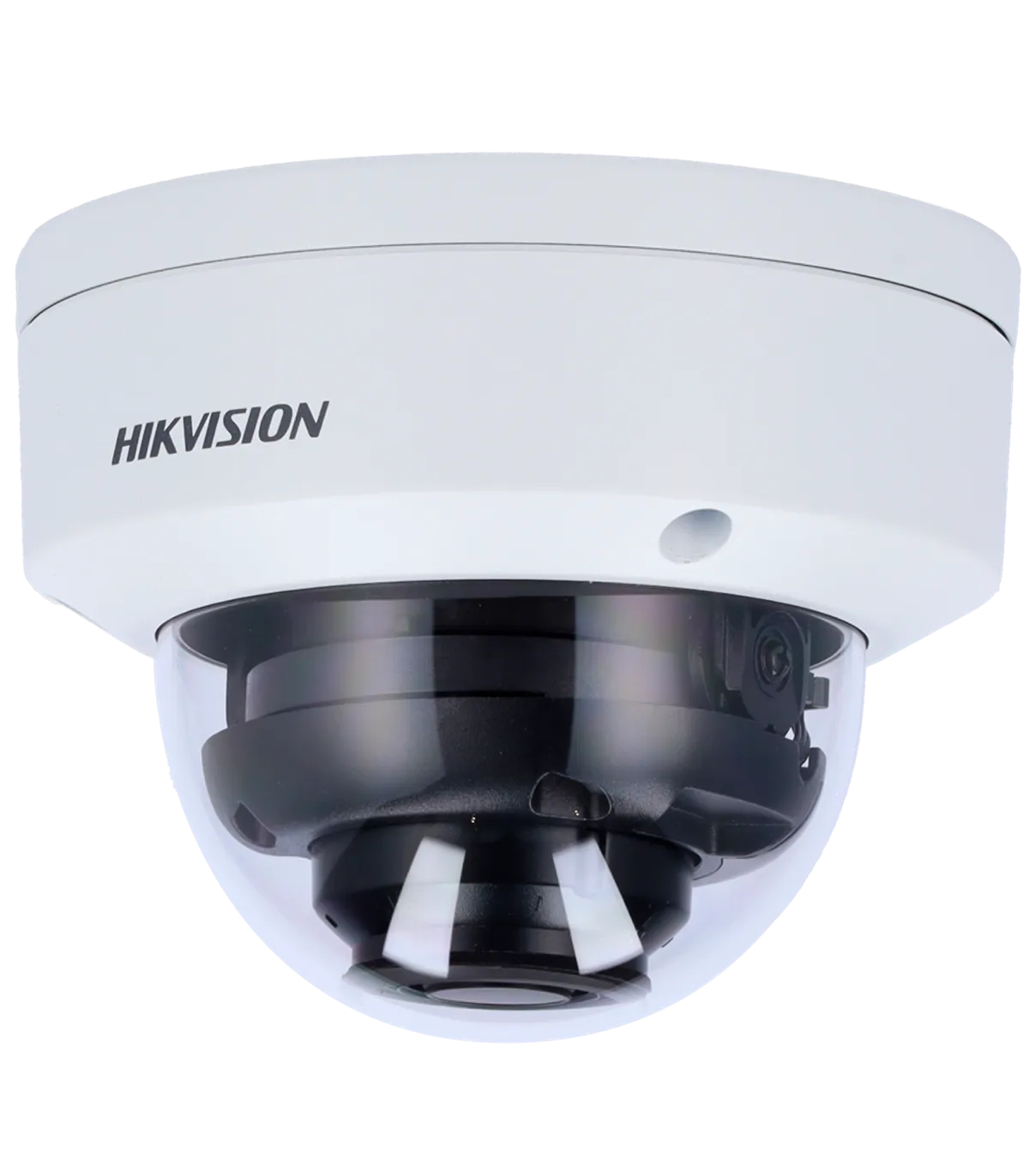

The DS-2CD2786G2HT-IZS(2.8-12mm)(eF) is a high-performance IP dome camera designed for advanced surveillance applications. It is particularly effective in environments requiring high-resolution video and low-light performance, making it ideal for both indoor and outdoor installations. This camera features a robust design with IP67 weatherproofing and IK10 vandal resistance, ensuring durability in challenging conditions. With its 8 Megapixel resolution and advanced features like AcuSense technology, it provides reliable security solutions for commercial and residential properties.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * (The third stream is available under certain configurations) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 112.3~41.2°, V: 58.1~23.1°, D: 137.4~47.3° |
| DORI | 87~216 m (D), 35~86 m (O), 17~43 m (R), 9~22 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light Powered by DarkFighter Color: 0.0008 Lux @(F1.2, AGC ON) 0 Lux with IR range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 900 mA / 10.8 W max. / PoE IEEE802.3af |
| Protection Grade | Waterproof IP67, vandal-proof IK10 |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 141 mm x 112 mm (H) |

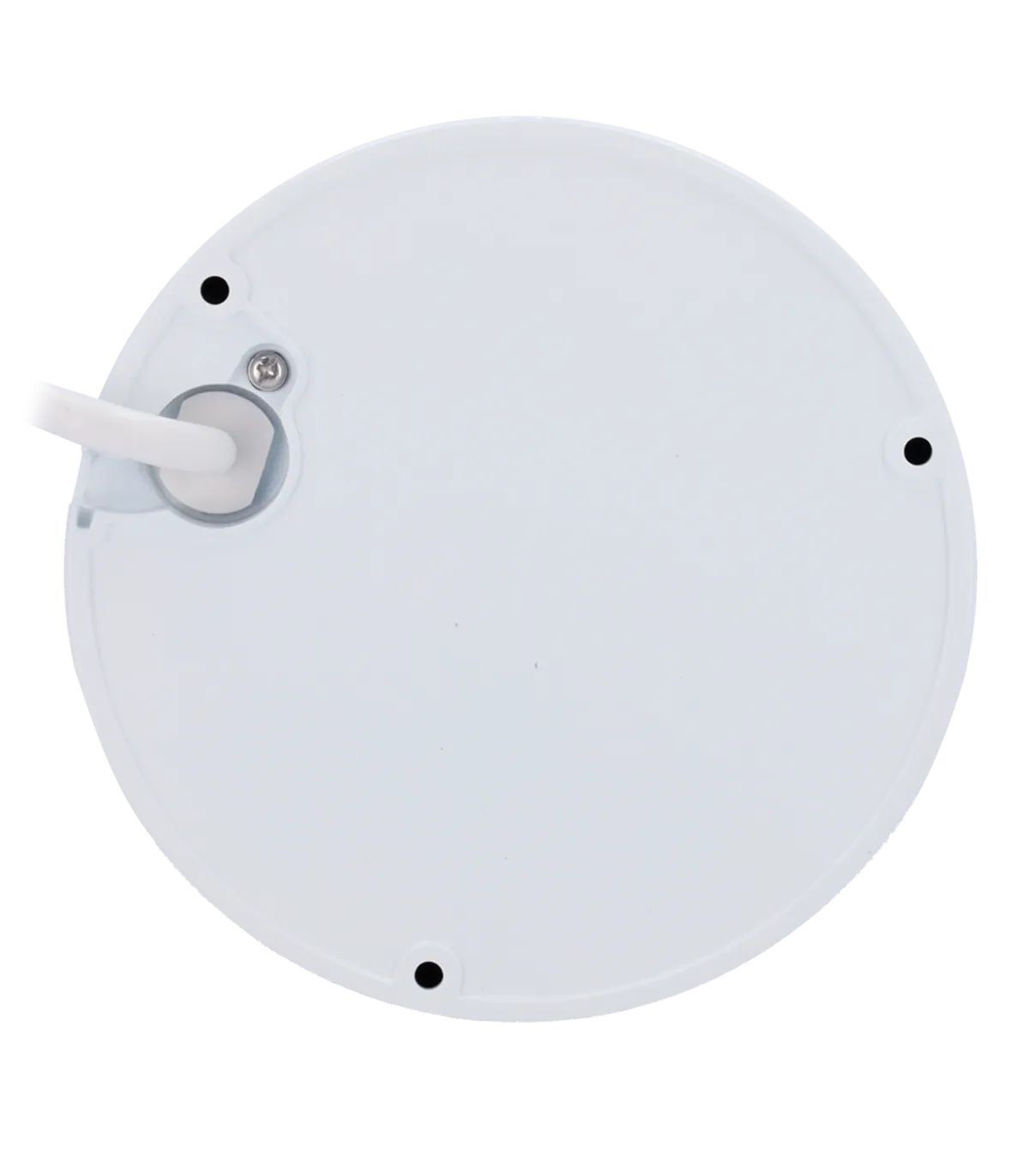

| Base Dimensions | Ø base 141 mm / Ø between screws 125 mm / 3 screws |
| Weight | 840 g |
The DS-2CD2786G2HT-IZS(2.8-12mm)(eF) is ideally suited for deployment in a variety of settings, including retail stores, parking lots, and corporate offices. For instance, in a retail environment, this camera can be strategically placed at entry points to monitor customer flow and enhance security surveillance. With its 8 Megapixel resolution and low-light capabilities, it ensures clear images even in dimly lit areas. The remote monitoring feature allows security personnel to access live feeds via a smartphone app, providing real-time oversight. Additionally, the AcuSense technology minimizes false alarms by accurately distinguishing between human and vehicle movements, making it an efficient choice for busy locations. The camera's IP67 rating ensures it withstands harsh weather conditions, while its IK10 vandal-proof design protects against tampering. Overall, this camera offers a comprehensive solution for enhancing security and operational efficiency.
