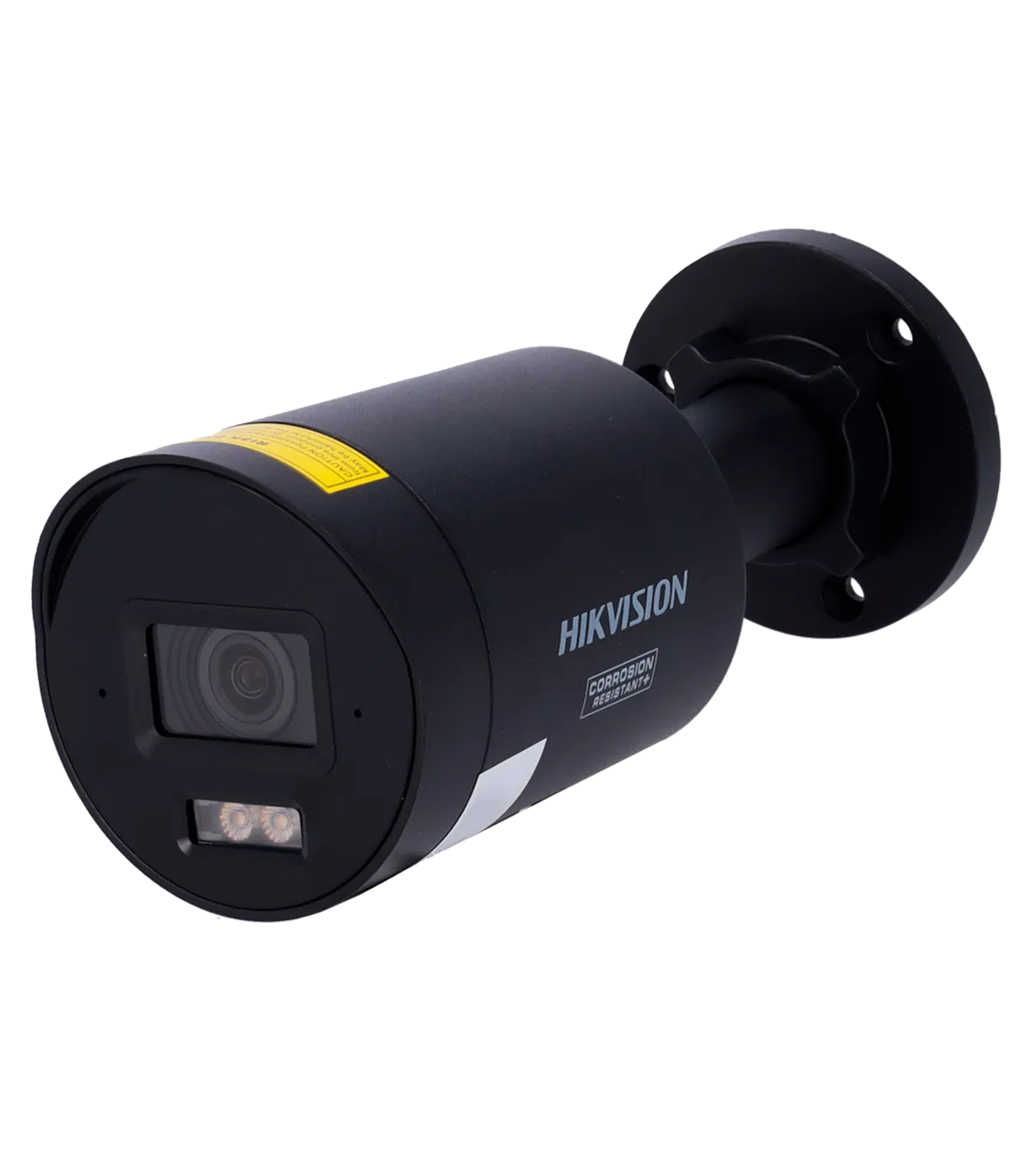

The DS-2CD2043G2-LIZ2UY(2.8/4mm)(BLACK) is a high-performance IP bullet camera designed for outdoor surveillance applications. With its advanced features, it is ideal for monitoring large areas such as parking lots, building perimeters, and commercial properties. This camera offers exceptional image quality with a resolution of 4 Megapixels, ensuring clear and detailed footage. Its motorized varifocal lens allows for flexible focal length adjustments, making it suitable for various installation scenarios.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720) 60 Hz: 30 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 50 Hz: 25 fps (1280×720, 640×480, 640×360) 60 Hz: 30 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 50 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) 60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) * The Third Stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Two lenses in a 2.8/4 mm |
| Field of View (FOV) | H: 99.3/80°, V: 54.8/44.1°, D: 120.2/94° |
| DORI | 66.6/79.2 m (D), 26.4/31.4 m (O), 13.3/15.8 m (R), 6.7/7.9 m (I) |
| Electronic Shutter | 1/3~1/100.000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid light: IR range 40 m White light range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Capture | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Audio | Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 1 A / 16 W max. PoE+ IEEE802.3at |
| Protection Rating | Waterproof IP67, NEMA 4X |
| Operating Temperature | -30º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 74.4 mm x 176.3 mm (Fo) |
| Base Dimensions | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 515 g |
| Color | Black |
The DS-2CD2043G2-LIZ2UY(2.8/4mm)(BLACK) is particularly effective in a variety of surveillance environments. For instance, in a retail setting, this camera can be strategically placed at entrances and exits to monitor customer flow and deter theft. With its high-resolution imaging and advanced motion detection capabilities, it ensures that every detail is captured, even in low-light conditions. The hybrid lighting feature enhances visibility at night, making it an excellent choice for 24/7 monitoring. Additionally, the remote access functionality allows security personnel to view live feeds from their smartphones or computers, providing real-time surveillance. The integration of AcuSense technology minimizes false alarms, ensuring that alerts are only triggered by genuine threats. This makes the DS-2CD2043G2-LIZ2UY an invaluable asset for any security system.
