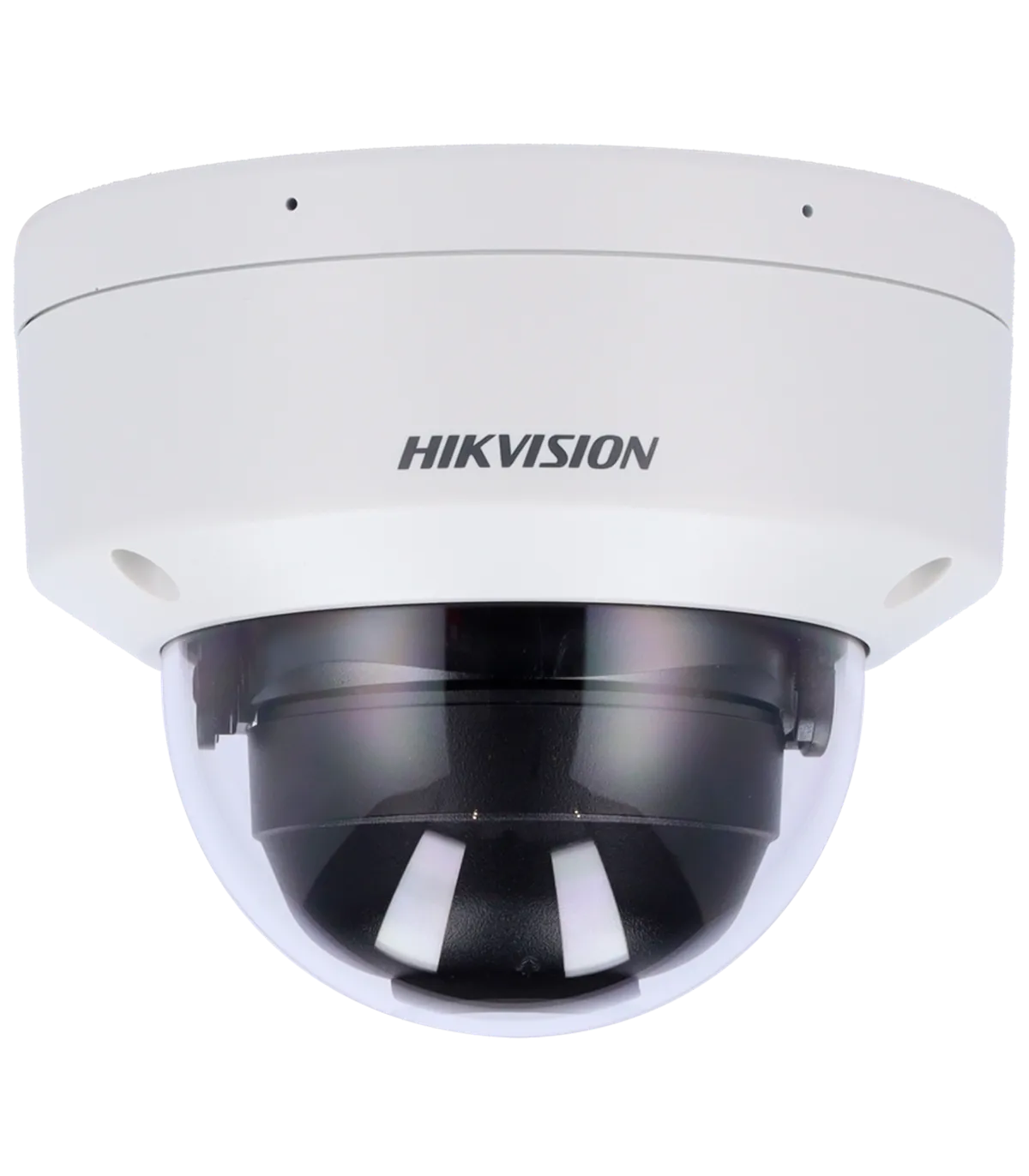

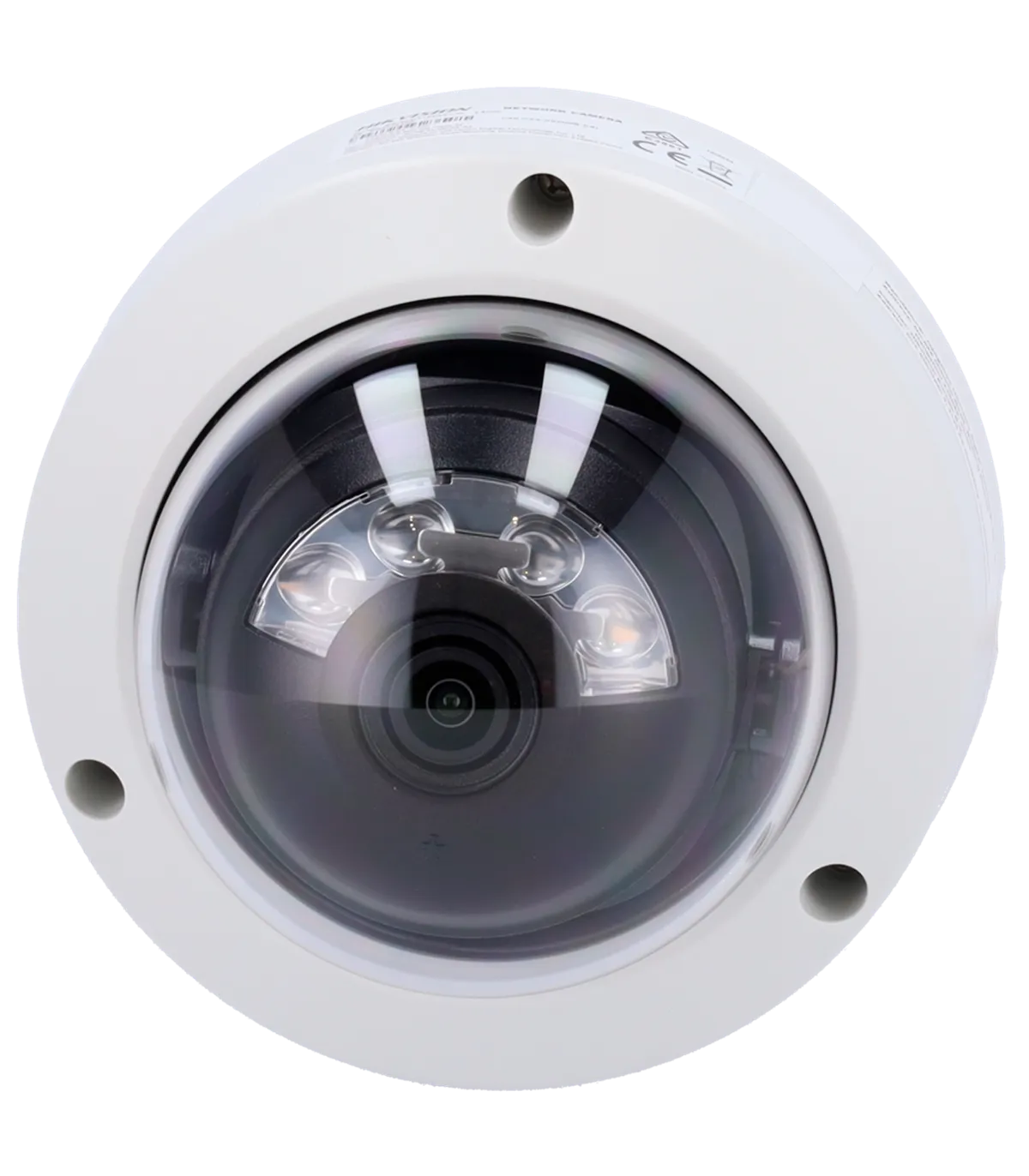

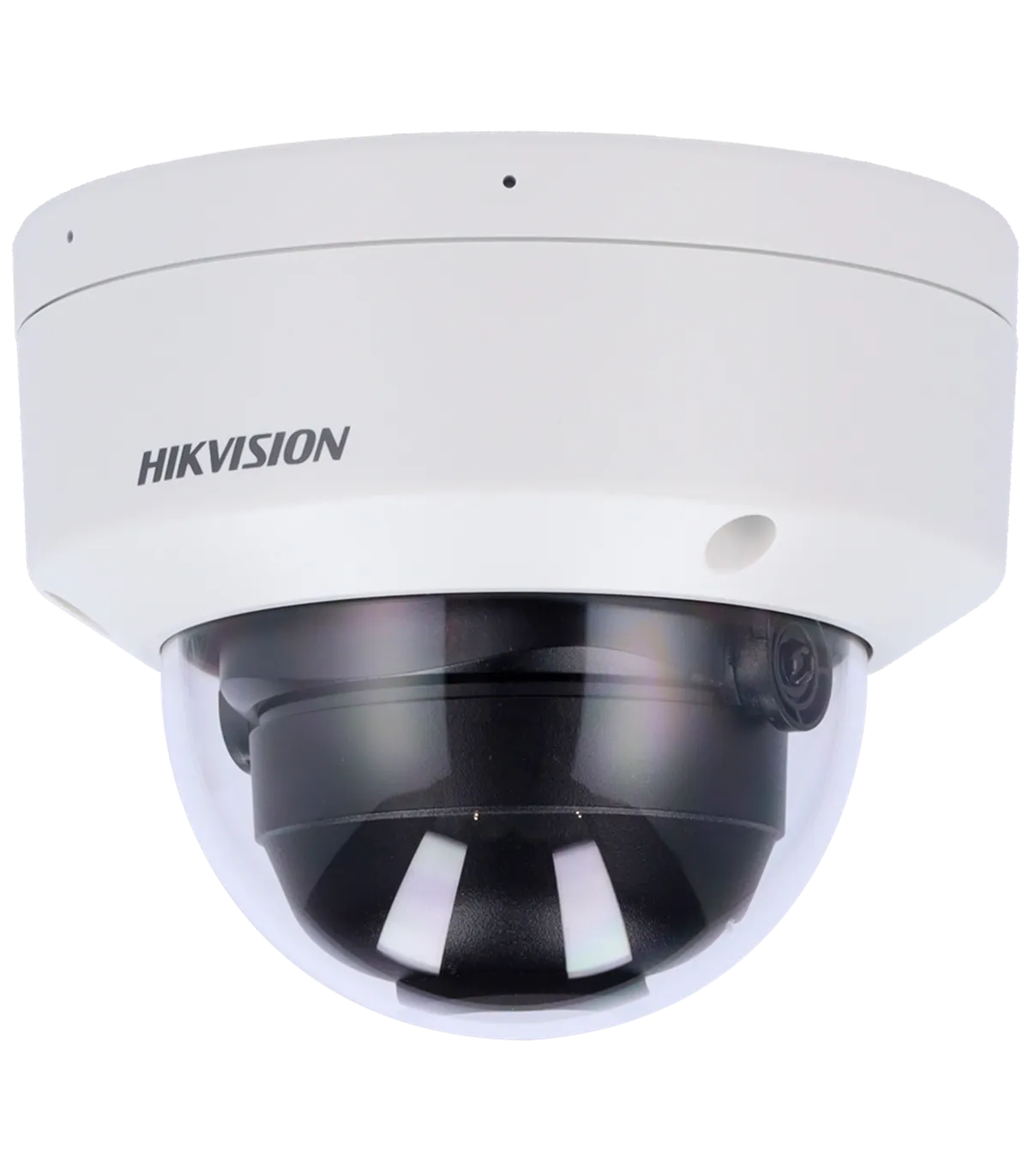

- Hikvision VALUE series IP Dome Camera
- Resolution 2 MP (1920x1080)
- 4 mm Lens
- Hybrid Light range 30 m
- Motion Detection 2.0
- Integrated Microphone | IP67 | IK08
Description & Key Features: DS-2CD1123G2-LIU(4mm)
The DS-2CD1123G2-LIU(4mm) is a high-performance IP dome camera designed for effective surveillance in various environments. With its 2 Megapixel resolution and advanced features, it is ideal for both indoor and outdoor applications, ensuring clear video quality and reliable monitoring. This camera is equipped with a hybrid light system, providing visibility in complete darkness up to 30 meters, making it suitable for low-light conditions. Its robust design, featuring IP67 waterproof and IK08 vandal-proof ratings, ensures durability in challenging environments.
- Hikvision
- Value Series
- IP Dome Camera
- 1/2.9" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- 4 mm Lens
- 0 Lux
- Hybrid Light: IR and White Light
- Hybrid Light Range 30 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- DWDR
- 3D-DNR
- Integrated Microphone
- WEB, CMS, Smartphone, and NVR Interface
- ONVIF Compatible
- PoE (IEEE802.3af)
- Waterproof IP67
- Vandal-proof IK08
Specifications: DS-2CD1123G2-LIU(4mm)
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 4 mm |
| Field of View (FOV) | H: 83°, V: 44°, D: 99° |
| DORI | 56 m (D), 22 m (O), 11 m (R), 5 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid Light: IR Range 30 m White Light Range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Masking |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |

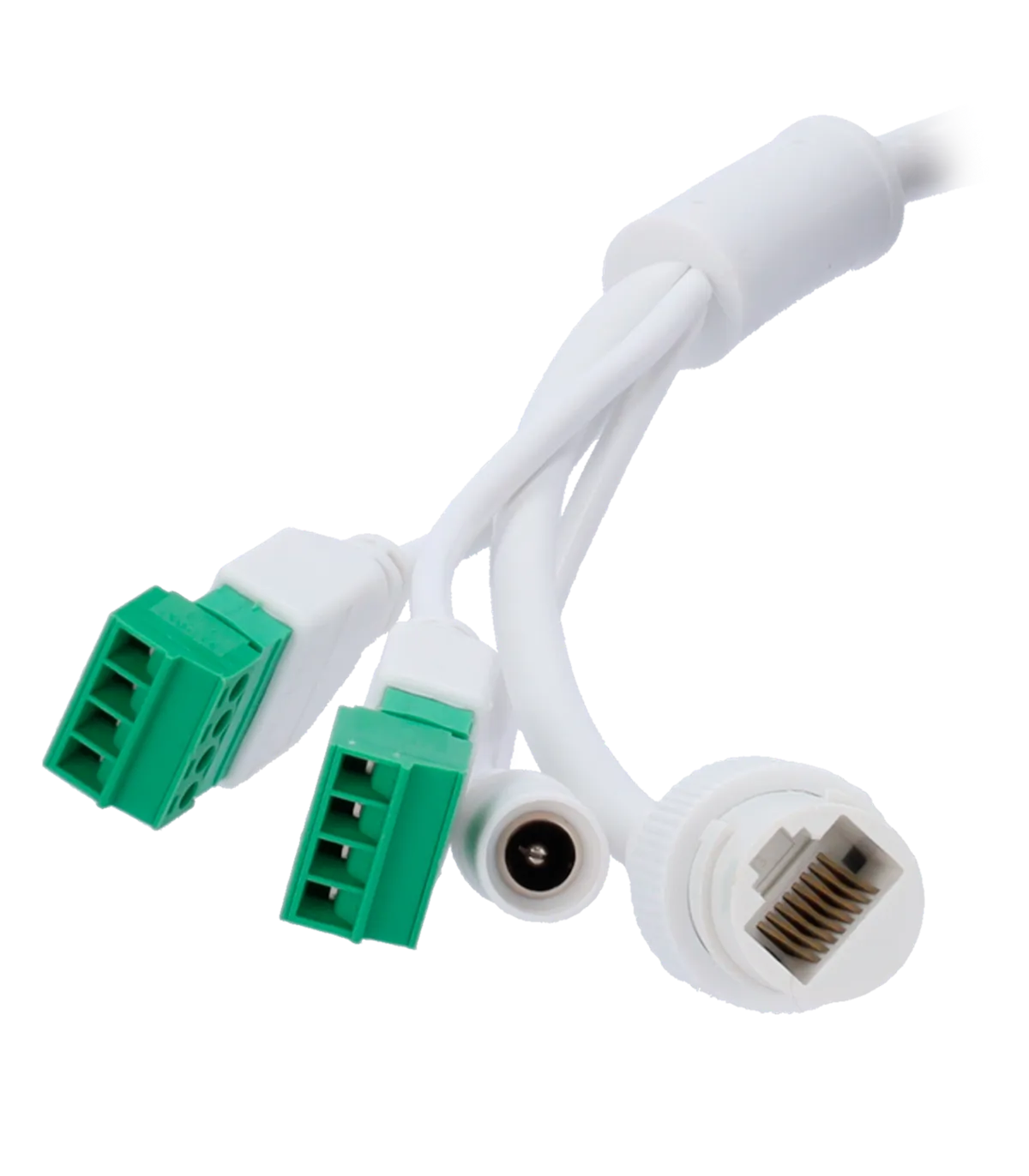

| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, T), ISAPI, SDK |
| Power Supply | DC 12 V / 500 mA / 6 W max. PoE IEEE802.3af |
| Protection Rating | Waterproof IP67 Vandal-proof IK08 |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.4 x 97.7 mm (H) |

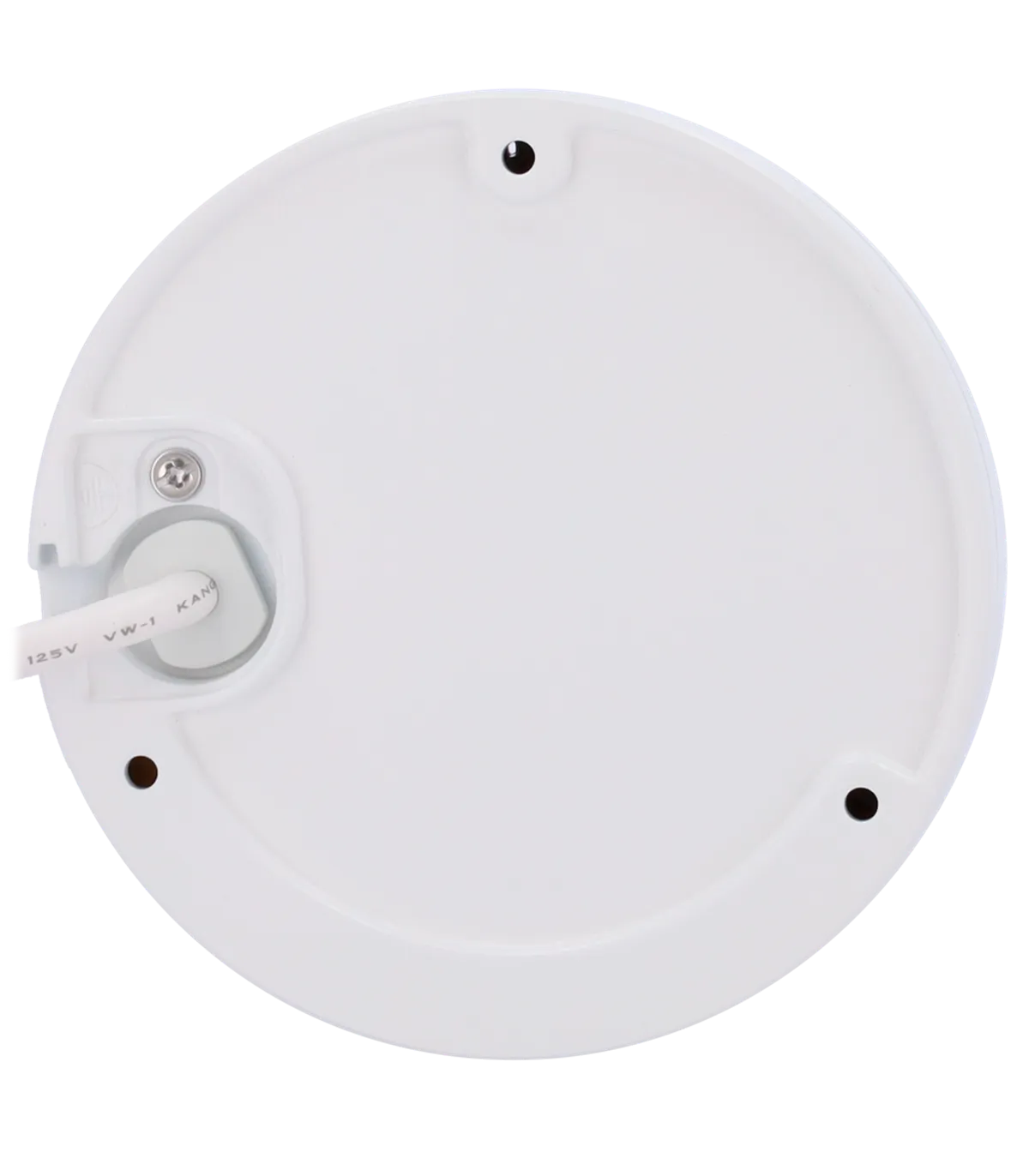

| Base Dimensions | Ø base 121.4 mm / Ø between screws 104.8 mm / 3 screws |
| Weight | 550 g |
Package Contents
- Hikvision Value IP Dome Camera
- Installation Material
- User Instructions
Use Case
The DS-2CD1123G2-LIU(4mm) is an excellent choice for both residential and commercial security installations. For instance, a retail store can deploy this camera at entry points to monitor customer activity and deter theft. With its remote monitoring capabilities, store owners can access live feeds via the Hik-Connect app, ensuring constant surveillance even when away. The camera's motion detection feature, enhanced by human and vehicle classification, allows for precise alerts, reducing false alarms. Additionally, the IP67 rating ensures that the camera remains operational in various weather conditions, while the integrated microphone provides audio surveillance, adding another layer of security. Overall, the DS-2CD1123G2-LIU(4mm) offers a comprehensive solution for effective surveillance, making it a valuable asset for any security system.
Data sheet
- Brand
- HIKVISION
- Resolution
- 2 Mpx
- Technology
- IP
- WDR
- DWDR
- IR Distance
- 30 m
- Audio
- Micrófono integrado
- SD Slot
- No dispone
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK08
- Series
- VALUE
- POE
- PoE (IEEE802.3af)
- Lens
- 4 mm
- Compatible models
- DS-1280ZJ-DM46,DS-1280ZJ-DM46,DS-1275ZJ-SUS,DS-1275ZJ-SUS,DS-1272ZJ-120B,DS-1272ZJ-120B,DS-1272ZJ-120,DS-1272ZJ-120,DS-1271ZJ-120,DS-1271ZJ-120
Specific References
- EAN13
- 6931847189075
