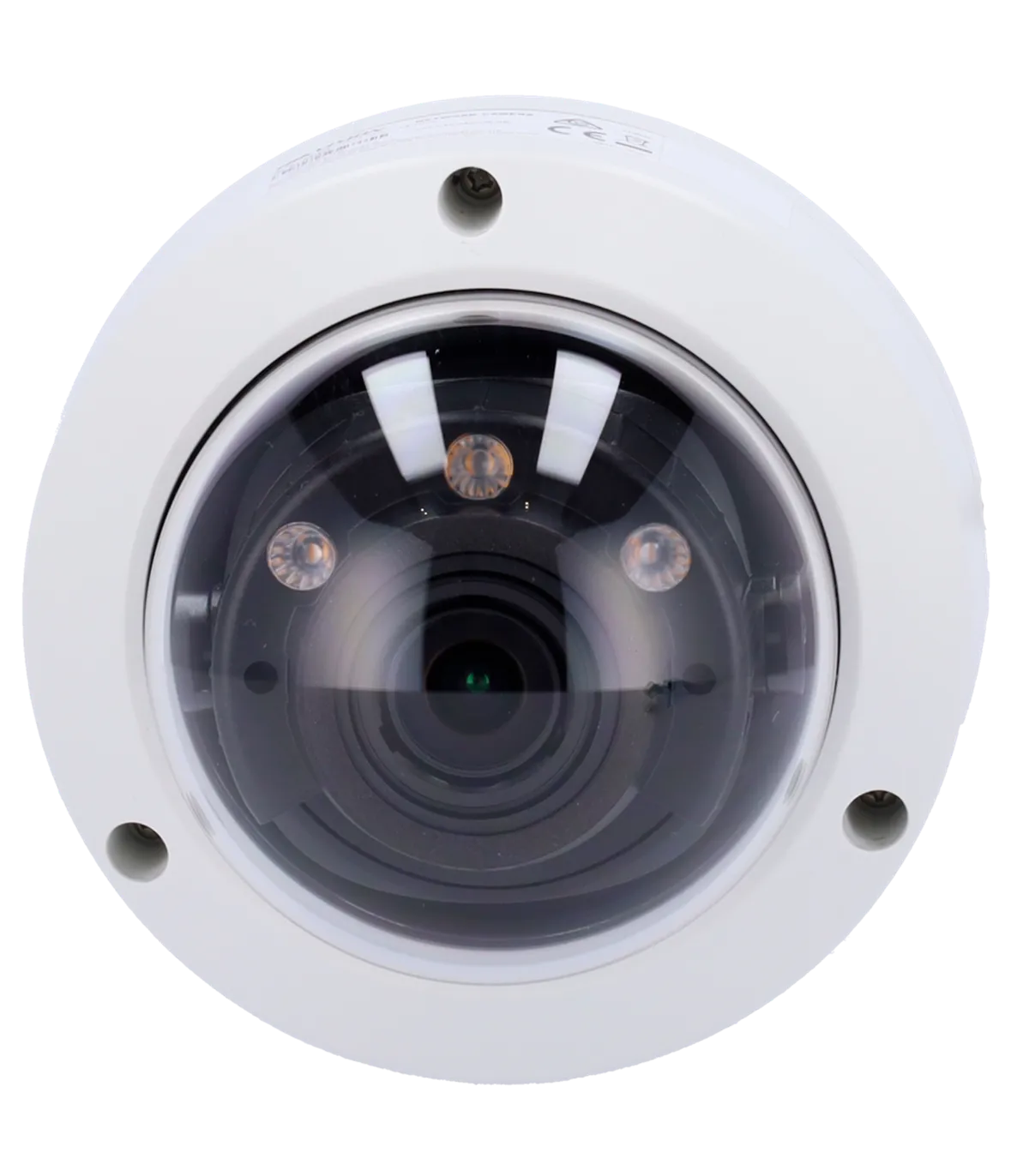

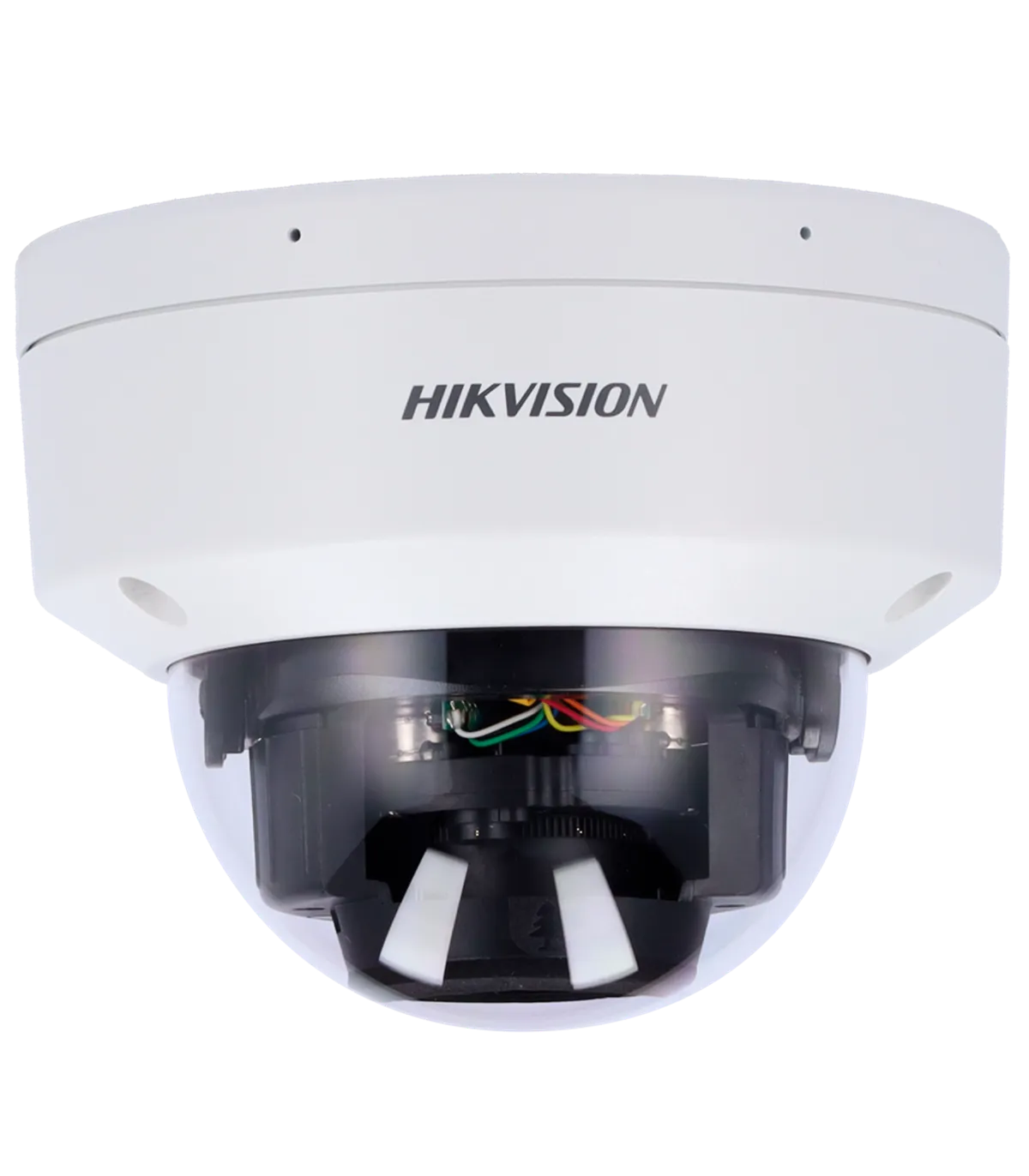

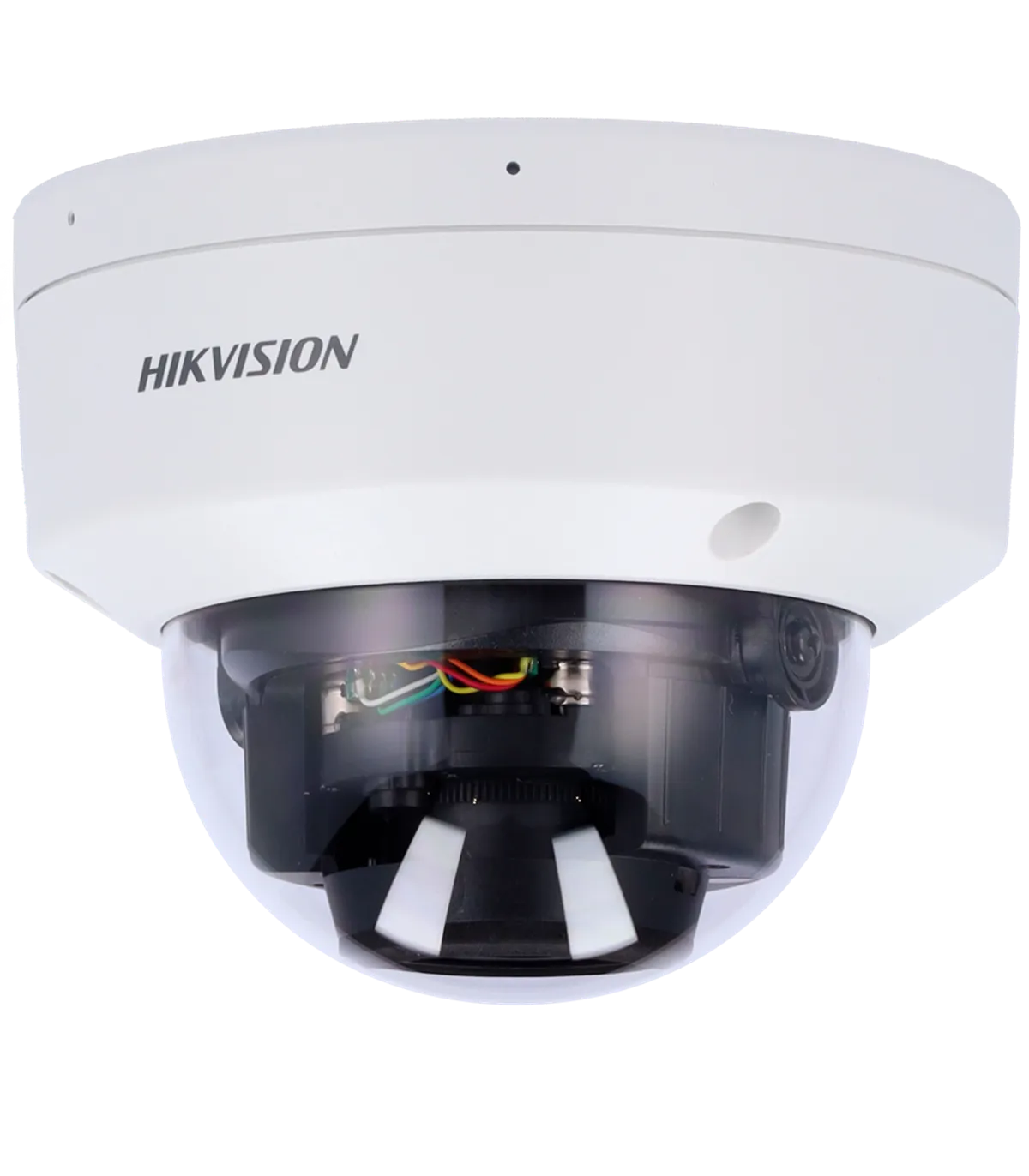

The DS-2CD2743G2-LIZS2U(2.8-12mm) is a high-performance IP dome camera designed for professional surveillance applications. It features a 4 Megapixel resolution, making it ideal for capturing detailed images in various lighting conditions. This camera is equipped with a motorized varifocal lens ranging from 2.8 to 12 mm, allowing for flexible installation and optimal field of view. With its hybrid light technology, it provides excellent visibility in complete darkness, making it suitable for both indoor and outdoor environments.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640x480, 640×360) * The Third Stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 102.4~31.2°, V: 54.7~17.6°, D: 122.1~35.8° |
| DORI | 64~198 m (D), 25.4~78.6 m (O), 12.8~39.6 m (R), 6.4~19.8 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid light: IR range 40 m White light range 40 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 880 mA / 10.56 W max. PoE IEEE802.3af |
| Protection Grade | IP67 waterproof IK10 vandal-proof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |

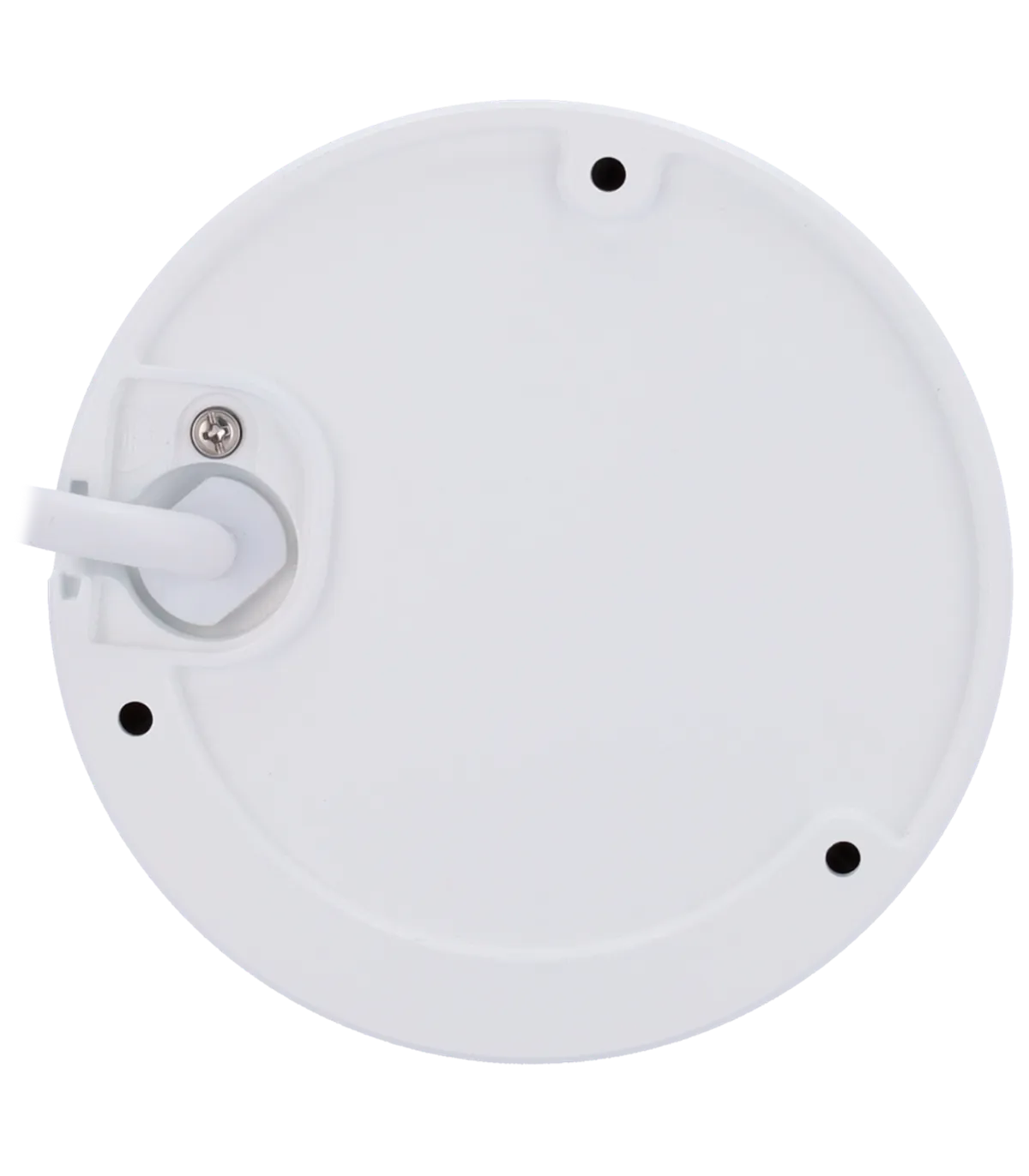

| Base Dimensions | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 620 g |
The DS-2CD2743G2-LIZS2U(2.8-12mm) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and office buildings. In a retail environment, this camera can be strategically placed to monitor entrances and aisles, providing remote monitoring capabilities through its web interface and smartphone app. The hybrid light technology ensures clear images even in low-light conditions, enhancing security during nighttime operations. Additionally, the camera's AcuSense technology significantly reduces false alarms by accurately classifying human and vehicle movements, making it a reliable choice for busy areas. With its robust IP67 waterproof and IK10 vandal-proof ratings, this camera can withstand harsh weather conditions and potential tampering, ensuring continuous operation. The integration of a dual array microphone allows for audio monitoring, adding another layer of security to the surveillance system.
