- Hikvision
- VALUE series IP Dome Camera
- 4 Megapixel resolution (2560x1440)
- Motorized varifocal lens 2.8~12 mm
- EXIR IR range 30 m | PoE (IEEE802.3af)
- Motion detection 2.0 | IP67 | IK10
Description & Key Features: DS-2CD1743G2-IZ(2.8-12mm)

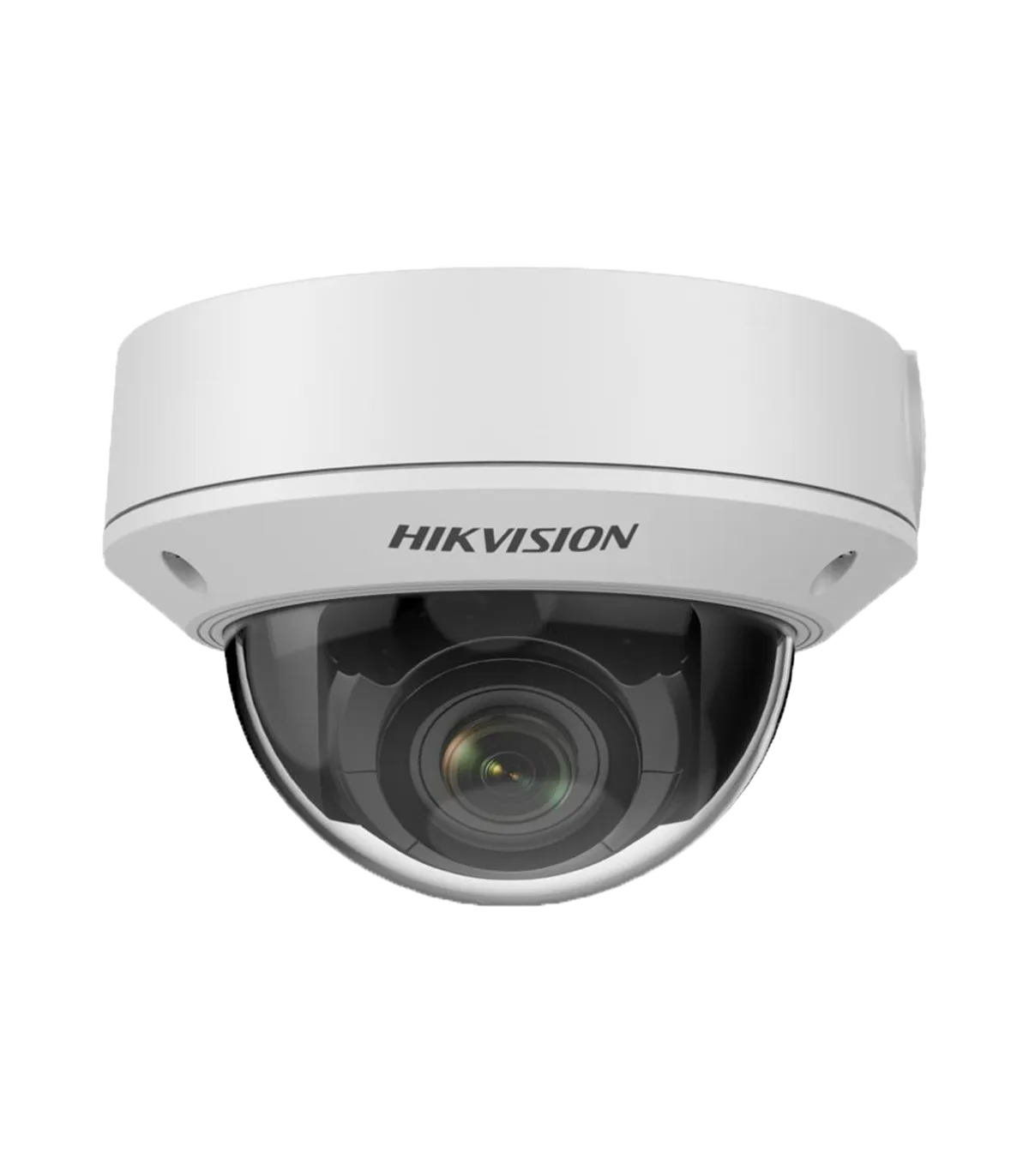

The DS-2CD1743G2-IZ(2.8-12mm) is a high-performance IP dome camera designed for versatile surveillance applications. With its 4 Megapixel resolution and motorized varifocal lens, it provides exceptional image clarity and flexibility in various lighting conditions. This camera is ideal for both indoor and outdoor environments, ensuring reliable security monitoring with features such as 30m EXIR IR range and IP67 waterproof rating.
- Hikvision
- VALUE Series
- IP Dome Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- Motorized varifocal lens 2.8~12 mm
- 0 Lux
- EXIR IR range 30 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- WDR (120 dB)
- 3D DNR
- MicroSD card slot up to 256 GB
- WEB, CMS, Smartphone, and NVR interface
- ONVIF compatible
- PoE (IEEE802.3af)
- IP67 waterproof
- IK10 vandal-proof
Specifications: DS-2CD1743G2-IZ(2.8-12mm)
| Brand | HIKVISION |
| Series | VALUE |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 95.9~29.2°, V: 50.6~16.4°, D: 114.7~33.5° |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with EXIR IR range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Internal Storage | MicroSD card slot up to 256 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 800 mA / 9.6 W max. / PoE IEEE802.3af |
| Protection Rating | IP67 waterproof, IK10 vandal-proof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 141 mm x 99.9 mm (Fo) |
| Weight | 820 g |
Package Contents
- Hikvision IP Dome Camera
- Installation materials
- User manual
Use Case
The DS-2CD1743G2-IZ(2.8-12mm) is an excellent choice for both residential and commercial security installations. For instance, a retail store can utilize this high-resolution camera to monitor entrances and exits, ensuring that all activities are captured in stunning detail. The camera's motorized varifocal lens allows for easy adjustments to the field of view, making it adaptable to various surveillance needs. With features like remote monitoring via the Hik-Connect app, store managers can keep an eye on their premises from anywhere. Additionally, the camera's IP67 rating ensures durability against harsh weather conditions, while the IK10 vandal-proof design protects it from tampering. This combination of features makes the DS-2CD1743G2-IZ(2.8-12mm) a reliable solution for enhancing security in any environment.
Data sheet
- Brand
- HIKVISION
- Resolution
- 4 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 30 m
- Audio
- No dispone
- SD Slot
- Ranura MicroSD hasta 256 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK10
- Series
- VALUE
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 ~ 12 mm Motorizada
Specific References
- EAN13
- 6931847181901
