€143.55
Video intercom monitor
7" TFT touch screen display
Two-way audio
2 wires, WiFi, SIP
MicroSD card slot up to 128 GB
Surface mount

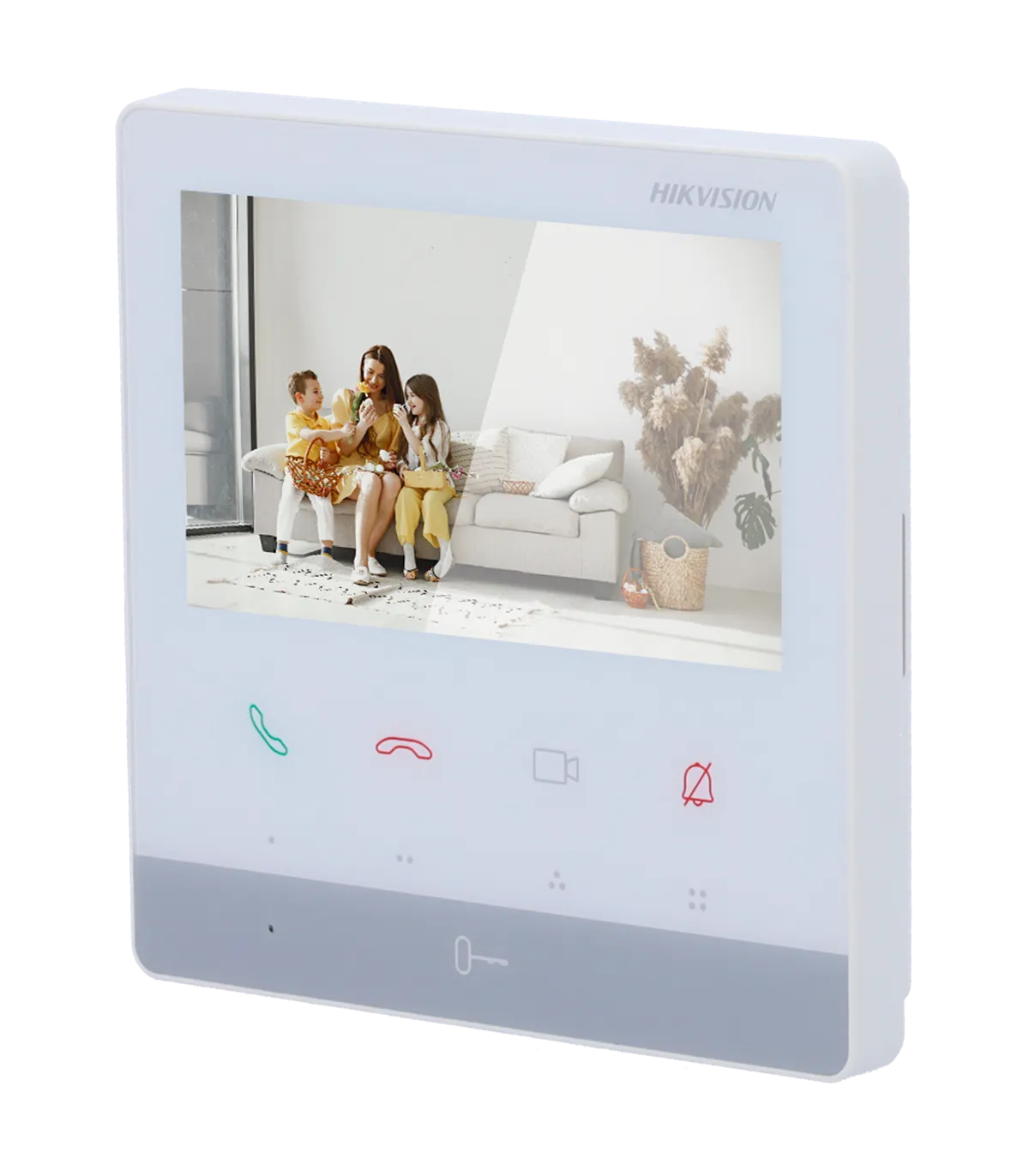

Indoor Video Intercom Monitor HIKVISION 4.3-inch 2-wire HD DS-KH7100EY-E2/White
- Monitor for video doorphone
- 4.3" TFT screen
- Two-way audio | Status LED
- 2 HD wires
- MicroSD card slot up to 128 GB
- Surface mount | White
€75.69
Reference:
DS-KH7100EY-E2/White
Brand:
Add to wishlist
The video intercom monitor is the component installed inside the premises, also known as the indoor unit, and allows the building staff to receive calls from visitors.
This model features a 4.3" screen and touch buttons that facilitate user operation.
The 2-wire devices communicate and are powered through conventional copper cables (referred to as wires) and distributors, allowing the reuse of existing conventional installations that already have this type of wiring.
- Hikvision
- 4.3" HD 2-wire video intercom TFT screen
- Integrated microphone and speaker
- Two-way audio
- MicroSD slot
- Image capture and recording
- LED status indicators
- Multiple screen extension: up to 4 monitors connected in series
- Surface mount
- White color
Specifications: DS-KH7100EY-E2/White
| Brand | Hikvision |
| Model | DS-KH7100EY-E2 |
| Operating System | Linux |
| LCD | 4.3" color TFT |
| Screen Resolution | 480 x 272 |
| Operation Mode | 9 x Touch operation buttons (call functions, menu actions, and door opening) LED status indicators |
| Inputs | 1 x 2-wire HD |
| Outputs | 1 x 2-wire HD |
| Audio | Two-way audio with integrated microphone and speaker Noise reduction and echo cancellation |
| Memory | MicroSD card slot (up to 128 GB) |
| Connection | 2-wire HD / RTSP |
| Remote Access | Not available |
| Power Supply | Via specific Hikvision hub for 2-wire HD video intercoms (max 4 W) |
| Operating Temperature | -10 ºC ~ +50 ºC |
| Dimensions | 120 (H) x 120 (W) x 23 (D) mm |
| Weight | 200 g |
| Color | White |
| Slave Monitors | Monitors not belonging to the 2-wire HD system cannot be used |
Package Contents
- Hikvision indoor video intercom monitor
- Installation materials
- User manual
DS-KH7100EY-E2/White
Data sheet
- Brand
- HIKVISION INTERCOM
- Compatible models
- DS-KAD7061EY,DS-KAD7060EY,DS-KABH6350-T,CA2-100-H-INTERCOM,CA2-100-H-INTERCOM,CA2-100-H-INTERCOM
Specific References
- EAN13
- 6936422118938
