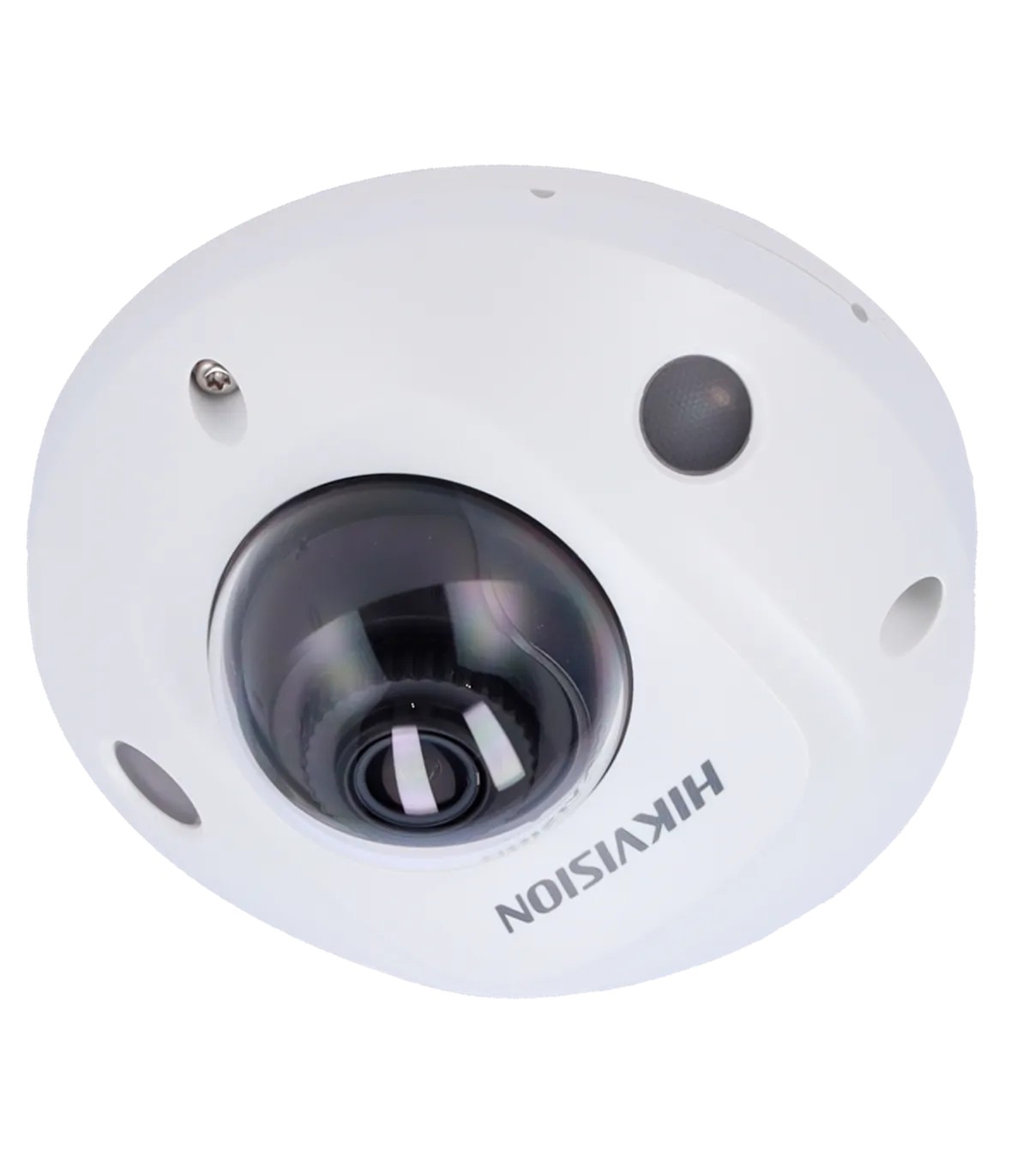

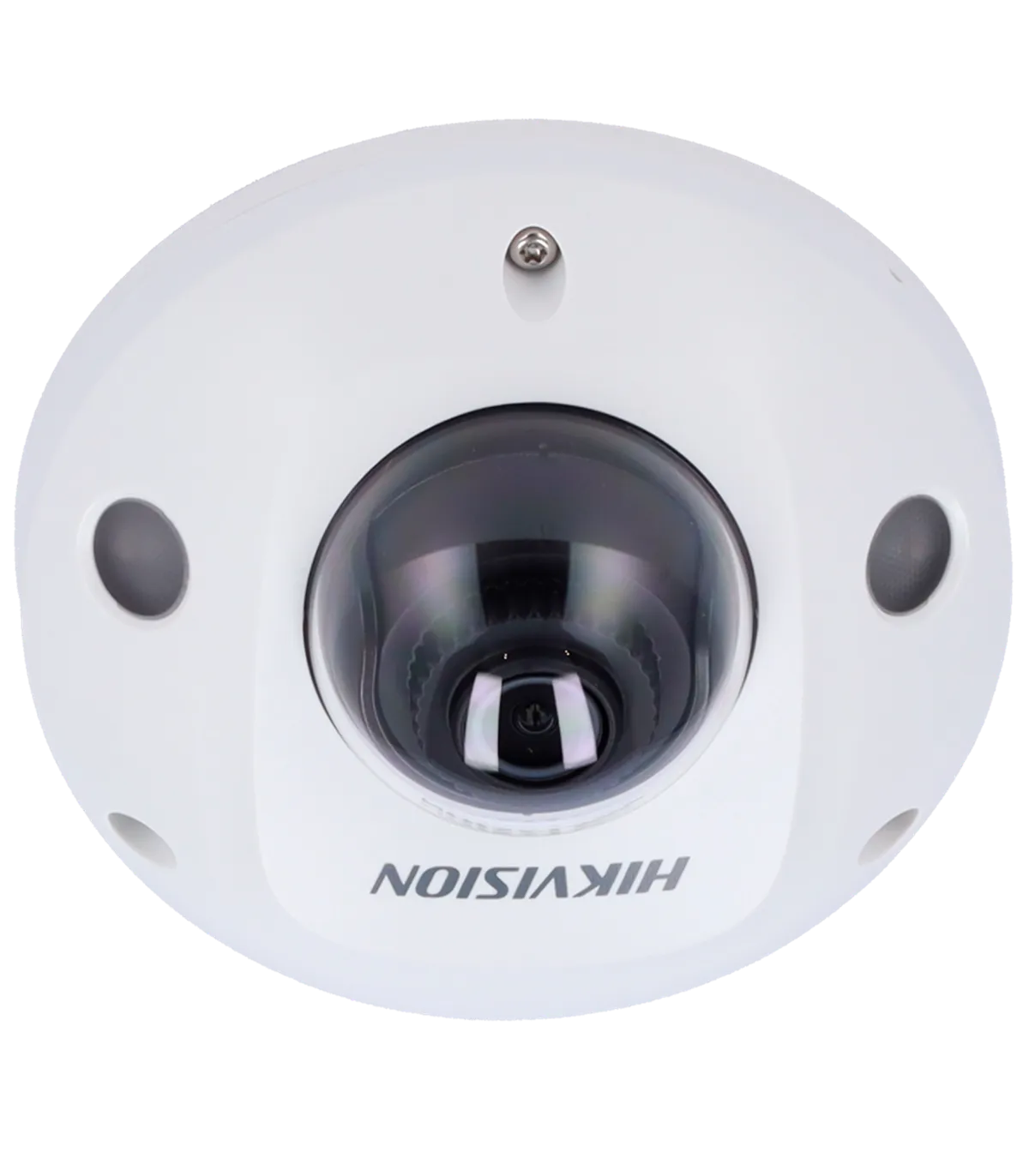

The DS-2CD2543G2-IWS(2.8mm) is a high-performance IP dome camera designed for versatile surveillance applications. With its advanced features, it is ideal for both indoor and outdoor environments, providing reliable security solutions for residential and commercial properties. This camera offers exceptional image quality with a 4 Megapixel resolution and is equipped with IR capabilities for low-light conditions, ensuring clear visibility at all times.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 104.3°, V: 55.9°, D: 123.8° |
| DORI | 64 m (D), 25 m (O), 13 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Internal Storage | MicroSD card slot up to 256 GB |
| Alarms | 1 input / 1 relay |
| Audio | 1 input / 1 output Integrated microphone |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3) |
| Network Interface | Ethernet 10 / 100 BaseT Wi-Fi IEEE802.11 b/g/n |
| WiFi Frequency | 2.4 GHz ~ 2.4835 GHz |
| WiFi Encryption Mode | 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK |
| WiFi Modulation | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 500 mA / 6 W max. / PoE IEEE802.3af |
| Protection Grade | Waterproof IP67, vandal-proof IK08 |
| Material | Base: Aluminum alloy Cover: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 110 mm x 57.4 mm (H) |
| Weight | 380 g |
The DS-2CD2543G2-IWS(2.8mm) is an excellent choice for a variety of surveillance applications, particularly in retail stores and office environments. For instance, an installer can deploy this camera in a retail setting to monitor customer interactions and prevent theft. With its high-resolution imaging and IR capabilities, the camera ensures clear footage even in low-light conditions, enhancing security measures. Additionally, the AcuSense technology allows for intelligent detection of human and vehicle movements, significantly reducing false alarms. This feature is particularly beneficial in busy environments where unnecessary alerts can disrupt operations. Furthermore, the camera's remote monitoring capabilities via the Hik-Connect app enable business owners to keep an eye on their premises from anywhere, providing peace of mind. The IP67 waterproof rating ensures durability in various weather conditions, making it suitable for outdoor installations as well. Overall, the DS-2CD2543G2-IWS(2.8mm) combines advanced features with user-friendly operation, making it a top choice for effective surveillance solutions.
