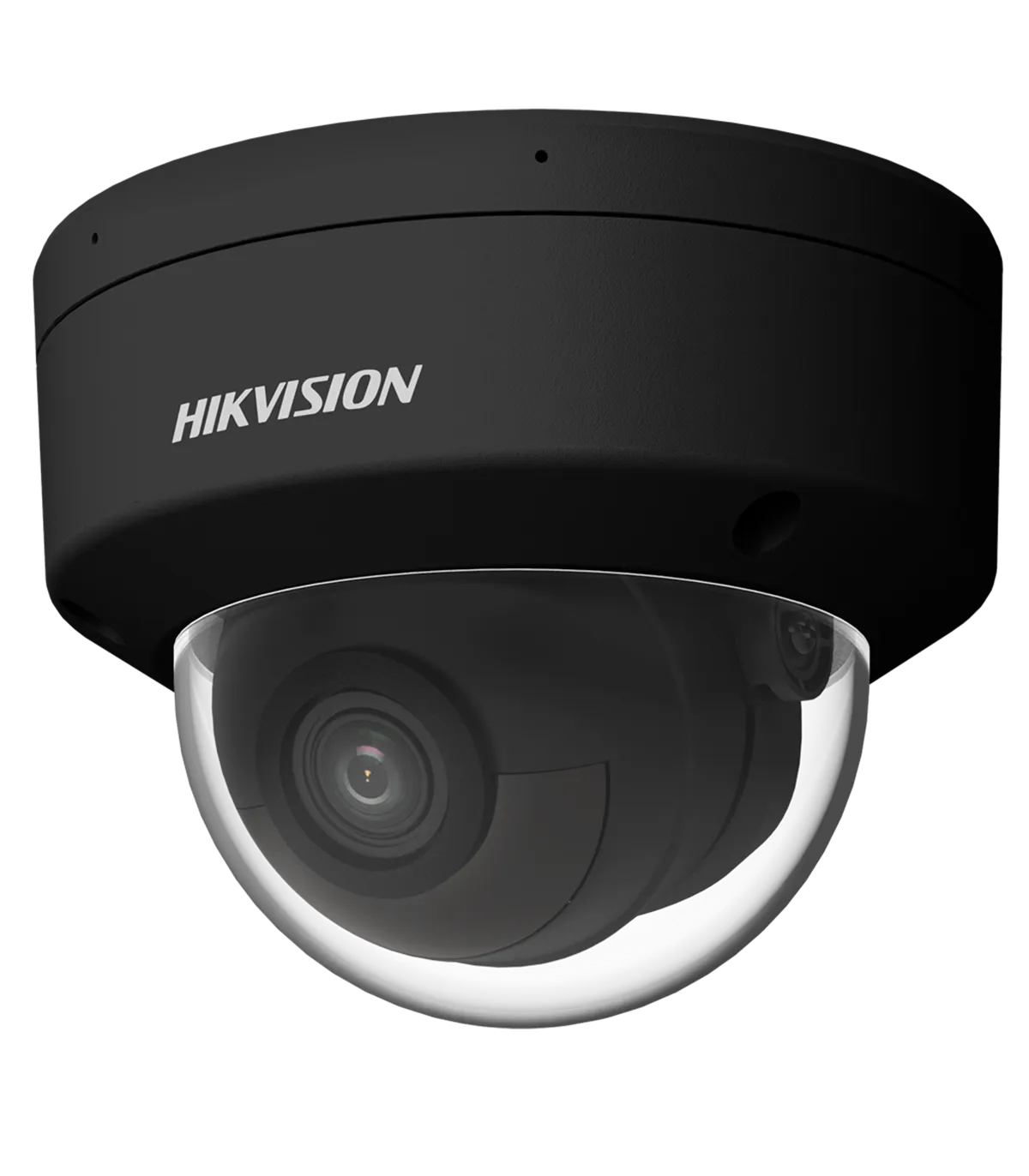

The DS-2CD2186G2H-ISU(2.8mm)(eF)//BLACK is a high-performance IP dome camera designed for advanced surveillance applications. It is particularly effective in low-light conditions, thanks to its DarkFighter technology, making it ideal for outdoor environments where lighting may be limited. This camera features an 8 Megapixel resolution, ensuring clear and detailed images. With its robust design, including IP67 waterproof and IK10 vandal-proof ratings, it is suitable for various security installations, providing reliable performance in challenging conditions.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640×480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 105.1°, V: 54.8°, D: 128.2° |
| DORI | 89 m (D), 35 m (O), 17 m (R), 8 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light Powered by DarkFighter Color: 0.0008 Lux @(F1.0, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror Function, Privacy Mask |
| ANR | Yes |
| Alarms | 1 Input / 1 Output |
| Audio | 1 Input / 1 Output Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Features | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 660 mA / 8 W max. / PoE IEEE802.3af |
| Protection Rating | Waterproof IP67, Vandal-proof IK10 |
| Material | Aluminum Alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |
| Base Dimensions | Ø base 121.5 mm / Ø screw spacing 104.7 mm / 3 screws |
| Weight | 525 g |
| Color | Black |
The DS-2CD2186G2H-ISU(2.8mm)(eF)//BLACK is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and public spaces. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to monitor customer traffic and enhance security. With its high-resolution imaging and low-light capabilities, it ensures clear visibility even in dimly lit areas. The motion detection feature, enhanced by AcuSense technology, allows for precise identification of human and vehicle movements, significantly reducing false alarms. Additionally, the camera's remote access capabilities enable security personnel to monitor live feeds from anywhere, ensuring prompt responses to incidents. The robust design, featuring IP67 and IK10 ratings, guarantees durability against harsh weather conditions and vandalism, making it a reliable choice for outdoor installations.
