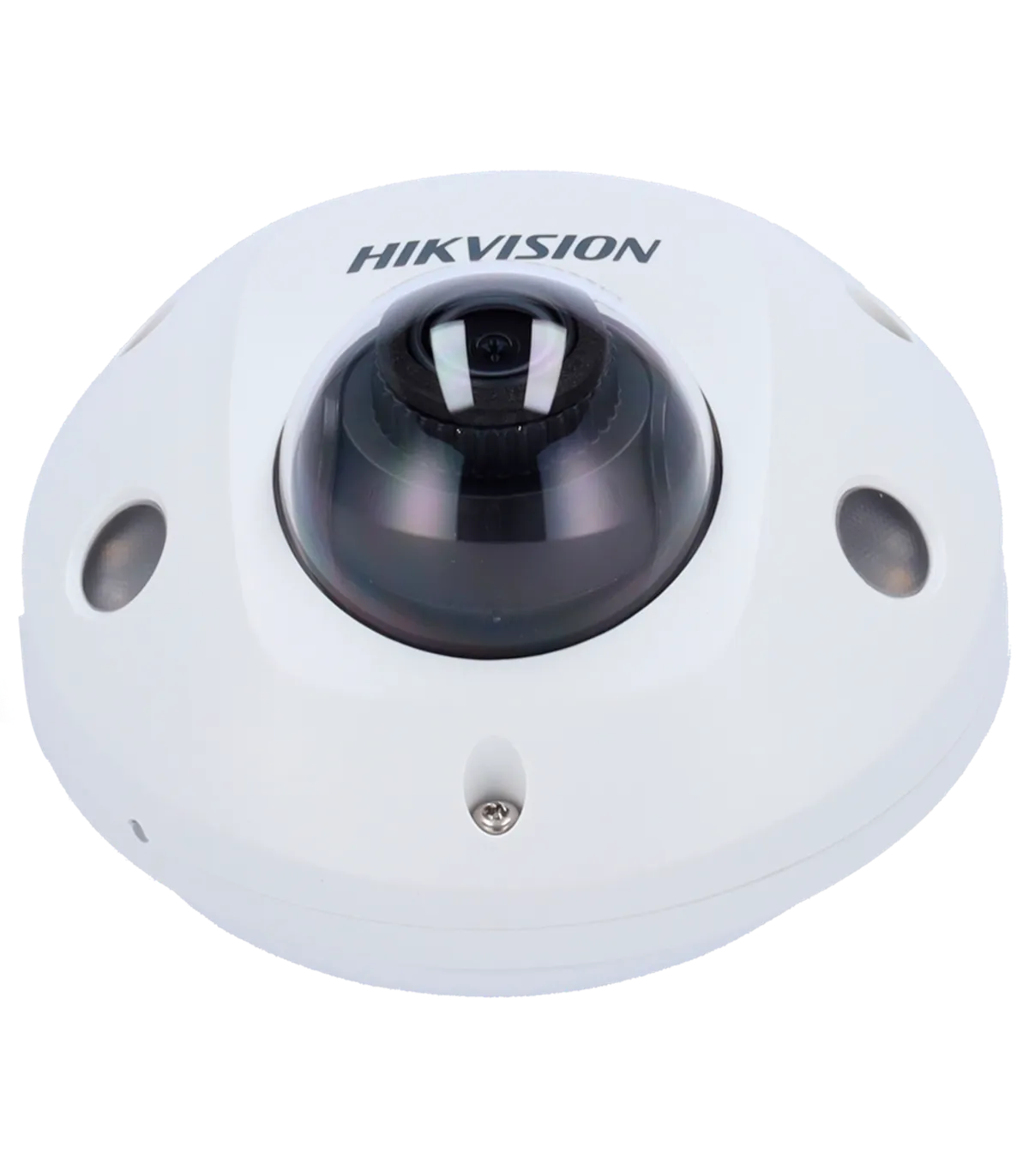

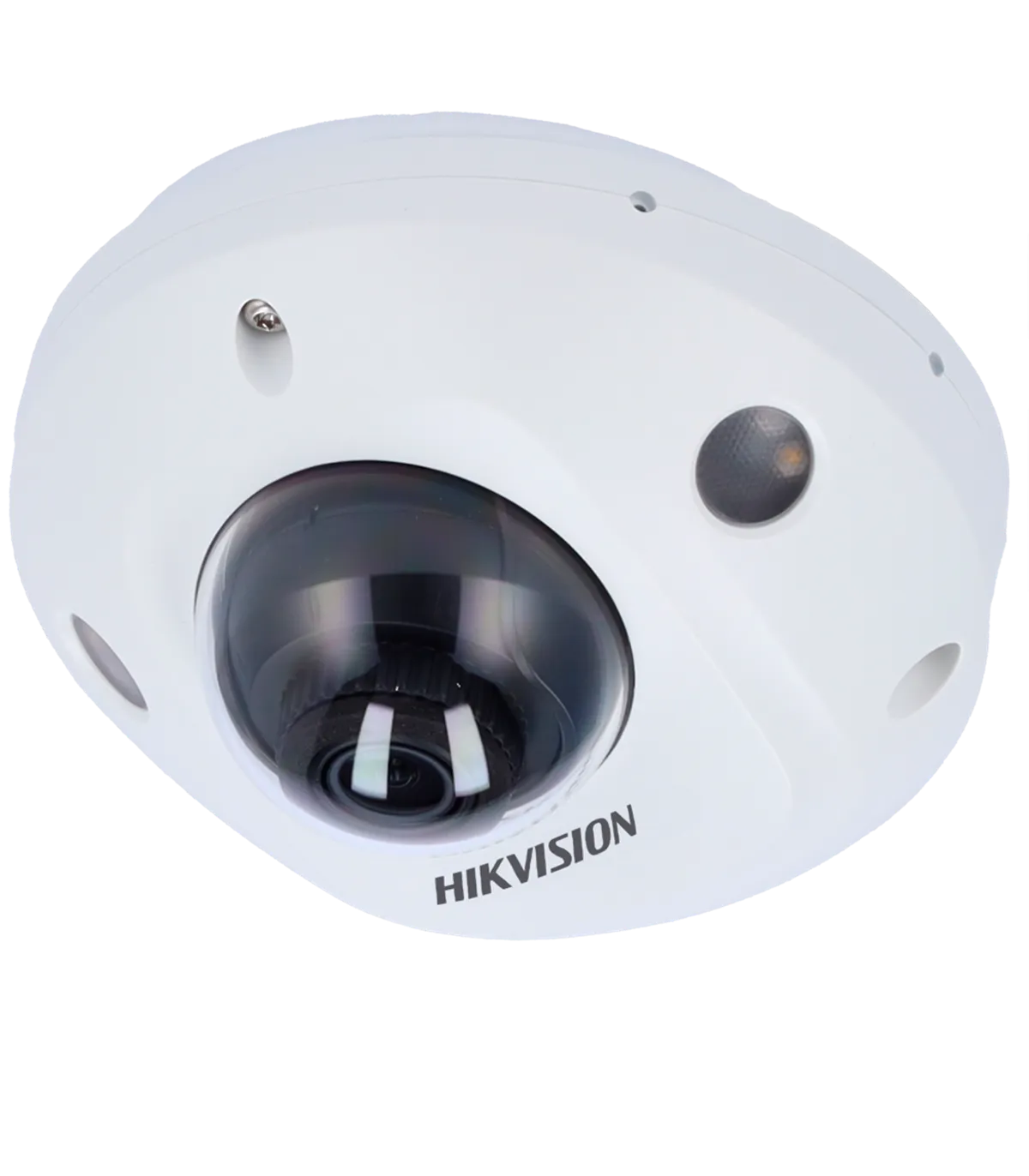

The DS-2CD2543G2-LIS2U(2.8mm) is a high-performance IP dome camera designed for effective surveillance in various environments. With its 4 Megapixel resolution and advanced features, it is ideal for both indoor and outdoor applications, providing clear images even in low-light conditions. This camera is equipped with hybrid light technology, allowing it to operate effectively in complete darkness, making it a reliable choice for security installations.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) * Third Stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 104°, V: 57°, D: 122° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Illumination | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 500 mA / 6 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof IK08 Vandal-proof |
| Material | Base: Aluminum Alloy Cover: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 110 mm x 59.2 mm (H) |
| Base Dimensions | Ø base 110 mm / Ø between screws 96 mm / 3 screws |
| Weight | 390 g |
The DS-2CD2543G2-LIS2U(2.8mm) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entry points to monitor customer traffic and deter theft. With its 4 Megapixel resolution, users can capture detailed images, ensuring that every incident is recorded clearly. The hybrid light technology allows for effective monitoring even in complete darkness, enhancing security during nighttime hours. Additionally, the AcuSense technology significantly reduces false alarms by accurately distinguishing between human and vehicle movements, making it an excellent choice for busy locations. The camera's remote access capabilities enable users to monitor their premises from anywhere, providing peace of mind. Furthermore, its IP67 waterproof rating ensures durability in various weather conditions, making it a reliable option for outdoor installations.
