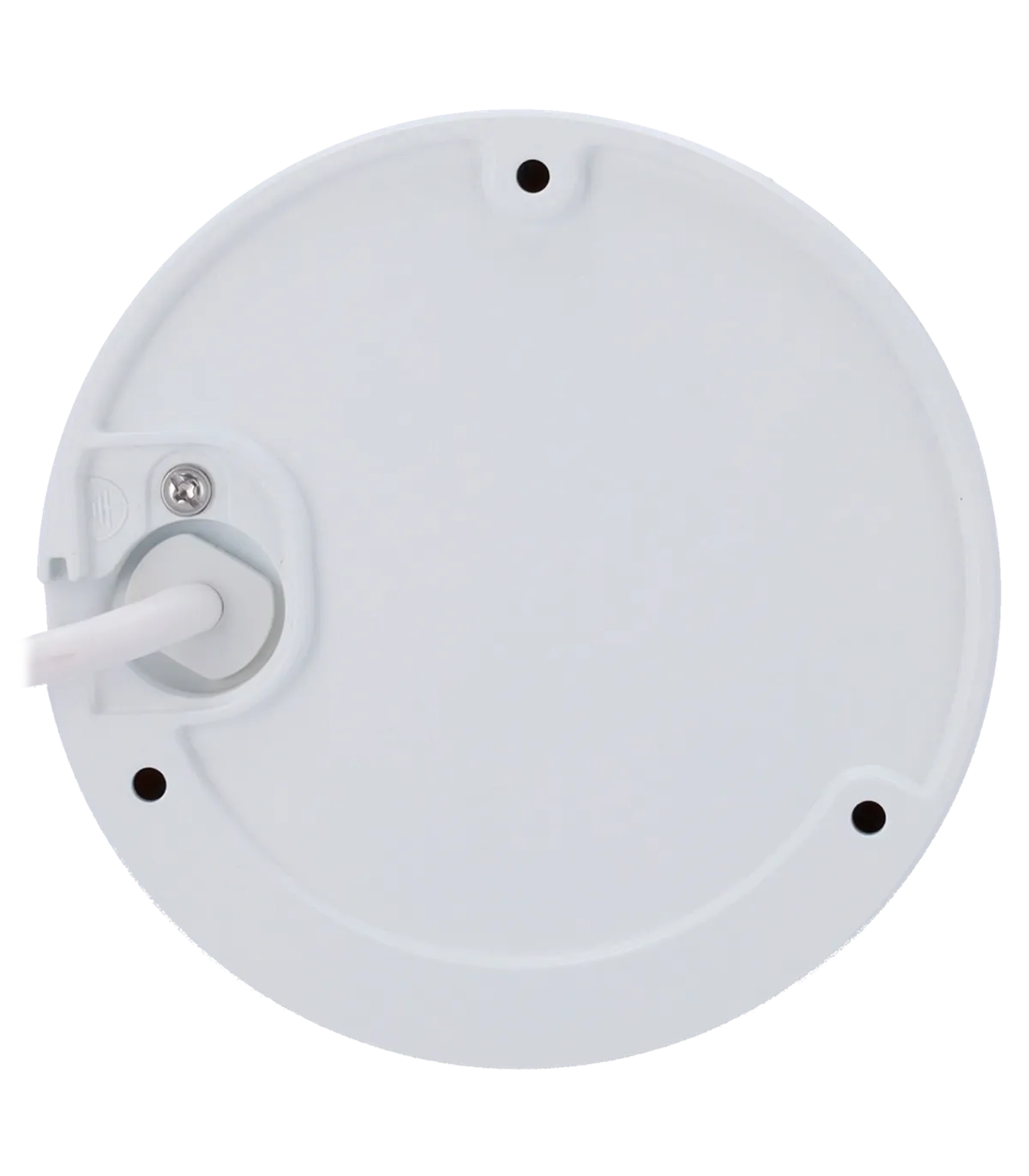

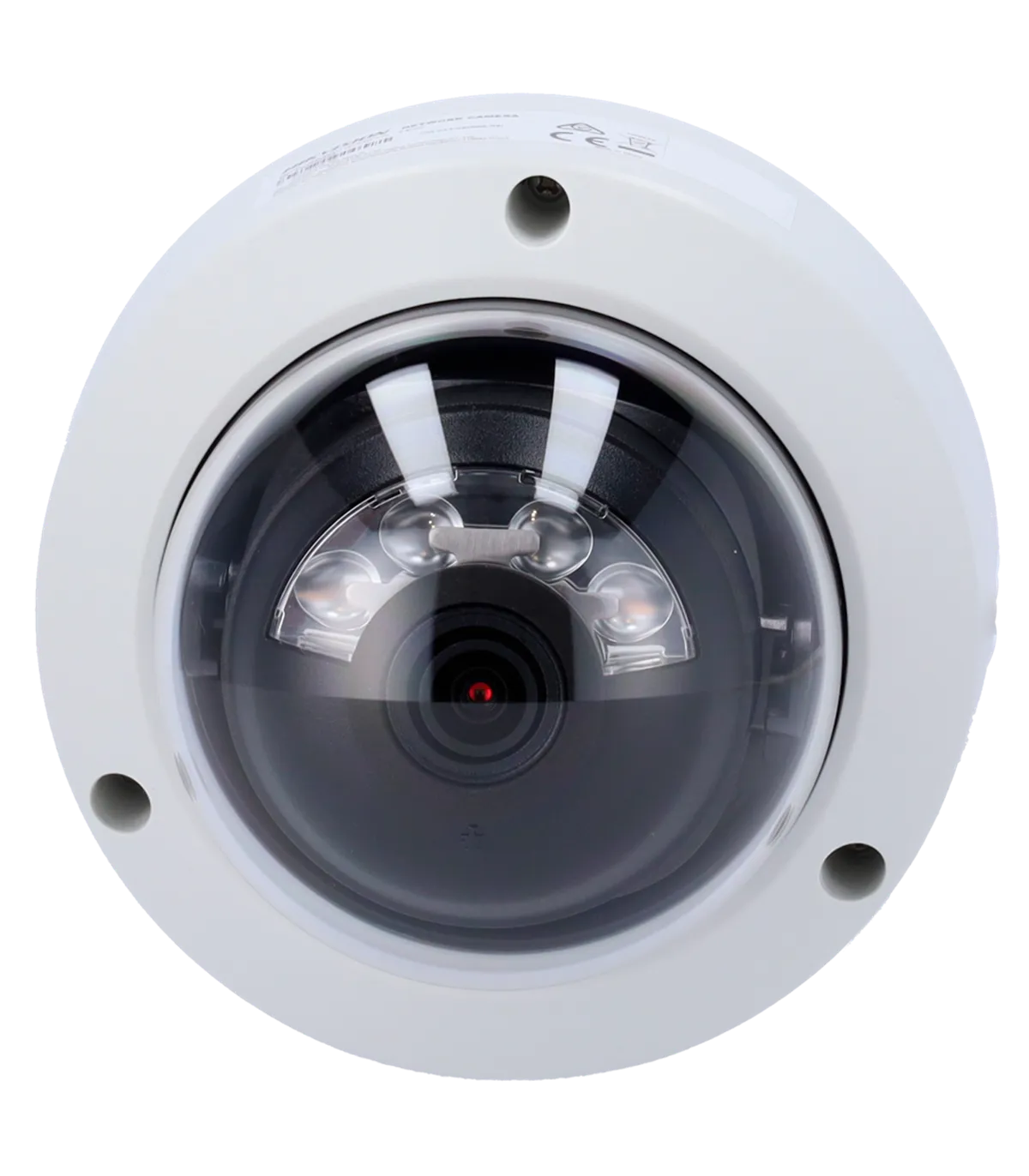

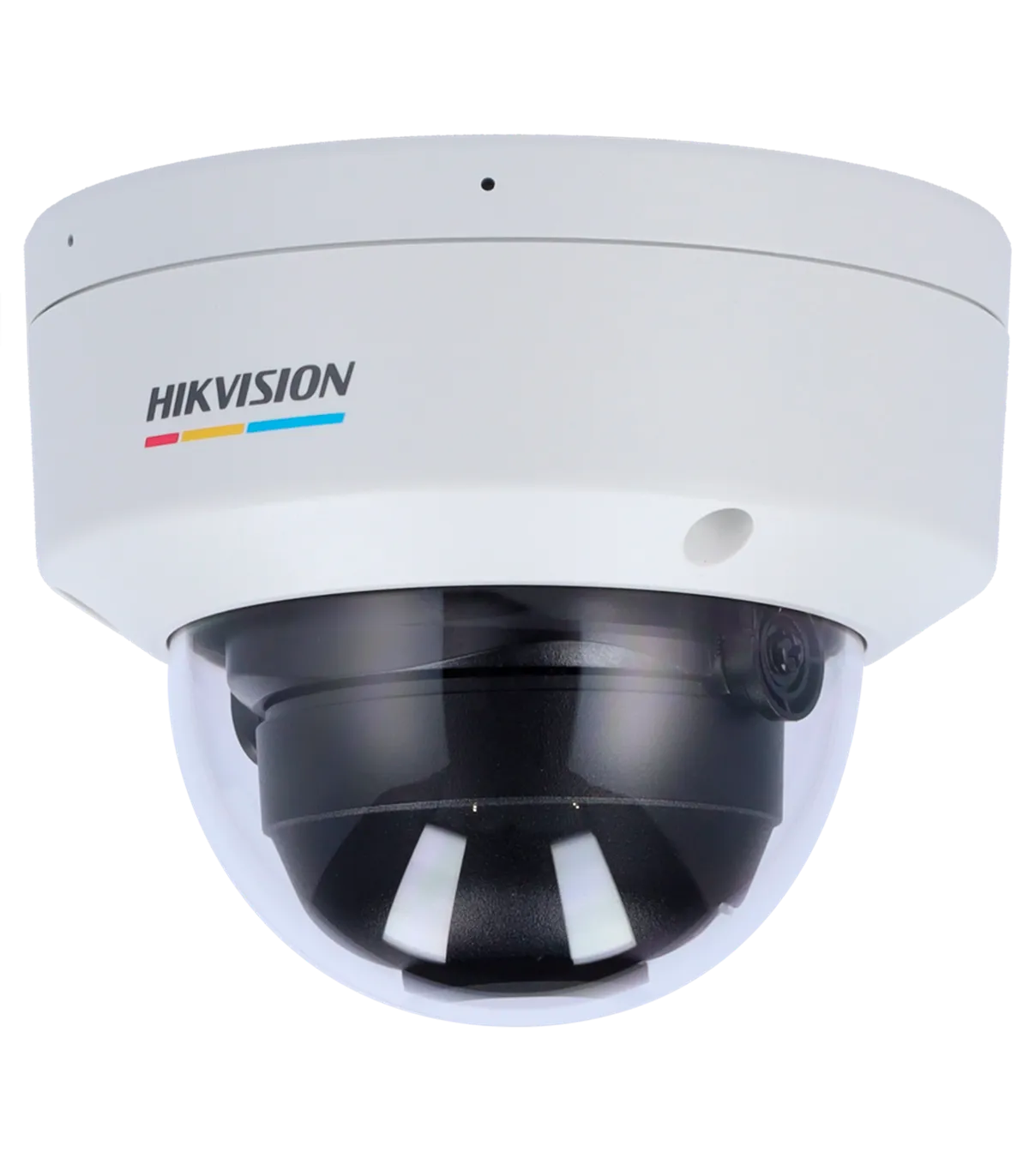

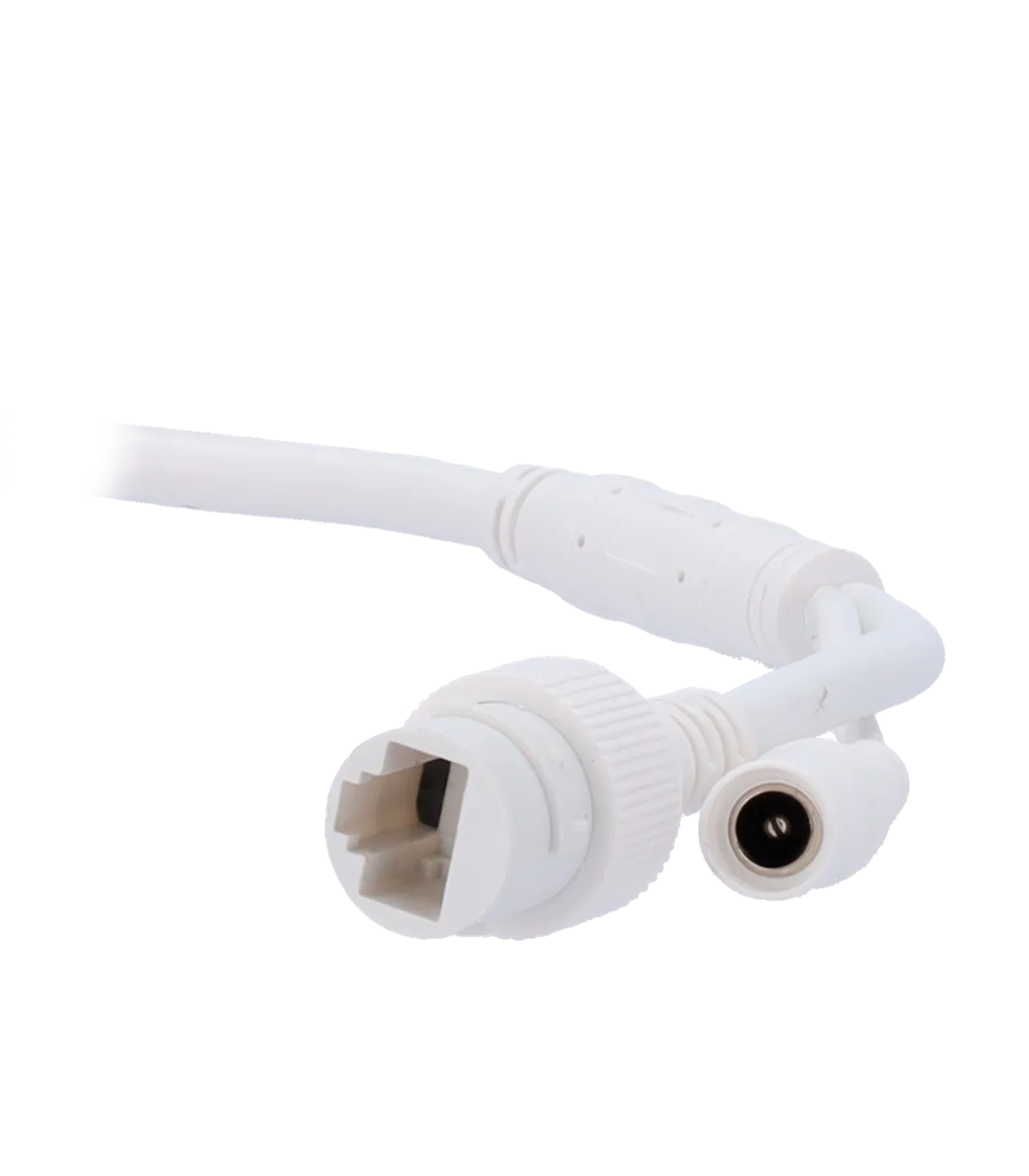

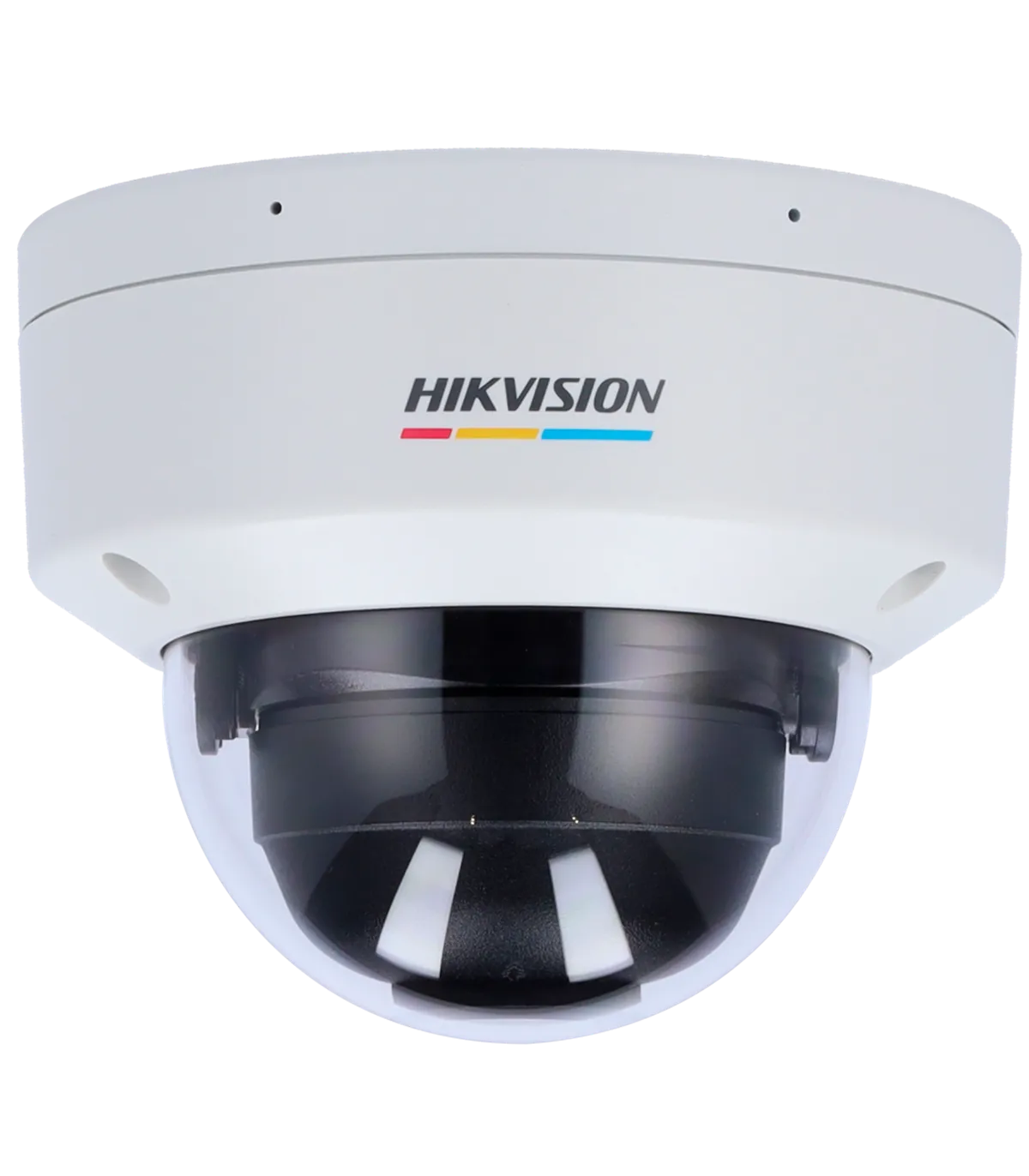

The DS-2CD1167G2H-LIU(2.8mm) is a high-performance IP dome camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera excels in providing clear, high-resolution images around the clock, thanks to its ColorVu technology. With a robust build and advanced features, it is perfect for securing commercial spaces, retail stores, and residential areas. The camera supports remote monitoring and is compatible with various network video recorders (NVRs), making it a reliable choice for comprehensive security solutions.
| Brand | HIKVISION |
| Series | VALUE |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 20 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 20 fps (1280×720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 115°, V: 60°, D: 143° |
| DORI | 64 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | ColorVu: 24-hour Color Imaging |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Internal Storage | Not available |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 550 mA / 6.6 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof IK08 Vandal Resistant |
| Material | Base: Metal Cover: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |
| Base Dimensions | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 550 g |
The DS-2CD1167G2H-LIU(2.8mm) is an excellent choice for a variety of surveillance scenarios, particularly in retail environments. For instance, a store owner can deploy this camera at the entrance to monitor customer traffic and deter theft. With its high-resolution imaging and ColorVu technology, the camera provides clear images even in low-light conditions, ensuring that the store remains secure 24/7. Additionally, the motion detection feature allows for real-time alerts, enabling quick responses to any suspicious activity. The camera's IP67 waterproof rating ensures durability against the elements, making it suitable for both indoor and outdoor installations. Furthermore, the remote access capabilities allow the owner to monitor the store from anywhere using a smartphone or computer, enhancing overall security management.
