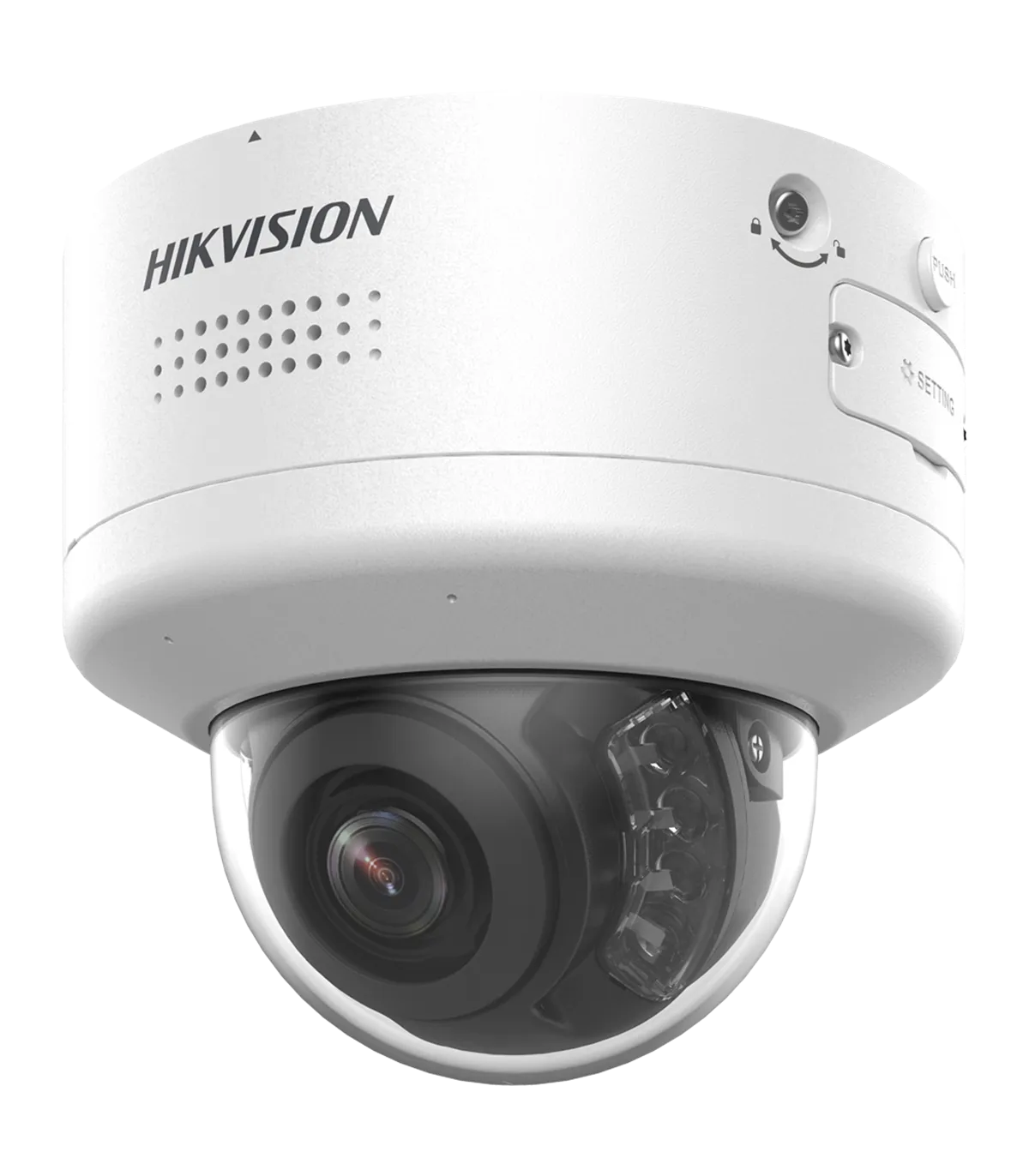

The DS-2CD2747G2H-LIPTRZS2U/SL is a high-performance IP dome camera designed for comprehensive surveillance in various environments. With its advanced features, this camera is ideal for both indoor and outdoor applications, providing exceptional image quality and reliable performance. The device is equipped with a 4 Megapixel resolution and a motorized varifocal lens, making it suitable for detailed monitoring in diverse lighting conditions. Its ColorVu technology ensures vibrant color images even in low-light situations, while the AcuSense technology minimizes false alarms, enhancing security efficiency.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 114.6~41.8°, V: 59.3~23.6°, D: 141.3~48.1° |
| DORI | 61.5~151.7 m (D), 24.4~60.2 m (O), 12.3~30.3 m (R), 6.2~15.1 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.0028 Lux @(F1.2, AGC ON) 0 Lux with white light |
| Supplementary Lighting | Hybrid light: IR range 40 m White light range 40 m |
| Day/Night | ColorVu: 24-hour color image |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and deterrent flash in the camera |
| Audio | 1 input / 1 output Integrated dual array microphone Integrated speaker |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Ambient Noise Filtering | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 1350 mA / 16 W max. PoE+ IEEE802.3at |
| Protection Grade | IP66 waterproof IK10 vandal-proof |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 155 mm x 140.4 mm (H) |
| Base Dimensions | Ø base 155 mm / Ø screw hole 96 mm / 4 screws |
| Weight | 820 g |
The DS-2CD2747G2H-LIPTRZS2U/SL is ideally suited for deployment in commercial settings such as retail stores, parking lots, and office buildings. For instance, a retail store can utilize this camera to enhance security by leveraging its motion detection capabilities and ColorVu technology for clear images during both day and night. The remote monitoring feature allows store managers to keep an eye on operations from anywhere, ensuring safety and security. Additionally, the AcuSense technology significantly reduces false alarms, allowing staff to focus on real threats. The camera's IP66 waterproof rating ensures durability in various weather conditions, making it a reliable choice for outdoor surveillance. With its integrated audio capabilities, the camera can also serve as a deterrent against potential intruders, enhancing overall security.
