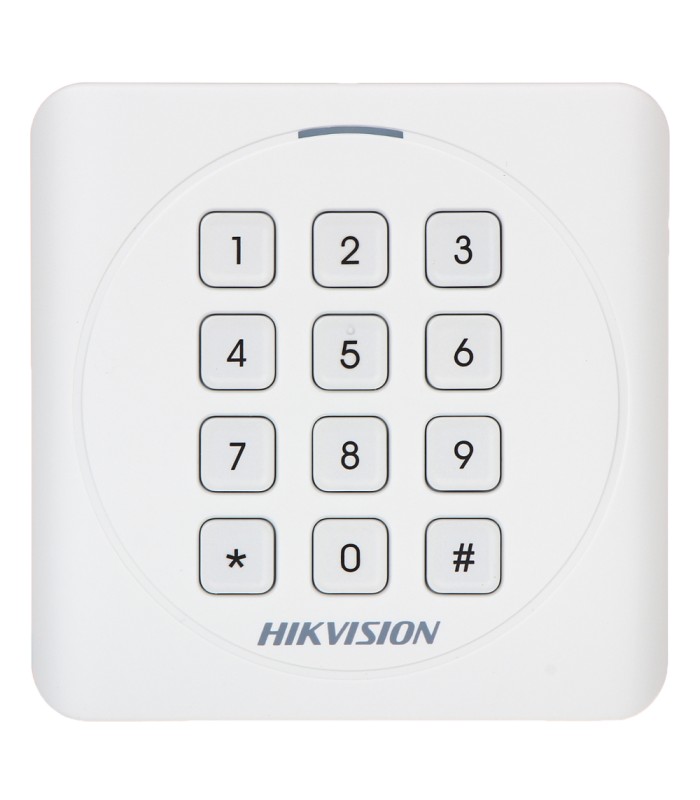

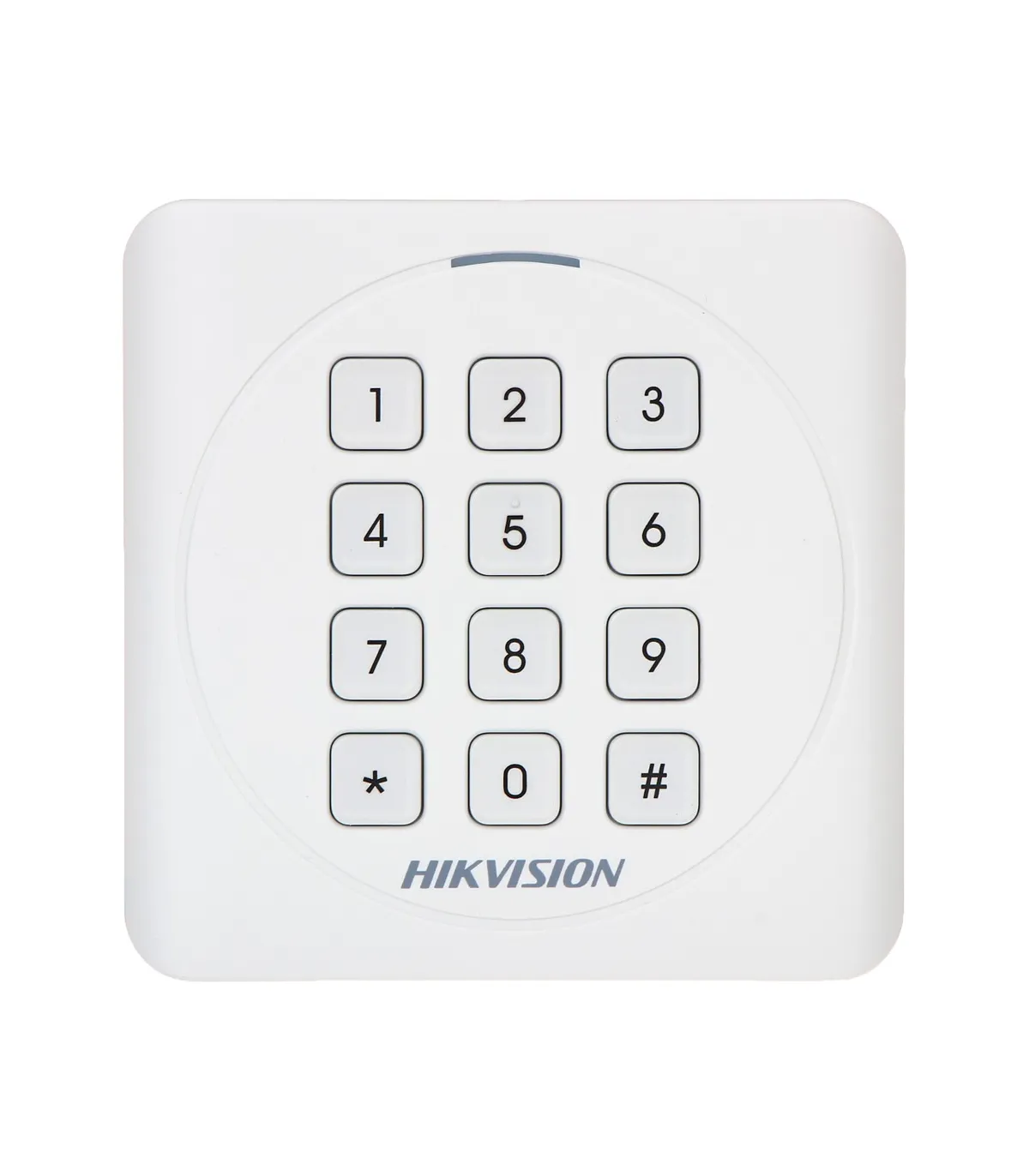

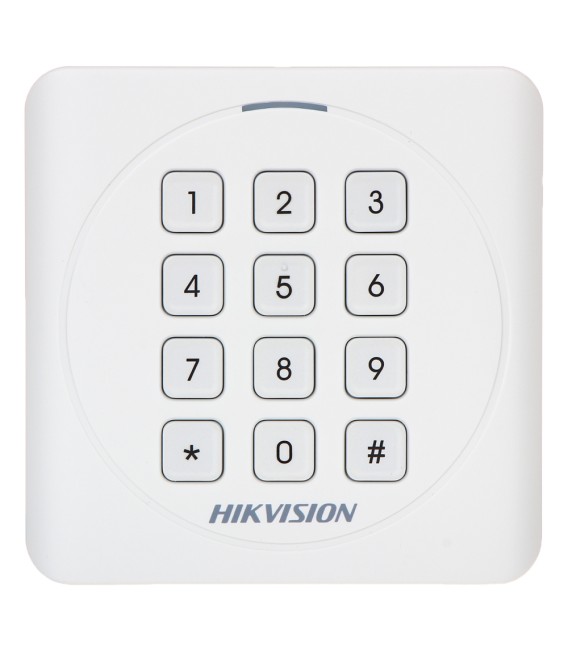

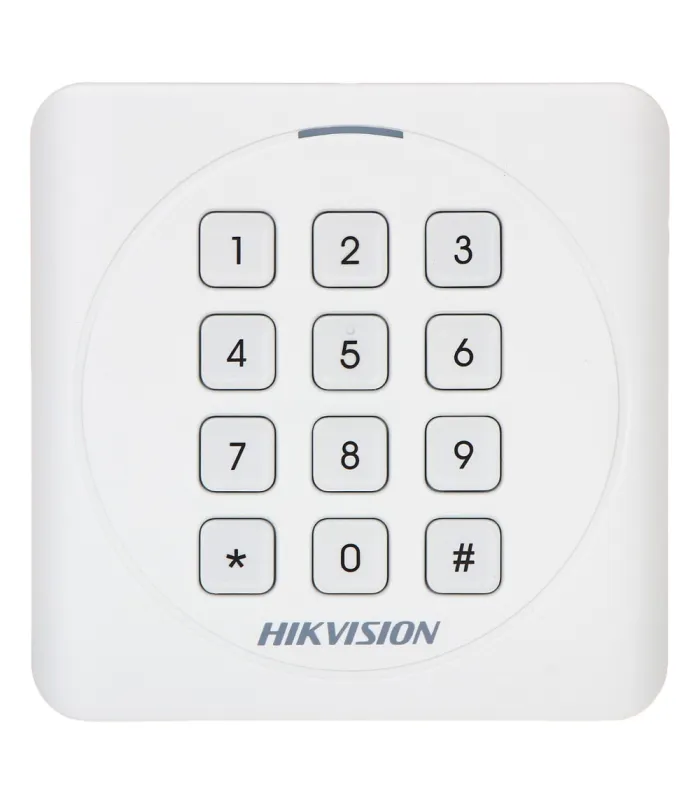

Hikvision DS-K1801EK access reader
- Hikvision
- Access reader for controller
- Access by EM card and password
- LED signaling and acoustic indicator
- Wiegand 26/34
- Suitable for outdoors IP65
- Compatible with Hikvision controllers
Technical specifications
| Brand | Hikvision |
| Model | DS-K1801EK |
| Card reading distance | < 5 cm |
| Reading modes identification | Card (RFID EM 125 kHz) and password |
| Outputs | Wiegand 26/34, buzzer for status indication, tamper |
| Compatibility | Hikvision DS-K2800 Series and DS-K2600T Series controllers |
| Power | DC 12 V / 150 mA max. |
| Protection degree | Suitable for outdoors IP65 |
| Temp. operation | -20º C ~ +65º C |
| Dimensions | 87 (H) x 87 (W) x 13 (D) mm |
| Weight | 100 g |
Contents
- Hikvision card reader
- Mounting material
- Instructions for use
