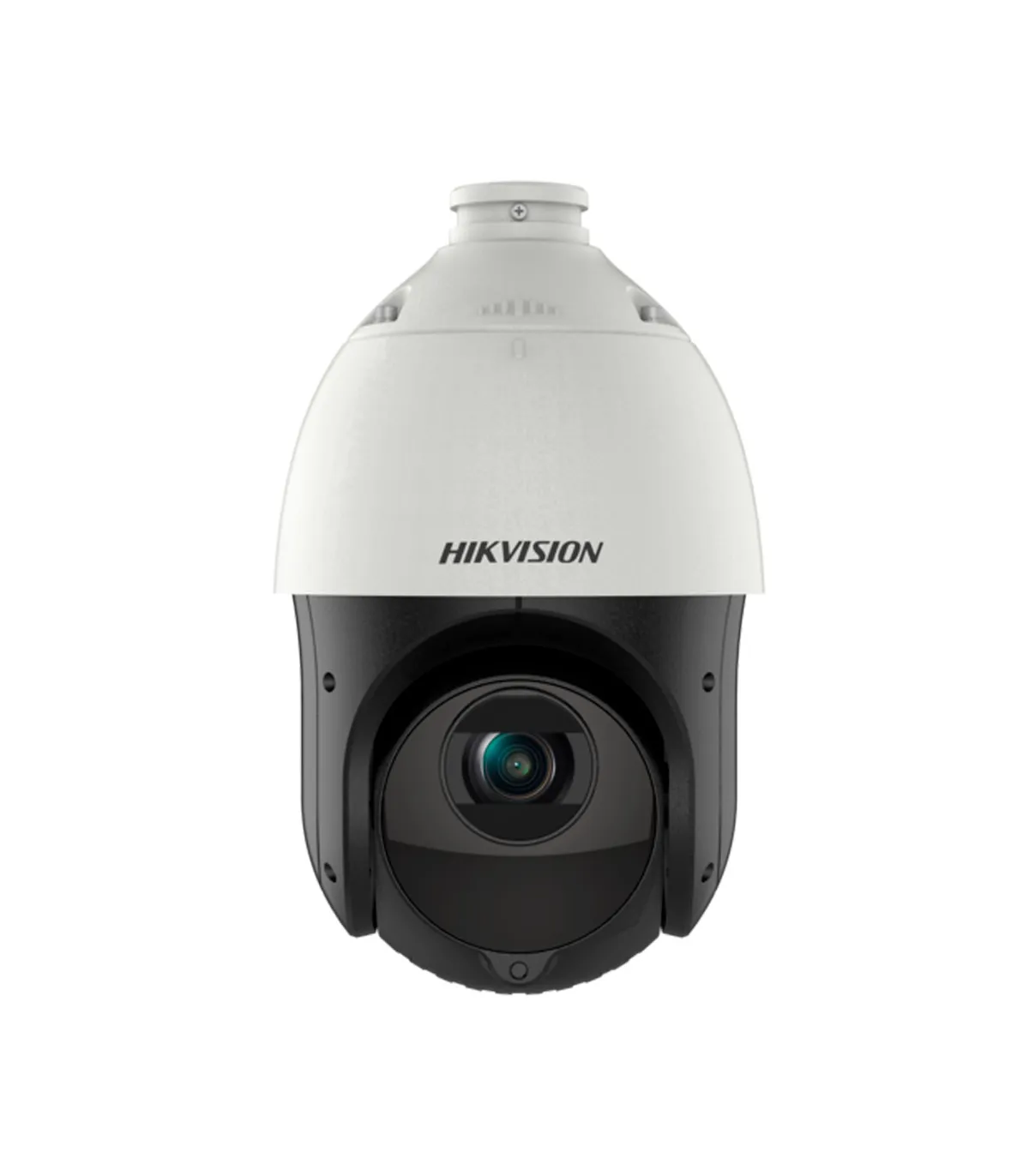

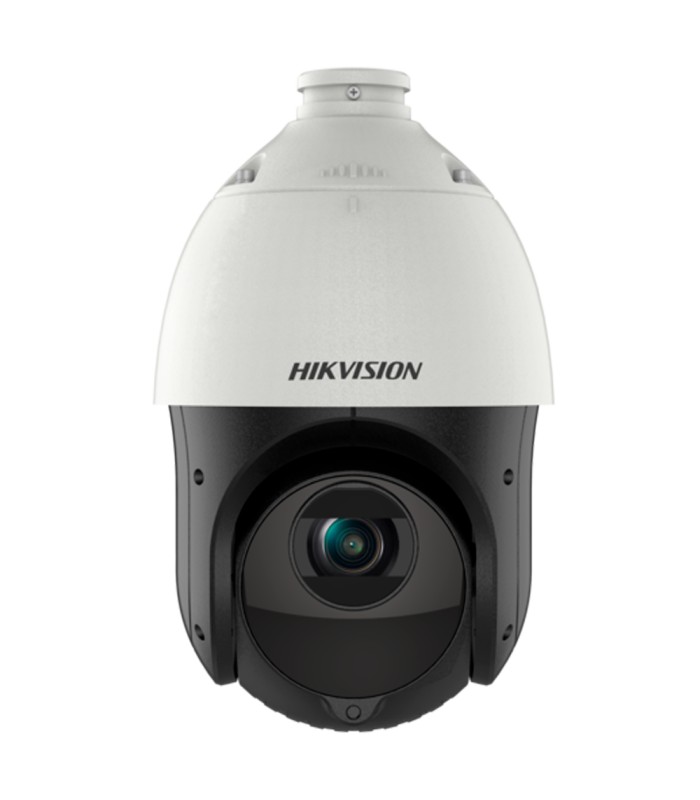

Hikvision 15X IP Motorized Dome DS-2DE4415IW-DE(T5)
Brand: HIKVISION VALUE
- Hikvision 15X Motorized IP Dome
- Value Range
- 2 MP | Motorized Lens 5~75 mm | AcuSense
- IR 100 m | WDR 120 dB | Facial Capture
- PoE | H.265+| IP67 | DarkFighter | Alarm | Audio
- WEB, CMS Software, Smartphone, and NVR
Hikvision 15X DS-2DE4415IW-DE(T5) IP Motorized Dome
- Hikvision
- Value Range
- Ultra Low Light PTZ IP Camera Powered by DarkFighter
- Half speed 80º/second
- Optical zoom 15X
- 1/2.8" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- Motorized varifocal lens 5~75 mm
- IR Range 100 m
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100 BaseT
- Face Capture, up to 5 faces at a time
- AcuSense, false alarm filter for vehicles and people
- IR CUT
- WDR (120 dB)
- microSD card slot up to 256GB
- Alarms
- Audio
- PoE+ 802.3at
- WEB interface, CMS, Smartphone and NVR
- ONVIF compatible
- IP66 waterproof
- DS-1618ZJ wall mount included
Technical specifications
| Brand | HIKVISION |
| Range | Value |
| Sensor image | 1/2.8“ Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2560x1440) |
| Main rate stream | 25 fps (2560x1440, 1920x1080, 1280x960, 1280x720) |
| Extra stream rate | 25 fps (704x576, 640x480, 352x288) |
| Third stream rate | 25 fps (1920x1080, 1280x960, 1280x720, 704x576, 640x480, 352x288) |
| DORI | 1320 m (D), 523.8 m (W), 264 m (R), 132 m (L) |
| Lighting minimum | Ultra Low Light (Powered by DarkFighter) Color: 0.005 Lux @ (F1.6, AGC ON) Black and white: 0.001 Lux @ (F1.6, AGC ON), 0 lux with IR LEDs range 100 m |
| Compression | H.265+/ H.265 / H.264+/ H.264 |
| Bitrate | 32~16384 kbps |
| Optics | Motorized varifocal 5~75mm (15X optical zoom) |
| Angle of view (FOV) | 55~4º (H), 33~2.2º (V), 61.5~4.6º (D) |
| Digital zoom | 16X |
| Electronic shutter | 1/1s~1/30.000 s |
| Day / Night | Removable ICR mechanical filter |
| Image improvements | WDR (120 dB), BLC, HLC, 3D-DNR, AWB, Privacy Masking, ROI |
| ANR | Yes |
| Motion Detection | Yes |
| Intelligent Functions | AcuSense Technology based on DeepLearning for classification of humans and vehicles with reduction of false alarms applied to: Line Crossing, Area Intrusion, Entry Region, Exit Region Face Capture: Face capture, up to 5 faces at a time once *AcuSense and Face Capture cannot be enabled at the same time. |
| Pan/Tilt range | Horizontal: 360°, Vertical: -15°~90° auto flip |
| Manual speed | Horizontal: 0.1~80 °/s, Vertical: 0.1~80 °/s |
| Speed between Presets | Horizontal: 80 °/s, Vertical: 80 °/s |
| Preset positions | 300 preset, 4 auto pattern, 8 auto tour, auto pan, auto scan |
| Internal storage | MicroSD card slot up to 256 GB |
| Audio | 1 input (Line In) / 1 output (Line Out) |
| Alarms | 1 In / 1 Out |
| PTZ control | Via network access |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 18 W max. / PoE+ IEEE802.3at |
| Temp. operation | -30º C ~ +65º C |
| Protection degree | IP66 / Surge 6000 V |
| Dimensions (without support) | Ø 164.5 mm x 290 mm (H) |
| Weight (without support) | 2000 g |
Contents
- Motorized dome IP camera Hikvision
- Allen wrench
- Torx wrench
- Watertight joint for RJ45
- CD with software and instructions
- 12V power supply
- DS-1618ZJ wall mount included
| Brand | Hikvision |
| Type of camera | Dome |
| Max. Resolution | 2 Megapixel |
| Technology | IP |
| PoE powered | PoE |
