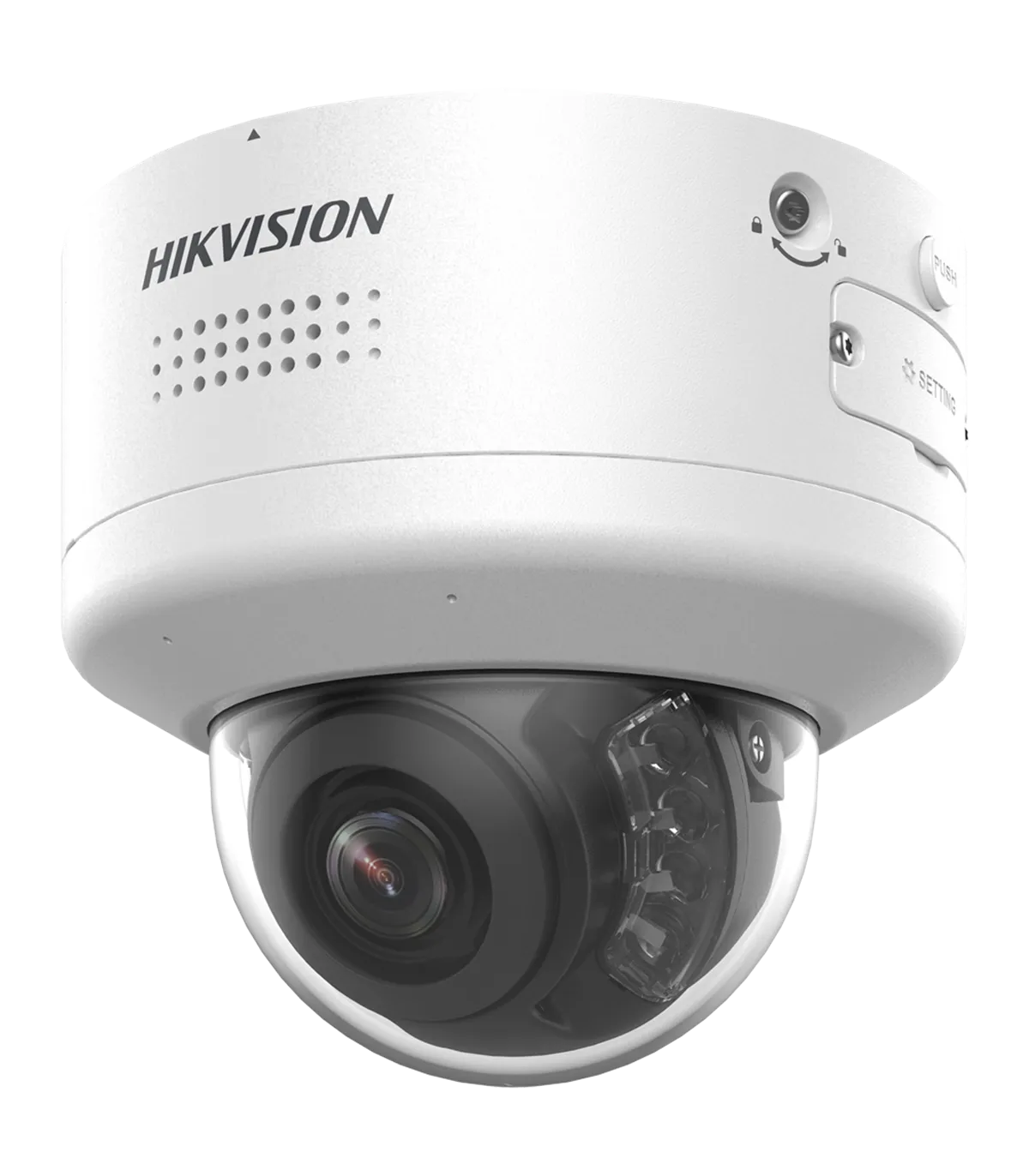

The DS-2CD2787G2H-LIPTRZS2U/SL is a high-performance IP dome camera designed for advanced surveillance applications. With its 8 Megapixel resolution, this camera provides exceptional image clarity, making it ideal for both indoor and outdoor environments. The device features a motorized varifocal lens with a range of 2.8 to 12 mm, allowing for flexible installation and precise field of view adjustments. Its ColorVu technology ensures vibrant color images even in low-light conditions, while the integrated dual microphone and alarm features enhance security monitoring capabilities.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Remote Positioning Adjustment | Horizontal rotation: 0~350° Vertical rotation: 0~85° Rotation: 0~350° |
| Field of View (FOV) | H: 112.3~41.2°, V: 58.1~23.1°, D: 137.4~47.3° |
| DORI | 89~220 m (D), 35~87 m (O), 18~44 m (R), 9~22 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.0028 Lux @(F1.2, AGC ON) 0 Lux with white light |
| Supplementary Lighting | Hybrid light: IR range 40 m White light range 40 m |
| Day/Night | ColorVu: 24-hour color image |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and deterrent flash in the camera |
| Audio | 1 input / 1 output Integrated dual microphone array Integrated speaker |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Ambient Noise Filtering | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 1350 mA / 16 W max. PoE+ IEEE802.3at |
| Protection Rating | IP66 waterproof IK10 vandal-proof |
| Operating Temperature | -30º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 155 mm x 140.4 mm (H) |
| Base Dimensions | Ø base 155 mm / Ø screw spacing 96 mm / 4 screws |
| Weight | 820 g |
The DS-2CD2787G2H-LIPTRZS2U/SL is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and office buildings. For instance, in a retail environment, this camera can be strategically placed to monitor entrances and high-traffic areas, providing remote monitoring capabilities through its web interface and smartphone app. The ColorVu technology ensures that the camera captures clear, vibrant images even during nighttime operations, enhancing security. Additionally, the motion detection feature, combined with the AcuSense technology, allows for precise identification of human and vehicle movements, significantly reducing false alarms. This makes it an excellent choice for businesses looking to enhance their security measures while minimizing unnecessary alerts. Furthermore, the camera's robust design, rated IP66 and IK10, ensures durability in various environmental conditions, making it a reliable option for both indoor and outdoor installations.
