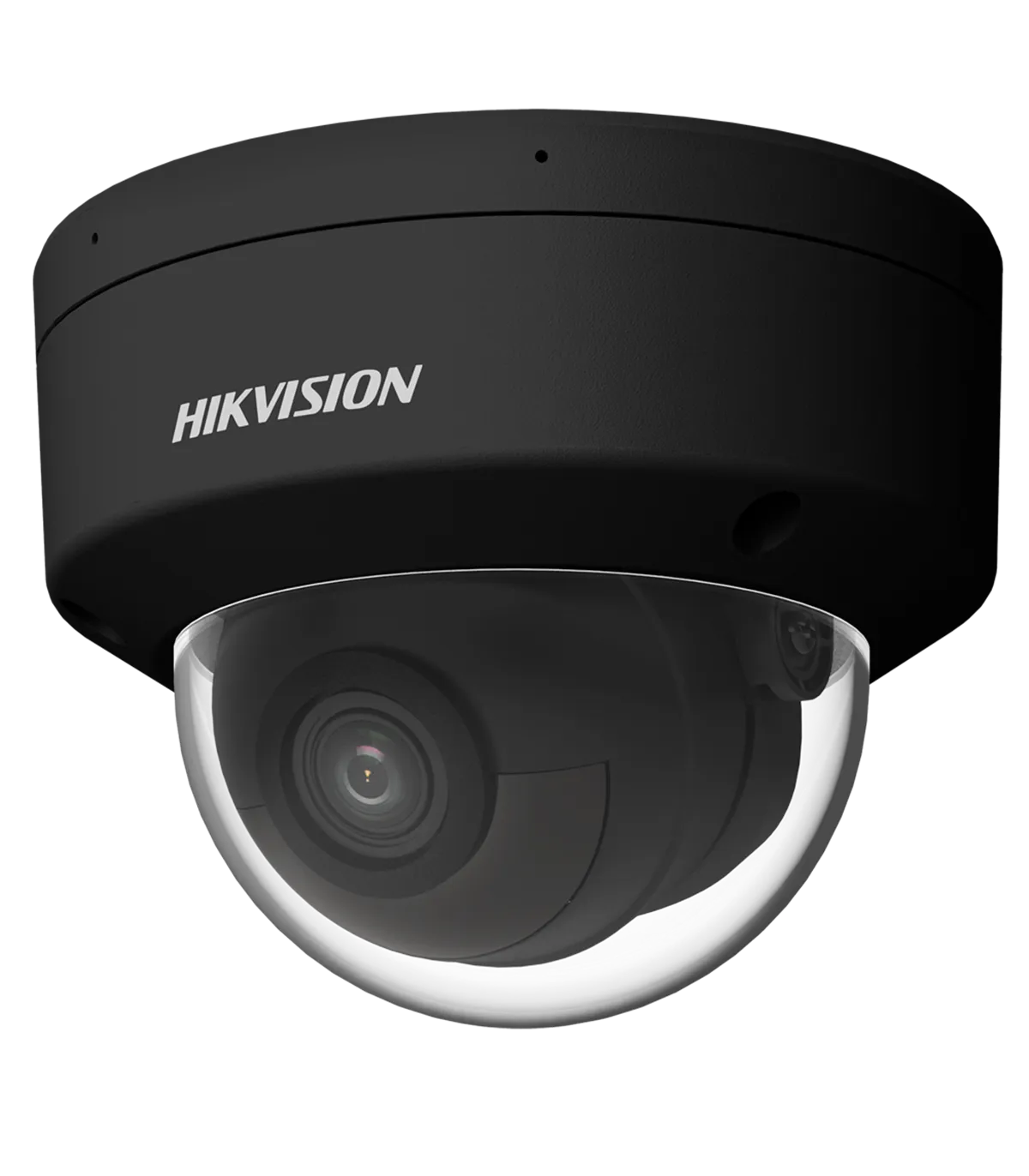

The DS-2CD2146G2H-ISU(2.8mm)(eF)//BLACK is a high-performance IP dome camera designed for advanced surveillance applications. It excels in low-light conditions, making it ideal for environments requiring reliable monitoring at all times. This camera features 4 Megapixel resolution and is equipped with DarkFighter technology for enhanced visibility in darkness. With its robust design and advanced features, it is perfect for both commercial and residential security systems.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640×480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 100.2°, V: 54.7°, D: 119.7° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light Powered by DarkFighter Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR Range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror Function, Privacy Mask |
| ANR | Yes |
| Alarms | 1 Input / 1 Output |
| Audio | 1 Input / 1 Output Integrated Microphone |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 600 mA / 7.2 W max. / PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof, IK10 Vandal Resistant |
| Material | Cover and Body: Aluminum Alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |
| Weight | 550 g |
| Color | Black |
The DS-2CD2146G2H-ISU(2.8mm)(eF)//BLACK is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entry points to monitor customer flow and deter theft. With its 30 m IR range and DarkFighter technology, it ensures clear images even in low-light conditions, enhancing security during nighttime operations. Additionally, the motion detection capabilities, combined with AcuSense technology, allow for precise alerts, reducing false alarms caused by non-threatening movements. This makes it an excellent choice for busy environments where accurate monitoring is crucial. Furthermore, the camera's remote access features enable users to view live feeds from their smartphones or computers, providing peace of mind and flexibility in monitoring their premises.
