- Hikvision PRO Series Cube IP Camera
- 8 Megapixel Resolution (3840x2160)
- 2.8 mm Lens
- Integrated Microphone and Speaker | PIR Sensor
- IR Range 10 m | Motion Detection 2.0
- AcuSense | Face Detection | Suitable for Indoor Use

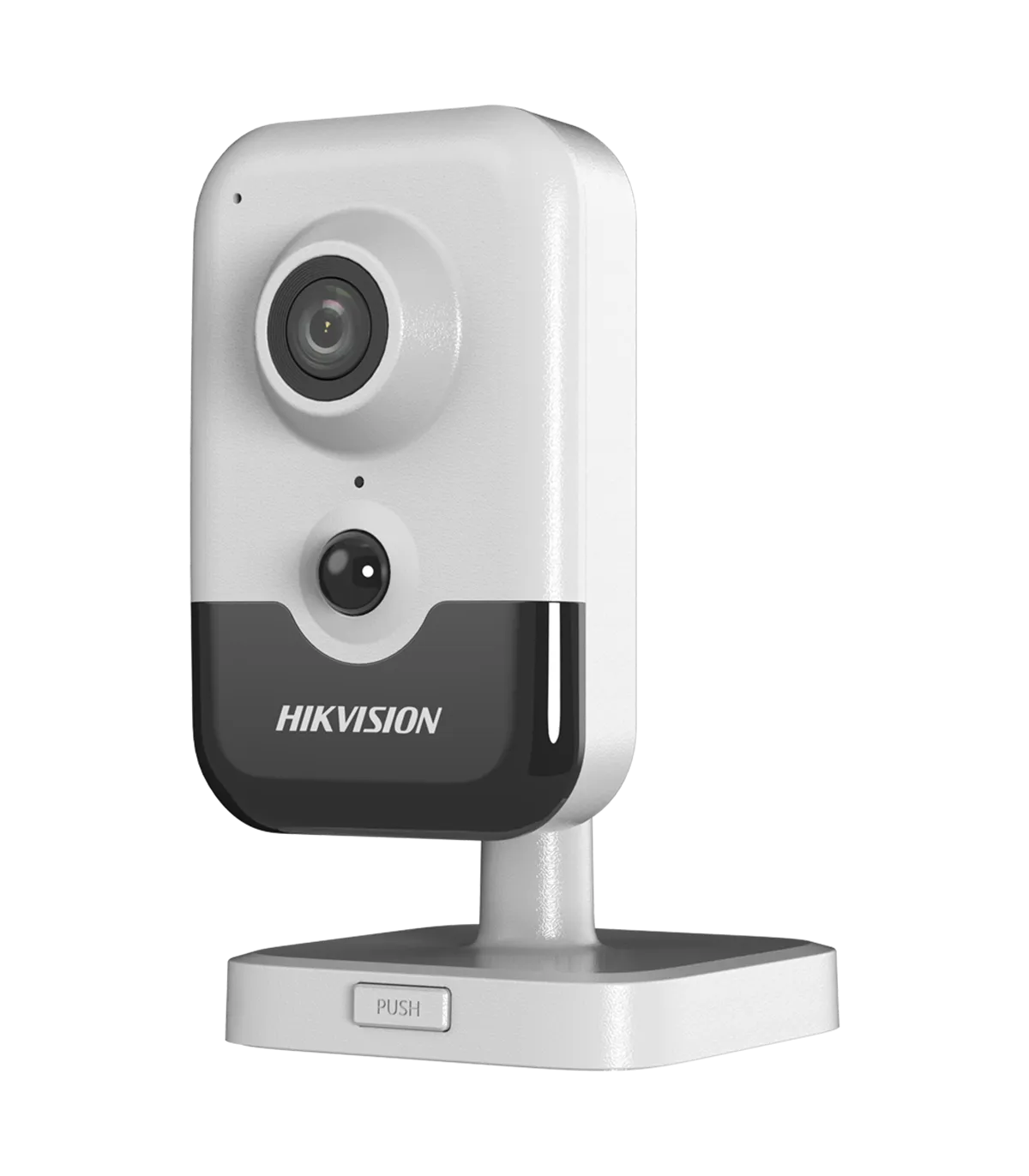

Description & Key Features: DS-2CD2483G2-I(2.8mm)
The DS-2CD2483G2-I(2.8mm) is a high-performance IP cube camera designed for indoor surveillance applications. With its advanced features, it is ideal for monitoring small to medium-sized areas, providing clear and detailed images with an 8 Megapixel resolution. This camera is equipped with smart detection capabilities, including face detection and AcuSense technology, which significantly reduces false alarms by distinguishing between humans and vehicles.
- Hikvision
- PRO Series
- IP Cube Camera
- 1/2.8" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- 2.8 mm Lens
- 0 Lux
- IR Range 10 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (line crossing and area intrusion)
- Face Detection
- WDR (120 dB)
- 3D-DNR
- Integrated Microphone
- Integrated Speaker
- Integrated PIR Sensor
- MicroSD Card Slot up to 512 GB
- WEB, CMS, Smartphone, and NVR Interface
- ONVIF Compatible
- PoE (IEEE802.3af)
- Indoor Use Only
Specifications: DS-2CD2483G2-I(2.8mm)
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 12.5 fps (3840x2160, 3200x1800), 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 107.8°, V: 57.9°, D: 126.7° |
| DORI | 85.5 m (D), 33.9 m (O), 17.1 m (R), 8.6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.008 Lux @(F2.0, AGC ON) 0 Lux with IR range 10 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Audio | Integrated Microphone Integrated Speaker |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3) |
| PIR Sensor | Integrated Detection distance up to 8 m Horizontal angle: 90º, vertical angle 80º |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 500 mA / 5.9 W max. PoE IEEE802.3af |
| Protection Grade | Indoor Use Only |
| Material | Plastic |
| Operating Temperature | -10º C ~ +40º C |
| Dimensions | 65.2mm (W) x 102.9 mm (H) x 32.6 mm (D) |
| Weight | 120 g |
Package Contents
- Hikvision IP Cube Camera
- Installation Materials
- User Instructions
Use Case
The DS-2CD2483G2-I(2.8mm) is perfect for a variety of indoor surveillance scenarios, such as retail stores, offices, and residential areas. For instance, in a retail environment, this camera can be strategically placed to monitor entrances and checkout areas, providing real-time monitoring and enhancing security. With its 8 Megapixel resolution, users can capture detailed images, ensuring that every face is recognizable. The integrated PIR sensor enhances motion detection capabilities, allowing for timely alerts when movement is detected. Additionally, the remote access feature enables users to view live feeds from their smartphones, ensuring peace of mind while away from the premises. The AcuSense technology further minimizes false alarms, making it an efficient choice for busy environments. Overall, the DS-2CD2483G2-I(2.8mm) combines advanced technology with user-friendly features, making it an ideal solution for comprehensive indoor surveillance.
Data sheet
- Brand
- HIKVISION
- Resolution
- 3 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 10 m
- Audio
- Micrófono / Altavoz
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- Apta para interior
- IK Rating
- No dispone
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
Specific References
- EAN13
- 6931847124335
