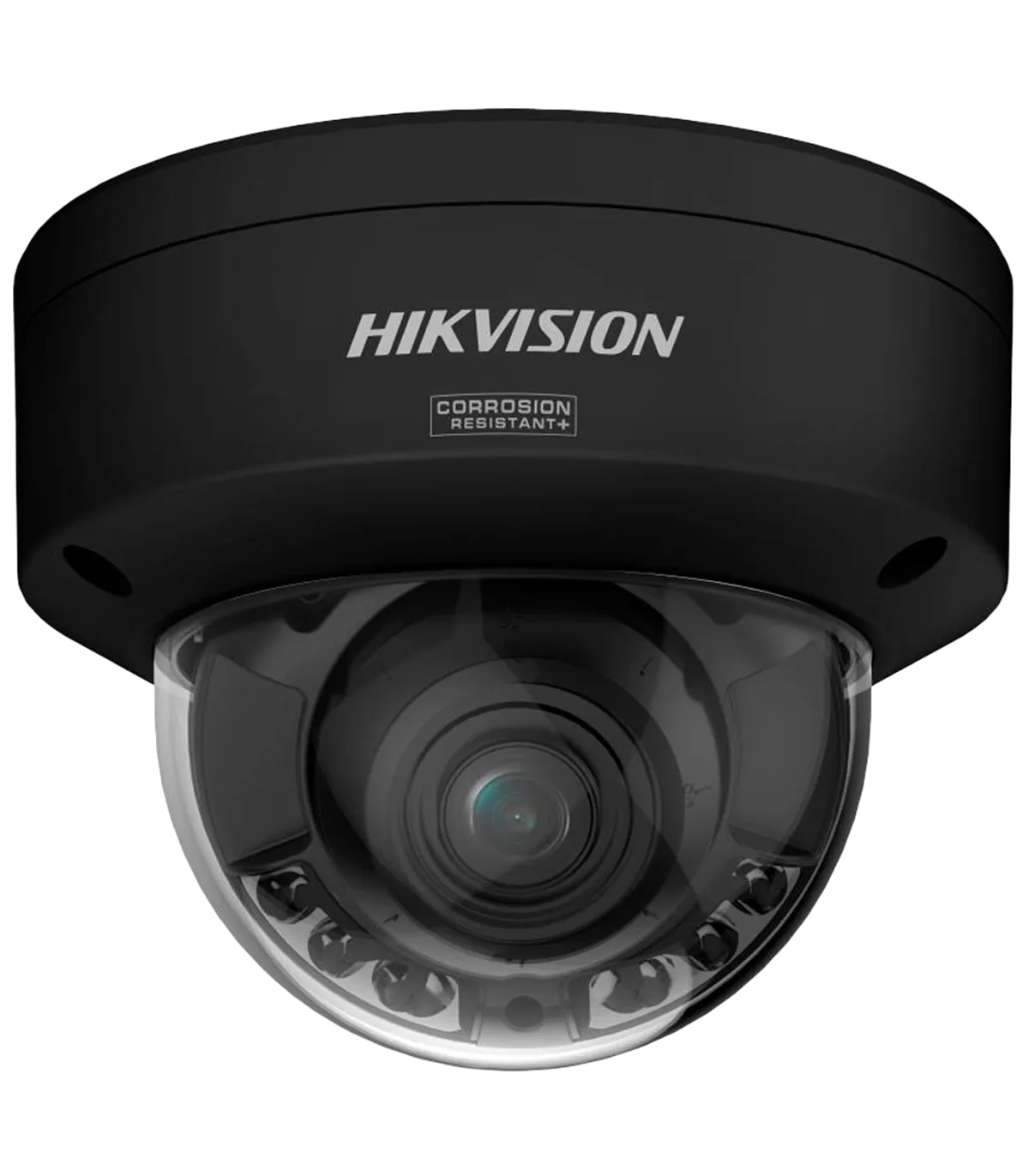

The Hikvision Pro Series with ColorVu 3.0 redefines video surveillance by providing full-color images even in low-light environments. This device is ideal for various applications, including security monitoring in commercial and residential settings. Its advanced sensor and lens technology capture more light, ensuring superior clarity and detail without the need for additional lighting. The integration of HikAI-ISP enhances visual quality by reducing noise and improving sharpness in challenging conditions.
The AcuSense 3.0 technology allows for precise detection of humans and vehicles, making it a valuable asset for security professionals.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640x480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | Motorized 2.8~12 mm |
| Field of View (FOV) | H: 114.6-41.8°, V: 59.3-23.6°, D: 141.3-48.1° |
| DORI | WIDE: 61.5 m (D), 24.4 m (O), 12.3 m (R), 6.2 m (I) TELE: 151.7 m (D), 60.2 m (O), 30.3 m (R), 15.1 m (I) |
| Minimum Illumination | Color: 0.0005 Lux @(F1.2, AGC ON) |
| ColorVu 3.0 | Color image 24/7 with HikAI-ISP, F1.2, and 1/1.8" sensor AI noise reduction offers the advantage of higher static brightness Dynamic motion blur reduction, providing sharp image quality even in low-light conditions |
| Hybrid Light | IR and white light up to 40 m |
| Day/Night | Auto / Manual / Programmable |
| Audio | 1 Input / 1 Output |
| Audio Bitrate | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Compression | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Alarms | 1 Input / 1 Output |
| Image Enhancements | AI WDR (130 dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| EIS (Electronic Image Stabilization) | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense 3.0: Enhances detection effectiveness by analyzing the scene and generating alarms for objects that recently enter the scene, Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| AcuSearch | Yes (Requires recorder for searches) |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 0.88 mA / 10.5 W max. PoE IEEE802.3af |
| Protection Grade | IP67 waterproof IK10 vandal-proof NEMA 4X (Corrosion protection) |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 141 x 112 mm (H) |
| Base Dimensions | Ø base 141 mm / Ø between screws 125 mm / 3 screws |
| Weight | 850 g |
| Color | Black |
In a typical deployment scenario, the DS-2CD2747G3T-LIZSY(2.8-12mm) camera can be installed in a retail environment to enhance security monitoring. With its ColorVu 3.0 technology, the camera provides clear, full-color images around the clock, ensuring that all activities are captured in detail. The motion detection capabilities, enhanced by AcuSense 3.0, allow for accurate identification of human and vehicle movements, significantly reducing false alarms. This is particularly beneficial in busy shopping areas where traditional surveillance may struggle. The camera's remote access features enable security personnel to monitor live feeds from their smartphones or PCs, providing flexibility and peace of mind. Additionally, the robust IP67 and IK10 ratings ensure that the camera remains operational in various environmental conditions, making it a reliable choice for both indoor and outdoor installations.
