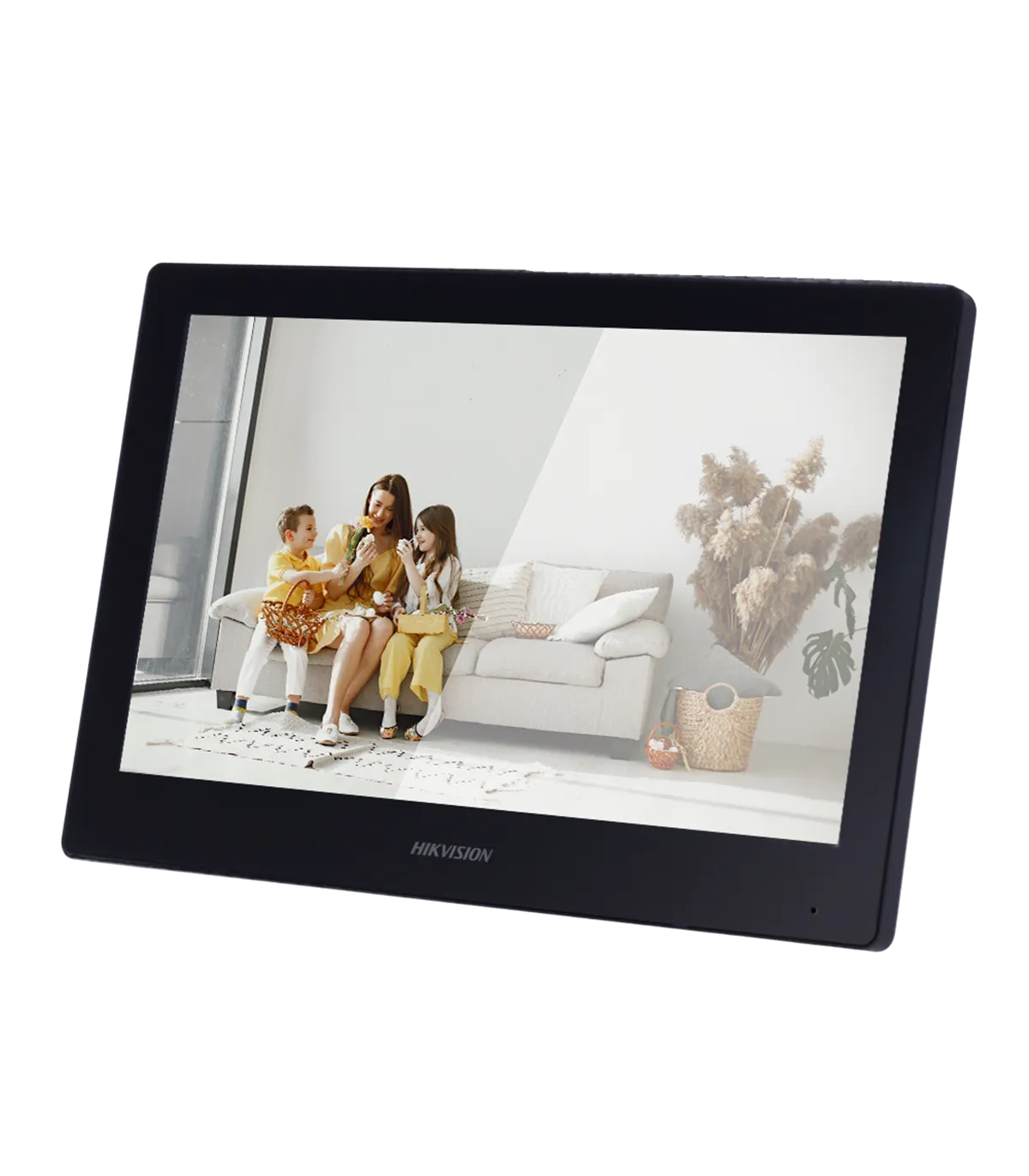

The video intercom monitor is the component that is installed inside the premises, also known as the indoor unit, and allows the building staff to receive calls from visitors.
This model features a 10" touchscreen that facilitates user operation.
IP devices communicate and are powered via Ethernet cables and PoE switches, reducing the number of cables required for operation.
With 2 relay outputs, it can control different elements, such as doors or bells that can be activated during calls.
The iVMS-4200 software is used to link panels and monitors for making and receiving calls, creating contacts, sending informational messages to the monitors, or reviewing call logs.
With the Hik-Connect mobile application for the end user, calls can be received, doors can be opened, or the camera feed from the panel can be viewed live, all from anywhere.
| Brand | Hikvision |
| Model | DS-KH8520-WTE1/EU |
| Operating System | Linux |
| Screen Type | 10" color TFT touchscreen |
| Screen Resolution | 1024 x 600 |
| Inputs | 8 x configurable alarm, 1 x RS485 |
| Outputs | 2 x relay |
| Audio | Two-way audio with integrated microphone and speaker Noise reduction and echo cancellation |
| Memory | MicroSD card slot (up to 128 GB) |
| Connection | Ethernet 10/100 BaseT / RTSP / SIP Protocol 2.0 / WiFi 802.11 b/g/n (only for app connection via P2P) |
| Remote Access | iVMS-4200 software Hik-Connect mobile app |
| Power Supply | DC 12 V / 1 A max. / PoE IEEE802.3af |
| Operating Temperature | -10 ºC ~ +55 ºC |
| Dimensions | 166 (H) x 254 (W) x 22.6 (D) mm |
| Weight | 660 g |
| Slave Monitors | Android monitors DS-KH9310 and DS-KH9510 cannot be used as slaves |
