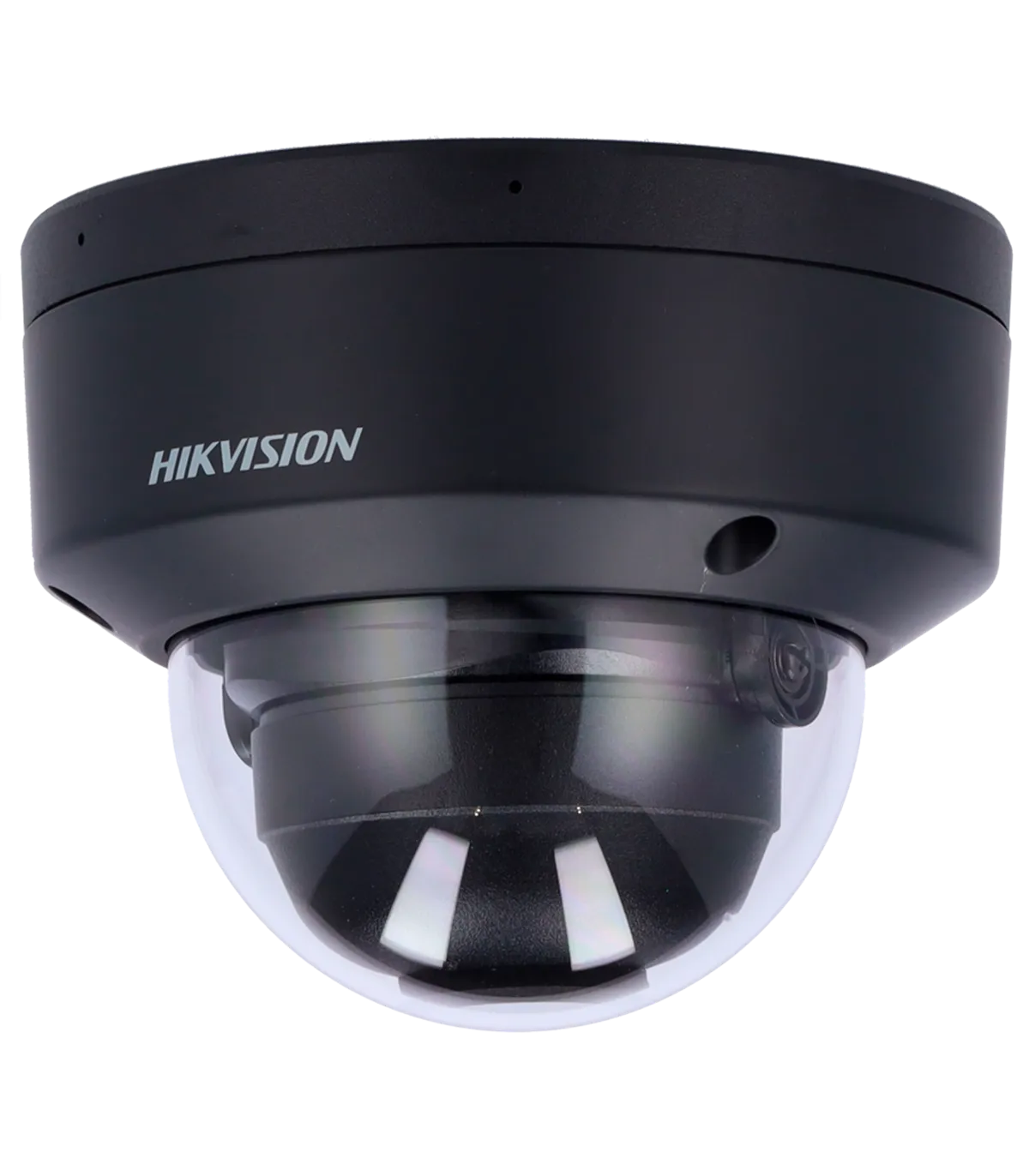

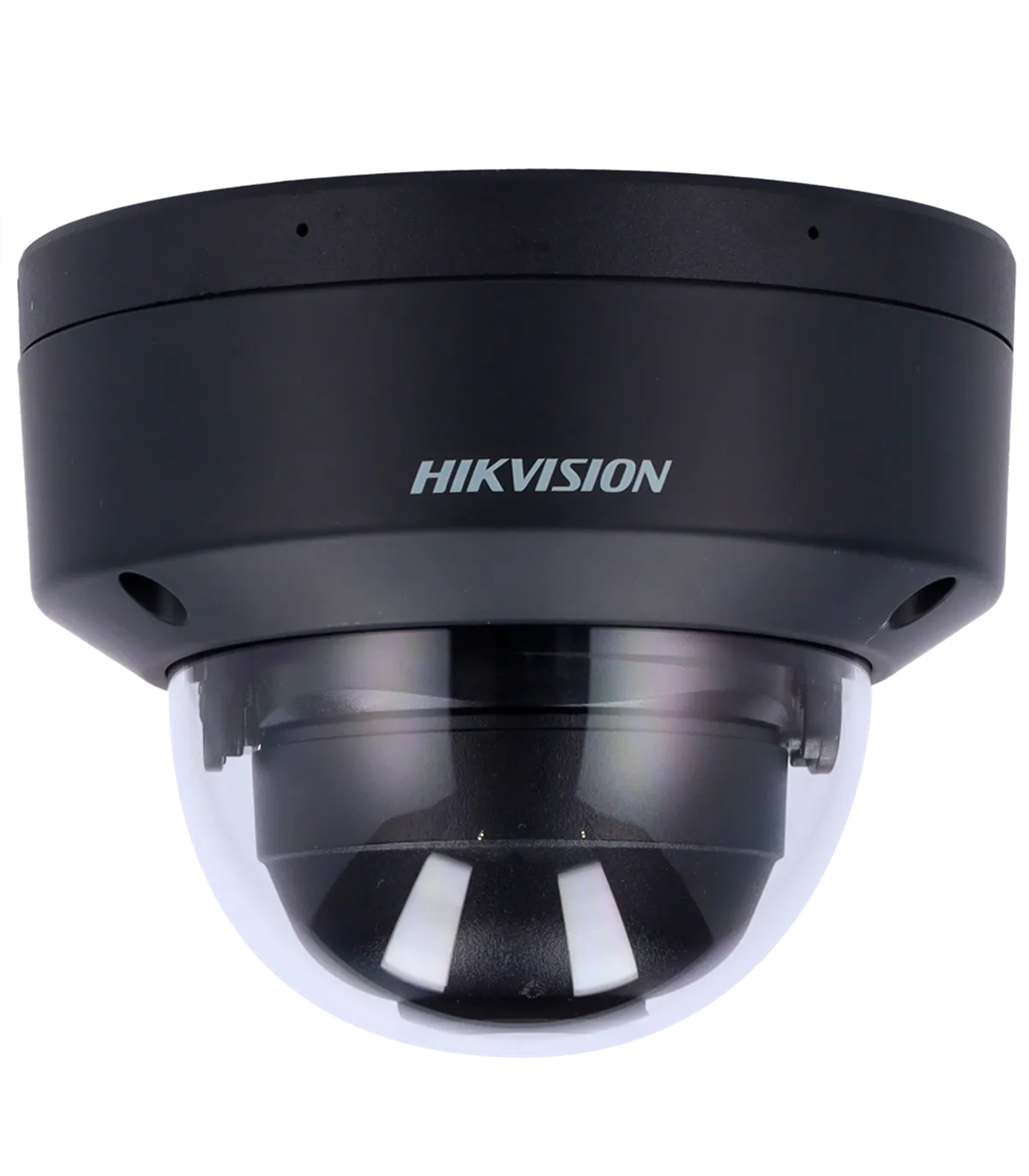

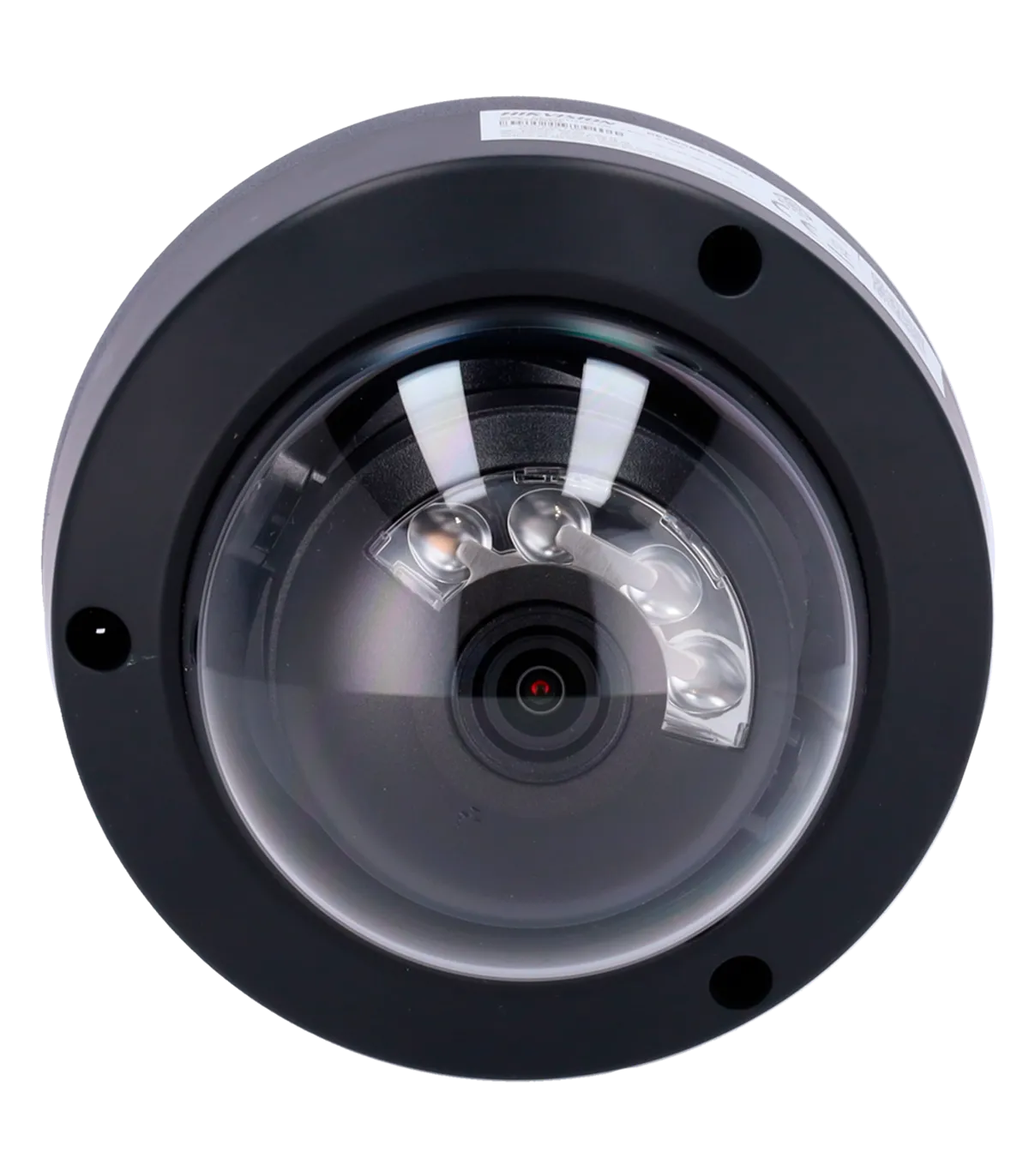

The DS-2CD1143G2-LIU(2.8mm)BLACK is a high-performance IP dome camera designed for versatile surveillance applications. Ideal for both indoor and outdoor environments, this camera offers exceptional image quality with its 4 Megapixel resolution, making it suitable for monitoring large areas. Its advanced features, including motion detection and WDR technology, ensure reliable performance in various lighting conditions, enhancing security for residential and commercial properties.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 98°, V: 54°, D: 114° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR and White Light IR Range 30 m White Light Range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 |
| Interoperability | ONVIF (Profiles S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 500 mA / 6 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof IK08 Vandal Resistant |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.4 x 97.7 mm (H) |
| Base Dimensions | Ø base 121.4 mm / Ø between screws 104.8 mm / 3 screws |
| Weight | 550 g |
| Color | Black |
The DS-2CD1143G2-LIU(2.8mm)BLACK is perfect for a variety of surveillance scenarios, such as securing retail stores, parking lots, or office buildings. With its high-resolution imaging and advanced motion detection capabilities, installers can easily set up this camera to monitor critical areas effectively. The IP67 waterproof rating ensures that the camera remains operational in harsh weather conditions, while the IK08 vandal resistance provides added durability against tampering. Users can benefit from remote monitoring through web browsers or mobile applications, allowing for real-time surveillance from anywhere. This camera's hybrid lighting feature enhances visibility in low-light conditions, making it an excellent choice for 24/7 security needs.
