- Hikvision PRO ColorVu3.0 Dome IP Camera
- Resolution 4 MP | PoE IEEE802.3af
- ColorVu3.0: color image HikAI-ISP F1.0 1/1.8"
- 4 mm | Dual microphone | Hybrid light up to 30m
- AcuSense3.0 | Siren and deterrent flash
- Alarms 1/1 | IP67 | IK10 | NEMA 4X
Description & Key Features: DS-2CD2147G3-LIS2UY(4mm)
The Hikvision Pro Series with ColorVu 3.0 redefines video surveillance by providing full-color images even in low-light environments. This device is ideal for various applications, including security monitoring in commercial and residential settings. Its advanced sensor technology and wide aperture lenses capture more light, ensuring greater clarity and detail without the need for additional lighting. The integration of HikAI-ISP, an intelligent image processor, optimizes visual quality by reducing noise and enhancing sharpness in challenging conditions.
The AcuSense 3.0 technology enables precise detection of humans and vehicles, making it a valuable tool for intelligent surveillance. Additionally, it features Audio 2.0 for more efficient communication.
- Hikvision
- PRO Series
- IP Camera
- 1/1.8" Progressive Scan CMOS with F1.0
- 4 Megapixel (2688x1520)
- 4 mm Lens
- 0 Lux
- Hybrid Light: IR and white light
- Range 30 m
- ColorVu 3.0: 24-hour color imaging with HikAI-ISP, super aperture F1.0, and motion blur reduction
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense 3.0, false alarm filter for vehicles and people (Line Crossing, Area Intrusion, Entry Region, Exit Region)
- Face Capture
- AcuSearch
- WDR (130 dB)
- 3D DNR
- Integrated dual microphone
- Deterrent siren and flash
- MicroSD card slot up to 512GB
- RJ-45 10/100M BaseT
- PoE IEEE802.3af
- WEB interface, CMS, Smartphone, and NVR
- ONVIF compatible
- IP67 waterproof
- IK10 vandal-proof
- NEMA 4X
Specifications: DS-2CD2147G3-LIS2UY(4mm)
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640x480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 4 mm |
| Field of View (FOV) | H: 95.2°, V: 48.3°, D: 117.4° |
| DORI | 75 m (D), 30 m (O), 15 m (R), 7 m (I) |
| Minimum Illumination | Color: 0.0001 Lux @(F1.0, AGC ON) |
| ColorVu 3.0 | 24/7 color imaging with HikAI-ISP, F1.0, and 1/1.8" sensor AI noise reduction offers the advantage of higher static brightness Dynamic motion blur reduction, providing sharp image quality even in low-light conditions |
| Hybrid Light | IR and white light up to 30m |
| Day/Night | Auto / Manual / Programmable |
| Audio 2.0 | Dual integrated microphone (AUDIO 2.0: Enhancing detection range and eliminating background noise) 1 Input / 1 Output |
| Deterrent Alarm | Integrated siren and strobe flash in the camera (White LED) |
| Image Enhancements | AI WDR (130 dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense 3.0: Enhances detection effectiveness by analyzing the scene and generating alarms for objects that recently entered the scene, Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| AcuSearch | Yes (Recorder needed for searches) |
| Internal Storage | MicroSD card slot up to 512GB |

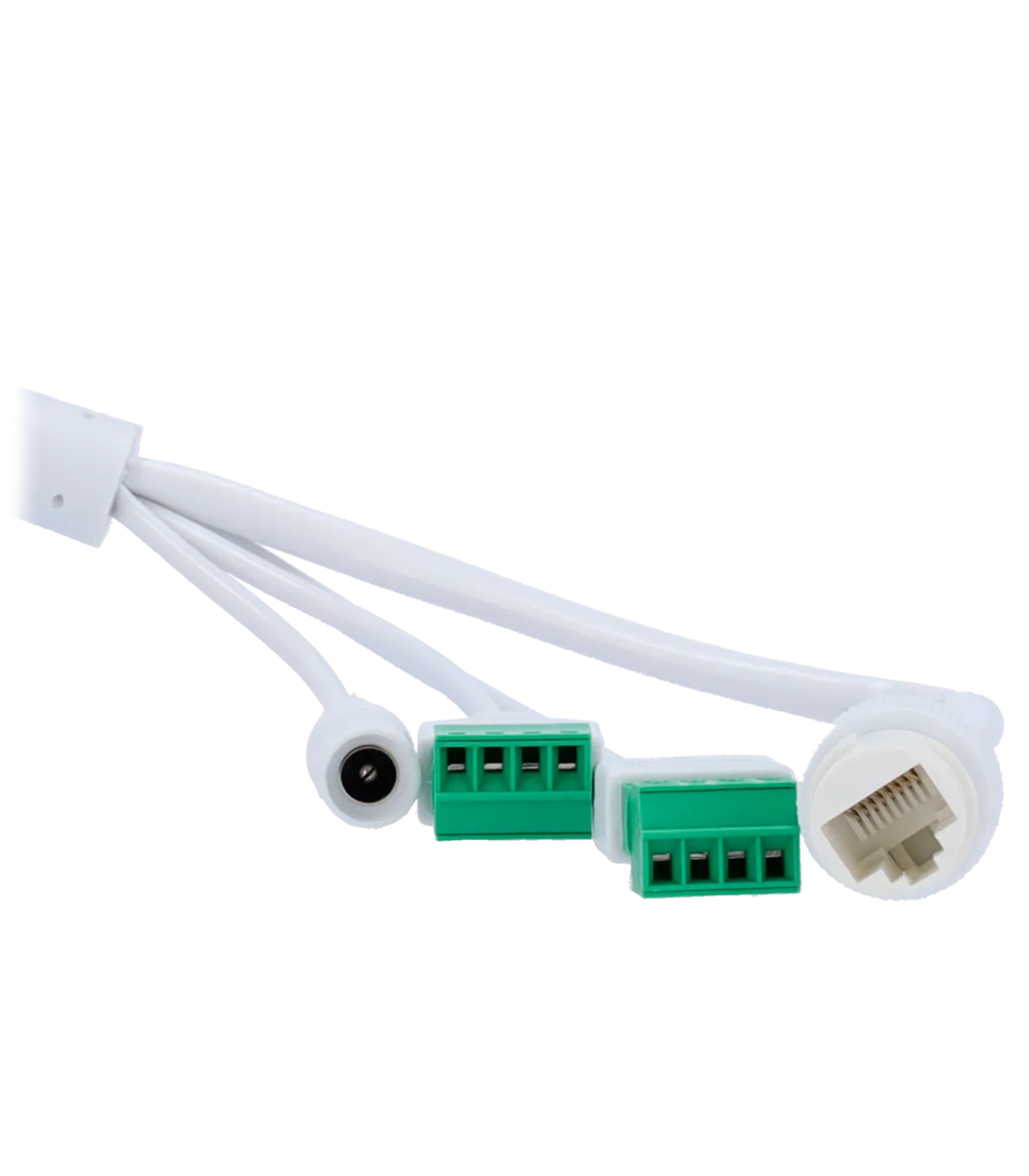

| Network Interface | Ethernet 10/100M BaseT |
| Alarms | 1 Input / 1 Output |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 600mA / 7.2W max. / PoE IEEE802.3af |
| Protection Rating | IP67 waterproof, IK10 vandal-proof, NEMA 4X (Corrosion protection) |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 121.5 mm (Ø) x 97.6 mm (H) |

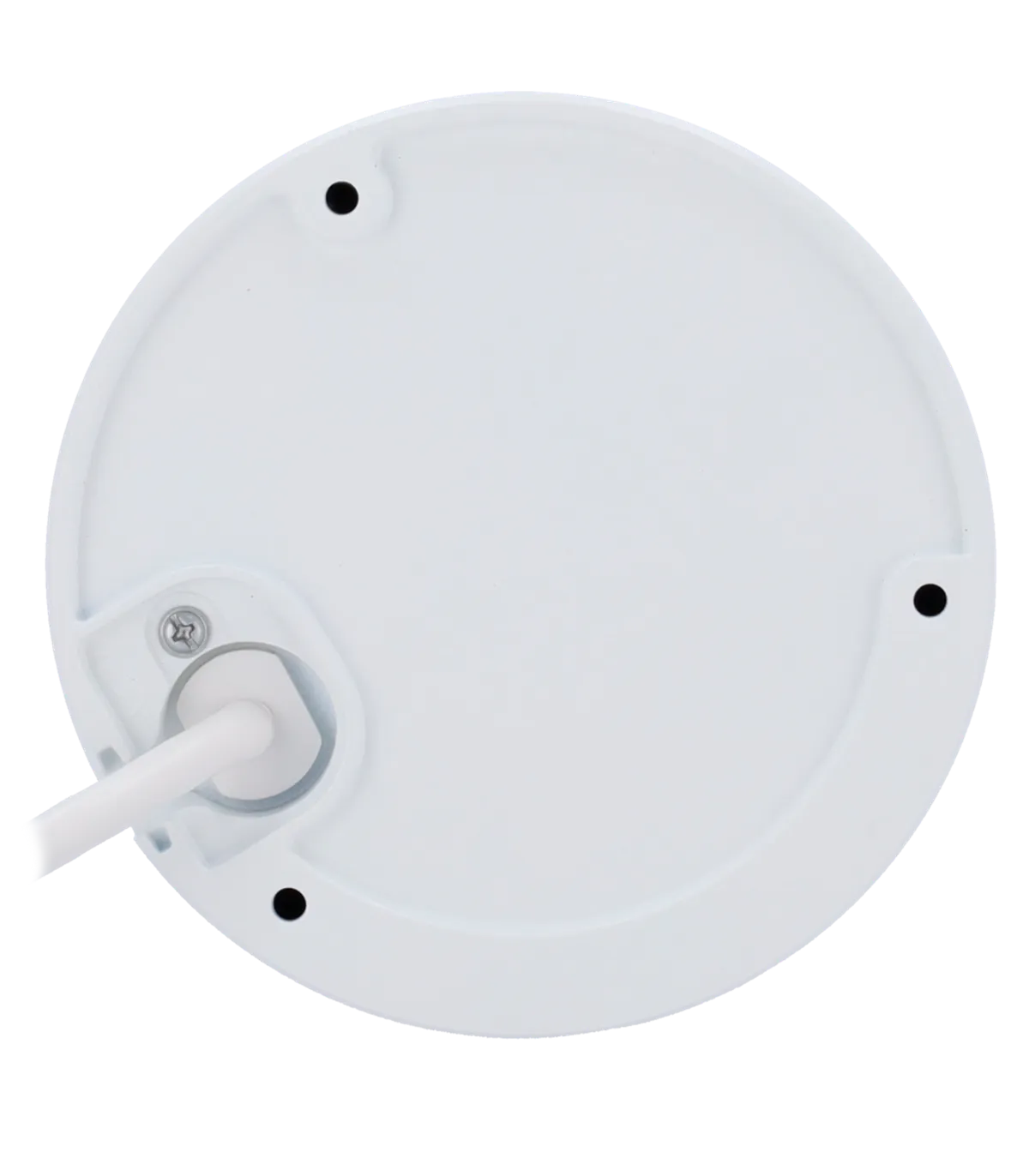

| Base Dimensions | Ø base 121.5 mm / Ø between screws 104 mm / 3 screws |
| Weight | 600 g |
Package Contents
- Hikvision IP Dome Camera
- Installation materials
- User instructions
Use Case
In a typical deployment scenario, the DS-2CD2147G3-LIS2UY(4mm) can be installed in a retail environment to enhance security monitoring. With its ColorVu 3.0 technology, the camera provides clear, full-color images even during nighttime, ensuring that all activities are captured in detail. The motion detection capabilities, combined with AcuSense 3.0, allow for precise identification of human and vehicle movements, significantly reducing false alarms. This feature is particularly beneficial in busy shopping areas where foot traffic is high. The integrated dual microphones facilitate audio surveillance, allowing store managers to communicate effectively with staff or deter potential thefts. Additionally, the camera's remote access capabilities enable real-time monitoring via smartphones or web browsers, providing peace of mind to business owners. Overall, the DS-2CD2147G3-LIS2UY(4mm) is an excellent choice for those seeking a reliable and advanced surveillance solution.
Data sheet
- Brand
- HIKVISION
- Resolution
- 4 Mpx
- Technology
- IP
- WDR
- WDR (130 dB)
- IR Distance
- 30 m
- Audio
- Micrófono integrado
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK10
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 4 mm
Specific References
- EAN13
- 6936422115081
