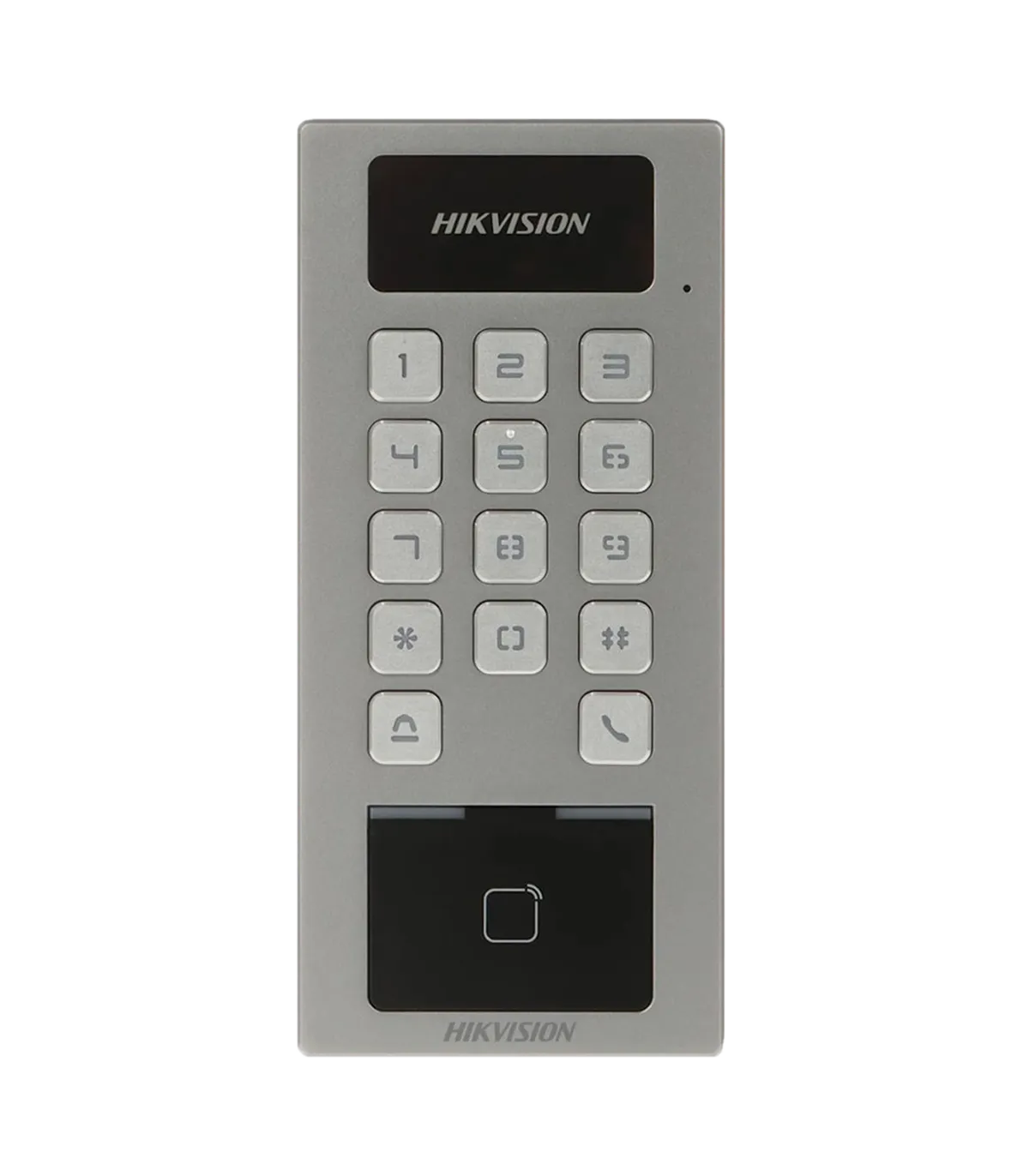

Hikvision IP65 IK09 MIFARE DESFire PIN Access Control Terminal

An autonomous access control device consists of the combination of a controller and a reader in a single unit: it is capable of identifying users, making the decision on whether they have permission to access the facility, and operating the electronic lock through its relay.

This device allows identification through MF 13.56 MHz cards or key fobs, MF DESFire 13.56 MHz, QR code reading, as well as a keypad for numeric codes.

Advanced configurable functions: operates as an intercom.

Its IP65 outdoor rating allows for installation in outdoor environments. Additionally, its IK09 vandal-resistant rating enables it to withstand more challenging environments.

User configuration, schedules, and access groups, as well as special functions, relay opening times, or reader reading times, are managed through the iVMS-4200 software.

• Hikvision
• Standalone access control reader
• Identification via MF DESFire card, Bluetooth (supported only with HikCentral and HikConnect Teams), password and/or combinations
• Capacity for 100,000 cards and 300,000 records
• Communication via TCP/IP, WiFi, RS485, and Wiegand
• Integrated controller (door sensor, button, and relay)
• Integrated speaker and microphone
• Remote openings via Hik-Connect
• Compatible with iVMS-4200 software
• Outdoor suitable IP65
• Vandal-resistant IK09

Specifications: DS-K1T502DBWX

Package Contents

• Hikvision access control device
• Mounting materials
• User instructions
