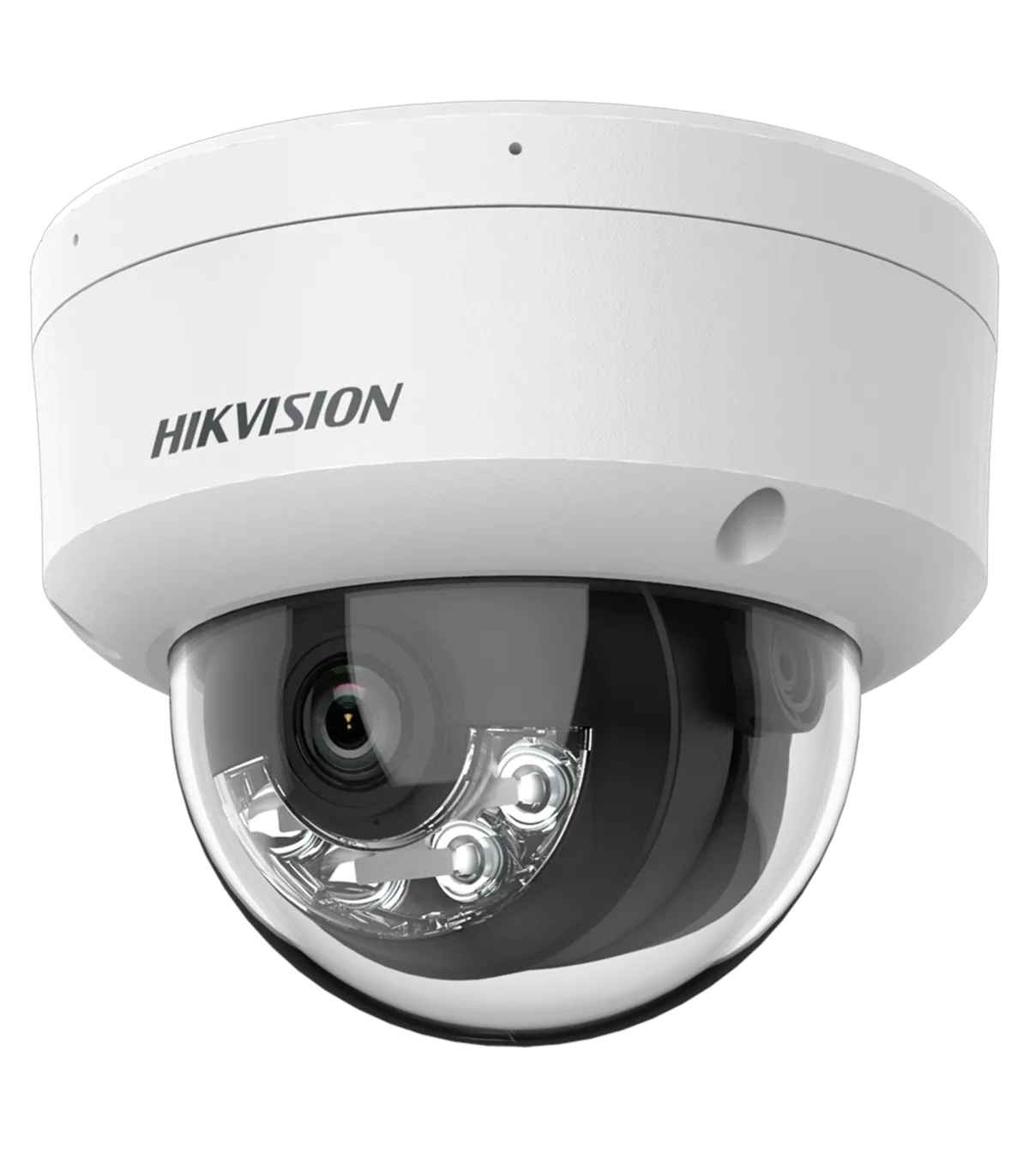

The DS-2CD1141G2-LIU(2.8mm) is a high-performance IP dome camera designed for indoor surveillance applications. With its advanced 4 Megapixel resolution and hybrid lighting capabilities, this camera excels in providing clear images in various lighting conditions. Ideal for both residential and commercial environments, it offers features such as motion detection and remote access through web and mobile interfaces, making it a versatile choice for enhancing security.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 104°, V: 57°, D: 123° |
| DORI | 53 m (D), 21 m (O), 10 m (R), 5 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.01 Lux @(F2.2, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR and White Light IR Range 20 m White Light Range 20 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 |
| Interoperability | ONVIF (Profiles S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 450 mA / 5.4 W max. PoE IEEE802.3af |
| Protection Grade | Indoor Use |
| Material | Plastic |
| Operating Temperature | -10º C ~ +40º C |
| Dimensions | Ø 121.5 x 97.6 mm (H) |
| Base Dimensions | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 570 g |
The DS-2CD1141G2-LIU(2.8mm) is ideally suited for a variety of indoor surveillance scenarios, such as retail stores, offices, and residential properties. Installers can easily set up this plug-and-play camera, which supports remote monitoring via web browsers and mobile applications. The camera's motion detection capabilities, enhanced by its ability to classify humans and vehicles, provide an added layer of security. With a maximum resolution of 4 Megapixels, users can expect high-quality video footage, ensuring that every detail is captured. The integrated microphone allows for audio monitoring, making it a comprehensive solution for security needs. Additionally, the hybrid lighting feature ensures visibility even in low-light conditions, making this camera a reliable choice for continuous surveillance.
