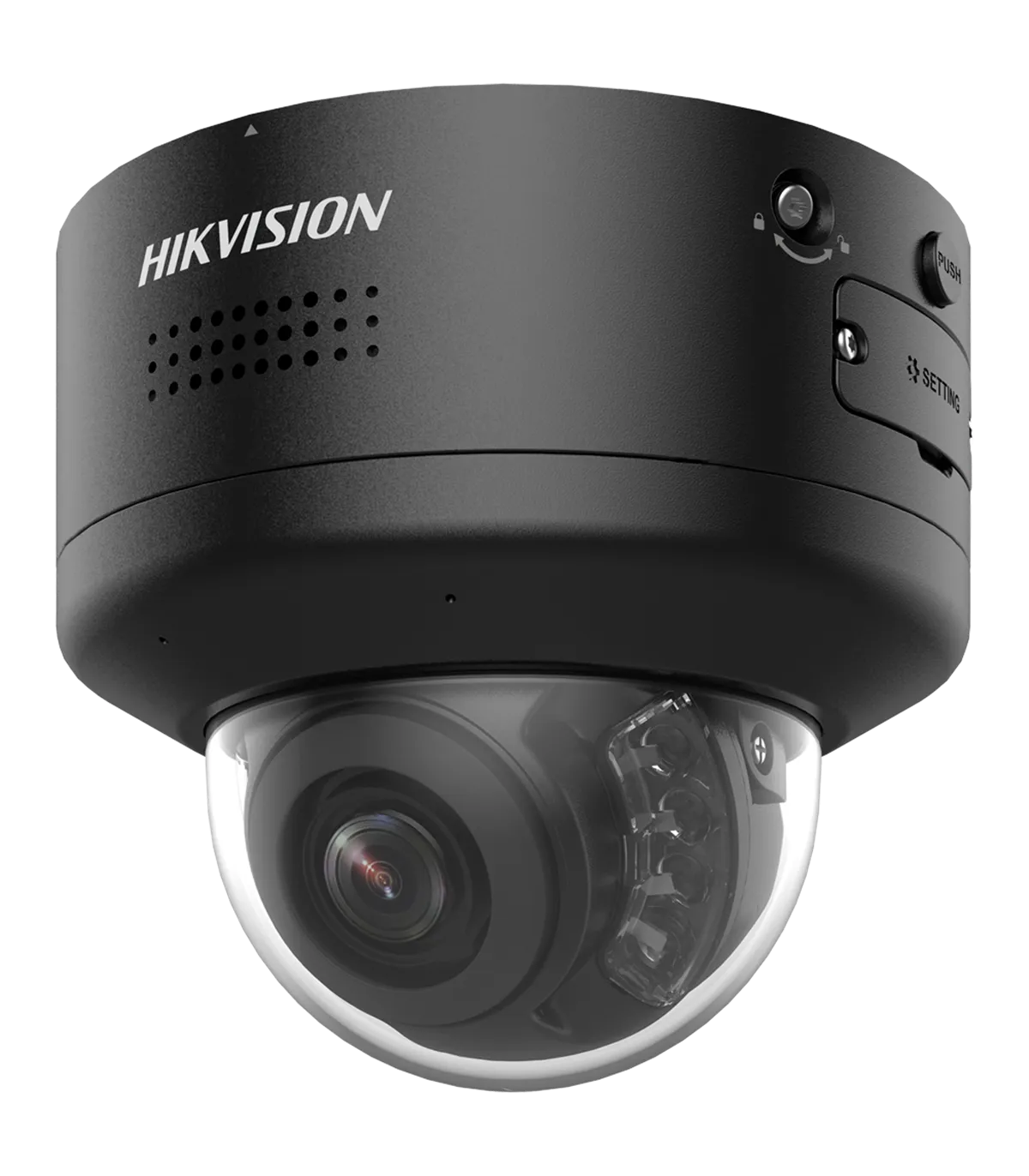

- Hikvision PRO Series 8 MPx IP Dome Camera
- Varifocal Lens 2.8~12 mm | Motorized PTRZ
- Siren and Strobe Light | Dual Array Microphone
- PoE+ | Audio | Alarms | ColorVu | MicroSD
- Hybrid Light 40m | Motion Detection 2.0
- AcuSense | Facial Recognition | IP67, IK10
Description & Key Features: DS-2CD2787G2H-LIPTRZS2U/SL(2812)BLK
The DS-2CD2787G2H-LIPTRZS2U/SL(2812)BLK is a high-performance IP dome camera designed for advanced surveillance applications. With its 8 Megapixel resolution and ColorVu technology, it provides exceptional image quality both day and night. This camera is ideal for use in various environments, including commercial buildings, parking lots, and residential areas, where reliable monitoring is essential. Its motorized varifocal lens allows for flexible installation and precise field of view adjustments, making it a versatile choice for any security system.
- Hikvision
- PRO Series
- IP Dome Camera
- 1/1.8" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- Motorized varifocal lens 2.8~12 mm
- Motorized PTRZ
- 0 Lux
- Hybrid light: IR and white light
- White light range 40 m
- Compression H.265+ / H.265 / H.264+ / H.264
- ColorVu: color image 24 hours
- Motion detection 2.0
- AcuSense, false alarm filter for vehicles and people (in Line Crossing, Area Intrusion, Entry Region, Exit Region)
- Face Capture
- Alarms
- Audio
- Integrated dual array microphone
- Integrated deterrent siren and flash
- WDR (130 dB)
- 3D-DNR
- MicroSD card slot up to 512 GB
- WEB, CMS, Smartphone, and NVR interface
- ONVIF compatible
- PoE+ (IEEE802.3at)
- IP66 waterproof
- IK10 vandal-proof
- Black color
Specifications: DS-2CD2787G2H-LIPTRZS2U/SL(2812)BLK
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Remote Positioning Adjustment | Horizontal rotation: 0~350° Vertical rotation: 0~85° Rotation: 0~350° |
| Field of View (FOV) | H: 112.3~41.2°, V: 58.1~23.1°, D: 137.4~47.3° |
| DORI | 89~220 m (D), 35~87 m (O), 18~44 m (R), 9~22 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.0028 Lux @(F1.2, AGC ON) 0 Lux with white light |
| Supplementary Lighting | Hybrid light: IR range 40 m White light range 40 m |
| Day/Night | ColorVu: color image 24 hours |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated siren and deterrent flash in the camera |
| Audio | 1 input / 1 output Integrated dual array microphone Integrated speaker |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Ambient Noise Filtering | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 1350 mA / 16 W max. PoE+ IEEE802.3at |
| Protection Rating | IP66 waterproof IK10 vandal-proof |
| Operating Temperature | -30º C ~ +60º C |
| Material | Metal |
| Dimensions | Ø 155 mm x 140.4 mm (H) |
| Base Dimensions | Ø base 155 mm / Ø between screws 96 mm / 4 screws |
| Weight | 820 g |
| Color | Black |
Package Contents
- Hikvision IP Dome Camera
- Installation materials
- User instructions
Use Case
The DS-2CD2787G2H-LIPTRZS2U/SL(2812)BLK is perfectly suited for a variety of surveillance scenarios, particularly in urban environments where security is paramount. For instance, in a shopping mall, this camera can be strategically placed at entrances and exits to provide comprehensive coverage. With its high-resolution imaging and ColorVu technology, it ensures clear visibility even in low-light conditions, enhancing overall security. The motorized varifocal lens allows installers to adjust the field of view remotely, making it easier to focus on specific areas of interest. Additionally, the AcuSense technology significantly reduces false alarms by accurately distinguishing between humans and vehicles, which is crucial in busy public spaces. This camera's IP66 rating ensures durability against harsh weather conditions, making it a reliable choice for outdoor installations. Overall, the DS-2CD2787G2H-LIPTRZS2U/SL(2812)BLK is an excellent solution for enhancing security in various settings.
Data sheet
- Brand
- HIKVISION
- Resolution
- 8 Mpx
- Technology
- IP
- WDR
- WDR (130 dB)
- IR Distance
- 40 m
- Audio
- 1 Entrada / 1 Salida / Micrófono en array
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK10
- Series
- PRO
- POE
- PoE+ (IEEE802.3at)
- Lens
- 2.8 ~ 12 mm Motorizada
- Compatible models
- DS-1476ZJ-SUS,DS-1476ZJ-SUS,DS-1475ZJ-SUS,DS-1475ZJ-SUS,DS-1473ZJ-155B(Black),DS-1473ZJ-155B(Black),DS-1471ZJ-155,DS-1471ZJ-155,DS-1250ZJ,DS-1250ZJ
Specific References
- EAN13
- 6942160489988
