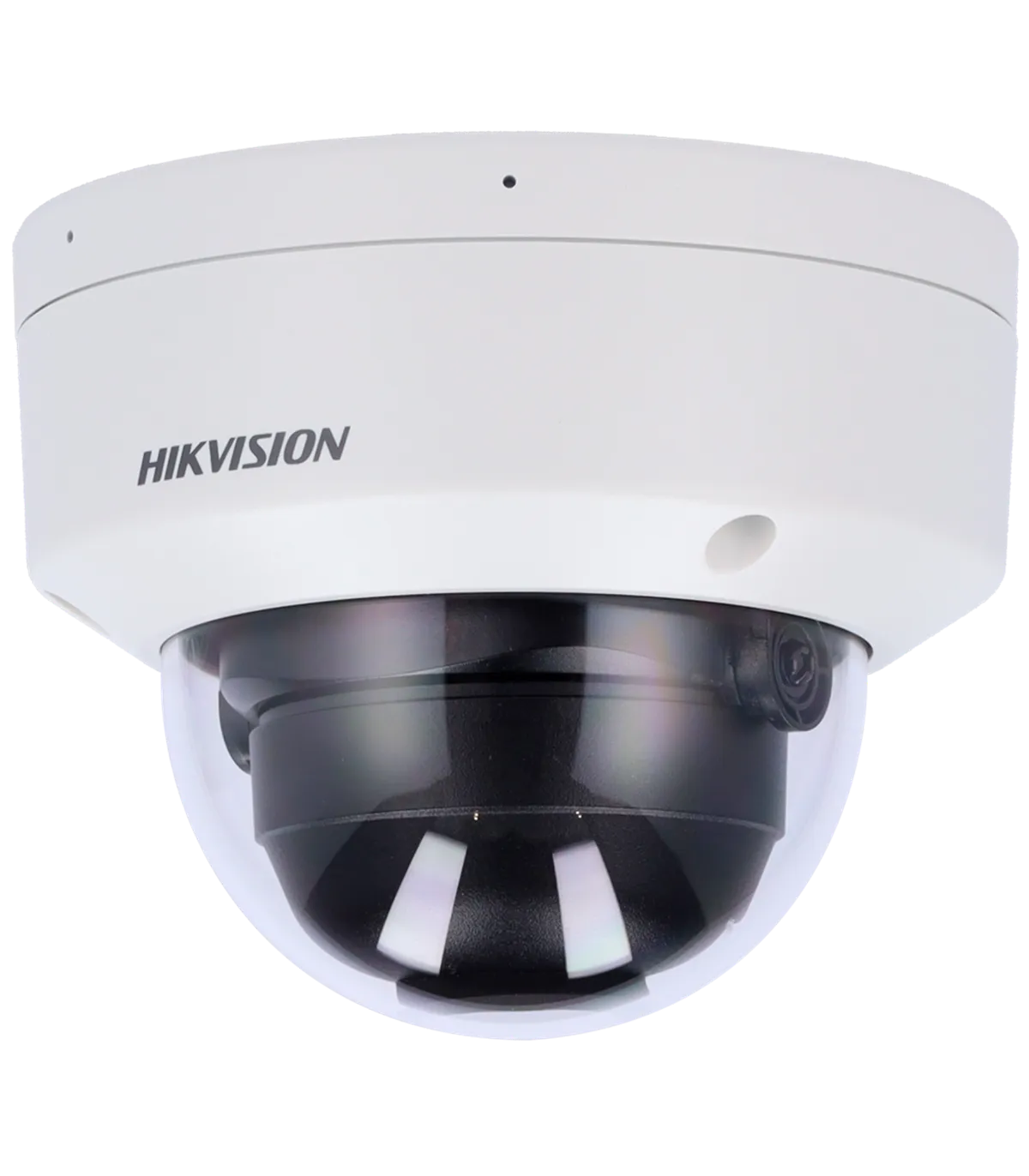

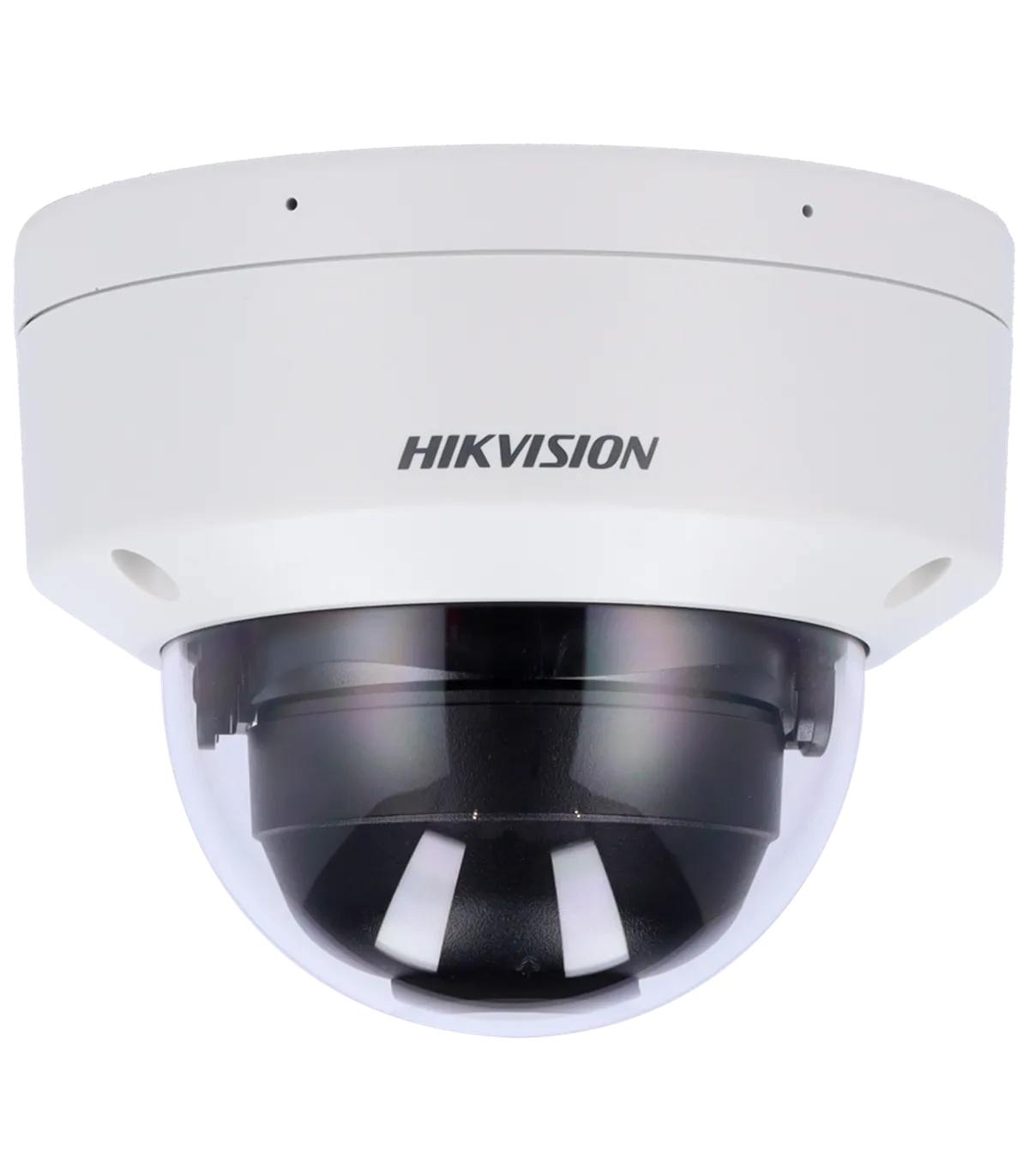

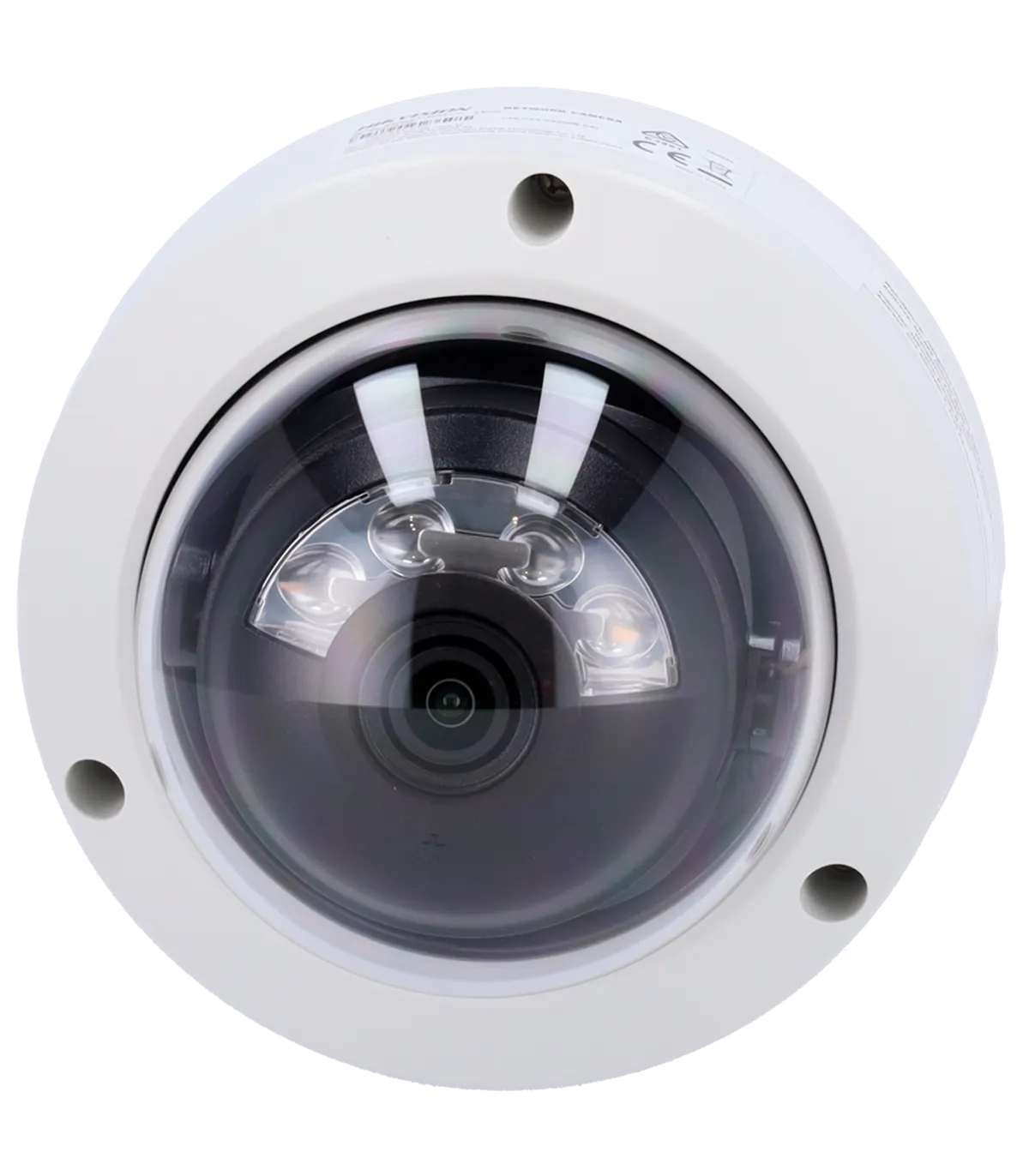

The DS-2CD1123G2-LIU(2.8mm) is a high-performance IP dome camera designed for effective surveillance in various environments. With its 2 Megapixel resolution and advanced features, this camera is ideal for both indoor and outdoor applications, providing clear images even in low-light conditions. The device supports H.265+ compression for efficient video storage and transmission, making it a perfect choice for modern security systems.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 103°, V: 56°, D: 121° |
| DORI | 45 m (D), 18 m (O), 9 m (R), 4 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Illumination | Hybrid Light: IR Range 30 m White Light Range 20 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Masking |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, T), ISAPI, SDK |
| Power Supply | DC 12 V / 500 mA / 6 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof IK08 Vandal Resistant |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.4 x 97.7 mm (H) |

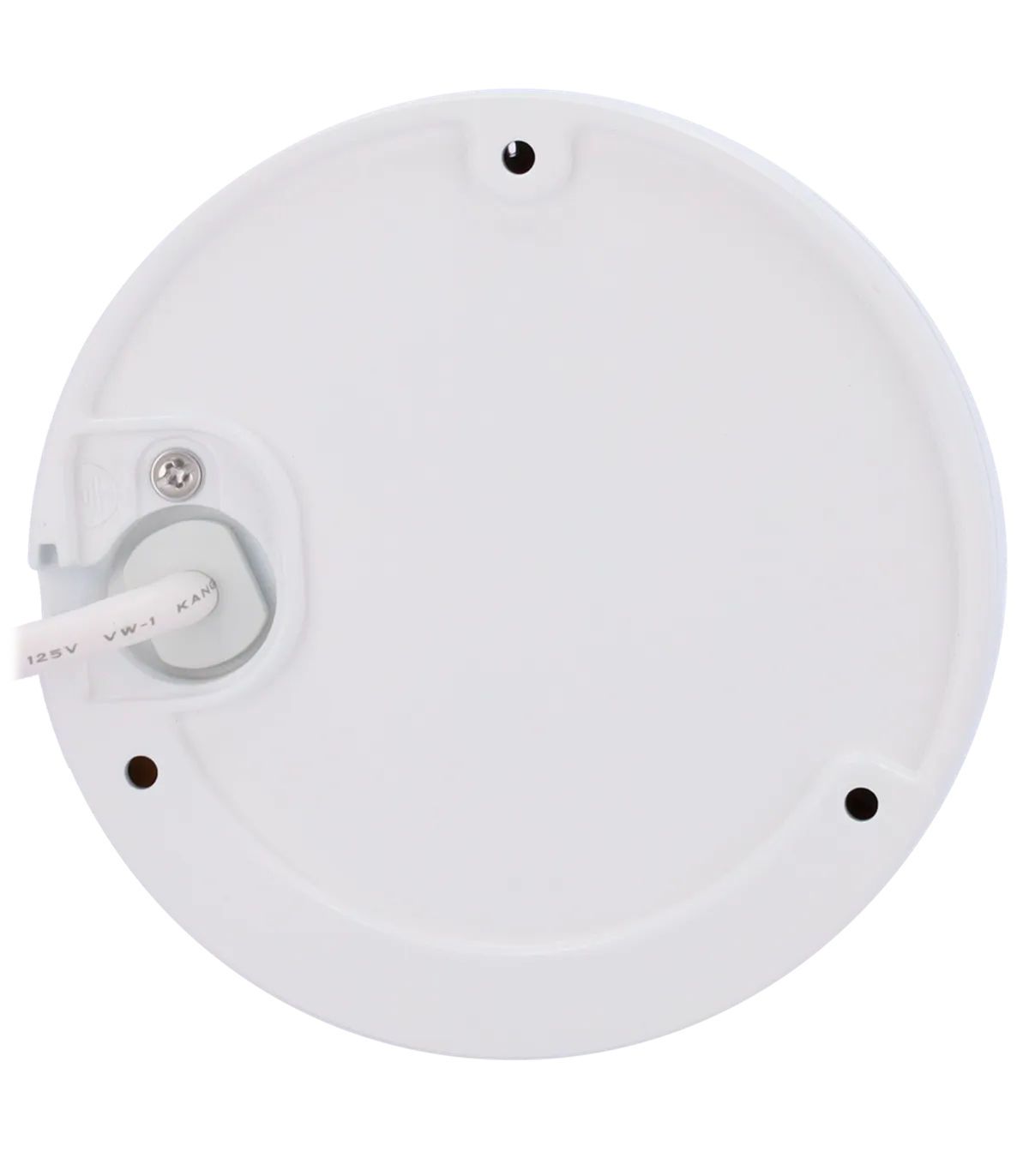

| Base Dimensions | Ø base 121.4 mm / Ø between screws 104.8 mm / 3 screws |
| Weight | 550 g |
The DS-2CD1123G2-LIU(2.8mm) is an excellent choice for various surveillance applications, including retail stores, offices, and residential areas. Its IP67 waterproof rating ensures reliable performance in outdoor settings, while the IK08 vandal-resistant design protects it from tampering. Installers can benefit from the plug-and-play setup, allowing for quick deployment without extensive configuration. The camera's remote monitoring capabilities via web browsers and mobile apps enable users to access live feeds and recorded footage from anywhere. Additionally, the motion detection feature with human and vehicle classification enhances security by minimizing false alarms. With its hybrid light technology, the camera provides clear images in both day and night conditions, making it a versatile solution for comprehensive surveillance needs.
