- Hikvision
- PRO Series IP Dome Camera
- 4 Megapixel Resolution (2688x1520)
- 2.8 mm Lens | Dual Array Microphone
- Hybrid Light Range 30 m | PoE | MicroSD | IP67
- AcuSense | MD2.0 | Audio | Alarms | IP67 | IK10

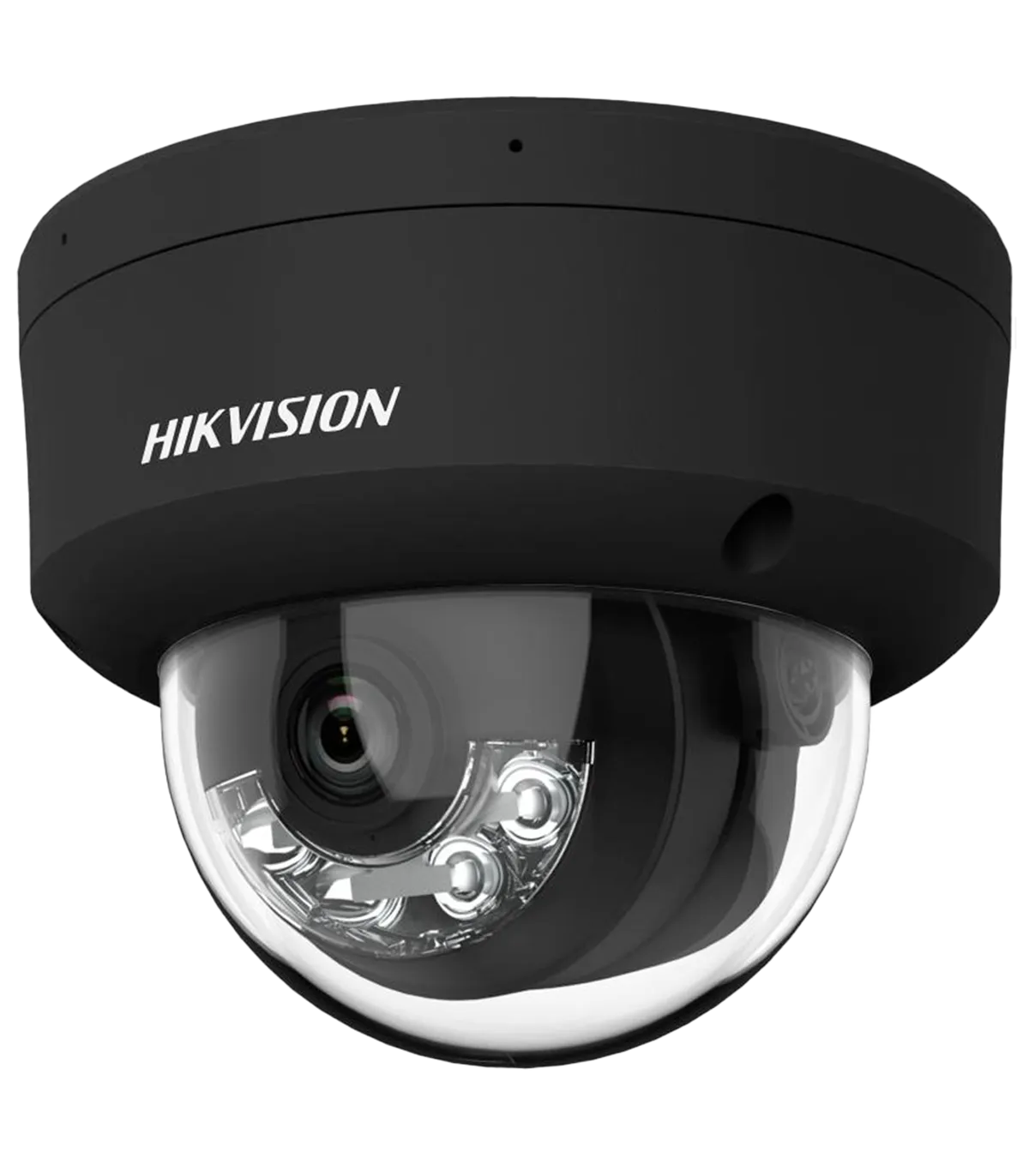

Description & Key Features: DS-2CD2143G2-LIS2U(2.8mm)(BLACK)
The DS-2CD2143G2-LIS2U(2.8mm)(BLACK) is a high-performance IP dome camera designed for effective surveillance in various environments. With its advanced 4 Megapixel resolution and hybrid lighting capabilities, this camera excels in both day and night conditions, making it ideal for security monitoring in retail, commercial, and residential settings. The device features intelligent motion detection and AcuSense technology, which significantly reduces false alarms, ensuring reliable security.
- Hikvision
- PRO Series
- IP Dome Camera
- 1/2.9" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- 2.8 mm Lens
- 0 Lux
- Hybrid Light: IR and White Light
- Hybrid Light Range 30 m
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (line crossing and area intrusion)
- WDR (120 dB)
- 3D-DNR
- Integrated dual array microphone
- Alarms
- Audio
- MicroSD card slot up to 512 GB
- WEB interface, CMS, Smartphone, and NVR
- ONVIF compatible
- PoE (IEEE802.3af)
- IP67 waterproof
- IK10 vandal-proof
- Black color
Specifications: DS-2CD2143G2-LIS2U(2.8mm)(BLACK)
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 104°, V: 57°, D: 122° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S and G), ISAPI |
| Power Supply | DC 12 V / 600 mA / 7.2 W max. PoE IEEE802.3af |
| Protection Grade | IP67 waterproof IK10 vandal-proof |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |
| Base Dimensions | Ø base 121.5 mm / Ø between screws 104.7 mm / 3 screws |
| Weight | 600 g |
| Color | Black |
Package Contents
- Hikvision IP Dome Camera
- Installation materials
- User instructions
Use Case
In a typical deployment scenario, the DS-2CD2143G2-LIS2U(2.8mm)(BLACK) is installed in a retail store to enhance security monitoring and deter theft. The camera's 4 Megapixel resolution provides clear images, allowing security personnel to identify individuals and monitor activities effectively. With its hybrid lighting capabilities, the camera operates seamlessly in low-light conditions, ensuring 24/7 surveillance. The integration of AcuSense technology allows for precise detection of human and vehicle movements, significantly reducing false alarms triggered by non-threatening objects. This feature is particularly beneficial in busy environments, where accurate alerts are crucial. Additionally, the camera's remote access capabilities enable security teams to monitor live feeds from their smartphones or PCs, enhancing response times to incidents. Overall, the DS-2CD2143G2-LIS2U(2.8mm)(BLACK) is an ideal solution for businesses seeking reliable and advanced surveillance technology.
Data sheet
- Brand
- HIKVISION
- Resolution
- 4 Mpx
- Technology
- IP
- WDR
- WDR (120 dB)
- IR Distance
- 30 m
- Audio
- 1 Entrada / 1 Salida / Micrófono en array
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK10
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-DM46,DS-1280ZJ-DM46,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-SUS,DS-1272ZJ-120B,DS-1272ZJ-120B,DS-1272ZJ-120,DS-1272ZJ-120,DS-1271ZJ-120,DS-1271ZJ-120
Specific References
- EAN13
- 6942160459257
