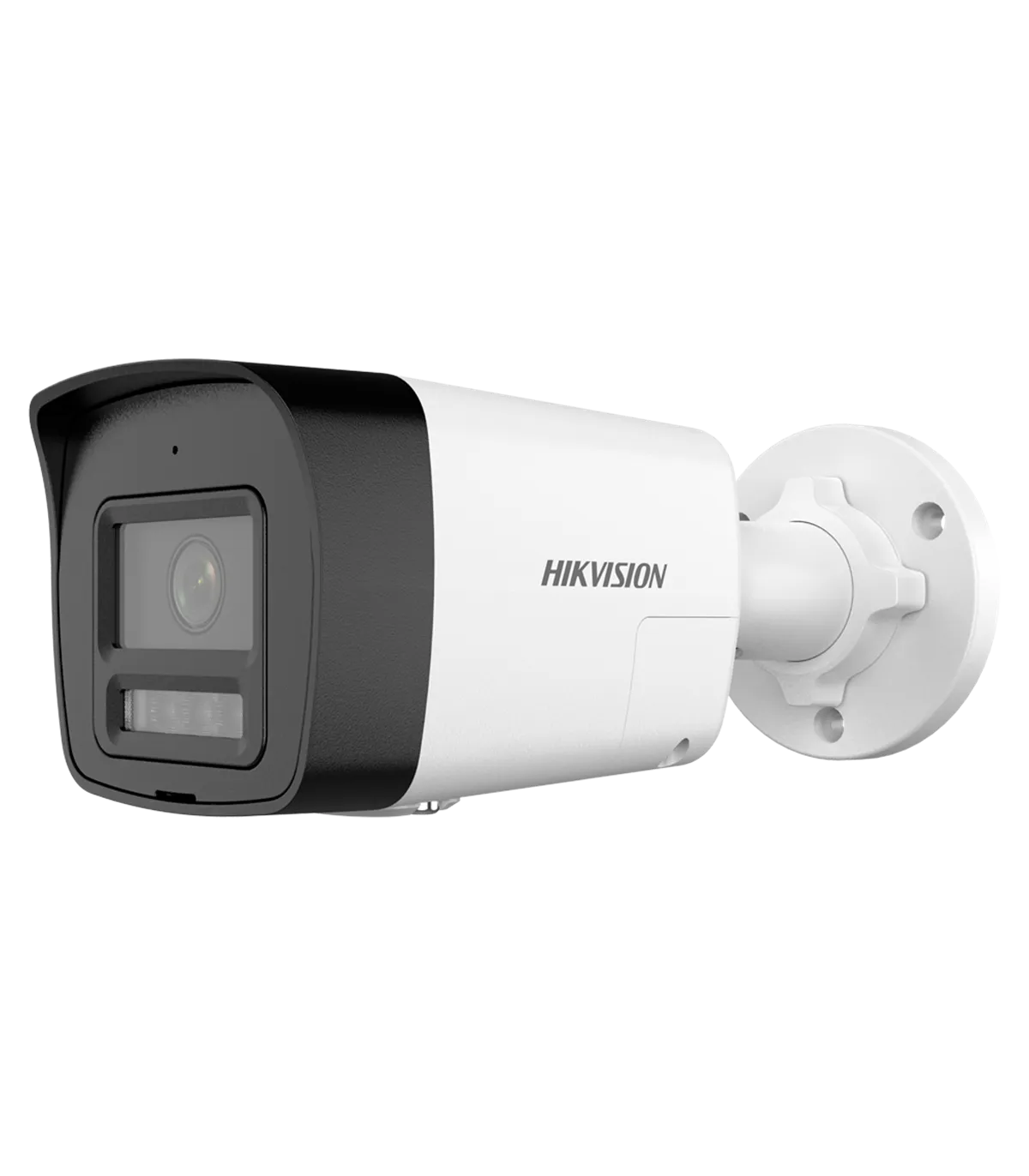

The DS-2CD1043G2-LIUF/SL(4mm) is a high-performance IP bullet camera designed for effective surveillance in various environments. With its 4 Megapixel resolution, this camera delivers clear and detailed images, making it ideal for both indoor and outdoor applications. The device features a hybrid light system that combines infrared and white light, ensuring visibility even in complete darkness. Its robust design, rated IP67 waterproof, allows it to withstand harsh weather conditions, making it a reliable choice for security installations.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 4 mm |
| Field of View (FOV) | H: 78°, V: 42°, D: 93° |
| DORI | 78 m (D), 31 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR and White Light IR Range 30 m White Light Range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone and Speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Deterrent Alarm | Integrated Siren and Strobe Light in the camera |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 620 mA / 7.5 W max. PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 67.4 mm (H) x 69.1 mm (W) x 179 mm (D) |
| Base Dimensions | Ø base 70 mm / Ø screw spacing 55 mm / 3 screws |
| Weight | 315 g |
The DS-2CD1043G2-LIUF/SL(4mm) is an excellent choice for both residential and commercial security applications. For instance, a retail store can deploy this camera at entry points to monitor customer traffic and deter theft. With its high-resolution imaging and advanced motion detection capabilities, the camera can effectively identify suspicious activities. The integrated audio features allow for two-way communication, enhancing customer service and security response. Additionally, the remote access functionality enables store managers to monitor live feeds from anywhere, ensuring peace of mind. The camera's IP67 waterproof rating makes it suitable for outdoor installations, providing reliable surveillance in various weather conditions. Overall, the DS-2CD1043G2-LIUF/SL(4mm) offers a comprehensive solution for effective surveillance and security management.
