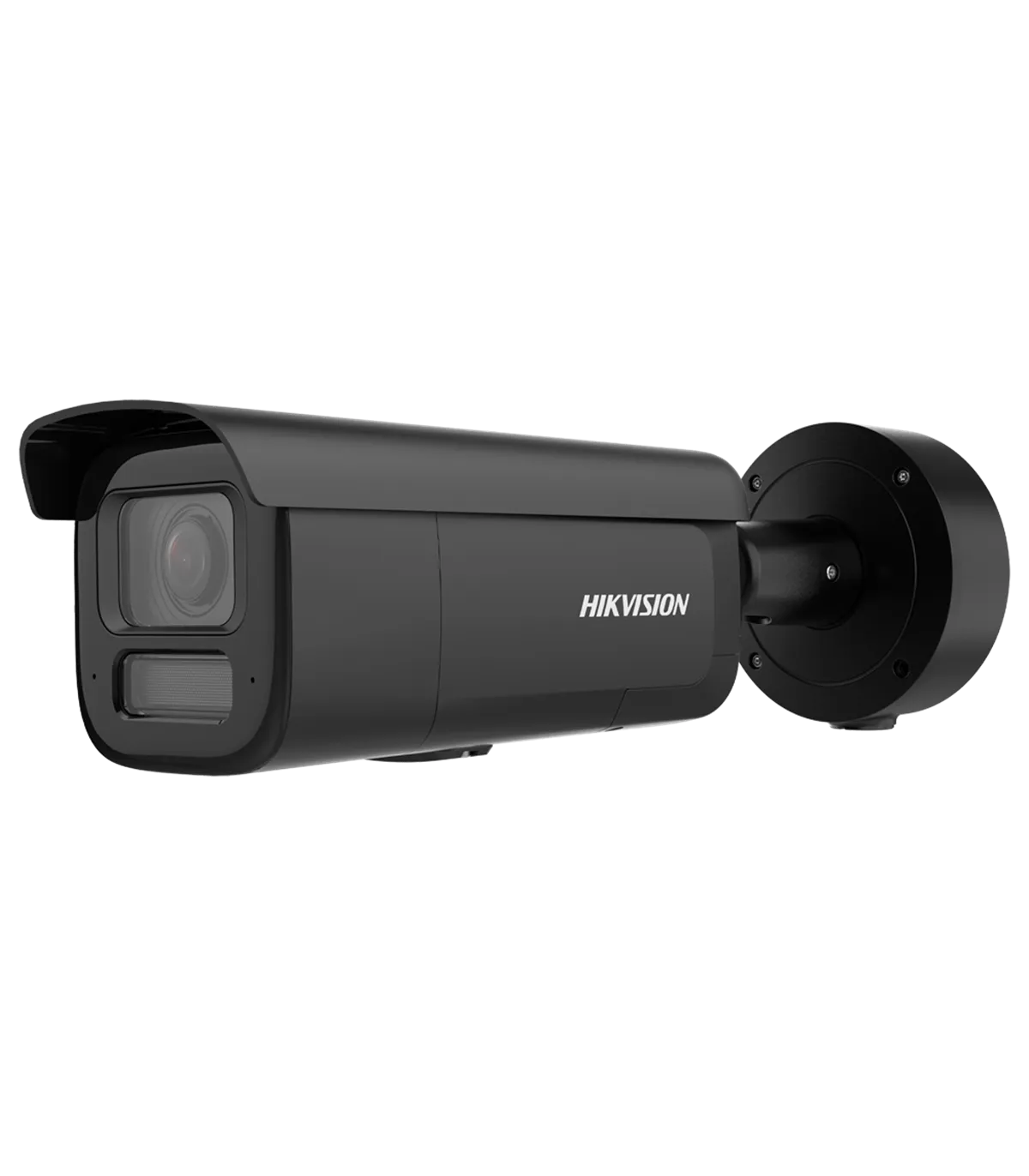

The DS-2CD2686G2HT-IZS(2.8-12)/eF//BLK is a high-performance IP bullet camera designed for advanced surveillance applications. With its 8 Megapixel resolution, this camera is ideal for both indoor and outdoor environments, providing exceptional image quality and clarity. It features a motorized varifocal lens, allowing for flexible installation and precise field of view adjustments. The camera is equipped with IR illumination for low-light conditions, making it suitable for 24/7 monitoring. Its robust design ensures durability in various weather conditions, making it a reliable choice for security professionals.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * (The third stream is available under certain configurations) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 112.3~41.2°, V: 58.1~23.1°, D: 137.4~47.3° |
| DORI | 87~216 m (D), 35~86 m (O), 17~43 m (R), 9~22 m (I) |
| Electronic Shutter | 1/3~1/100.000 s |
| Minimum Illumination | Low Light (Powered by DarkFighter) Color: 0.0008 Lux @(F1.2, AGC ON) 0 Lux with IR range 60 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 1210 mA / 14.5 W max. PoE+ IEEE802.3at |
| Protection Grade | IP67 waterproof IK10 vandal-proof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 95.7 mm (H) x 97.9 mm (W) x 298 mm (L) |
| Base Dimensions | Ø base 105 mm / Ø between screws 89 mm / 4 screws |
| Weight | 1475 g |
| Color | Black |
The DS-2CD2686G2HT-IZS(2.8-12)/eF//BLK is ideally suited for a variety of surveillance scenarios, such as monitoring retail environments, parking lots, and building perimeters. With its high-resolution imaging and advanced motion detection capabilities, security professionals can effectively monitor large areas while minimizing false alarms. The camera's motorized varifocal lens allows for easy adjustments to the field of view, ensuring optimal coverage of critical areas. Additionally, the IR illumination enables clear visibility even in complete darkness, making it perfect for 24/7 surveillance. The integration of AcuSense technology enhances the camera's ability to differentiate between human and vehicle movement, providing more accurate alerts and reducing unnecessary notifications. This makes the DS-2CD2686G2HT-IZS(2.8-12)/eF//BLK an excellent choice for installers and end-users looking for a reliable and efficient security solution.
