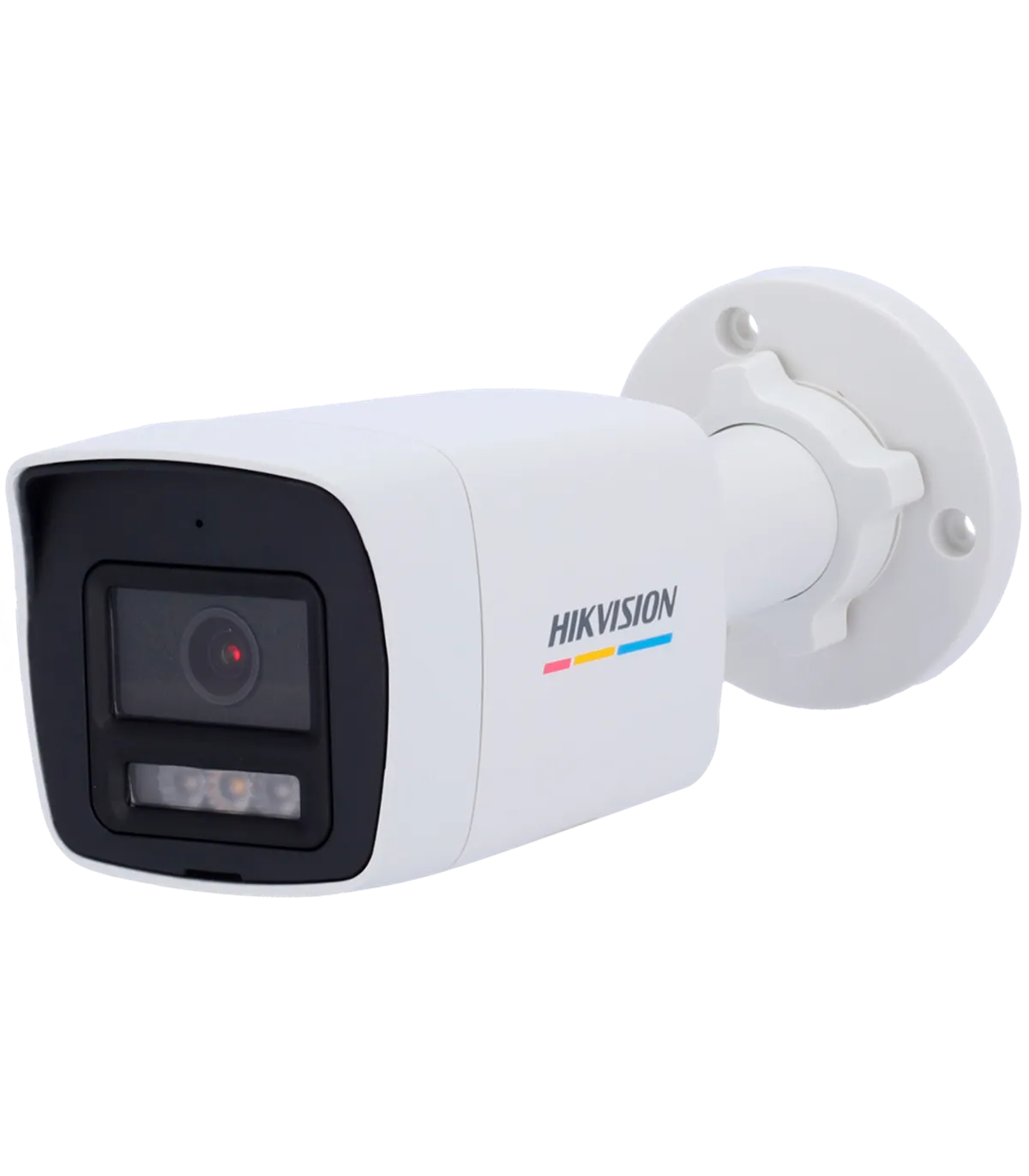

The DS-2CD1047G2H-LIUF/SL(2.8mm) is a high-performance IP bullet camera designed for effective surveillance in various environments. With its advanced 4 Megapixel resolution and ColorVu technology, this camera provides clear, color images even in low-light conditions. Ideal for both residential and commercial applications, it ensures comprehensive monitoring with features such as motion detection and remote access capabilities.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 96°, V: 52°, D: 114° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with White Light up to 30 m |
| Supplementary Illumination | Hybrid Light: IR up to 30 m White Light up to 30 m |
| Day/Night | ColorVu: 24-hour Color Imaging |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with Human and Vehicle Classification applied in motion detection. |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Audio | Integrated Microphone and Speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Deterrent Alarm | Integrated Siren and Strobe Light in the camera |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 600 mA / 7.2 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Cover: Metal Body: Plastic Bracket: Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 69.1 (W) x 67.4 (H) x 179 (D) mm |
| Base Dimensions | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 320 g |
The DS-2CD1047G2H-LIUF/SL(2.8mm) is perfect for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide 24-hour color imaging with its ColorVu technology. This ensures that even in low-light conditions, the camera captures clear images, enhancing security. The integrated microphone and speaker allow for two-way audio communication, enabling store owners to interact with customers or deter potential intruders. Additionally, the motion detection feature can be set to alert security personnel of any suspicious activity, ensuring a rapid response. With its IP67 waterproof rating, the camera is suitable for outdoor installations, providing reliable performance in various weather conditions. Overall, the DS-2CD1047G2H-LIUF/SL(2.8mm) offers a comprehensive solution for effective surveillance and security management.
