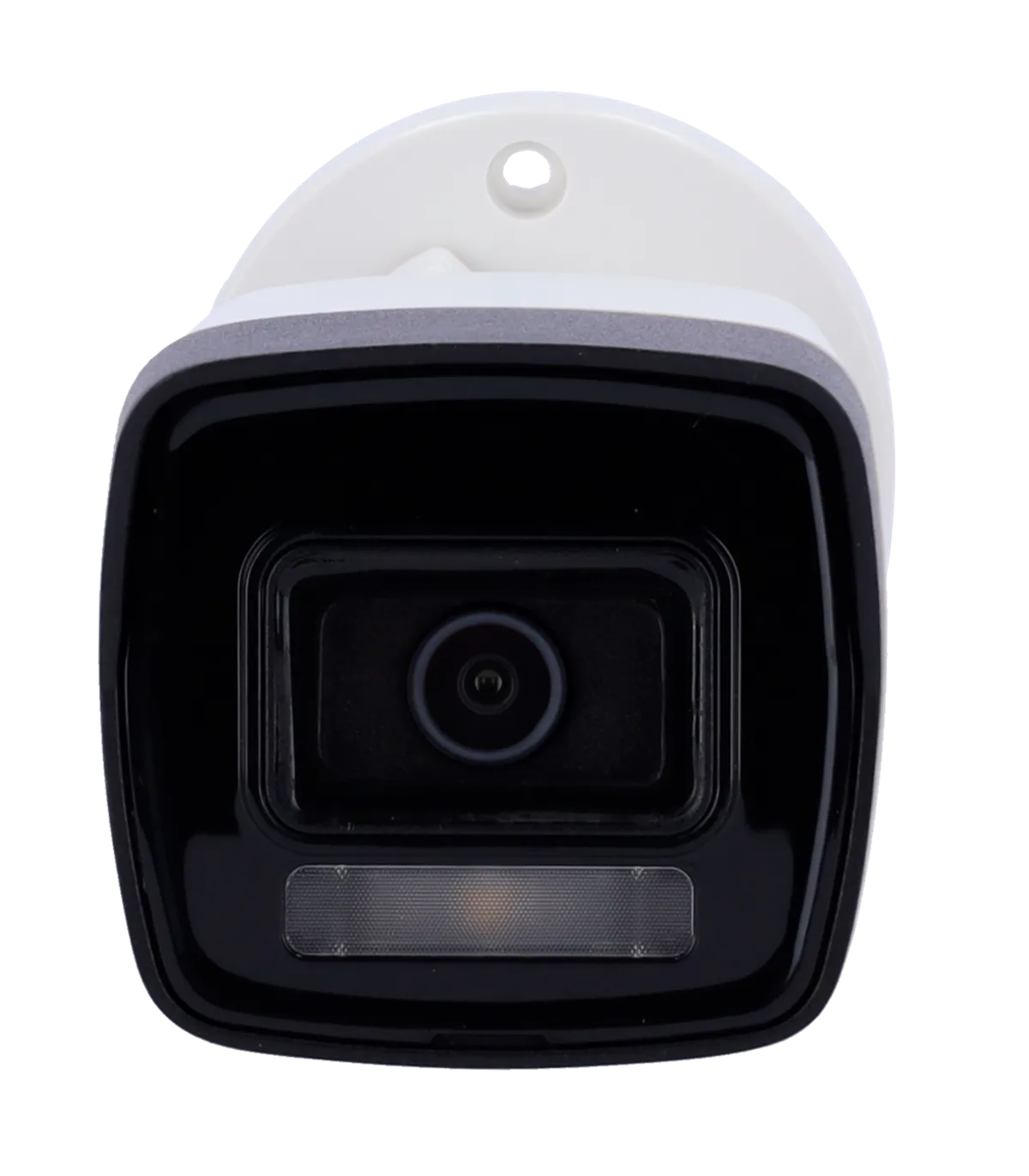

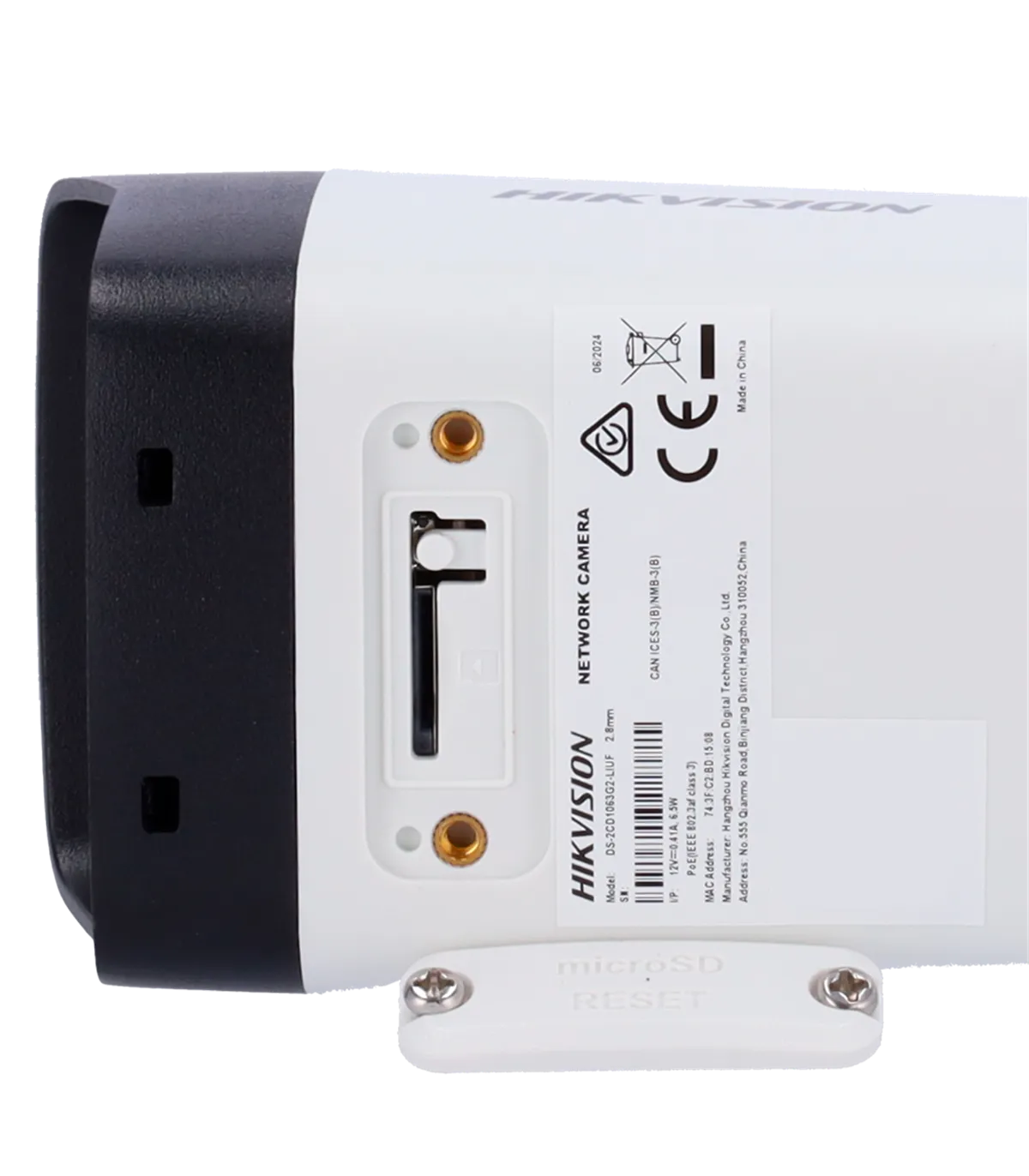

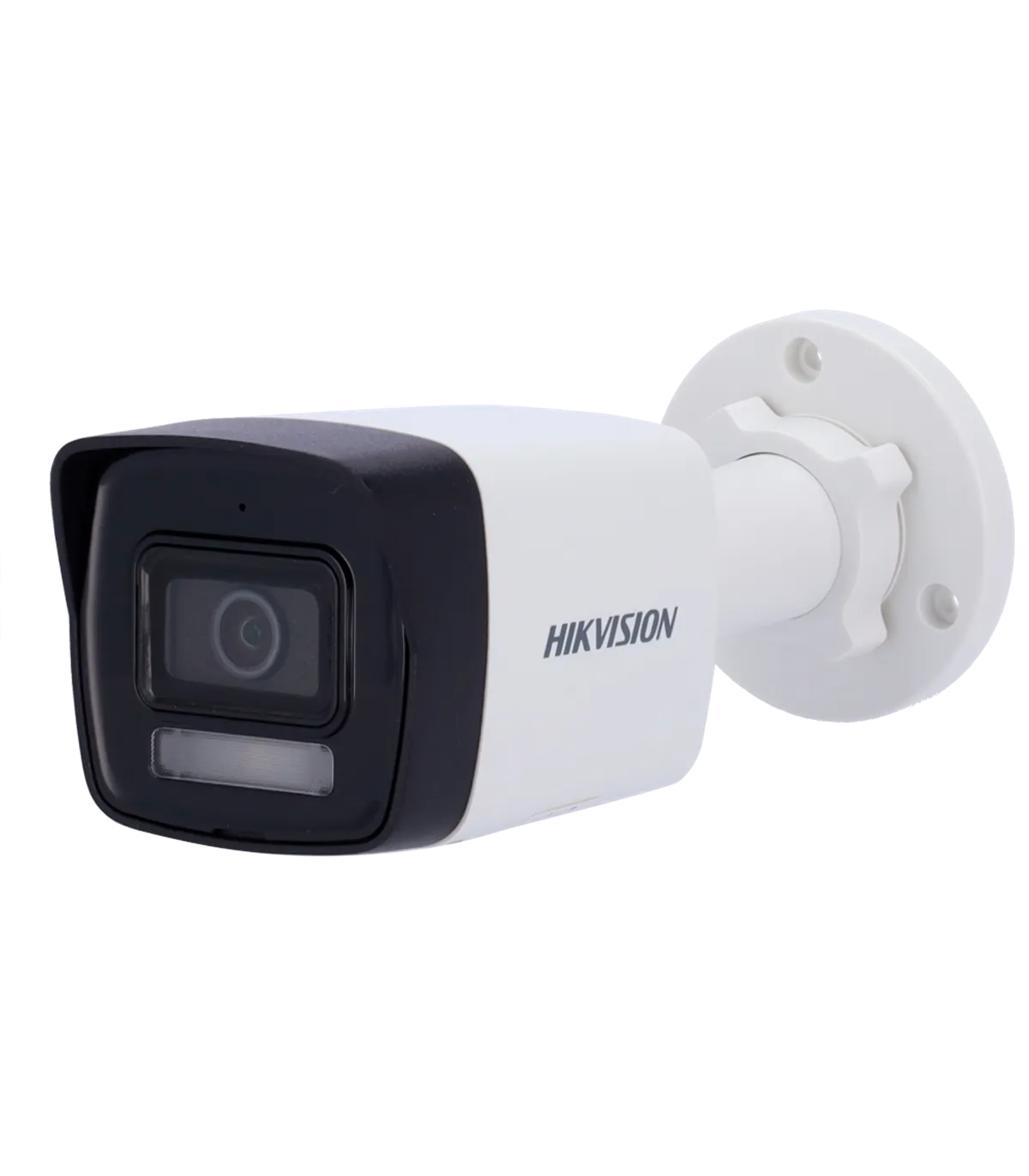

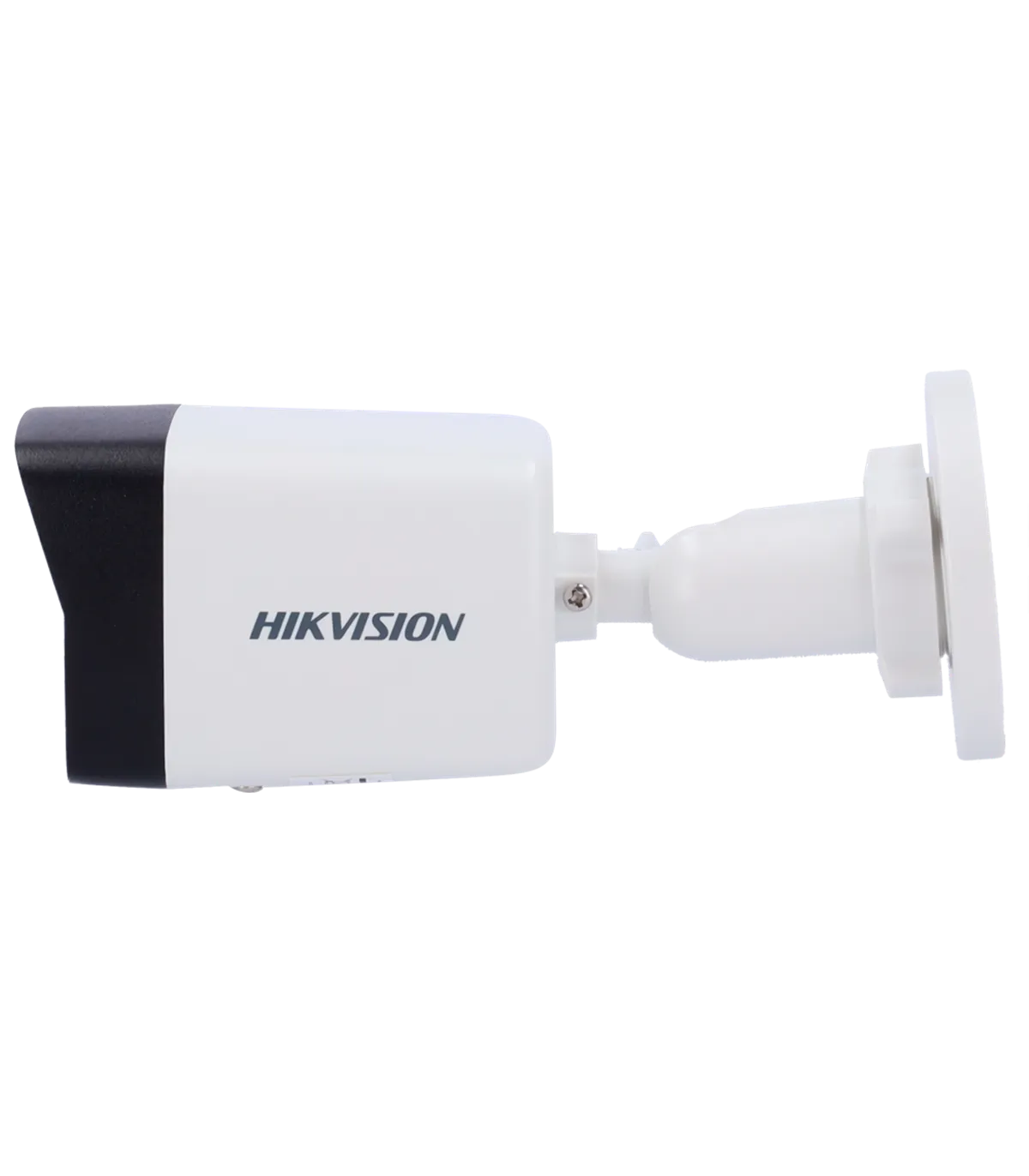

The DS-2CD1063G2-LIU(2.8mm) is a high-performance IP bullet camera designed for effective surveillance in various environments. With its advanced features, this camera is ideal for both indoor and outdoor applications, providing clear images even in low-light conditions. The device supports remote monitoring through web interfaces and mobile applications, making it a versatile choice for security professionals. Its robust design ensures durability, while the integration of H.265+ compression technology allows for efficient storage management.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 20 fps (3200x1800, 2688x1520, 1920x1080, 1280x720) |
| Extra Stream Rate | 20 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 105°, V: 55°, D: 127° |
| DORI | 76 m (D), 30 m (O), 15 m (R), 7 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR up to 30 m |
| Supplementary Illumination | Hybrid Light: IR up to 30 m White light up to 30 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 410 mA / 5 W max. / PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 66 mm (H) x 69.1 mm (W) x 170.8 mm (D) |

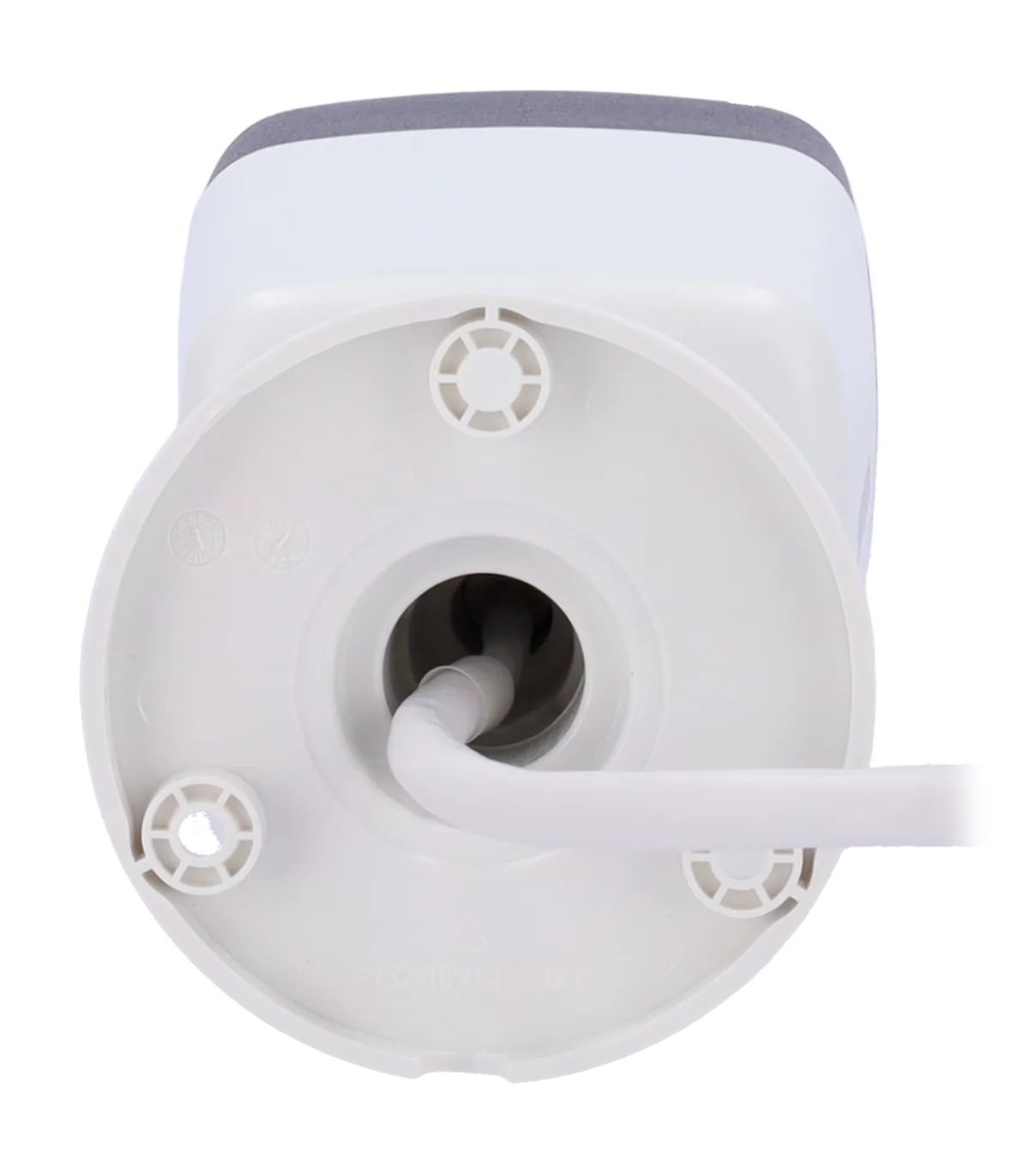

| Base Dimensions | Ø base 70 mm / Ø screw holes 55 mm / 3 screws |
| Weight | 285 g |
The DS-2CD1063G2-LIU(2.8mm) is an excellent choice for a variety of surveillance applications, such as monitoring retail stores, parking lots, or residential areas. Its high-resolution imaging capabilities ensure that every detail is captured, while the motion detection feature allows for proactive security measures. Installers can easily set up the camera using the plug-and-play functionality, enabling quick deployment. The camera's IP67 waterproof rating makes it suitable for outdoor use, ensuring reliable performance in various weather conditions. Additionally, the integrated microphone provides enhanced audio monitoring, making it a comprehensive solution for security needs. With its remote access capabilities, users can monitor their premises from anywhere, ensuring peace of mind at all times.
