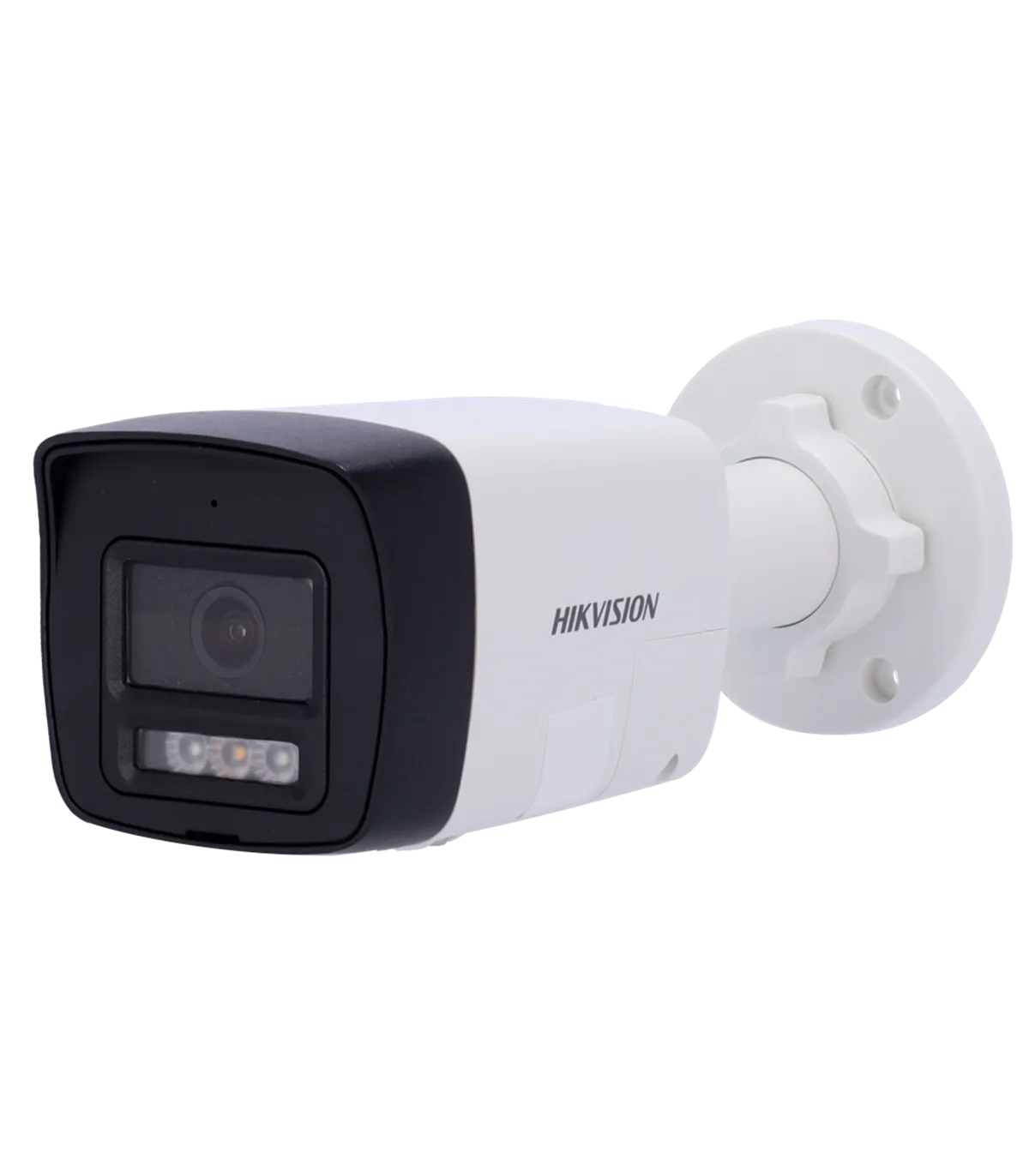

The DS-2CD1023G2-LIUF/SL(2.8mm) is a high-performance IP bullet camera designed for effective surveillance in various environments. With its 2 Megapixel resolution and advanced features, this camera is ideal for both indoor and outdoor applications, providing clear images even in low-light conditions. The device is equipped with a hybrid light system, combining IR and white light, ensuring visibility up to 30 meters. Its robust design and IP67 waterproof rating make it suitable for challenging weather conditions.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 103°, V: 56°, D: 121° |
| DORI | 45 m (D), 18 m (O), 9 m (R), 4 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR range 30 m White light range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | DWDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Audio | Integrated Microphone and Speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Deterrent Alarm | Integrated Siren and Strobe Light in the camera |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G, T), ISAPI, SDK |
| Power Supply | DC 12 V / 620 mA / 7.5 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 67.4 mm (H) x 69.1 mm (W) x 179 mm (D) |
| Base Dimensions | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 315 g |
The DS-2CD1023G2-LIUF/SL(2.8mm) camera is perfect for a variety of surveillance scenarios, such as monitoring retail stores, parking lots, or residential areas. Installers can easily set up this plug-and-play device, which supports remote monitoring via web browsers and mobile applications. The camera's motion detection capabilities, enhanced by its 2.0 technology, allow for precise alerts, distinguishing between humans and vehicles. This feature is particularly beneficial for security personnel who need to respond quickly to potential threats. Additionally, the integrated microphone and speaker facilitate two-way audio communication, enhancing security measures. With its IP67 waterproof rating, the camera can withstand harsh weather conditions, making it a reliable choice for outdoor installations.
