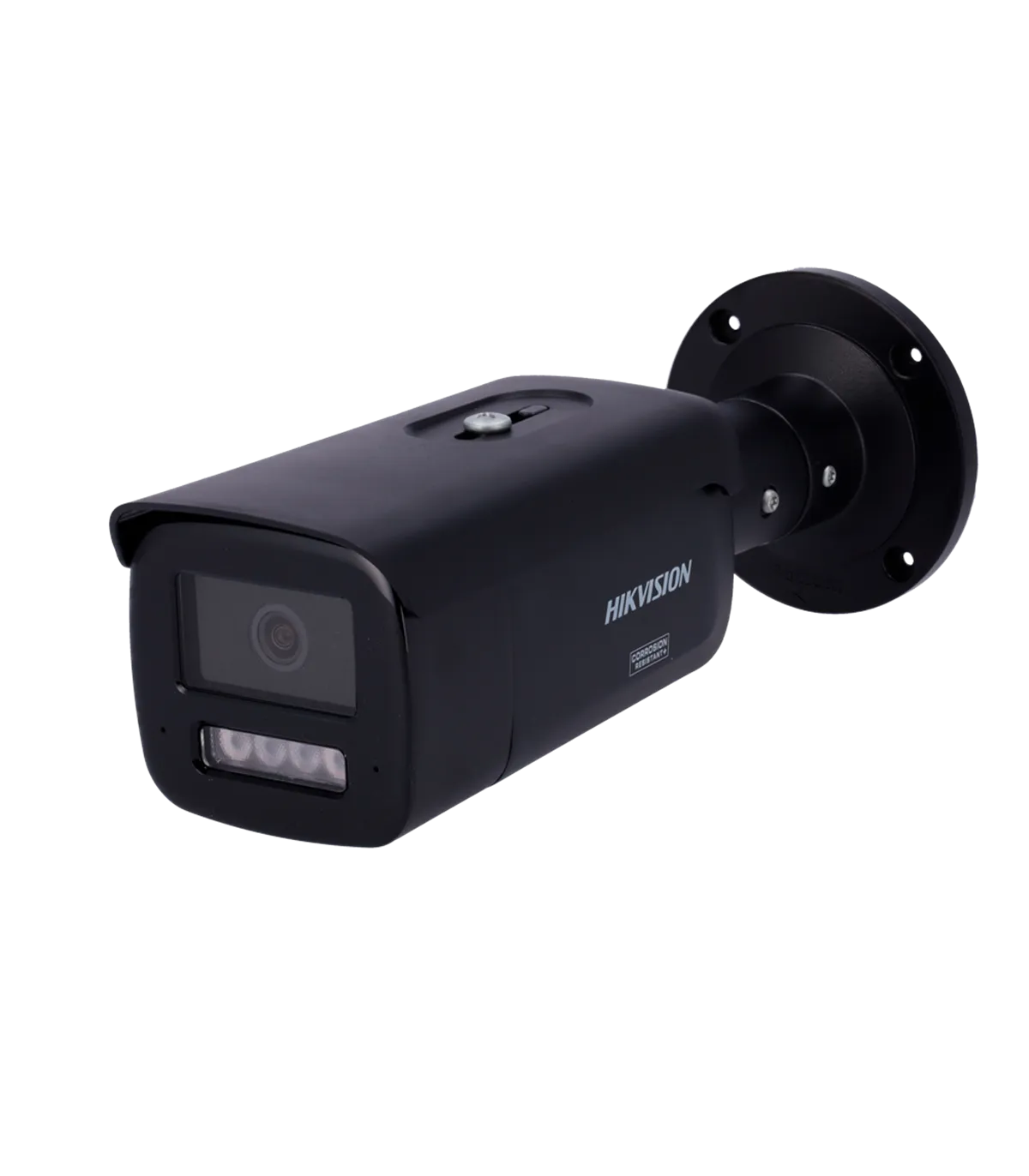

The DS-2CD2T43G2-2LIZ2UY is a high-performance IP Bullet Camera designed for advanced surveillance applications. With its 4 Megapixel resolution and dual lens options of 2.8mm and 4mm, this camera is ideal for both indoor and outdoor environments, providing exceptional clarity and detail. It features Hikvision's AcuSense technology for enhanced motion detection, making it suitable for various security needs.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720) 60 Hz: 30 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 50 Hz: 25 fps (1280×720, 640×480, 640×360) 60 Hz: 30 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 50 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) 60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) *Third stream supported only under certain conditions |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Dual lens options 2.8/4 mm |
| Field of View (FOV) | 2.8 mm: H: 99.3°, V: 54.8°, D: 120.2° 4 mm: H: 80.0°, V: 44.1°, D: 94.0° |
| DORI | 2.8mm: D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m 4mm: D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m |
| Electronic Shutter | 1~1/100.000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid light: IR range 60 m White light range 60 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, AWB, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Capture | Yes |
| Audio | Integrated dual array microphone |
| Environmental Noise Filtering | Yes |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK |
| Power Supply | DC 12 V / 750 mA / 9 W max. PoE IEEE802.3af, class 3, 11.5 W max. |
| Protection Grade | IP67 waterproof NEMA 4X corrosion-resistant |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 88.7 mm (W) x 91.2 mm (H) x 287.2 mm (D) |
| Base Dimensions | Ø base 105 mm / Ø screw spacing 89 mm / 4 screws |
| Weight | 1165 g |
| Color | Black |
The DS-2CD2T43G2-2LIZ2UY is perfect for a variety of surveillance scenarios, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to monitor customer flow and prevent theft. With its high-resolution imaging and hybrid lighting capabilities, it ensures clear visibility even in low-light conditions. The motion detection feature, enhanced by AcuSense technology, allows for precise alerts, reducing false alarms caused by non-threatening movements. Additionally, the camera's remote access capabilities enable security personnel to monitor live feeds from anywhere, ensuring a proactive approach to security management. The robust IP67 waterproof rating makes it suitable for outdoor installations, providing reliable performance in various weather conditions. Overall, the DS-2CD2T43G2-2LIZ2UY is an excellent choice for those seeking a reliable and advanced surveillance solution.
