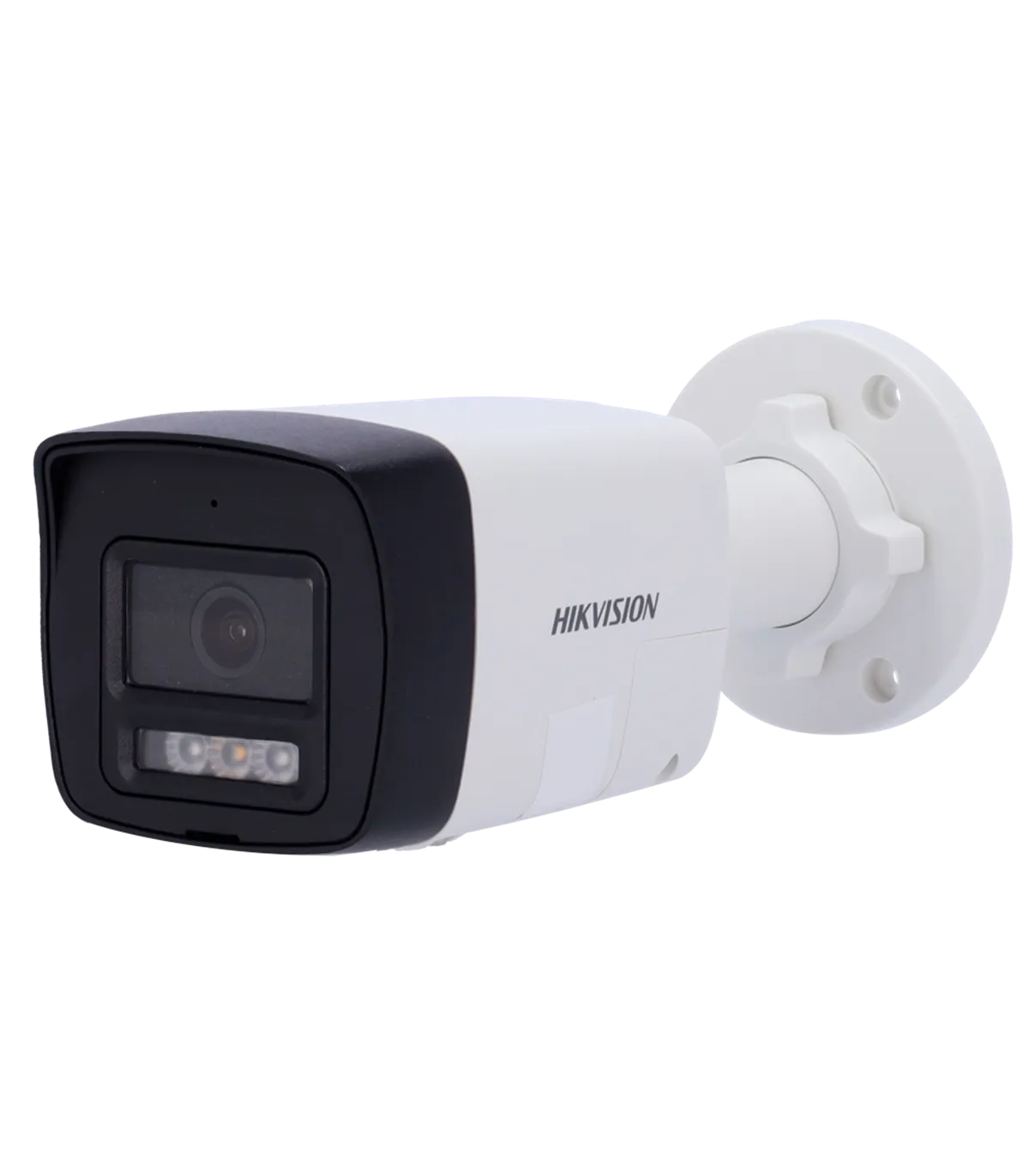

The DS-2CD1043G2-LIUF/SL(2.8mm) is a high-performance IP bullet camera designed for effective surveillance in various environments. With its 4 Megapixel resolution and advanced features, this camera is ideal for both indoor and outdoor applications, providing clear images even in low-light conditions. The device integrates seamlessly with existing security systems, making it a perfect choice for remote monitoring and video surveillance needs.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 98°, V: 54°, D: 114° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid Light: IR and White Light IR Range 30 m White Light Range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone and Speaker |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Deterrent Alarm | Integrated Siren and Strobe Light in the camera |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, T, G), ISAPI, SDK |
| Power Supply | DC 12 V / 620 mA / 7.55 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 67.4 mm (H) x 69.1 mm (W) x 179 mm (D) |
| Base Dimensions | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 315 g |
The DS-2CD1043G2-LIUF/SL(2.8mm) is particularly well-suited for installation in retail environments, where security surveillance is crucial for loss prevention. This camera can be mounted at entry points and high-traffic areas, providing a wide field of view to monitor customer activity. With its motion detection capabilities, the camera can alert security personnel to any suspicious behavior in real-time. The integrated microphone and speaker allow for two-way audio communication, enhancing the interaction between staff and customers. Additionally, the IP67 waterproof rating ensures reliable performance in various weather conditions, making it ideal for outdoor use as well. The camera's remote access features enable managers to monitor live feeds from anywhere, ensuring peace of mind and effective management of security protocols.
