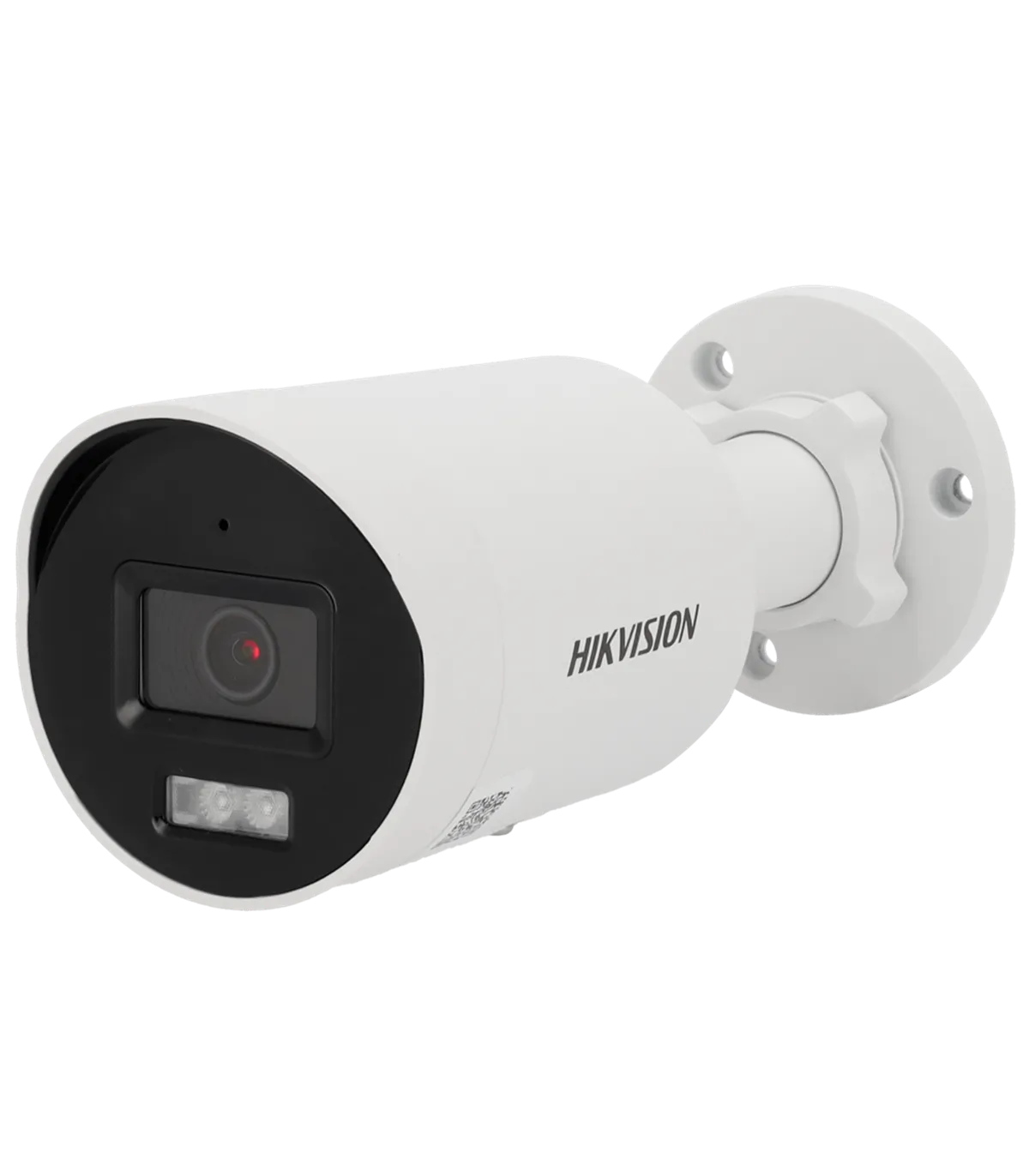

The DS-2CD2046G2H-IU(2.8mm)(eF) is a high-performance IP bullet camera designed for low-light environments, making it ideal for security surveillance in various settings such as retail stores, parking lots, and residential areas. With its advanced DarkFighter technology, this camera delivers exceptional image quality even in complete darkness, ensuring reliable monitoring around the clock. The device features intelligent detection capabilities, including motion detection and facial recognition, which enhance security by minimizing false alarms and improving incident response.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1080x720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 100.2°, V: 54.7°, D: 119.7° |
| DORI | 63 m (D), 25 m (O), 12 m (R), 6 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light (Powered by DarkFighter) Color: 0.001 Lux @(F1.0, AGC ON) 0 Lux with IR range 40 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Features | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Facial Recognition | Face Capture * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 450 mA / 5.5 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 74.4 mm x 179.2 mm (Fo) |
| Base Dimensions | Ø base 70 mm / Ø between screws 55 mm / 3 screws |
| Weight | 525 g |
The DS-2CD2046G2H-IU(2.8mm)(eF) is perfectly suited for deployment in a variety of environments, such as shopping malls, office buildings, and residential complexes. For instance, in a retail setting, the camera can be strategically placed at entrances and exits to provide comprehensive surveillance coverage. With its low-light performance, the camera ensures that even during nighttime, clear images are captured, enhancing overall security. The integration of motion detection and facial recognition features allows for real-time alerts and monitoring, significantly reducing the risk of theft and vandalism. Additionally, the camera's remote access capabilities enable security personnel to monitor live feeds from their smartphones or computers, ensuring that they can respond promptly to any incidents. The IP67 waterproof rating guarantees durability in various weather conditions, making it an ideal choice for both indoor and outdoor applications.
