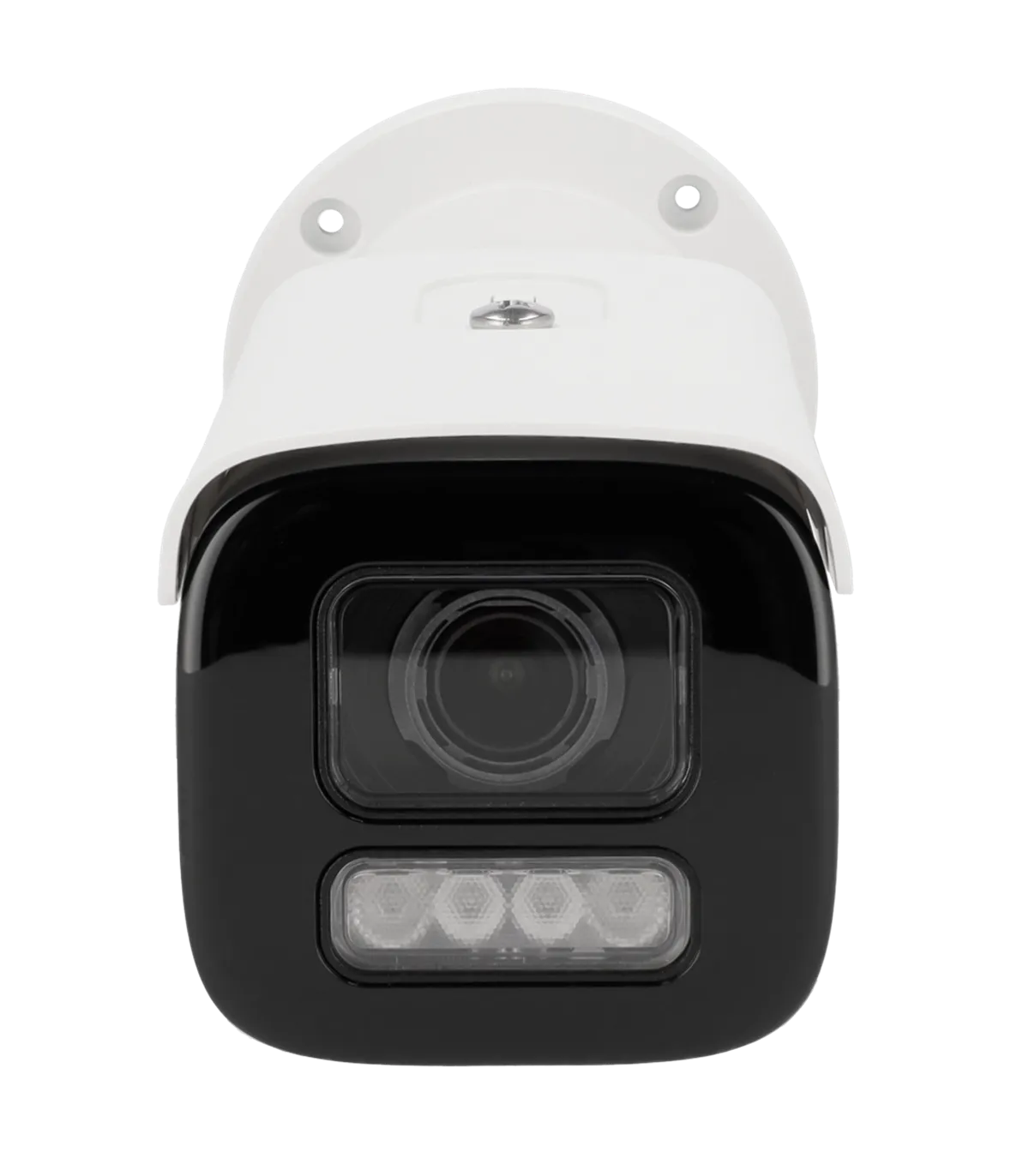

The DS-2CD2687G2HT-LIZS(2.8-12mm)(eF) is a high-performance IP Bullet Camera designed for advanced surveillance applications. Ideal for both indoor and outdoor environments, this camera excels in providing 24/7 color imaging with its ColorVu technology, ensuring clear visibility even in low-light conditions. With features such as motion detection and AcuSense technology, it effectively reduces false alarms while enhancing security monitoring. This camera is perfect for commercial and residential installations where reliable and high-quality video surveillance is essential.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * (The third stream is available under certain configurations) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 112.3~41.2°, V: 58.1~23.1°, D: 137.4~47.3° |
| DORI | 87~216m (D), 35~86 m (O), 17~43 m (R), 9~22 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.0028 Lux @(F1.2, AGC ON) 0 Lux with IR range 60 m |
| Supplementary Lighting | Hybrid light: IR range 60 m White light range 60 m |
| Day/Night | ColorVu: color image 24 hours |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 1210 mA / 14.5 W max. / PoE+ IEEE802.3at |
| Protection Grade | IP67 waterproof, IK10 vandal-proof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 95.7 mm (H) x 97.9 mm (W) x 298 mm (D) |

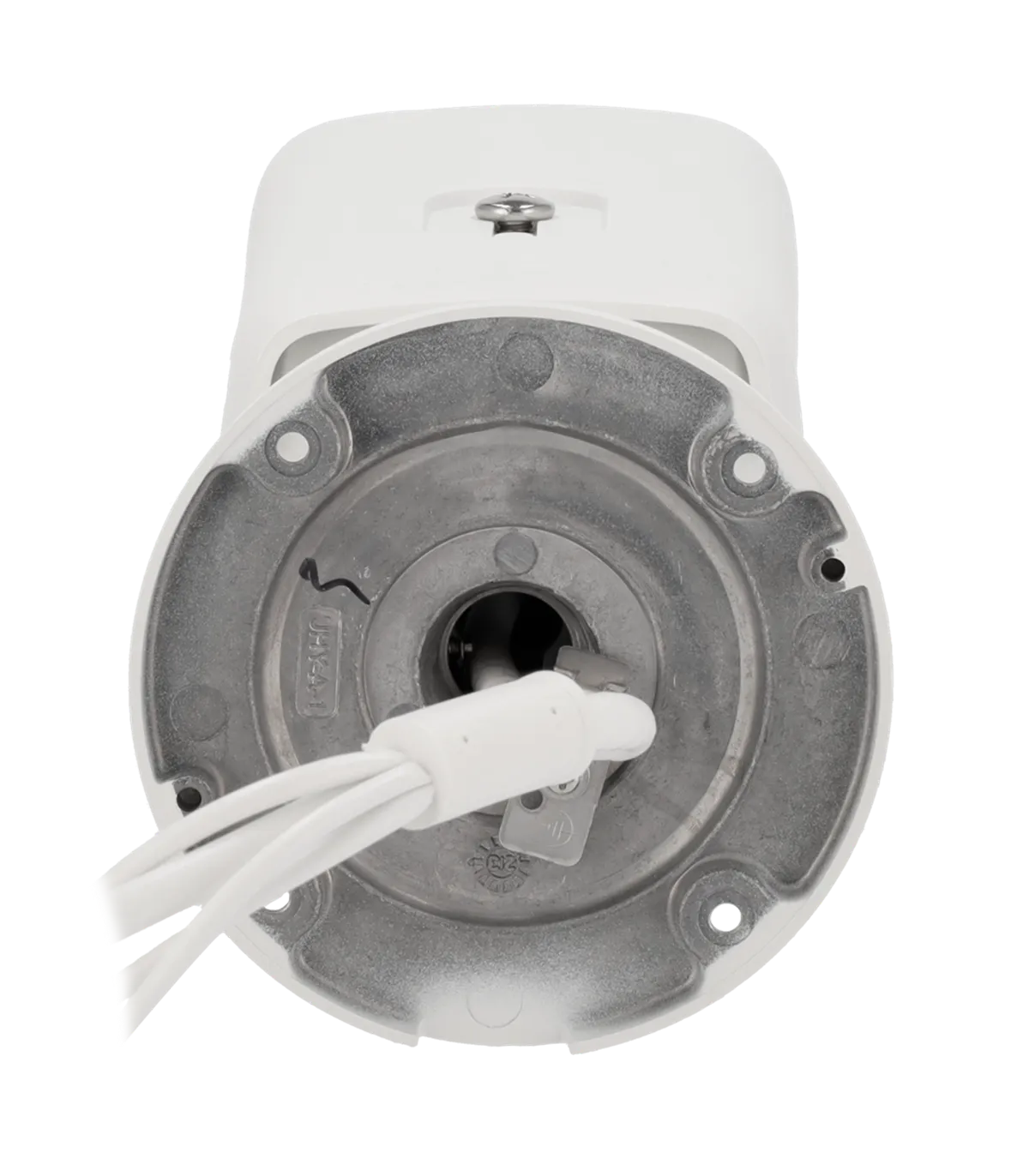

| Base Dimensions | Ø base 105 mm / Ø between screws 89 mm / 4 screws |
| Weight | 1085 g |
The DS-2CD2687G2HT-LIZS(2.8-12mm)(eF) is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide comprehensive coverage. With its high-resolution imaging and motion detection capabilities, it can effectively monitor customer traffic and enhance security. The AcuSense technology allows for precise identification of human and vehicle movements, significantly reducing false alarms triggered by non-threatening objects. Additionally, the camera's remote monitoring features enable store managers to keep an eye on their premises from anywhere, ensuring peace of mind. The robust IP67 rating guarantees durability against harsh weather conditions, making it a reliable choice for outdoor installations. Overall, this camera provides a powerful solution for enhancing security and operational efficiency in various settings.
