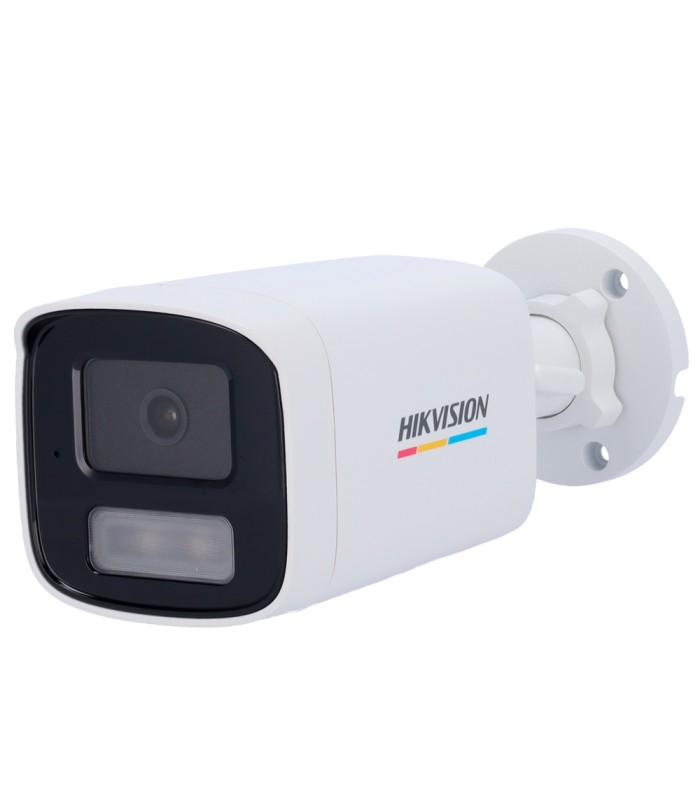

| Brand | HIKVISION |
| Range | Value |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2560x1440) |
| Main Stream Rate | 20 fps (2560x1440), 25 fps (1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |

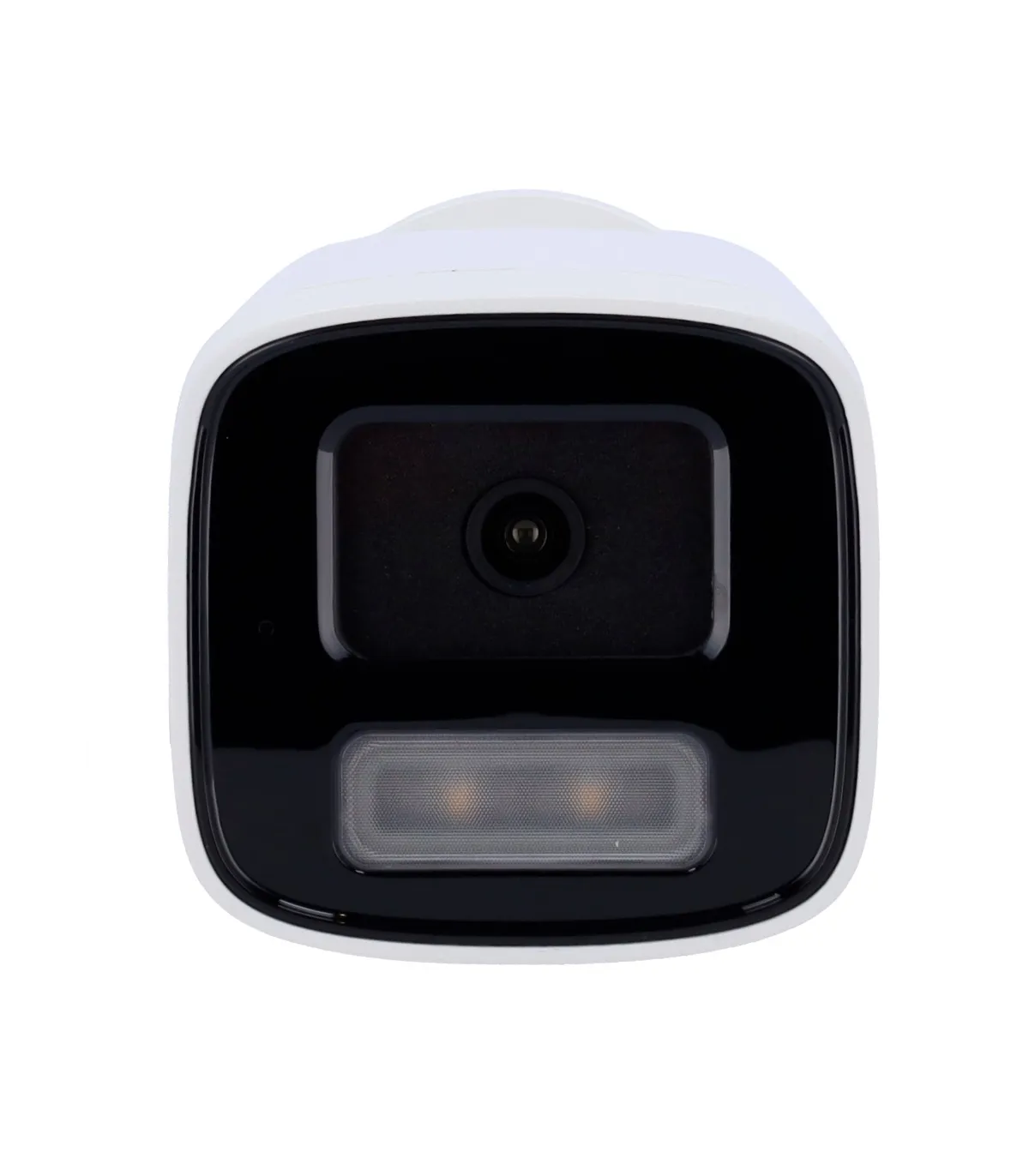

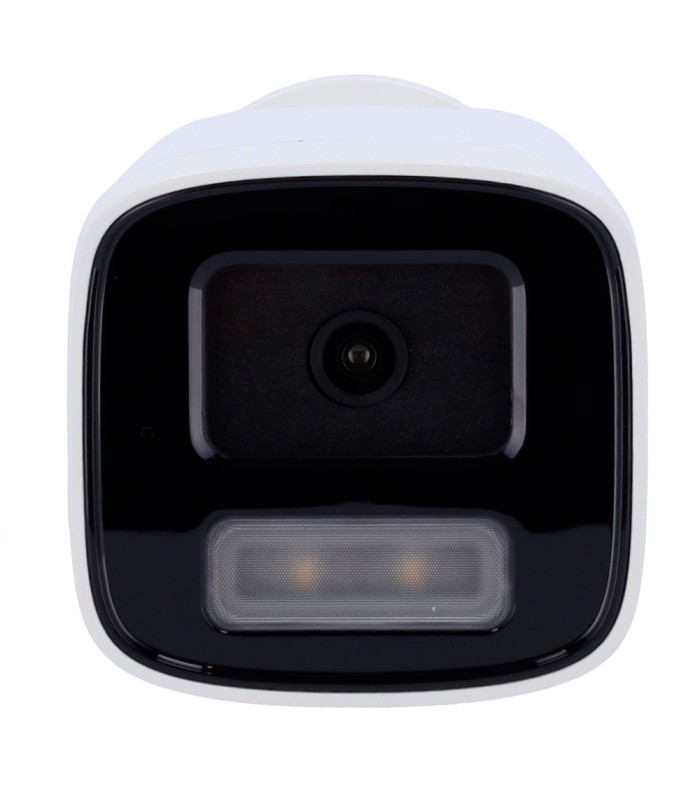

| Lens | 4 mm |
| Viewing angle (FOV) | H: 94°, V: 50°, D: 110° |
| DORI | 77 m (D), 30 m (W), 15 m (R), 7 m (L) |
| Minimum illumination | Color: 0.0005 Lux @(F1.0, AGC ON) 0 Lux with IR range 50 m |
| Supplementary illumination | Hybrid light: IR range 50 m White light range 50 m |
| Day/night | ColorVu: Color image 24 hours |
| Image improvements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Internal storage | Not available |
| Audio | Built-in microphone |
| Audio type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio bitrate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |

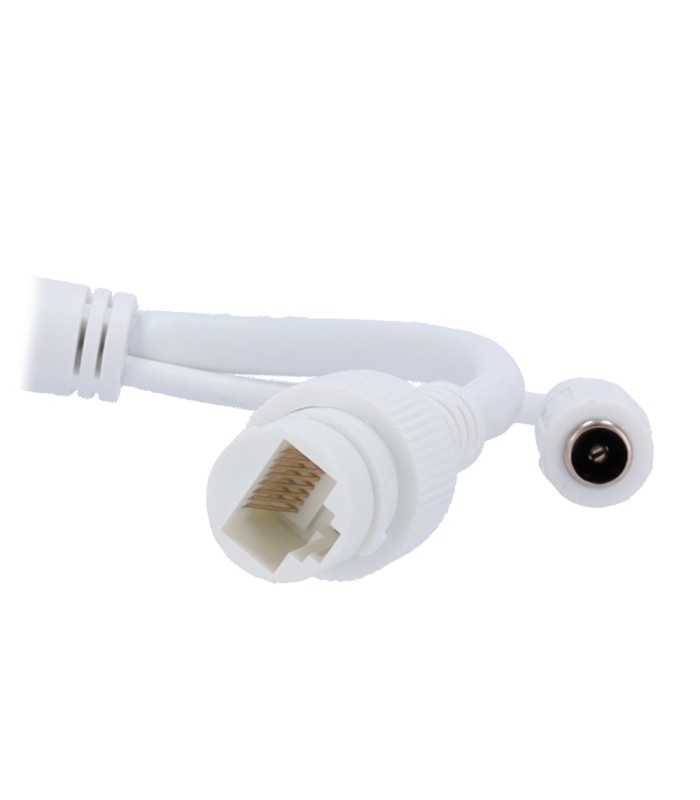

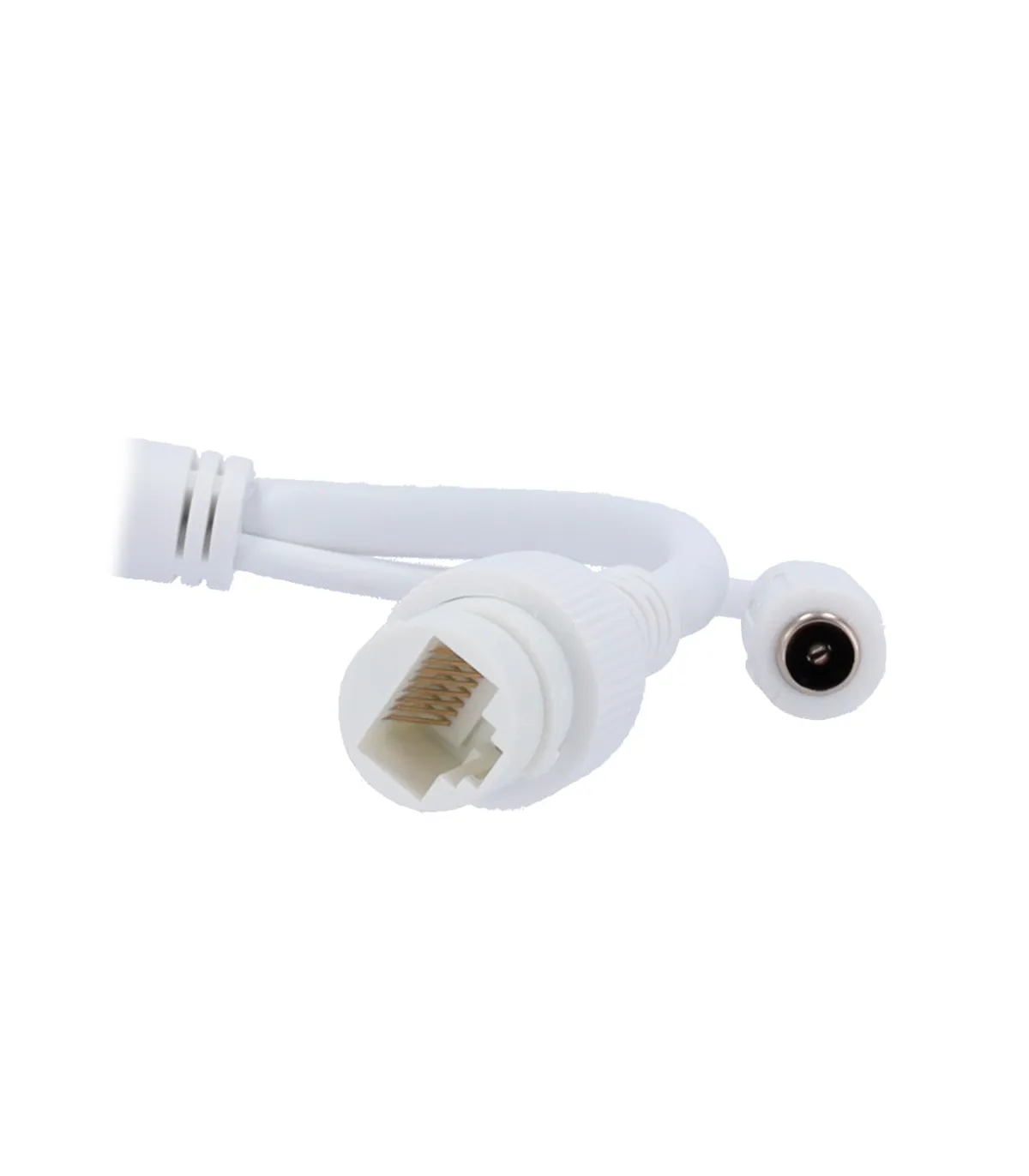

| Network interface | Ethernet 10/100M BaseT |
| Remote access | Web Browser, Hik-Connect Smartphone App, iVMS-4200 PC Software and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power | DC 12 V / 570 mA / 6.8 W max. / PoE IEEE802.3af |
| Protection grade | Waterproof IP67 |
| Material | Front cover: Metal Body: Plastic Support: Plastic |
| Temp. operation | -30º C ~ +60º C |

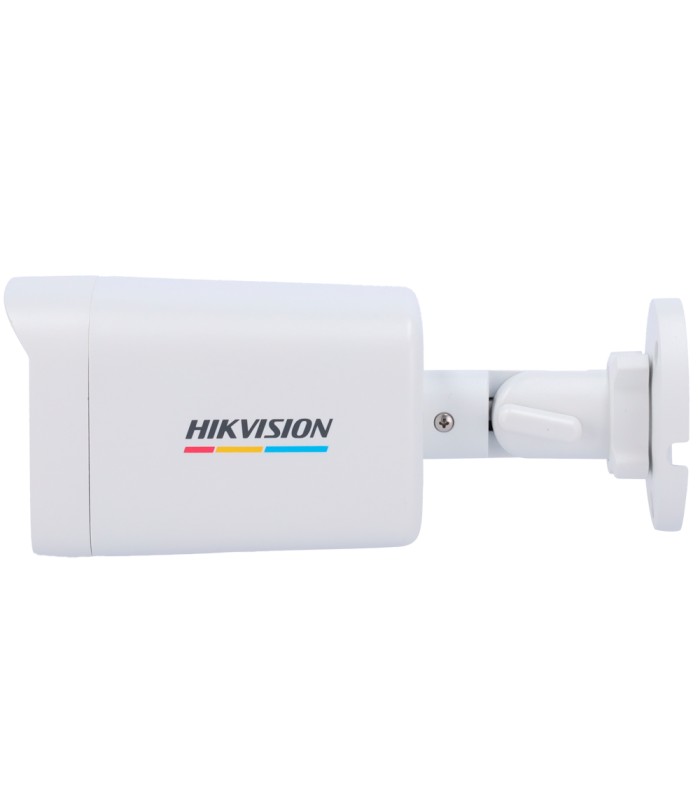

| Dimensions | 81 mm (H) x 83.7 mm (W) x 201.96 mm (D) |

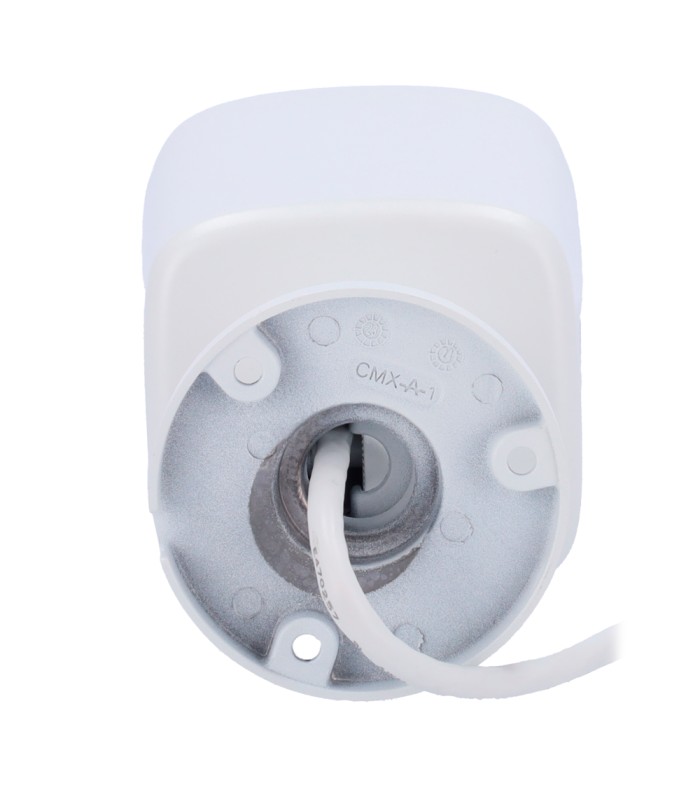

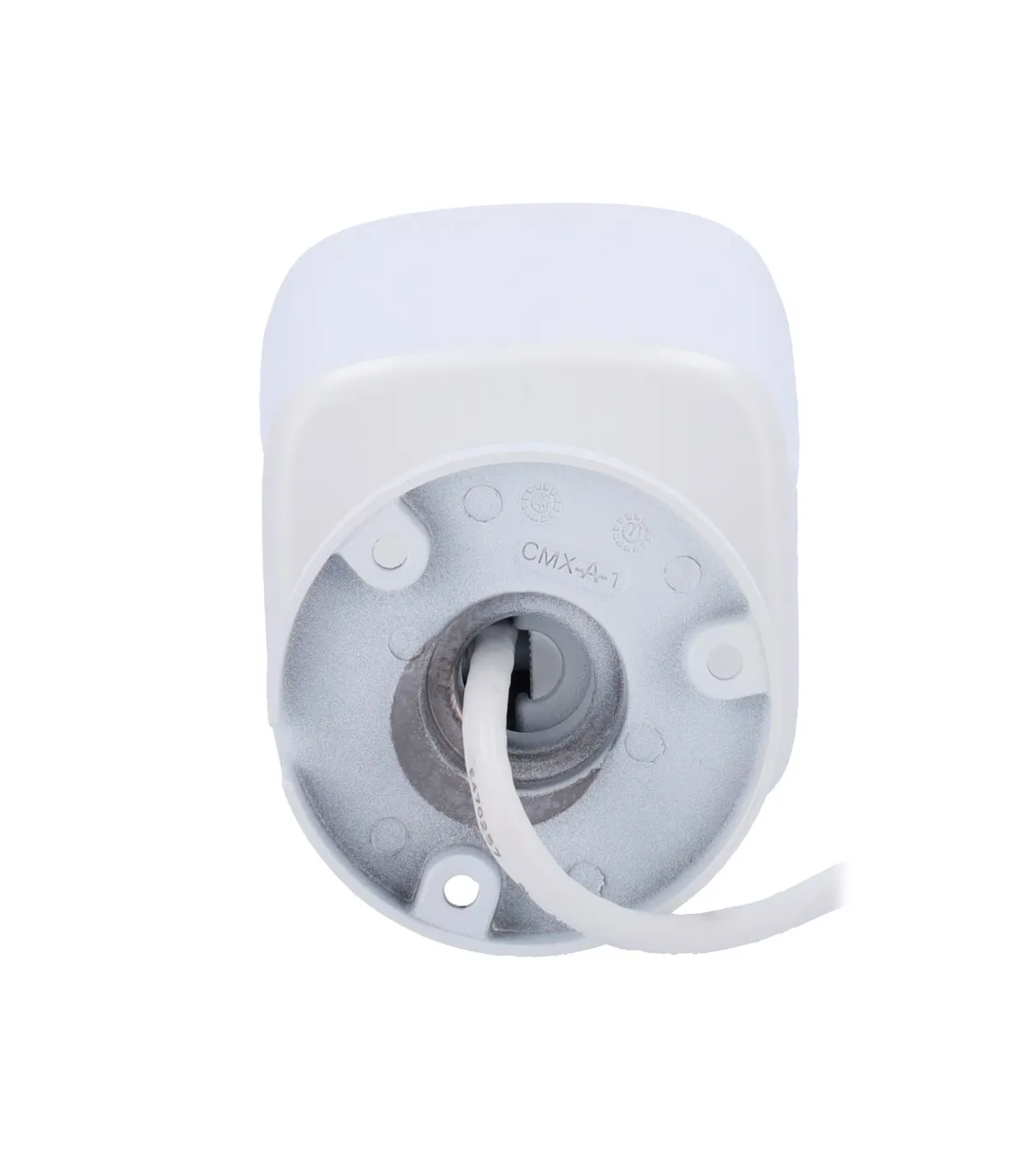

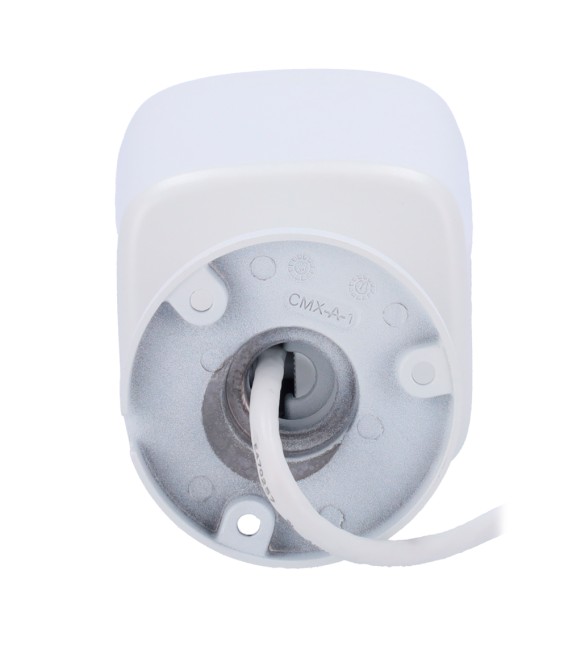

| Base dimensions | base Ø 70.08 mm / Ø between screws 55 mm / 3 screws |
| Weight | 550 g |
