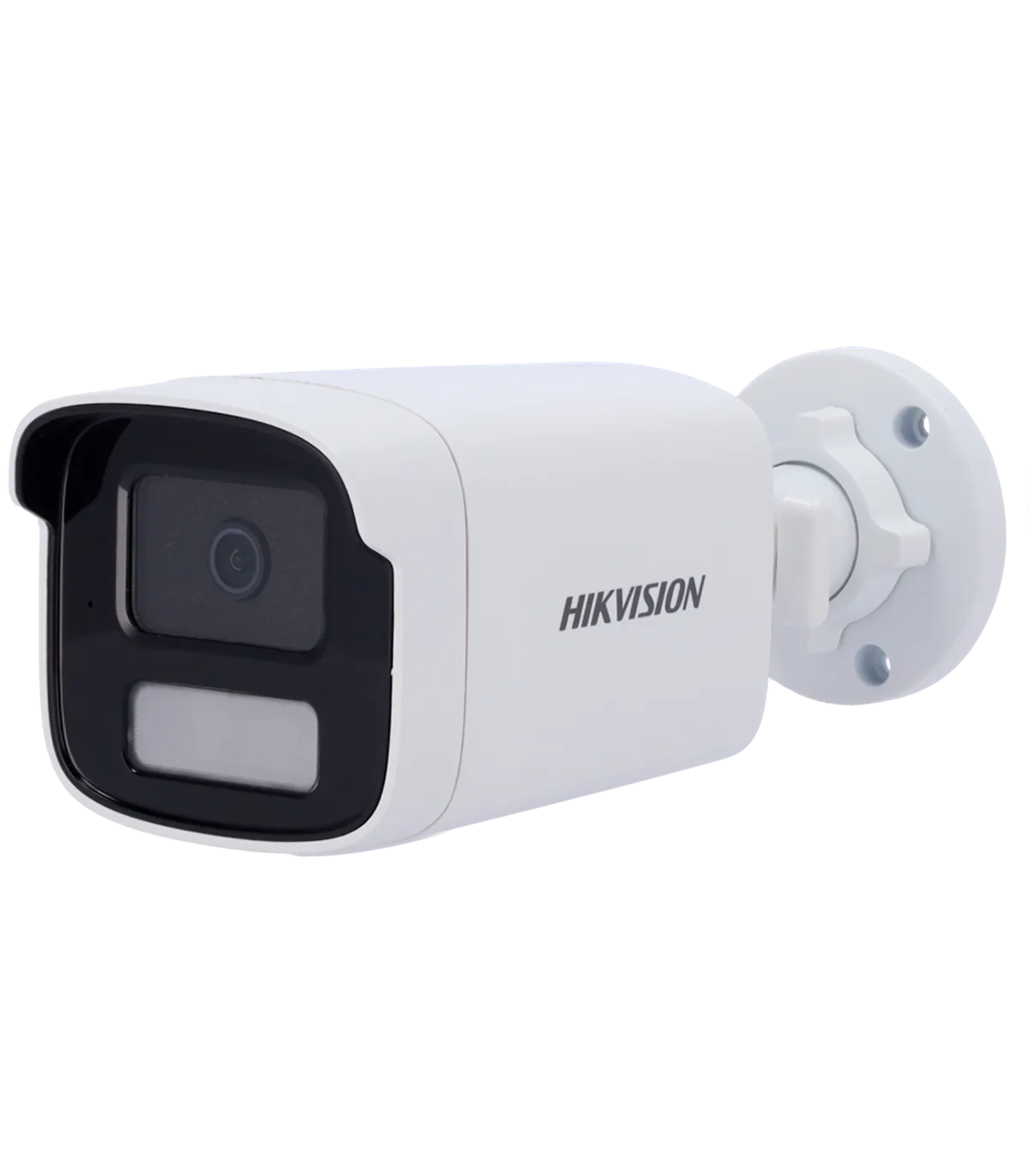

The DS-2CD1T63G2-LIU(4mm) is a high-performance IP bullet camera designed for effective surveillance in various environments. With its advanced 6 Megapixel resolution and hybrid lighting capabilities, this camera excels in both day and night conditions, making it ideal for security monitoring in commercial and residential settings. Its robust features, including motion detection and remote access, ensure comprehensive coverage and peace of mind.
| Brand | HIKVISION |
| Series | Value |
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Maximum Resolution | 6 Megapixel (3200x1800) |
| Main Stream Rate | 20 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 20 fps (1280×720, 640x480, 640×360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 4 mm |
| Field of View (FOV) | H: 78°, V: 38°, D: 96° |
| DORI | 115 m (D), 45 m (O), 23 m (R), 11 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR up to 30 m |
| Supplementary Lighting | Hybrid Light: IR up to 50 m White Light up to 50 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Masking |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network Interface | 1 RJ45 Ethernet 10 M/100 M self-adaptive |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 540 mA / 6.5 W max. / PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof |
| Material | Metal and Plastic |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 80.7 mm (H) x 83.7 mm (W) x 205.6 mm (D) |
| Weight | 635 g |
The DS-2CD1T63G2-LIU(4mm) is an excellent choice for installers looking to enhance security in various settings, such as retail stores, parking lots, and residential areas. With its high-resolution imaging and advanced motion detection capabilities, this camera provides reliable surveillance. The remote monitoring feature allows users to access live feeds from anywhere, ensuring that they can keep an eye on their property at all times. Additionally, the camera's IP67 waterproof rating makes it suitable for outdoor installations, even in harsh weather conditions. The integrated microphone adds an extra layer of security by enabling audio monitoring, making it a versatile solution for comprehensive security needs.
