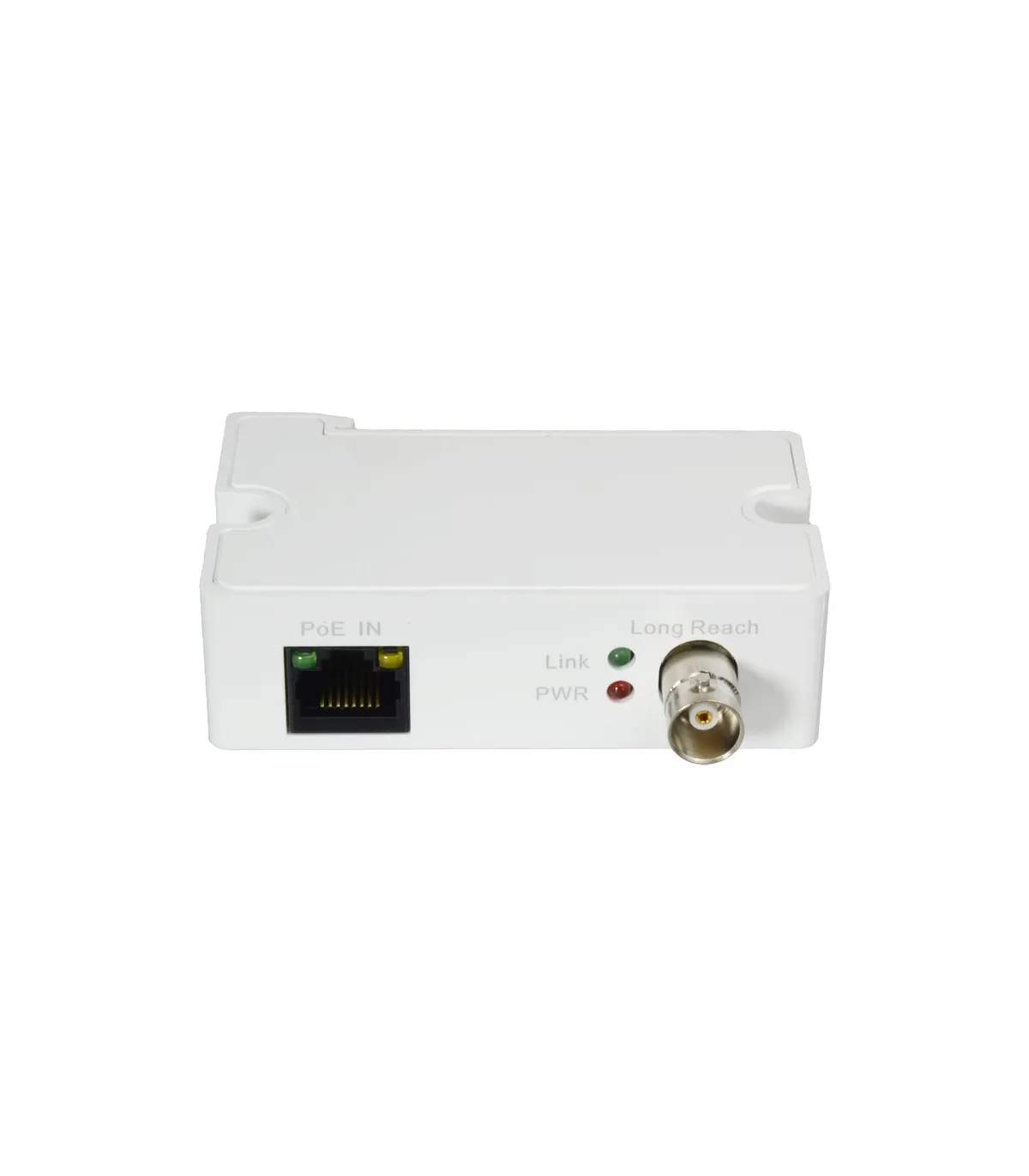

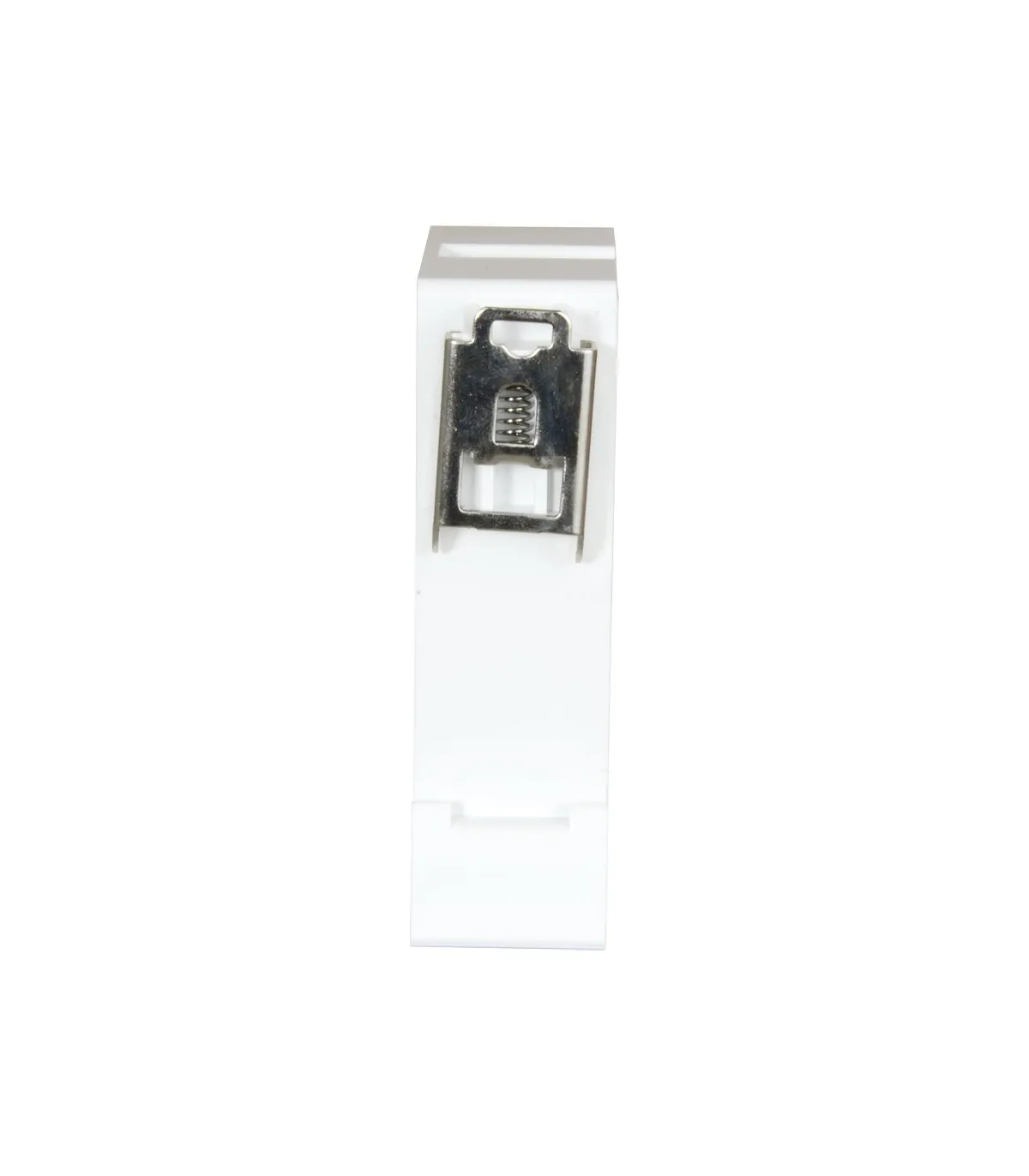

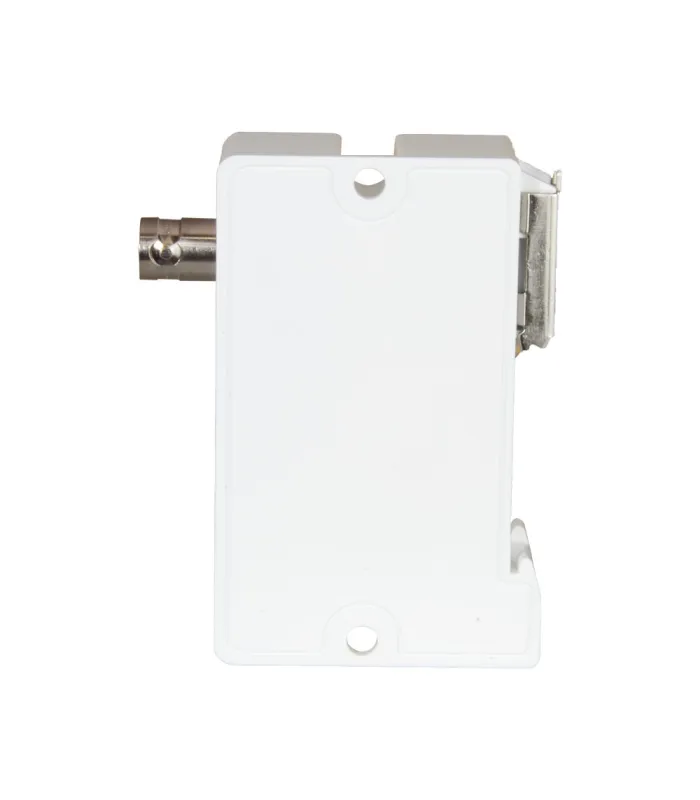

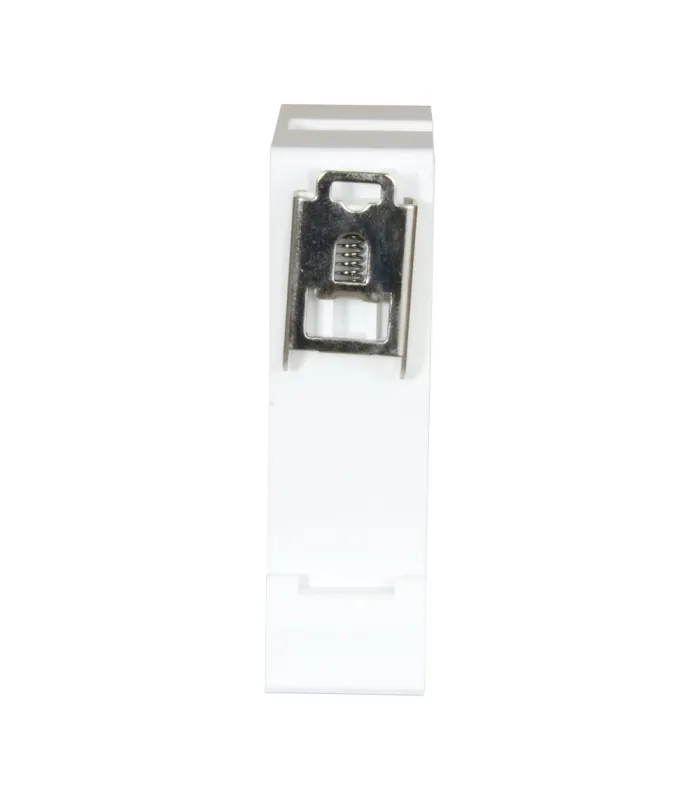

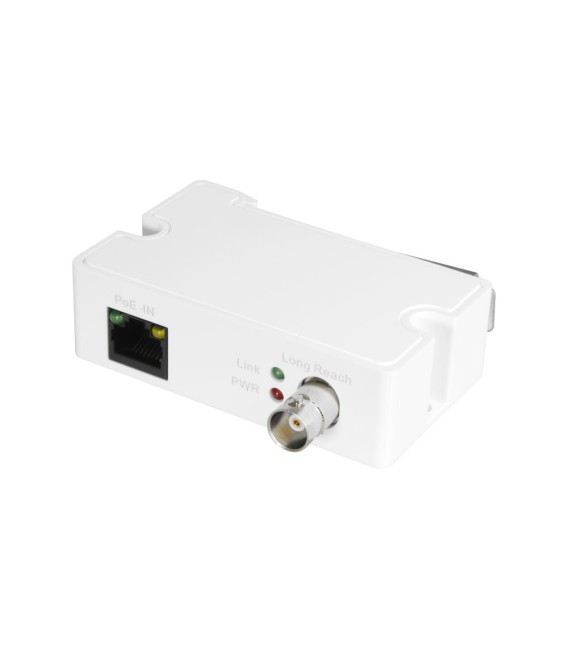

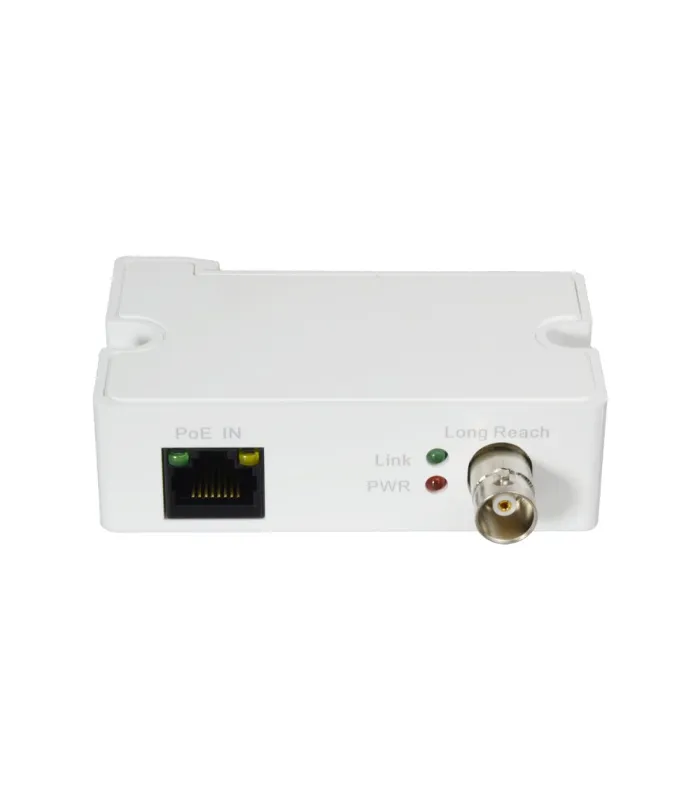

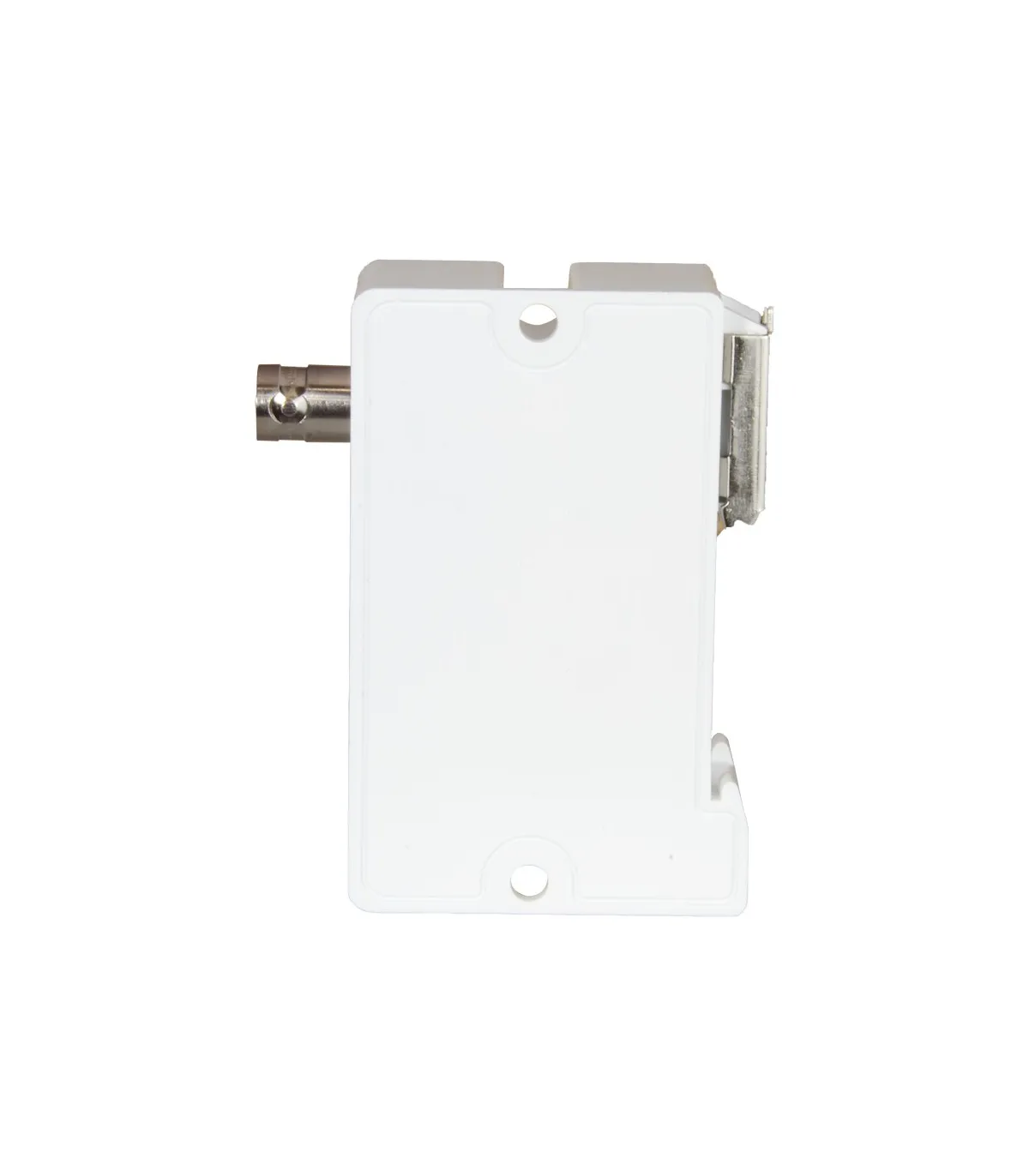

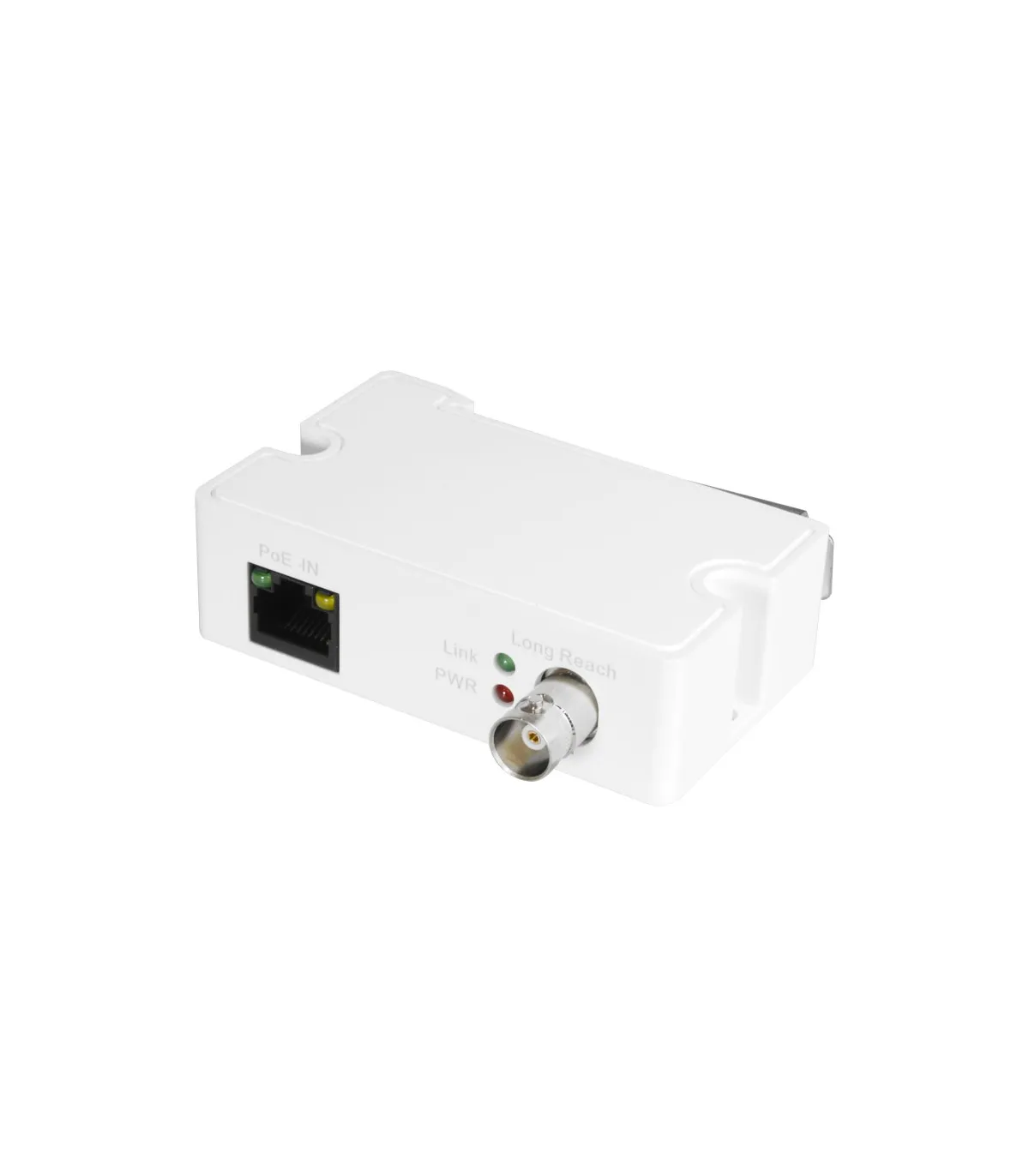

Extensor EoC Branded - 1000 m (LR1002-1ET)
- Branded EoC Extender
- Ethernet over Coaxial Cable
- Active | Specific ePoE
- LR1002 Range Compatible Receiver
- Allows Transmission of 1 IP Channel
- Maximum Distance 1000 m
Technical Specifications
| Coaxial Connection | Female BNC Connector and RJ45 Connector |
| Transmission Rate | 100 Mbps symmetrical (100 Mbps up, 100 Mbps down) |
| Coaxial Distance |
100 m between extenders up to 100Mbps (Up to 21W powered with 48V DC and 25.5W powered with 53V DC) 400 m between extenders up to 100Mbps (Up to 9W powered with 48V DC and 16W powered with 53V DC) 800 m between extenders up to 10Mbps (Up to 5W powered with 48V DC and 8W powered with 53V DC) 1000 m between extenders up to 10Mbps (Up to 4W powered with 48V DC and 6W powered with 53V DC) |
| Connection | Converter for PoE Cameras / Receiver |
| PoE Protocol | PoE (IEEE802.3af/at) or Hi-PoE | ePoE 48V |
| Weight | 61 g |
Content
- EoC Extender
