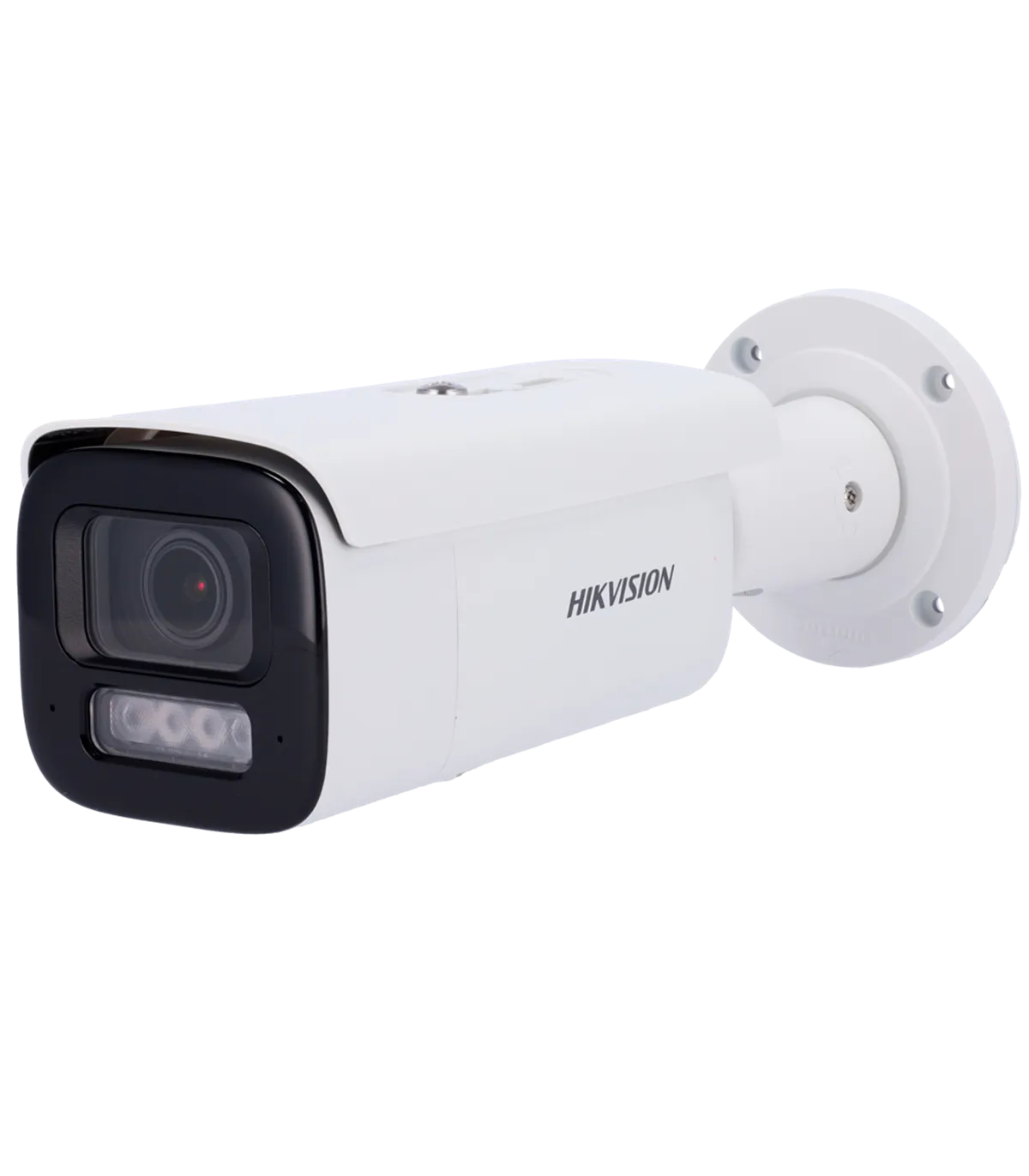

The DS-2CD2683G2-LIZS2U/SL(2.8-12mm) is a high-performance IP Bullet Camera designed for advanced surveillance applications. This device is ideal for both indoor and outdoor environments, providing exceptional image quality with its 8 Megapixel resolution. Equipped with a varifocal motorized lens ranging from 2.8 to 12 mm, it offers flexible viewing angles and enhanced night vision capabilities, making it suitable for various security needs. The camera features advanced technologies such as AcuSense for intelligent motion detection, ensuring reliable monitoring of critical areas.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 20 fps (3840x2160), 25 fps (3200x1800, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * The Third Stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 106.5~30.2°, V: 55.7~17°, D: 128.5~34.7° |
| DORI | 88.3~289.7 m (D), 35~114.9 m (O), 17.7~57.9 m (R), 8.8~29 m (I) |
| Electronic Shutter | 1/3~1/100.000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid light: IR range 60 m White light range 60 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Deterrent Alarm | Integrated white light flash in the camera |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Environmental Noise Filtering | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Detection | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profiles S, G), ISAPI, SDK, ISUP |
| Power Supply | DC 12 V / 1210 mA / 14.5 W max. PoE+ IEEE802.3at |
| Protection Grade | IP67 waterproof IK10 vandal-proof |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 94.2 mm (H) x 97.9 mm (W) x 332.8 mm (D) |
| Base Dimensions | Ø base 105 mm / Ø between screws 89 mm / 4 screws |
| Weight | 1531 g |
The DS-2CD2683G2-LIZS2U/SL(2.8-12mm) is ideally suited for a variety of surveillance applications, such as monitoring parking lots, retail stores, and residential areas. With its high-resolution imaging and advanced motion detection capabilities, this camera can effectively identify and track individuals and vehicles, enhancing security measures. The integration of AcuSense technology allows for precise classification of detected objects, significantly reducing false alarms. Installers can benefit from the plug-and-play setup, which simplifies the installation process, while end users can enjoy the convenience of remote monitoring via web browsers or mobile applications. The camera's robust design, featuring IP67 waterproof and IK10 vandal-proof ratings, ensures reliable performance in various environmental conditions, making it a versatile choice for comprehensive security solutions.
