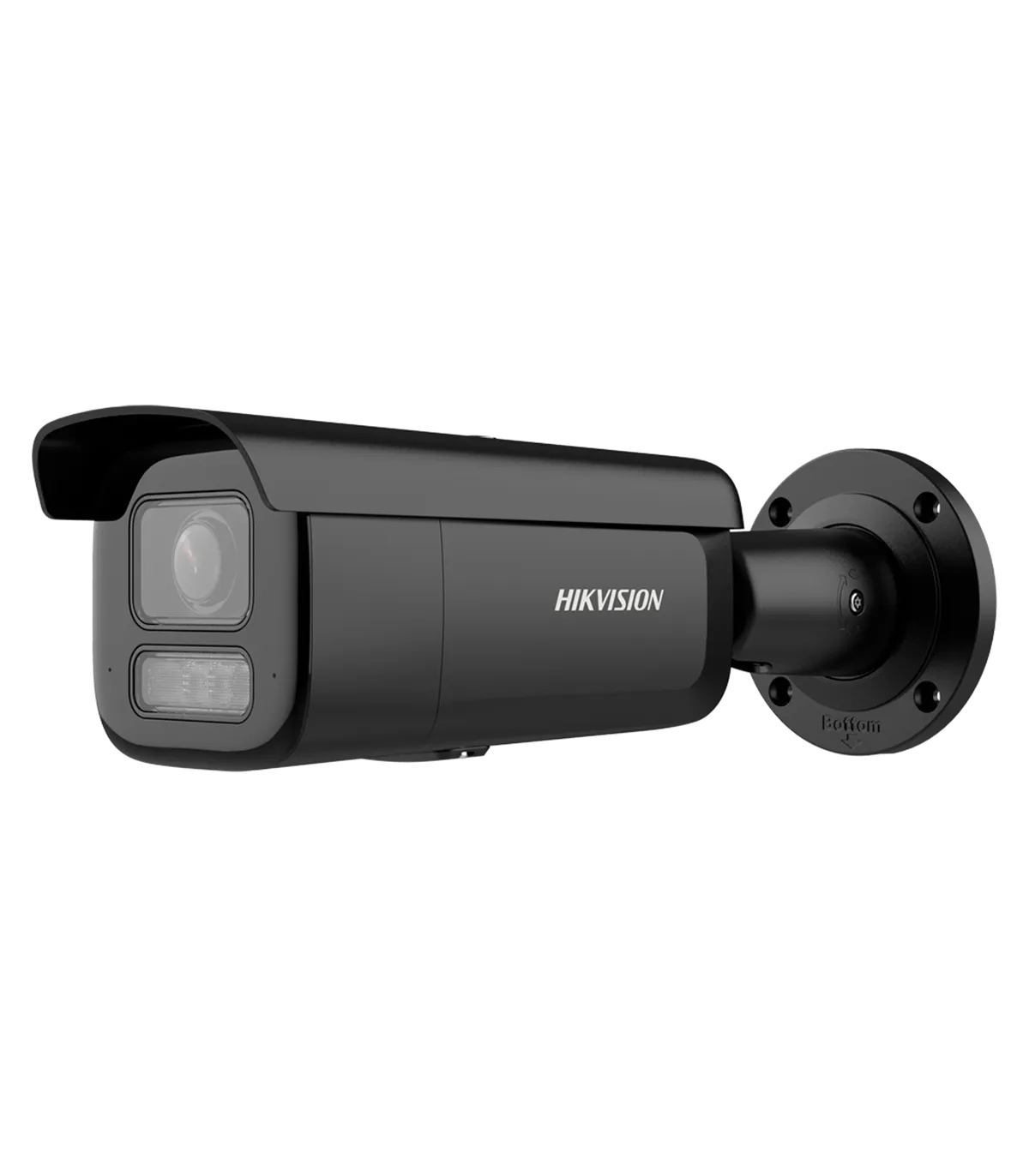

The DS-2CD2643G2-LIZS2U(2.8-12mm)/BLACK is a high-performance IP bullet camera designed for outdoor surveillance. It is ideal for monitoring large areas such as parking lots, warehouses, and retail spaces. With its advanced features, including 4 Megapixel resolution and hybrid light technology, this camera ensures clear images in various lighting conditions, making it a reliable choice for security professionals.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640x480, 640×360) |
| Third Stream Rate | 10 fps (1920x1080, 1280×720, 640x480, 640×360) * The third stream is supported under certain configurations |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Motorized varifocal 2.8~12 mm |
| Field of View (FOV) | H: 102.4~31.2°, V: 54.7~17.6°, D: 122.1~35.8° |
| DORI | 64~198 m (D), 25.4~78.6 m (O), 12.8~39.6 m (R), 6.4~19.8 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Lighting | Hybrid light: IR range 60 m White light range 60 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI Mirror function, Privacy masking |
| ANR | Yes |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated dual array microphone |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Ambient Noise Filtering | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK |
| Power Supply | DC 12 V / 1080 mA / 13 W max. PoE+ IEEE802.3at |
| Protection Grade | IP67 waterproof IK10 vandal-proof |
| Material | Aluminum alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 95.7 mm (H) x 97.9 mm (W) x 298 mm (D) |
| Base Dimensions | Ø base 105 mm / Ø screw spacing 88 mm / 4 screws |
| Weight | 1531 g |
| Color | Black |
The DS-2CD2643G2-LIZS2U(2.8-12mm)/BLACK is perfect for a variety of surveillance applications, particularly in commercial settings. For instance, a retail store can deploy this camera at the entrance to monitor customer traffic and deter theft. With its 4 Megapixel resolution, the camera captures high-quality images, ensuring that every detail is visible. The hybrid light technology allows for effective monitoring even in low-light conditions, providing a clear view at night. Additionally, the AcuSense technology significantly reduces false alarms by accurately classifying human and vehicle movements, making it an ideal choice for busy environments. The camera's remote access capabilities enable store managers to monitor live feeds from their smartphones, ensuring security is maintained at all times. Furthermore, its robust IP67 waterproof and IK10 vandal-proof ratings ensure durability in various weather conditions, making it a reliable solution for outdoor surveillance.
