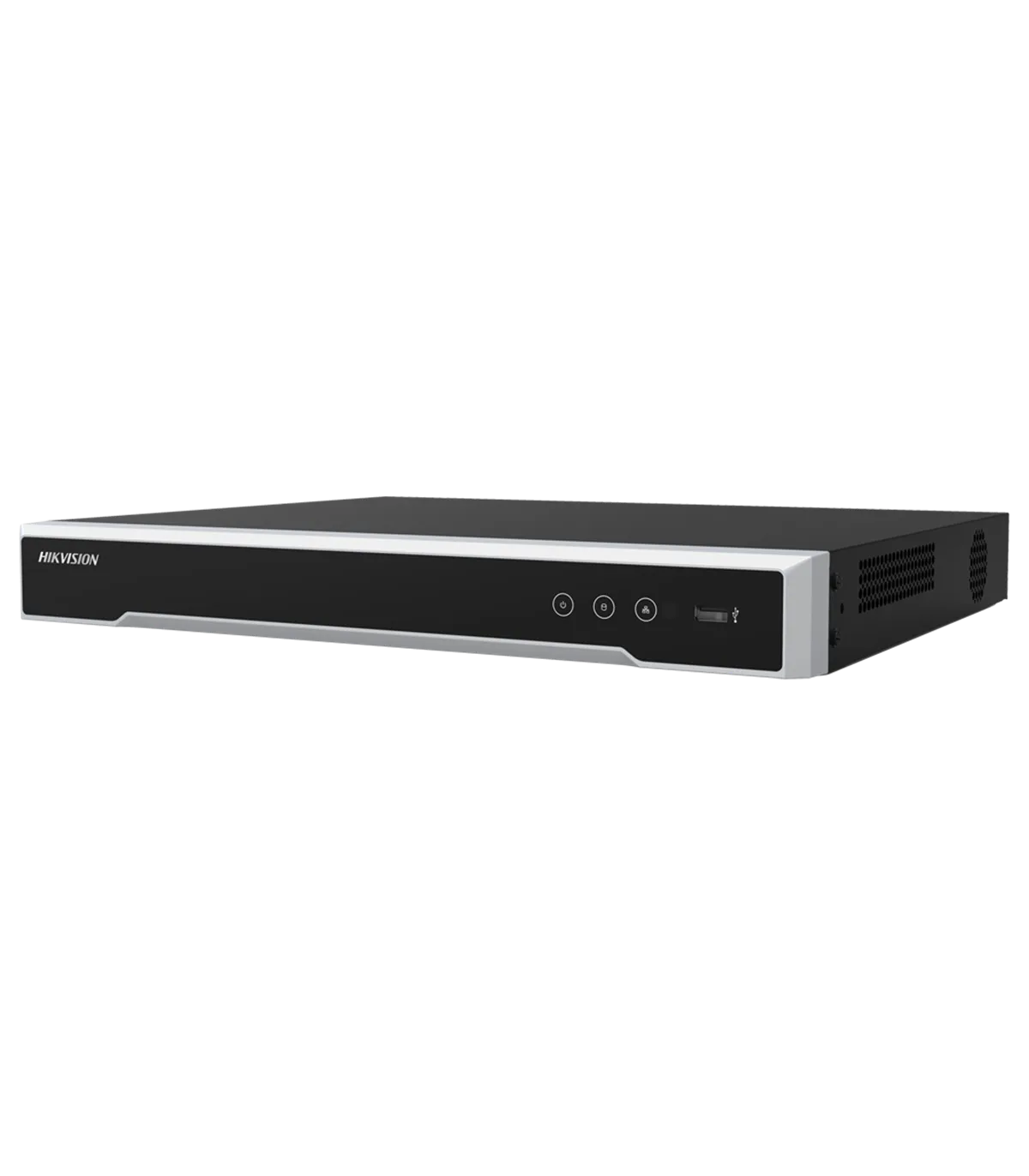

The DS-7616NI-Q2(D) is a professional-grade NVR designed for IP camera surveillance systems, ideal for medium to large-scale installations. This device supports up to 16 channels, making it suitable for comprehensive security monitoring in various environments, such as commercial buildings and industrial sites. With a maximum resolution of 8 MP, it ensures high-quality video capture, while its advanced H.265+ compression technology optimizes bandwidth usage, allowing for efficient data management. The NVR features dual-stream access for enhanced flexibility and is compatible with ONVIF standards, ensuring interoperability with a wide range of IP cameras.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 16 channels |
| PoE Power Supply | Not available |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA output |
| Video Outputs | 1xHDMI 4K, 1xVGA simultaneous |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 4096x2160, 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Total Bandwidth | 160 Mbps input / 80 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Decoding Capability | 1CH@8MP, 3CH@4MP, 6CH@1080p |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. Available on up to 4 channels. |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote Connections | 32 |
| Internal Storage | 2 SATA 3.5" HDDs up to 8 TB each (not included) |
| Communication | 2 x USB 2.0 / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | DC 12 V / 3.33 A, ≤ 15 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 52 (H) x 385 (W) x 315 (D) mm / 1.8 Kg (without HDD) |
The DS-7616NI-Q2(D) NVR is an excellent choice for installers looking to set up a robust surveillance system in a retail environment. With its ability to support up to 16 IP cameras, users can achieve comprehensive coverage of the premises. The device's 4K HDMI output allows for high-resolution monitoring on large displays, ensuring that every detail is captured. Additionally, the dual-stream access feature enables simultaneous viewing and recording, providing flexibility for security personnel. The advanced motion detection capabilities enhance security by allowing for precise alerts based on human and vehicle classification. Furthermore, the remote access options via web browsers and mobile apps ensure that users can monitor their property from anywhere, making it a perfect solution for modern security needs.
