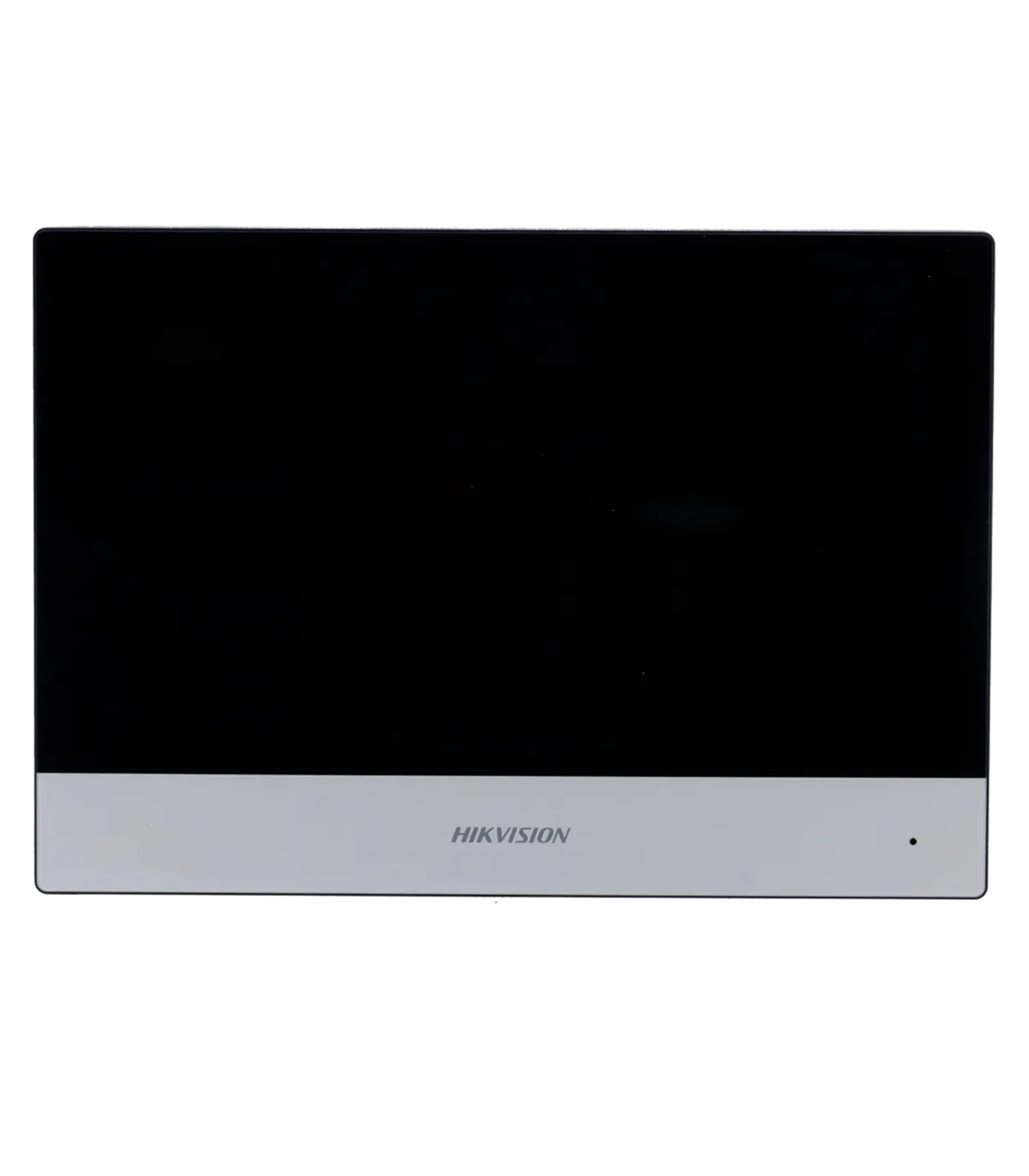

The video intercom monitor is the component installed inside the premises, also known as the indoor unit, and allows the building staff to receive calls from visitors.
This model features a 7" touchscreen that facilitates user operation.
IP devices communicate and are powered via Ethernet cables and PoE switches, reducing the number of cables required for operation.
With 2 relay outputs, it can control various elements, such as doors or bells that can be activated during calls.
The iVMS-4200 software is used to link panels and monitors for making and receiving calls, creating contacts, sending informational messages to the monitors, or reviewing call logs.
With the Hik-Connect mobile application for the end user, calls can be received, doors can be opened, or the camera feed from the panel can be viewed live, all from anywhere.
| Brand | Hikvision |
| Model | DS-KH6320-WTE1 |
| Operating System | Linux |
| Screen Type | 7" color TFT touchscreen |
| Screen Resolution | 1024 x 600 |
| Inputs | 8 x configurable alarm, 1 x RS485 |
| Outputs | 2 x relay |
| Audio | Two-way audio with integrated microphone and speaker Noise reduction and echo cancellation |
| Memory | MicroSD card slot (up to 128 GB) |
| Connection | Ethernet 10/100 BaseT / RTSP / SIP Protocol 2.0 / WiFi 802.11 b/g/n (only for app connection via P2P) |
| Remote Access | iVMS-4200 software Hik-Connect mobile app |
| Power Supply | DC 12 V / 1 A max. / PoE IEEE802.3af |
| Operating Temperature | -10 ºC ~ +55 ºC |
| Dimensions | 140 (H) x 200 (W) x 15 (D) mm |
| Weight | 355 g |
| Slave Monitors | Android monitors DS-KH9310 and DS-KH9510 cannot be used as slaves |
